# 【MOSMA】基于粘菌算法求解多目标优化问题附matlab代码

+关注继续查看

✅作者简介：热爱科研的Matlab仿真开发者，修心和技术同步精进，matlab项目合作可私信。

🍎个人主页：Matlab科研工作室

🍊个人信条：格物致知。

## ⛄ 部分代码

%% Multiple Objective Slime Mould Algorithm (MOSMA)

% M. Premkumar, P. Jangir, R. Sowmya, H. H. Alhelou, A. A. Heidari and H. Chen,

% "MOSMA: Multi-objective Slime Mould Algorithm Based on Elitist Non-dominated Sorting,"

% in IEEE Access, doi: 10.1109/ACCESS.2020.3047936.

%% Objective Function

% The objective function description contains information about the

% objective function. M is the dimension of the objective space, D is the

% dimension of decision variable space, LB and UB are the

% range for the variables in the decision variable space. User has to

% define the objective functions using the decision variables. Make sure to

% edit the function 'evaluate_objective' to suit your needs.

clc

clear all

close all

D = 30; % Number of decision variables

M = 2; % Number of objective functions

K=M+D;

LB = ones(1, D).*0; %  LB - A vector of decimal values which indicate the minimum value for each decision variable.

UB = ones(1, D).*1; % UB - Vector of maximum possible values for decision variables.

GEN = 200;  % Set the maximum number of generation (GEN)

ecosize = 200;      % Set the population size (NP)

ishow = 10;

%% Start the evolution process

Pareto = MOSMA(D,M,LB,UB,ecosize,GEN,ishow);

Obtained_Pareto= Pareto(:,D+1:D+M); % extract data to plot

Obtained_Pareto=sortrows(Obtained_Pareto,2);

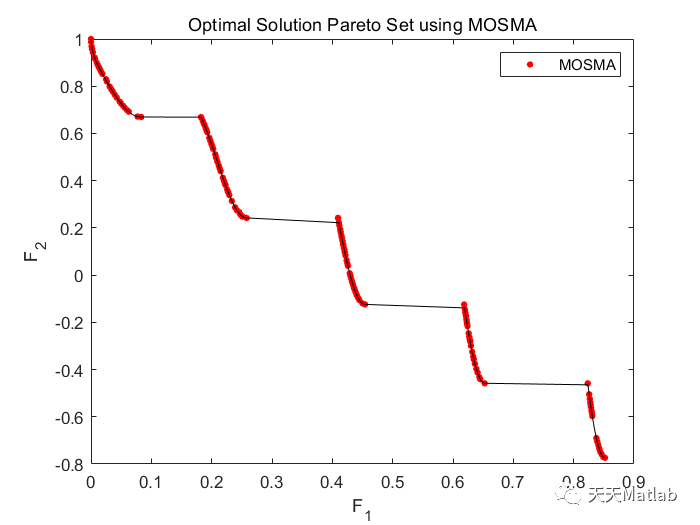

%% Plot data

if M == 2

plot(Obtained_Pareto(:,1),Obtained_Pareto(:,2),'o','LineWidth',2,...

'MarkerEdgeColor','r','MarkerSize',2);

hold on

plot(True_Pareto(:,1),True_Pareto(:,2),'k');

title('Optimal Solution Pareto Set using MOSMA');

legend('MOSMA');

xlabel('F_1');

ylabel('F_2');

elseif M == 3

plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'o','LineWidth',2,...

'MarkerEdgeColor','r','MarkerSize',2);

hold on

plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'.','LineWidth',2,...

'MarkerEdgeColor','k','MarkerSize',6);

title('Optimal Solution Pareto Set using MOSMA');

legend('MOSMA');

xlabel('F_1');

ylabel('F_2');

zlabel('F_3');

end

%%  Metric Value

M_IGD=IGD(Obtained_Pareto,True_Pareto);

M_GD=GD(Obtained_Pareto,True_Pareto);

M_HV=HV(Obtained_Pareto,True_Pareto);

M_Spacing=Spacing(Obtained_Pareto,True_Pareto);

M_DeltaP=DeltaP(Obtained_Pareto,True_Pareto);

display(['The IGD Metric obtained by MOSMA is     : ', num2str(M_IGD)]);

display(['The GD Metric obtained by MOSMA is      : ', num2str(M_GD)]);

display(['The HV Metric obtained by MOSMA is      : ', num2str(M_HV)]);

display(['The Spacing Metric obtained by MOSMA is : ', num2str(M_Spacing)]);

display(['The DeltaP Metric obtained by MOSMA is  : ', num2str(M_DeltaP)]);

## ⛄ 参考文献

M. Premkumar, Pradeep Jangir, R. Sowmya, Hassan Haes Alhelou, Ali Asghar Heidari, and Huiling Chen, "MOSMA: Multi-Objective Slime Mould Algorithm Based on Elitist Non-Dominated Sorting," IEEE Access, vol. 9, pp. 3229-3248, 2021.

|
