🍁🥬🕒摘要🕒🥬🍁
多旋翼无人机已被广泛应用于军事与民用领域。导航系统是多旋翼无人机的重要组成部分,是其实现安全与稳定飞行的基础。采用INS/GPS组合导航系统可实现高精度导航,该组合导航系统具有优势互补、导航机构冗余的特点,其实质是一个多传感器导航信息优化处理系统。无人机的主要导航参数就是依靠多传感器信息融合获得的,因此信息融合技术是组合导航系统的关键技术,目前已成为国内外学者研究的热点问题。随着多旋翼无人机向自主化和智能化发展,多旋翼无人机对其自身导航系统的性能提出了更高的要求。但是受多旋翼无人机自身成本的制约,导航系统中选用的传感器精度较低。针对这一矛盾,本文提出将无人机自带的微型惯导系统与GPS通过信息融合技术相结合,构成INS/GPS组合导航系统,由此能够提升导航系统的整体性能。本文的研究工作围绕组合导航系统的设计展开。除此之外，本文以课题组自行研制的全新结构多旋翼小型无人机为研究平台,展开对机载多传感器组合导航系统信息融合这一关键技术的研究。

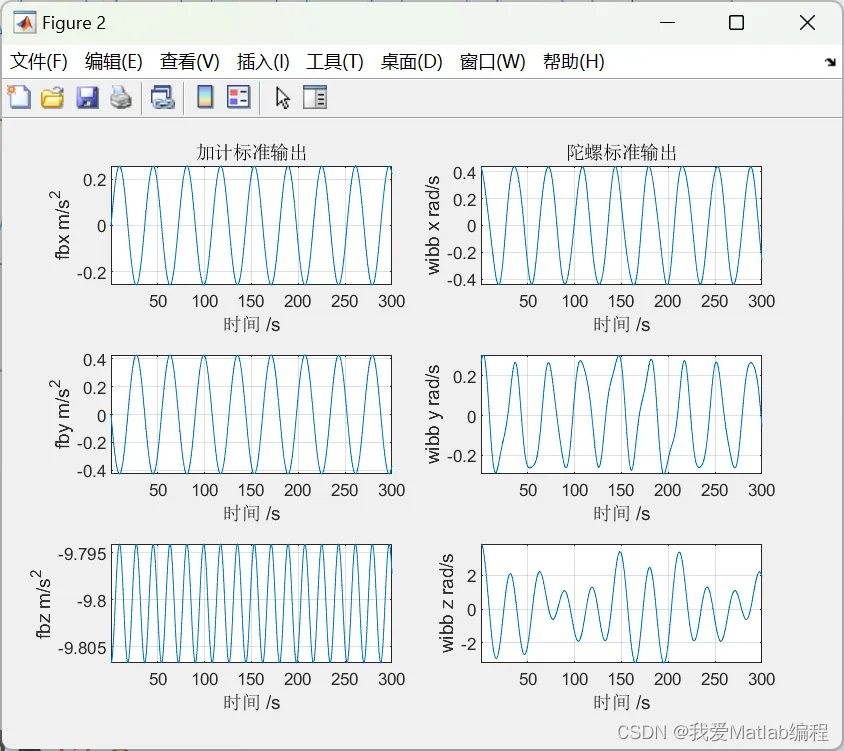

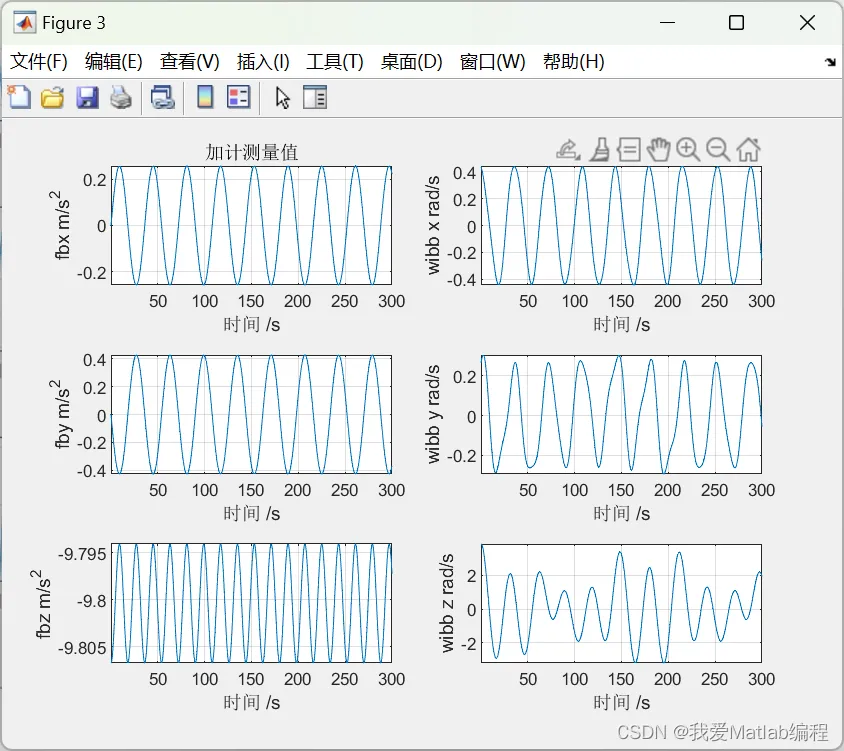

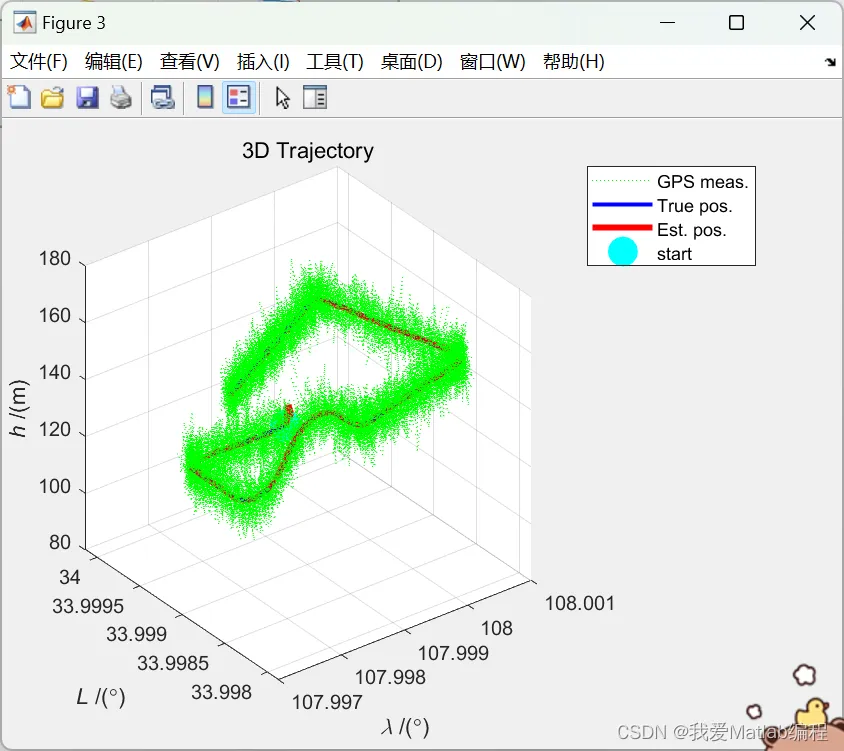

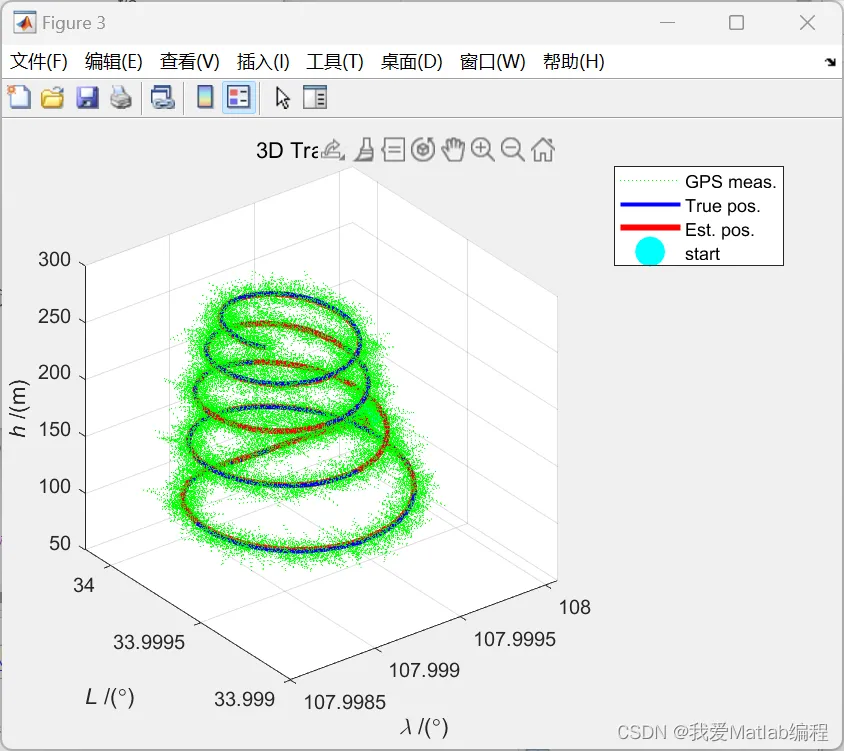

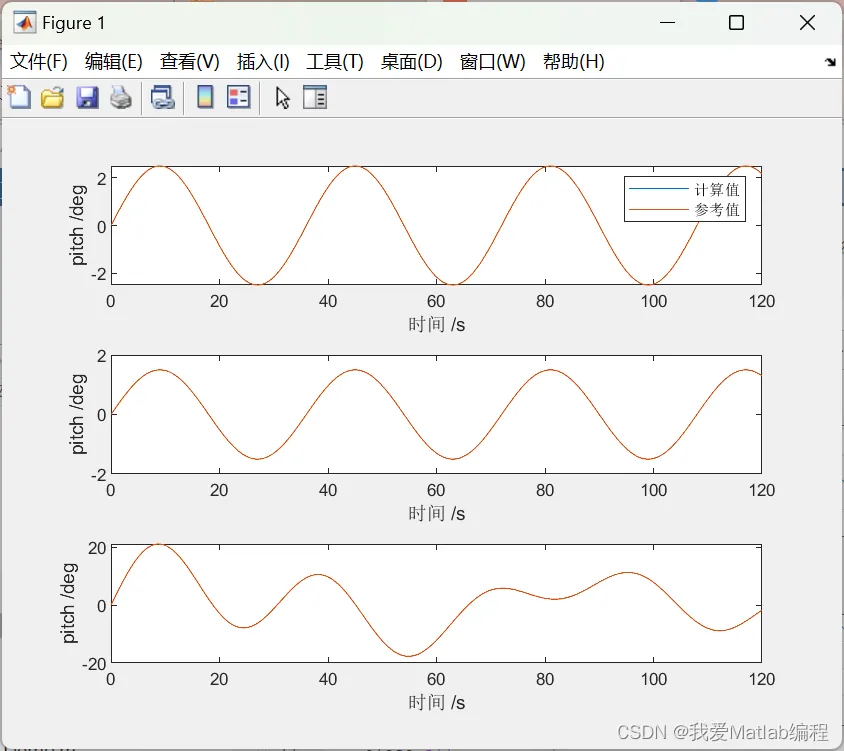

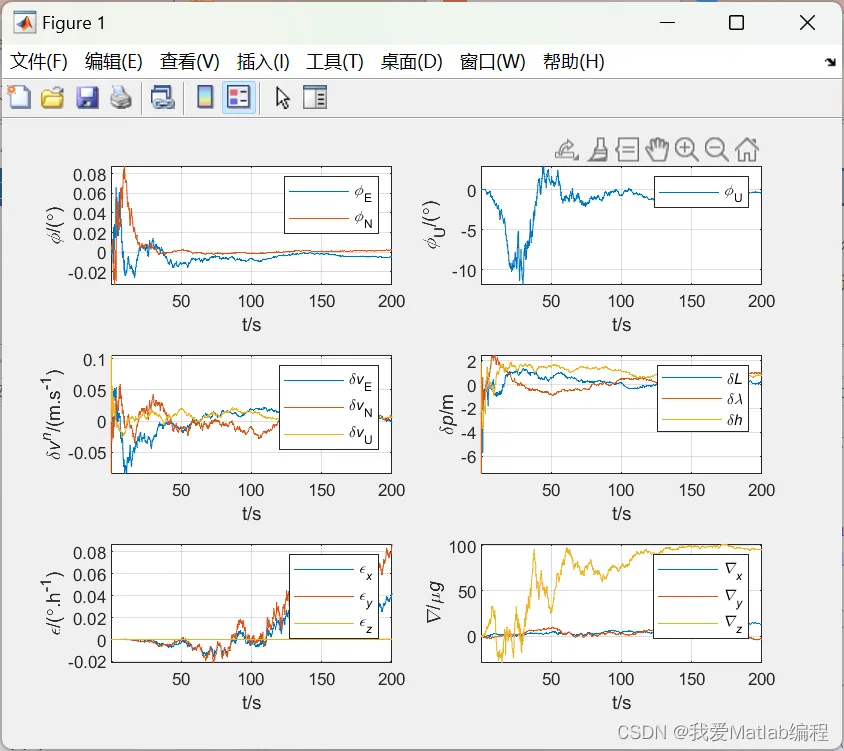

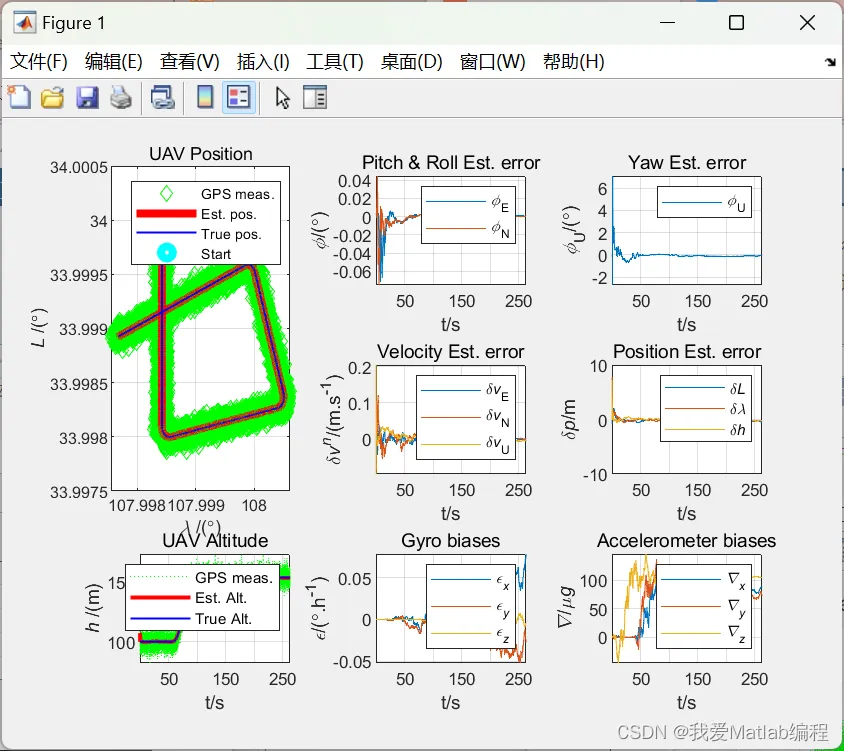

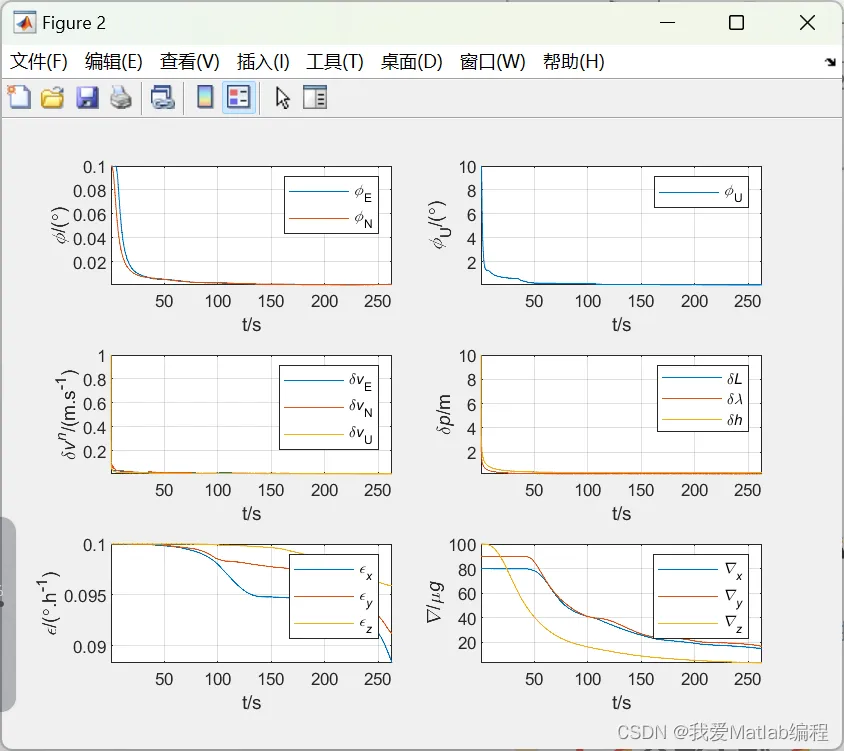

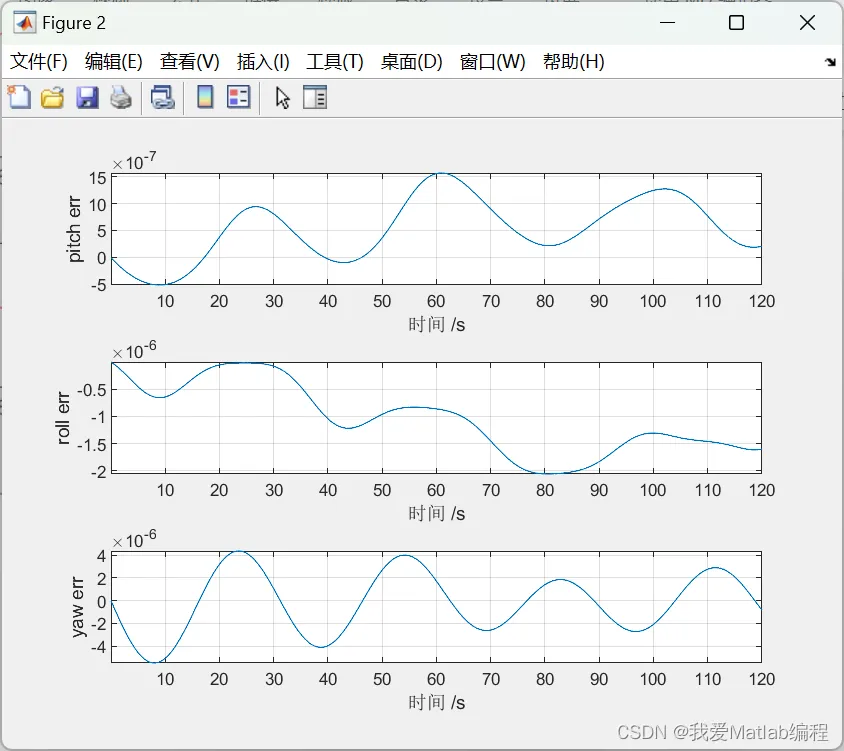

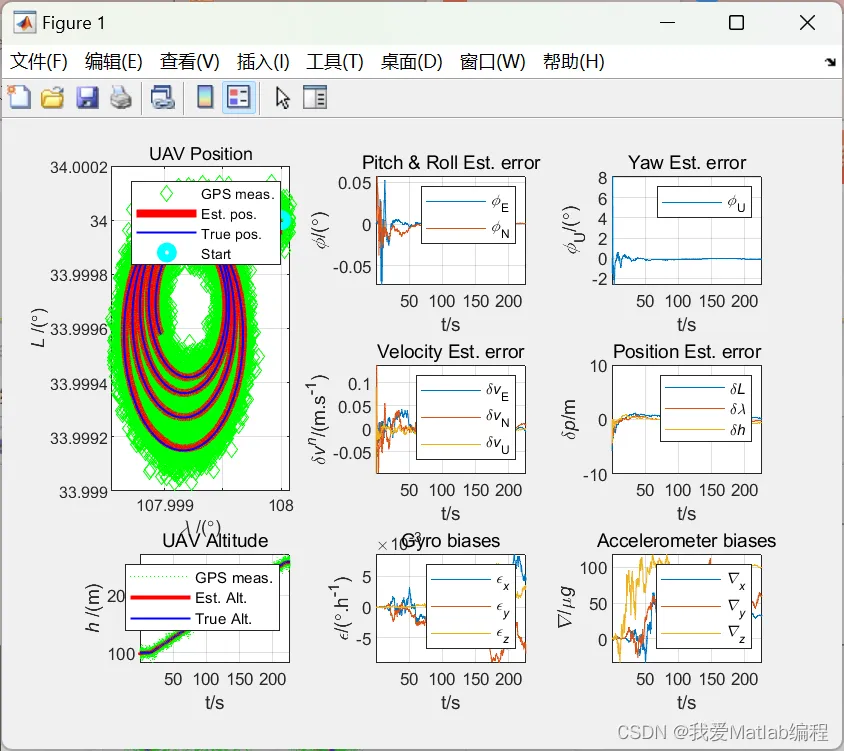

✨🔎⚡运行结果⚡🔎✨
💂♨️👨🎓Matlab代码👨🎓♨️💂
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% % Description: % SINS/GPS Intergration Navigation System test version 2.0 % Indirect kalman filter（反馈校正法） % close all clear clc %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% % load Uav true trajectory data. addpath UavTrajectorySim; disp(' ') disp('Available UAV Truth Trajectory Data Files:') dir_mat_files = dir('UavTrajectorySim\*.mat'); for nFile=1:length(dir_mat_files) fprintf(' %d: %s\n',nFile,dir_mat_files(nFile).name); end % nFileChoice = input('Choose a UAV Truth data file (e.g. 1<Enter>): '); try % load(dir_mat_files(nFileChoice).name) load(dir_mat_files(1).name) catch error('Selected UAV Truth Trajectory data file (%d) is invalid.\n',nFileChoice); end gvar_earth; % 单次更新中使用的子样数 nn = 2; % 采样时间 ts = 0.01; nts = nn*ts; % 初始姿态、速度、位置 att0 = [0, 0, 90]'*arcdeg; vn0 = [0, 0, 0]'; pos0 = [34*arcdeg, 108*arcdeg, 100]'; % lattitude, longtitude, height qbn0 = a2qua(att0); % 姿态四元数、速度、位置 qbn = qbn0; vn = vn0; pos = pos0; eth = earth(pos, vn); % *** 添加误差 *** % 失准角 phi = [0.1, 0.2, 1]'*arcmin; qbn = qaddphi(qbn, phi); % 陀螺零偏，角度随机游走 eb_ref = [0.1, 0.15, 0.2]'*dph; eb = [0.01, 0.015, 0.02]'*dph; web = [0.001, 0.001, 0.001]'*dpsh; % 加计零偏，速度随机游走 db_ref = [800, 900, 1000]'*ug; db = [80, 90, 100]'*ug; wdb = [1, 1, 1]'*ugpsHz; Qk = diag([web', wdb', zeros(1, 9)]')^2*nts; rk = [[0.1, 0.1, 0.1], [5/Re, 5/Re, 5]]'; Rk = diag(rk)^2; % 协方差矩阵，x = [phi, delta_vn, delta_p, eb, db] P0 = diag([[0.1, 0.1, 10]*arcdeg, [1, 1, 1], [10/Re, 10/Re, 10]... [0.1, 0.1, 0.1]*dph, [80, 90, 100]*ug]')^2; % 量测矩阵 Hk = [zeros(6,3), eye(6), zeros(6, 6)]; % Kalman filter initialization kf = kfinit(Qk, Rk, P0, zeros(15), Hk); % 与模拟轨迹时长一致 kTime = fix(t_SD/ts); err = zeros(kTime, 10); xkpk = zeros(kTime, 2*kf.n + 1); pos_ref = zeros(kTime,3); pos_est = zeros(kTime,3); pos_gps = zeros(kTime,3); kk = 1; t = 0; for k = 2 : nn : kTime t = t + nts; % 获取模拟轨迹对应的imu输出: 角增量和速度增量（参考值） wm(1:nn,:) = imu_SD.wm(k-nn+1:k,:); vm(1:nn,:) = imu_SD.vm(k-nn+1:k,:); % 为IMU参考输出添加噪声 [wm1, vm1] = imuadderr(wm, vm, eb, web, db, wdb, ts); % 惯导更新：姿态四元数、速度、位置 [qbn, vn, pos, eth] = insupdate(qbn, vn, pos, wm1, vm1, ts); % 基于模型预测：导航误差系统模型卡尔曼滤波 kf.Phikk_1 = eye(15) + kfft15(eth, q2mat(qbn), sum(vm1, 1)'/nts)*nts; kf = kfupdate(kf); % 模拟GPS量测数据 gps = [avp_SD.vn(k,:)'; avp_SD.pos(k,:)'] + rk.*randn(6, 1); pos_gps(kk,:) = gps(4:6)'; % 量测更新 5Hz if mod(t, 0.2) < nts Zk = [vn', pos']' - gps; kf = kfupdate(kf, Zk, 'M'); end % Indirect Kalman filter：feedback to IMU (反馈校正法) qbn = qdelphi(qbn, kf.Xk(1:3)); vn = vn - kf.Xk(4:6); pos = pos - kf.Xk(7:9); pos_est(kk,:) = pos'; % 反馈校正：由于反馈项的存在导致卡尔曼滤波的先验估计值始终为零. Ref: 王辰熙 kf.Xk(1:3) = 0; kf.Xk(4:6) = 0; kf.Xk(7:9) = 0; % kf.Xk(10:12) = 0; % kf.Xk(13:15) = 0; % compute the error between estimation & truth data % Note that this 'error' is not the 'state vector' in the Kalman equ. % In indirect kalman filter, the 'state vector' means the error of % the IMU update (respect to True data.) qbn_ref = a2qua(avp_SD.att(k,:)); vn_ref = avp_SD.vn(k,:)'; pos_ref(kk,:) = avp_SD.pos(k,:); err(kk, :) = [qq2phi(qbn, qbn_ref)', (vn - vn_ref)', (pos - pos_ref(kk,:)')', t]; xkpk(kk, :) = [kf.Xk', diag(kf.Pk)', t]'; kk = kk + 1; % % 程序运行时显示当前进度 % if mod(t, 50) == 0 % % disp(fix(t)); % disp('...'); % end end % 为了让err有足够的空间，在初始化时我们将其长度设置为len。由于采用多子样算 % 法或者别的某些缘故，err通常“装不满”，该操作便是为了把多余的0拿掉。 err(kk:end, :) = []; xkpk(kk:end, :) = []; pos_ref(kk:end,:) = []; pos_est(kk:end,:) = []; pos_gps(kk:end,:) = []; tt = err(:, end); %% 以下是绘图程序 figure; subplot(3,3,[1,4]); % 横轴是经度Lontitu，纵轴是纬度Latitude plot(pos_gps(:,2)/arcdeg,pos_gps(:,1)/arcdeg, 'dg','LineWidth',0.1); hold on; plot(pos_est(:,2)/arcdeg,pos_est(:,1)/arcdeg, 'r','LineWidth',4); hold on; plot(pos_ref(:,2)/arcdeg,pos_ref(:,1)/arcdeg, 'b','LineWidth',1); hold on; plot(pos_ref(1,2)/arcdeg,pos_ref(1,1)/arcdeg, 'oc','LineWidth',4); % axis equal; grid on; xlabel('\it\lambda\rm /(\circ)'); ylabel('\itL\rm /(\circ)'); legend('GPS meas.','Est. pos.','True pos.', 'Start'); title('UAV Position') subplot(3,3,2); plot(tt, err(:, 1:2)/arcdeg); grid on; axis tight; xlabel('t/s'); ylabel('\it\phi\rm/(\circ)'); legend('\it\phi\rm_E', '\it\phi\rm_N'); title('Pitch & Roll Est. error') subplot(3,3,3); plot(tt, err(:, 3)/arcdeg); grid on; axis tight; % ylim([-10,10]) xlabel('t/s'); ylabel('\it\phi\rm_U\rm/(\circ)'); legend('\it\phi\rm_U'); title('Yaw Est. error') subplot(3,3,5); plot(tt, err(:, 4:6)); grid on; axis tight; xlabel('t/s'); ylabel('\delta\itv^n\rm/(m.s^{-1})'); legend('\delta\itv\rm_E', '\delta\itv\rm_N', '\delta\itv\rm_U'); title('Velocity Est. error') subplot(3,3,6); plot(tt, [err(:, 7)*Re, err(:, 8)*Re*cos(pos(1)), err(:, 9)]); grid on; axis tight; ylim([-10,10]); xlabel('t/s'); ylabel('\delta\itp\rm/m'); legend('\delta\itL', '\delta\it\lambda', '\delta\ith'); title('Position Est. error') subplot(3,3,7); plot(tt,pos_gps(:,3), ':g','LineWidth',0.1); hold on; plot(tt,pos_est(:,3), 'r','LineWidth',2); hold on; plot(tt,pos_ref(:,3), 'b','LineWidth',1); grid on; axis tight; xlabel('t/s'); ylabel('\ith\rm /(m)'); legend('GPS meas.','Est. Alt.','True Alt.'); title('UAV Altitude') subplot(3,3,8); plot(tt, xkpk(:, 10:12)/dph); grid on; axis tight; xlabel('t/s'); ylabel('\it\epsilon\rm/(\circ.h^{-1})'); legend('\it\epsilon_x', '\it\epsilon_y', '\it\epsilon_z'); title('Gyro biases') subplot(3,3,9); plot(tt, xkpk(:, 13:15)/ug); grid on; axis tight; xlabel('t/s'); ylabel('\it\nabla\rm/\mu\itg'); legend('\it\nabla_x', '\it\nabla_y', '\it\nabla_z'); title('Accelerometer biases') % 均方误差收敛图 spk = sqrt(xkpk(:, 16:end-1 )); msplot(321, tt, spk(:, 1:2)/arcdeg, '\it\phi\rm/(\circ)'); legend('\it\phi\rm_E', '\it\phi\rm_N'); msplot(322, tt, spk(:, 3)/arcdeg, '\it\phi\rm_U\rm/(\circ)'); legend('\it\phi\rm_U'); msplot(323, tt, spk(:, 4:6), '\delta\itv^n\rm/(m.s^{-1})'); legend('\delta\itv\rm_E', '\delta\itv\rm_N', '\delta\itv\rm_U'); msplot(324, tt, [spk(:, 7)*Re, spk(:, 8)*Re*pos(1), spk(:, 9)],... '\delta\itp\rm/m'); legend('\delta\itL', '\delta\it\lambda', '\delta\ith'); msplot(325, tt, spk(:, 10:12)/dph, '\it\epsilon\rm/(\circ.h^{-1})'); legend('\it\epsilon_x', '\it\epsilon_y', '\it\epsilon_z'); msplot(326, tt, spk(:, 13:15)/ug, '\it\nabla\rm/\mu\itg'); legend('\it\nabla_x', '\it\nabla_y', '\it\nabla_z'); % 三维轨迹 figure(3) plot3(pos_gps(:,2)/arcdeg, pos_gps(:,1)/arcdeg, pos_gps(:,3), ':g','LineWidth',0.1); hold on; plot3(pos_ref(:,2)/arcdeg, pos_ref(:,1)/arcdeg, pos_ref(:,3),'b','LineWidth',2); hold on; plot3(pos_est(:,2)/arcdeg, pos_est(:,1)/arcdeg, pos_est(:,3),'r','LineWidth',3); hold on; plot3(pos_ref(1,2)/arcdeg, pos_ref(1,1)/arcdeg, pos_ref(1,3),'oc','LineWidth',10); xlabel('\it\lambda\rm /(\circ)'); ylabel('\itL\rm /(\circ)'); zlabel('\ith\rm /(m)') legend('GPS meas.','True pos.','Est. pos.','start') grid on; title('3D Trajectory')
📜📢🌈参考文献🌈📢📜
[1]刘洪剑,王耀南,谭建豪,李树帅,钟杭.一种旋翼无人机组合导航系统设计及应用[J].传感技术学报,2017,30(02):331-336.
