1.项目介绍

本项目采用的数据为通话记录数据，例（张三李四 2021-4-23 12:32:13 2942）意思是张三在2021-4-23 12:32:13这个时间给李四通话，通话时长为2942秒

数据来源【程序自己模拟数据的产生，交给Kafka的生产者】
Kafka的消费者端接的是HBase数据库
MapReduce读取HBase中的数据进行分析
再将分析的数据导入MySQL

2.各类介绍

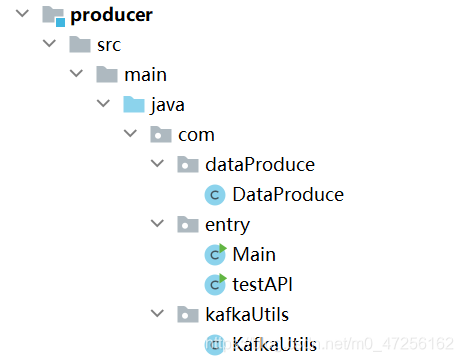

Produce模块

DataProduce：主要负责生产数据
Main：函数的入口
testAPI：进行功能测试
KafkaUtils：将数据发送到topic

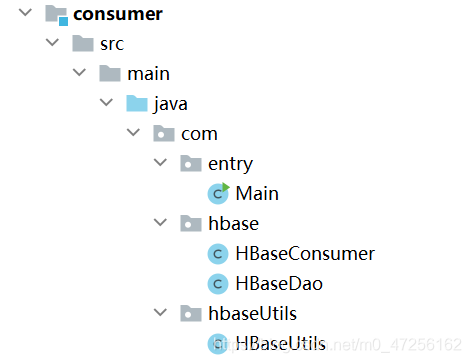

Consumer模块

Main：程序的入口
HBaseConsumer：消费者拉取数据
HBaseDao：HBase的客户端对象，创建表导入数据
HBaseUtils：主要是创建RowKey，还有一些建表和命名空间的操作

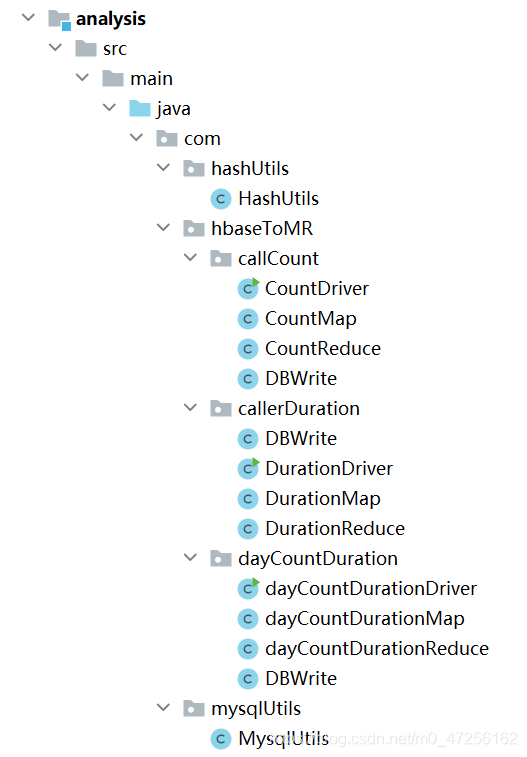

Analysis模块

HashUtils：将每个Cell中的数据存入到HashMap中
MysqlUtils：主要是Mysql的连接操作
CountMap：计算每个用户之间的通话记录次数
DBWrite：实现了Writable、DBWritable，用于序列化以及写数据库操作

3.项目各模块

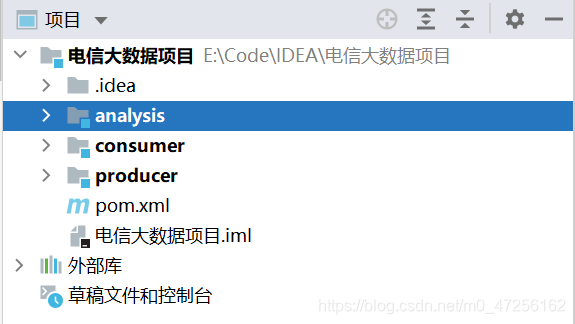

项目分为三个模块，分别是produce、consumer、analysis

produce：实现数据生产
consumer：Kafka将数据写入HBase
analysis：利用MapReduce分析数据将结果导入Mysql

2.1 produce

2.1.1 entry

public class Main {
    public static void main(String[] args) throws ParseException, InterruptedException {
        //生产数据，发到Kafka
        KafkaUtils.writeDataIntoKafka();
    }
}

2.1.2 dataProduce

public String produce(String startTime, String endTime) throws ParseException {
        // 张三 李四 2021-2-3 13:43:25 1204
        initMetaData();
        //获得随机下标来获得拨打电话者
        int callerIndex = (int) (Math.random() * telePhone.size());
        String callerName = phoneToName.get(telePhone.get(callerIndex));
        //获得被拔打电话者
        int calleeIndex;
        do {
            calleeIndex = (int) (Math.random() * telePhone.size());
        } while (callerIndex == calleeIndex);
        String calleeName = phoneToName.get(telePhone.get(calleeIndex));
        //定义解析时间的对象
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");
        //定义起止时间
        Date startDate = null;
        Date endDate = null;
        //解析传入的时间字符串，将其转化成Date格式
        startDate = sdf.parse(startTime);
        endDate = sdf.parse(endTime);
        //获得一个时间戳，来初始打电话的时间
        long randomTs = startDate.getTime() + (long) ((endDate.getTime() - startDate.getTime()) * Math.random());
        Date resultDate = new Date(randomTs);
        //将初始化好的Date时间，转化成字符串
        String resultTimeString = sdf.format(resultDate);
        //随机初始化小时、分钟、秒
        int hour = (int) (Math.random() * 24);
        int minute = (int) (Math.random() * 60);
        int second = (int) (Math.random() * 60);
        //初始化具体时间，精确到小时、分钟、秒
        String specificTime = String.format(String.format("%02d", hour) + ":"
                + String.format("%02d", minute) + ":"
                + String.format("%02d", second));
        //定义时间跨度，表明电话的拨打时长
        int duration = (int) (Math.random() * 3600);
        //拼接结果 张三 李四 2021-2-3 13:43:25 1204
        String result = callerName + " " + calleeName + " " + resultTimeString + " " + specificTime + " " + duration;
        return result;
    }

2.1.3 kafkaUtils

public static void writeDataIntoKafka() throws ParseException, InterruptedException {
        //定义配置对象
        Properties properties = new Properties();
        //定义主机名
        properties.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "hadoop102:9092");
        //字符串序列化的类
        properties.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
        properties.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
        //Kafka的主题
        String topic = "telecom";
        //定义一个生产者对象
        KafkaProducer producer = new KafkaProducer<String, String>(properties);
        //循环发送数据到Kafka
        for (int i = 0; i < 1000; i++) {
            //按给定起止时间生成数据
            String value = dataProduce.produce("2021-1-1", "2021-5-1");
            //睡眠1秒
            Thread.sleep(1000);
            //创建ProducerRecord对象
            ProducerRecord<String, String> record = new ProducerRecord<>(topic, value);
            //发送数据
            producer.send(record);
        }
        //关闭资源
        producer.close();
    }

2.2 consumer

2.2.1 entry

public class Main {
    public static void main(String[] args) throws IOException, InterruptedException, ParseException {
        //创建HBase消费者
        HBaseConsumer hBaseConsumer = new HBaseConsumer();
        //从Kafka中获取数据输到HBase
        hBaseConsumer.getDataFromKafka();
    }
}

2.2.2 hbase

2.2.2.1 HBaseConsumer

public class HBaseConsumer {
    public void getDataFromKafka() throws InterruptedException, IOException, ParseException {
        //定义配置对象
        Properties properties = new Properties();
        //连接主机名
        properties.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "hadoop102:9092");
        //是否自动提交
        properties.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, true);
        //自动提交的时间间隔
        properties.put(ConsumerConfig.AUTO_COMMIT_INTERVAL_MS_CONFIG, 100);
        //消费者组名
        properties.put(ConsumerConfig.GROUP_ID_CONFIG, "test3");
        //字符串序列化
        properties.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer");
        properties.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer");
        //创建消费者对象
        KafkaConsumer<String,String> consumer = new KafkaConsumer<>(properties);
        //消费者订阅主题
        consumer.subscribe(Arrays.asList("telecom"));
        //创建一个Dao对象，用于上传数据到HBase
        HBaseDao hBaseDao = new HBaseDao();
        //从Kafka拉取数据
        while (true) {
            //拉取的时间间隔
            ConsumerRecords<String,String> records = consumer.poll(100);
            //拉取数据输到HBase
            for (ConsumerRecord<String,String> record : records) {
                String value = record.value();
                System.out.println(value);
                Thread.sleep(1000);
                //上传数据
                hBaseDao.put(value);
            }
        }
    }
}

2.2.2.2 HBaseDao

public class HBaseDao {
    //命名空间
    private String nameSpace;
    //表名
    private String tableName;
    //配置对象
    public static Configuration conf;
    //表对象
    private Table table;
    //连接HBase对象
    private Connection connection;
    //解析日期对象
    private SimpleDateFormat sdf1 = new SimpleDateFormat("yyyy-MM-dd");
    private SimpleDateFormat sdf2 = new SimpleDateFormat("yyyyMMddHHmmss");
    //初始化配置对象
    static {
        conf = HBaseConfiguration.create();
    }
    public HBaseDao() throws IOException {
        nameSpace = "telecom";
        tableName = "teleRecord";
        connection = ConnectionFactory.createConnection(conf);
        if (!HBaseUtils.isExistTable(conf, tableName)) {
            HBaseUtils.initNamespace(conf, nameSpace);
            HBaseUtils.createTable(conf, tableName, "f1", "f2");
        }
        table = connection.getTable(TableName.valueOf(tableName));
    }
    //将数据导入HBase
    public void put(String value) throws ParseException, IOException {
        //将Kafka拉取的数据切分
        String[] splitValues = value.split(" ");
        String caller = splitValues[0];
        String callee = splitValues[1];
        String buildTime = splitValues[2];
        String specificTime = splitValues[3];
        String duration = splitValues[4];
        //2021-03-21 12:23:04
        buildTime = buildTime + " " + specificTime;
        //20210321122304   用于创建rowKey
        String buildTimeReplace = sdf2.format(sdf1.parse(buildTime));
        //时间戳
        String buildTimeTs = String.valueOf(sdf1.parse(buildTime).getTime());
        //获得rowKey
        String rowKey = HBaseUtils.createRowKey(caller, callee, buildTimeReplace, "1", duration);
        //创建put对象
        Put put = new Put(Bytes.toBytes(rowKey));
        //添加各列属性
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("caller"), Bytes.toBytes(caller));
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("callee"), Bytes.toBytes(callee));
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("build_time"), Bytes.toBytes(buildTime));
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("build_time_ts"), Bytes.toBytes(buildTimeTs));
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("flag"), Bytes.toBytes("1"));
        put.addColumn(Bytes.toBytes("f1"), Bytes.toBytes("duration"), Bytes.toBytes(duration));
        //添加put
        table.put(put);
    }
}

2.2.3 hbaseUtils

public class HBaseUtils {
    //判断表是否存在
    public static boolean isExistTable(Configuration conf, String tableName) throws IOException {
        Connection connection = ConnectionFactory.createConnection(conf);
        Admin admin = connection.getAdmin();
        boolean result = admin.tableExists(TableName.valueOf(tableName));
        admin.close();
        connection.close();
        return result;
    }
    //判断命名空间是否存在
    public static boolean isExistTableSpace(Configuration conf, String nameSpace) throws IOException {
        Connection connection = ConnectionFactory.createConnection(conf);
        Admin admin = connection.getAdmin();
        boolean result = false;
        admin.close();
        connection.close();
        return result;
    }
    //创建命名空间
    public static void initNamespace(Configuration conf, String nameSpace) throws IOException {
        Connection connection = ConnectionFactory.createConnection(conf);
        Admin admin = connection.getAdmin();
        try {
            NamespaceDescriptor descriptor = NamespaceDescriptor.create(nameSpace).build();
            admin.createNamespace(descriptor);
        } catch (NamespaceExistException e) {
        } finally {
            admin.close();
            connection.close();
        }
    }
    //创建表
    public static void createTable(Configuration conf, String tableName, String... cfs) throws IOException {
        Connection connection = ConnectionFactory.createConnection(conf);
        Admin admin = connection.getAdmin();
        HTableDescriptor hTableDescriptor = new HTableDescriptor(TableName.valueOf(tableName));
        for (String cf : cfs) {
            hTableDescriptor.addFamily(new HColumnDescriptor(cf));
        }
        admin.createTable(hTableDescriptor);
        admin.close();
        connection.close();
    }
    //创建RowKey
    public static String createRowKey(String caller, String callee, String buildTime, String flag, String duration) {
        StringBuilder rowKey = new StringBuilder();
        rowKey.append(caller + "_")
                .append(buildTime + "_")
                .append(callee + "_")
                .append(flag + "_")
                .append(duration);
        return rowKey.toString();
    }
}

2.3 analysis

2.3.1 hashUtils

public class HashUtils {
    public static void putValue(Cell cell, HashMap<String, String> hashMap) {
        //获取cell中的列名
        String qualifier = Bytes.toString(CellUtil.cloneQualifier(cell));
        //获取每列的值
        String value = Bytes.toString(CellUtil.cloneValue(cell));
        //存入map
        hashMap.put(qualifier, value);
    }
}

2.3.2 mysqlUtils

public class MysqlUtils {
    public static Connection connection;
    public static String userName = "root";
    public static String passwd = "123456";
    public static PreparedStatement ps = null;
    //获得Connection对象
    static {
        try {
            Class.forName("com.mysql.cj.jdbc.Driver");
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }
        try {
            connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/mydb" +
                            "?useSSL=false" +
                            "&allowPublicKeyRetrieval=true" +
                            "&serverTimezone=UTC",
                    userName,
                    passwd);
        } catch (SQLException e) {
            e.printStackTrace();
        }
    }
    //清空表数据
    public static void deleteData(String tableName) throws SQLException {
        String sql = String.format("delete from %s", tableName);
        ps = connection.prepareStatement(sql);
        ps.executeUpdate();
    }
}

2.3.3 hbaseToMR

2.3.3.1 callCount

2.3.3.1.1 Map

public class CountMap extends TableMapper<Text, IntWritable> {
    //输出    张三      1
    @Override
    protected void map(ImmutableBytesWritable key, Result value, Context context) throws IOException, InterruptedException {
        HashMap<String, String> hashMap = new HashMap<>();
        for (Cell cell : value.rawCells()) {
            HashUtils.putValue(cell, hashMap);
        }
        String caller = hashMap.get("caller");
        String callee = hashMap.get("callee");
        context.write(new Text(caller + "-" + callee), new IntWritable(1));
    }
}

2.3.3.1.2 Reduce

public class CountReduce extends Reducer<Text, IntWritable, DBWrite, NullWritable> {
    //输出  张三    23
    @Override
    protected void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException {
        int count = 0;
        for (IntWritable value : values) {
            count += 1;
        }
        context.write(new DBWrite(key.toString(), count), NullWritable.get());
    }
}

2.3.3.1.3 Driver

public class CountDriver implements Tool {
    //配置对象
    public static Configuration conf = null;
    //Mysql数据库表名
    public static String mysqlTableName = "callcounts";
    //Mysql表中列名
    public static String[] fieldNames = {"callercallee", "counts"};
    //Mysql驱动类
    public static String driverClass = "com.mysql.cj.jdbc.Driver";
    //Mysql的URL
    public static String dbUrl = "jdbc:mysql://localhost:3306/mydb" +
            "?useSSL=false" +
            "&allowPublicKeyRetrieval=true" +
            "&serverTimezone=UTC";
    //Mysql的用户名
    public static String userName = "root";
    //Mysql的用户密码
    public static String passwd = "123456";
    @Override
    public int run(String[] strings) throws Exception {
        //配置Mysql
        DBConfiguration.configureDB(conf, driverClass, dbUrl, userName, passwd);
        //清空表
        MysqlUtils.deleteData(mysqlTableName);
        //获得job对象
        Job job = Job.getInstance(conf);
        //关联Jar
        job.setJarByClass(CountDriver.class);
        //配置MapperJob
        TableMapReduceUtil.initTableMapperJob("teleRecord",
                new Scan(),
                CountMap.class,
                Text.class,
                IntWritable.class,
                job);
        //关联Reduce类
        job.setReducerClass(CountReduce.class);
        job.setOutputKeyClass(DBWrite.class);
        job.setOutputValueClass(NullWritable.class);
        //设置输出类型
        job.setOutputFormatClass(DBOutputFormat.class);
        DBOutputFormat.setOutput(job, mysqlTableName, fieldNames);
        //提交job任务
        boolean result = job.waitForCompletion(true);
        return result ? 0 : 1;
    }
    @Override
    public void setConf(Configuration configuration) {
        conf = configuration;
        conf.set("hbase.zookeeper.quorum", "hadoop102,hadoop103,hadoop104");
    }
    @Override
    public Configuration getConf() {
        return conf;
    }
    public static void main(String[] args) {
        Configuration conf = new Configuration();
        try {
            int run = ToolRunner.run(conf, new CountDriver(), args);
            System.exit(run);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.3.1.4 DBWrite

public class DBWrite implements Writable, DBWritable {
    String caller_callee = "";
    int count = 0;
    public DBWrite(){}
    public DBWrite(String caller_callee, int count){
        this.caller_callee=caller_callee;
        this.count=count;
    }
    @Override
    public void write(DataOutput out) throws IOException {
        out.writeUTF(caller_callee);
        out.writeInt(count);
    }
    @Override
    public void readFields(DataInput in) throws IOException {
        this.caller_callee = in.readUTF();
        this.count = in.readInt();
    }
    @Override
    public void write(PreparedStatement preparedStatement) throws SQLException {
        preparedStatement.setString(1, caller_callee);
        preparedStatement.setInt(2, count);
    }
    @Override
    public void readFields(ResultSet resultSet) throws SQLException {
        this.caller_callee = resultSet.getString(1);
        this.count = resultSet.getInt(2);
    }
}

2.3.3.2 callerDuration

2.3.3.2.1 Map

public class DurationMap extends TableMapper<Text, LongWritable> {
    //输出    张三     2041
    @Override
    protected void map(ImmutableBytesWritable key, Result value, Context context) throws IOException, InterruptedException {
        //创建HashMap对象，为了下面取出对应值用
        HashMap<String, String> hashMap = new HashMap<>();
        //迭代rowkey对应的每个单元
        for (Cell cell : value.rawCells()) {
            HashUtils.putValue(cell, hashMap);
        }
        //获得电话发起人
        String caller = hashMap.get("caller");
        //获得每次电话时长
        String duration = hashMap.get("duration");
        //写出
        context.write(new Text(caller), new LongWritable(Long.valueOf(duration)));
    }
}

2.3.3.2.2 Reduce

public class DurationReduce extends Reducer<Text, LongWritable, DBWrite, NullWritable> {
    //输出    张三     4204
    @Override
    protected void reduce(Text key, Iterable<LongWritable> values, Context context) throws IOException, InterruptedException {
        //存储每个人拨打电话的总时长
        long sum = 0;
        //迭代每个时长
        for (LongWritable value : values) {
            sum += value.get();
        }
        //将结果写出
        context.write(new DBWrite(key.toString(), String.valueOf(sum)), NullWritable.get());
    }
}

2.3.3.2.3 Driver

public class DurationDriver implements Tool {
    //配置对象
    public static Configuration conf = null;
    //Mysql数据库表名
    public static String mysqlTableName = "callerdurations";
    //Mysql表中列名
    public static String[] fieldNames = {"caller", "durations"};
    //Mysql驱动类
    public static String driverClass = "com.mysql.cj.jdbc.Driver";
    //Mysql的URL
    public static String dbUrl = "jdbc:mysql://localhost:3306/mydb" +
            "?useSSL=false" +
            "&allowPublicKeyRetrieval=true" +
            "&serverTimezone=UTC";
    //Mysql的用户名
    public static String userName = "root";
    //Mysql的用户密码
    public static String passwd = "123456";
    @Override
    public int run(String[] strings) throws Exception {
        //配置Mysql
        DBConfiguration.configureDB(conf, driverClass, dbUrl, userName, passwd);
        //清空表
        MysqlUtils.deleteData(mysqlTableName);
        //获得job对象
        Job job = Job.getInstance(conf);
        //关联Jar
        job.setJarByClass(DurationDriver.class);
        //配置MapperJob
        TableMapReduceUtil.initTableMapperJob("teleRecord",
                new Scan(),
                DurationMap.class,
                Text.class,
                LongWritable.class,
                job);
        //关联Reduce类
        job.setReducerClass(DurationReduce.class);
        job.setOutputKeyClass(DBWrite.class);
        job.setOutputValueClass(NullWritable.class);
        //设置输出类型
        job.setOutputFormatClass(DBOutputFormat.class);
        DBOutputFormat.setOutput(job, mysqlTableName, fieldNames);
        //提交job任务
        boolean result = job.waitForCompletion(true);
        return result ? 0 : 1;
    }
    @Override
    public void setConf(Configuration configuration) {
        conf = configuration;
        conf.set("hbase.zookeeper.quorum", "hadoop102,hadoop103,hadoop104");
    }
    @Override
    public Configuration getConf() {
        return conf;
    }
    public static void main(String[] args) {
        Configuration conf = new Configuration();
        try {
            int run = ToolRunner.run(conf, new DurationDriver(), args);
            System.exit(run);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

2.3.3.3 dayCountDuration

2.3.3.3.1 Map

public class dayCountDurationMap extends TableMapper<Text, LongWritable> {
    //2021-01-13    3042
    @Override
    protected void map(ImmutableBytesWritable key, Result value, Context context) throws IOException, InterruptedException {
        HashMap<String, String> hashmap = new HashMap<>();
        for (Cell cell : value.rawCells()) {
            HashUtils.putValue(cell, hashmap);
        }
        String date = hashmap.get("build_time").substring(0, 10);
        String duration = hashmap.get("duration");
        context.write(new Text(date), new LongWritable(Long.valueOf(duration)));
    }
}

2.3.3.3.2 Reduce

public class dayCountDurationReduce extends Reducer<Text, LongWritable, DBWrite, NullWritable> {
    //输出 2021-01-13  2042
    @Override
    protected void reduce(Text key, Iterable<LongWritable> values, Context context) throws IOException, InterruptedException {
        long durations = 0;
        for (LongWritable value : values) {
            durations += value.get();
        }
        context.write(new DBWrite(key.toString(), durations), NullWritable.get());
    }
}

2.3.3.3.3 Driver

public class dayCountDurationDriver implements Tool {
    //配置对象
    public static Configuration conf = null;
    //Mysql数据库表名
    public static String mysqlTableName = "daydurations";
    //Mysql表中列名
    public static String[] fieldNames = {"date", "durations"};
    //Mysql驱动类
    public static String driverClass = "com.mysql.cj.jdbc.Driver";
    //Mysql的URL
    public static String dbUrl = "jdbc:mysql://localhost:3306/mydb" +
            "?useSSL=false" +
            "&allowPublicKeyRetrieval=true" +
            "&serverTimezone=UTC";
    //Mysql的用户名
    public static String userName = "root";
    //Mysql的用户密码
    public static String passwd = "123456";
    @Override
    public int run(String[] strings) throws Exception {
        //配置Mysql
        DBConfiguration.configureDB(conf, driverClass, dbUrl, userName, passwd);
        //清空表
        MysqlUtils.deleteData(mysqlTableName);
        //获得job对象
        Job job = Job.getInstance(conf);
        //关联Jar
        job.setJarByClass(dayCountDurationDriver.class);
        //配置MapperJob
        TableMapReduceUtil.initTableMapperJob("teleRecord",
                new Scan(),
                dayCountDurationMap.class,
                Text.class,
                LongWritable.class,
                job);
        //关联Reduce类
        job.setReducerClass(dayCountDurationReduce.class);
        job.setOutputKeyClass(DBWrite.class);
        job.setOutputValueClass(NullWritable.class);
        //设置输出类型
        job.setOutputFormatClass(DBOutputFormat.class);
        DBOutputFormat.setOutput(job, mysqlTableName, fieldNames);
        //提交job任务
        boolean result = job.waitForCompletion(true);
        return result ? 0 : 1;
    }
    @Override
    public void setConf(Configuration configuration) {
        conf = configuration;
        conf.set("hbase.zookeeper.quorum", "hadoop102,hadoop103,hadoop104");
    }
    @Override
    public Configuration getConf() {
        return conf;
    }
    public static void main(String[] args) {
        Configuration conf = new Configuration();
        try {
            int run = ToolRunner.run(conf, new dayCountDurationDriver(), args);
            System.exit(run);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

4 项目源码

Github地址

Kafka-HBase-MapReduce-Mysql 连接实践 通话记录

1.项目介绍

2.各类介绍

Produce模块

Consumer模块

Analysis模块

3.项目各模块

2.1 produce

2.1.1 entry

2.1.2 dataProduce

2.1.3 kafkaUtils

2.2 consumer

2.2.1 entry

2.2.2 hbase

2.2.2.1 HBaseConsumer

2.2.2.2 HBaseDao

2.2.3 hbaseUtils

2.3 analysis

2.3.1 hashUtils

2.3.2 mysqlUtils

2.3.3 hbaseToMR

2.3.3.1 callCount

2.3.3.1.1 Map

2.3.3.1.2 Reduce

2.3.3.1.3 Driver

2.3.3.1.4 DBWrite

2.3.3.2 callerDuration

2.3.3.2.1 Map

2.3.3.2.2 Reduce

2.3.3.2.3 Driver

2.3.3.3 dayCountDuration

2.3.3.3.1 Map

2.3.3.3.2 Reduce

2.3.3.3.3 Driver

4 项目源码

热门文章

最新文章

相关课程

相关电子书

相关实验场景

推荐镜像

Kafka-HBase-MapReduce-Mysql 连接实践通话记录
