SAR（Synthetic Aperture Radar），即合成孔径雷达，是一种主动式的对地观测系统，可安装在飞机、卫星、宇宙飞船等飞行平台上，全天时、全天候对地实施观测、并具有一定的地表穿透能力。因此，SAR系统在灾害监测、环境监测、海洋监测、资源勘查、农作物估产、测绘和军事等方面的应用上具有独特的优势，可发挥其他遥感手段难以发挥的作用，因此越来越受到世界各国的重视。
本文代码旨在搜救场景中寻找失踪人员而编写。该程序从ArcGis Pro中绘制的数字高程模型（DEM）数据中获取x、y、z输入，并在MATLAB中进行处理。该计划根据海拔、主题类别（即徒步旅行者、儿童等）和距离，生成荒野SAR中可能发现失踪人员的位置的概率图。该概率图输出格式被选择为使得可以应用旅行推销员路径规划算法，并且随后的路径被上传到无人机的CPU和自动驾驶仪，使得无人机可以自动地进行搜索模式。

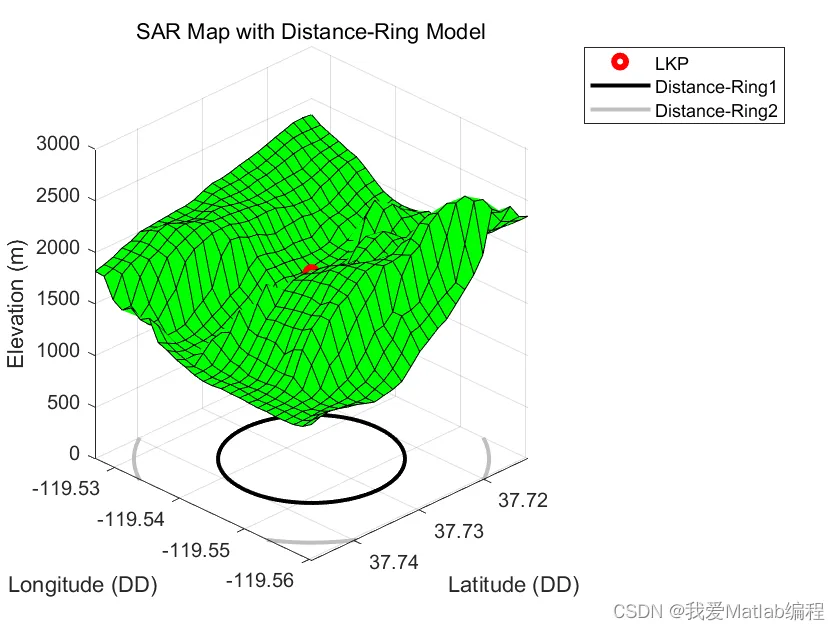

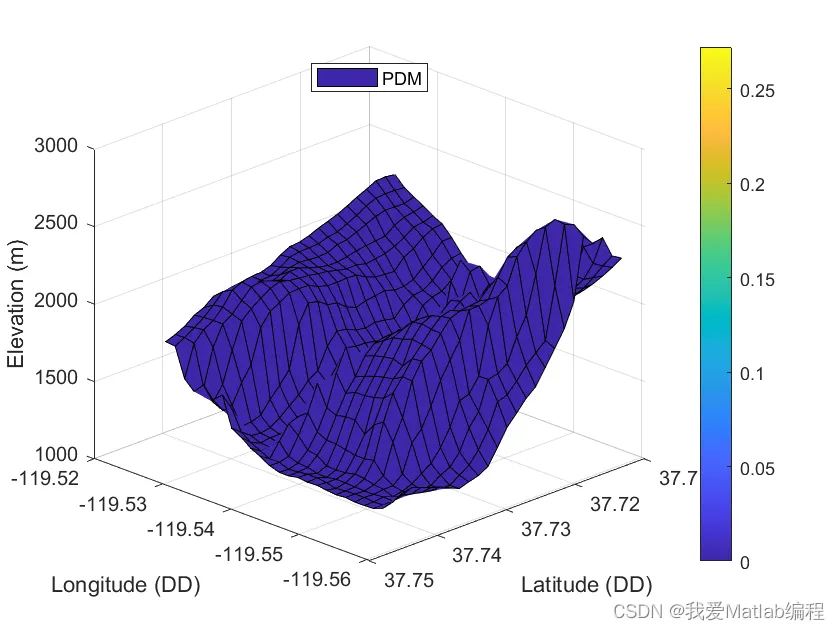

✨🔎⚡运行结果⚡🔎✨
💂♨️👨🎓Matlab代码👨🎓♨️💂
%% %Reshape the arrays iGrid.nto a grid format compataible with meshgrid Grid.n=25; %Grid.x = Grid.x(1:Grid.n); %Grid.y = Grid.y(1:Grid.n:(Grid.n*Grid.n)); Grid.z=reshape(Grid.z,[Grid.n,Grid.n]); %State data resolution gained from ArcGIS Grid.resolution=130; %Compute meshgrid [Grid.x,Grid.y]=meshgrid(Grid.x,Grid.y); %Surf Plot Terrain figure surf(Grid.x,Grid.y,Grid.z,'FaceColor', 'g'); xlabel('Longitude (DD)') ylabel('Latitude (DD)') zlabel('Elevation (m)') title('Terrain Data') xlim([min(Grid.x,[],'all'),max(Grid.x,[],'all')]) ylim([min(Grid.y,[],'all'),max(Grid.y,[],'all')]) view([225 25]) %Call the Gradient Function to Calculate Cell to Cell Gradients [GM] = GithubGradientFunction(Grid); %% %Beta Distribution Function %Specify the number of timesteps, m m=1; %Call Beta Distribution Function to find the probabilities. [Prob.p_DHILLg1020,Prob.p_DHILLg2030,Prob.p_DHILLg3040,Prob.p_SAMEg0010,Prob.p_UPHILLg1020, Prob.p_UPHILLg2030,Prob.p_UPHILLg3040] = NewBetaDistribution %normalise probabilities norm_factor = Prob.p_DHILLg1020+Prob.p_DHILLg2030+Prob.p_DHILLg3040+Prob.p_SAMEg0010+Prob.p_UPHILLg1020+Prob.p_UPHILLg2030+Prob.p_UPHILLg3040; Prob.p_DHILLg1020 = Prob.p_DHILLg1020/norm_factor; Prob.p_DHILLg2030 = Prob.p_DHILLg2030/norm_factor; Prob.p_DHILLg3040 = Prob.p_DHILLg3040/norm_factor; Prob.p_SAMEg0010 = Prob.p_SAMEg0010/norm_factor; Prob.p_UPHILLg1020 = Prob.p_UPHILLg1020/norm_factor; Prob.p_UPHILLg2030 = Prob.p_UPHILLg2030/norm_factor; Prob.p_UPHILLg3040 = Prob.p_UPHILLg3040/norm_factor; %% %Transition Matrix %Blank Probability Vector Grid.InitialVector= zeros(1,Grid.n*Grid.n); %State LKP Vertex Grid.LKPvertex=313; %State LKP Vertex Probability Grid.InitialVector(1,Grid.LKPvertex)=1; %Set the Counter Count=Grid.n*Grid.n; %Preallocate Transition Matrix Memory TransitionMatrix=zeros(Grid.n^2);
📜📢🌈参考文献🌈📢📜
[1]郭兆明,姜毅,毕世华.合成孔径雷达卫星车辆运动侦察概率探究[J].导航定位学报,2019,7(03):24-30.DOI:10.16547/j.cnki.10-1096.20190305.
