1.linux-node2节点安装数据库
1
2
3
4
|
[root@linux-node2 ~]
# yum install -y mariadb-server
[root@linux-node2 ~]
# systemctl start mariadb
[root@linux-node2 ~]
# netstat -tulnp |grep 3306
tcp 0 0 0.0.0.0:3306 0.0.0.0:* LISTEN 41299
/mysqld
|
2.Zabbix添加数据库主机监控
1
2
3
|
被动模式对Hostname没要求,但主动模式必须与主机Hostname一致。
"Configuration"
-->
"Host"
(填入主机信息)-->
"Templates"
(链接MySQL模板)
如图:
|

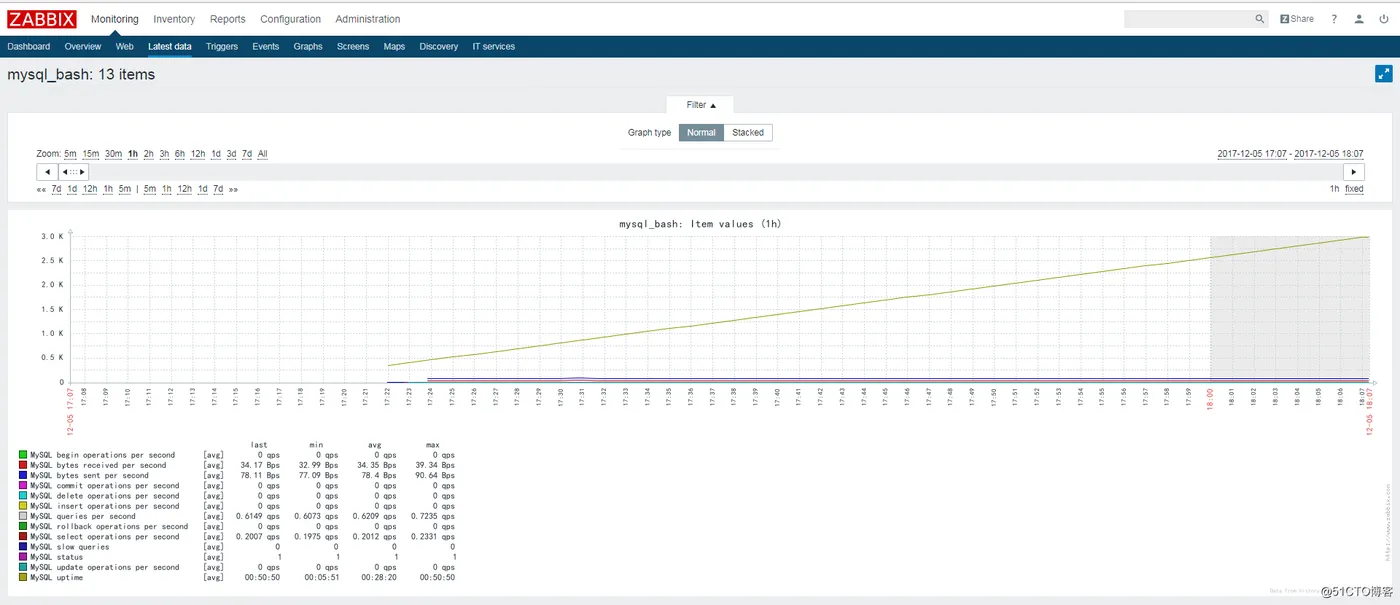

创建成功后,可以查看到MySQL相应的监控信息,数据库的增改删查,如图:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
命令行进行查看获取的信息:
[root@linux-node1 ~]
# zabbix_get -s linux-node2 -k mysql.status[Com_begin]
0
[root@linux-node1 ~]
# zabbix_get -s linux-node2 -k mysql.status[Slow_queries]
0
数据库模板监控配置主要来自linux-node2节点:
/etc/zabbix/zabbix_agentd
.d
/userparameter_mysql
.conf 的配置
[root@linux-node2 ~]
# vim /etc/zabbix/zabbix_agentd.d/userparameter_mysql.conf
# For all the following commands HOME should be set to the directory that has .my.cnf file with password information.
# Flexible parameter to grab global variables. On the frontend side, use keys like mysql.status[Com_insert].
# Key syntax is mysql.status[variable].
UserParameter=mysql.status[*],
echo
"show global status where Variable_name='$1';"
| HOME=
/var/lib/zabbix
mysql -N |
awk
'{print $$2}'
#mysql的状态获取
# Flexible parameter to determine database or table size. On the frontend side, use keys like mysql.size[zabbix,history,data].
# Key syntax is mysql.size[<database>,<table>,<type>].
# Database may be a database name or "all". Default is "all".
# Table may be a table name or "all". Default is "all".
# Type may be "data", "index", "free" or "both". Both is a sum of data and index. Default is "both".
# Database is mandatory if a table is specified. Type may be specified always.
# Returns value in bytes.
# 'sum' on data_length or index_length alone needed when we are getting this information for whole database instead of a single table
UserParameter=mysql.size[*],
bash
-c
'echo "select sum($(case "$3" in both|"") echo "data_length+index_length";; data|index) echo "$3_length";; free) echo "data_free";; esac)) from information_schema.tables$([[ "$1" = "all" || ! "$1" ]] || echo " where table_schema=\"$1\"")$([[ "$2" = "all" || ! "$2" ]] || echo "and table_name=\"$2\"");" | HOME=/var/lib/zabbix mysql -N'
UserParameter=mysql.
ping
,HOME=
/var/lib/zabbix
mysqladmin
ping
|
grep
-c alive
#mysql的存活获取
UserParameter=mysql.version,mysql -V
#mysql的版本获取
|
3.带密码对MySQL监控
以上对数据库的监控,都是没有密码直接获取值,这是不合理的,那么需要如何添加密码进行获取监控数据呢?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
(1)先对数据库进行授权和密码,通过zabbix用户进行获取数据,此处的授权由于试验,就授权了全部权限,正式生产时不能这样设置。
[root@linux-node2 ~]
# mysql
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection
id
is 711
Server version: 5.5.56-MariaDB MariaDB Server
Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.
Type
'help;'
or
'\h'
for
help. Type
'\c'
to
clear
the current input statement.
MariaDB [(none)]> grant all on *.* to zabbix@localhost identified by
"zabbix"
;
Query OK, 0 rows affected (0.00 sec)
MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.00 sec)
MariaDB [(none)]> quit;
Bye
(2)修改监控配置,添加用户名密码
[root@linux-node2 ~]
# vim /etc/zabbix/zabbix_agentd.d/userparameter_mysql.conf
UserParameter=mysql.status[*],
echo
"show global status where Variable_name='$1';"
| HOME=
/var/lib/zabbix
mysql -uzabbix -pzabbix -N |
awk
'{print $$2}'
UserParameter=mysql.size[*],
bash
-c
'echo "select sum($(case "$3" in both|"") echo "data_length+index_length";; data|index) echo "$3_length";; free) echo "data_free";; esac)) from information_schema.tables$([[ "$1" = "all" || ! "$1" ]] || echo " where table_schema=\"$1\"")$([[ "$2" = "all" || ! "$2" ]] || echo "and table_name=\"$2\"");" | HOME=/var/lib/zabbix mysql -N'
UserParameter=mysql.
ping
,HOME=
/var/lib/zabbix
mysqladmin
ping
-uzabbix -pzabbix |
grep
-c alive
UserParameter=mysql.version,mysql -V
[root@linux-node2 ~]
# systemctl restart zabbix-agent
|

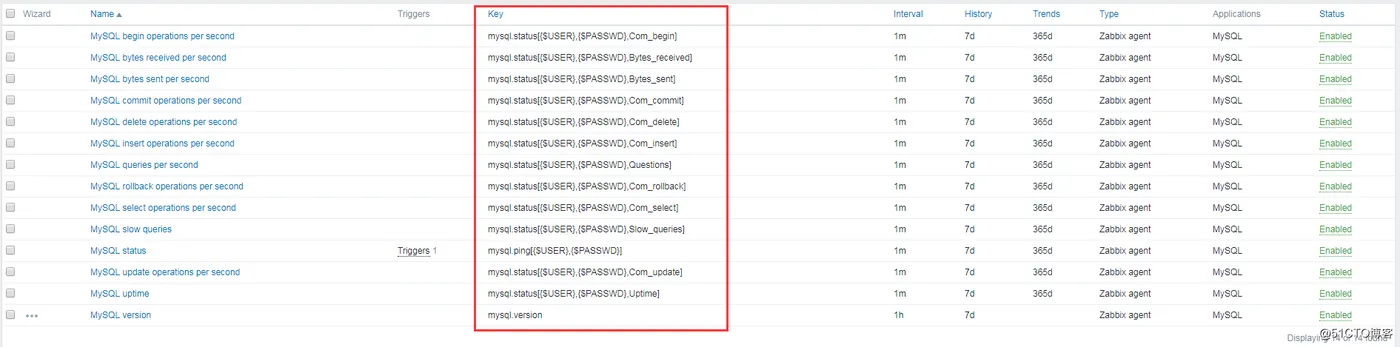

修改完毕后,我们可以看到在Item项都显示Not supported,如图:
此时修改一下zabbix对无效监控项的刷新时间,默认是600s,我们改为30s。修改完成后就会变成enabled
"Administration"-->"General"-->右上角选择"other"-->"Refresh unsupported items (in sec)"改为30
4.灵活使用宏变量(Macrros)进行传参配置用户名密码监控
如图:在主机中配置变量
1
2
3
4
5
6
7
8
9
10
11
|
(1)修改配置文件:
[root@linux-node2 ~]
# vim /etc/zabbix/zabbix_agentd.d/userparameter_mysql.conf
UserParameter=mysql.status[*],
echo
"show global status where Variable_name='$3';"
| HOME=
/var/lib/zabbix
mysql -u$1 -p$2 -N |
awk
'{print $$2}'
UserParameter=mysql.
ping
[*],HOME=
/var/lib/zabbix
mysqladmin -u$1 -p$2
ping
|
grep
-c alive
[root@linux-node2 ~]
# systemctl restart zabbix-agent
此时,如果未传入用户名密码访问是被拒绝的:
[root@linux-node1 ~]
# zabbix_get -s linux-node2 -k mysql.status[Slow_queries]
Enter password: ERROR 1045 (28000): Access denied
for
user
'Slow_queries'
@
'localhost'
(using password: YES)
[root@linux-node1 ~]
# zabbix_get -s linux-node2 -k mysql.status[zabbix,zabbix,Slow_queries]
0
|
1
|
(2)修改模板,模板中的变量值可以不设置,因为在连接模板时进行修改变量,此时会自动覆盖在模板设置的变量值:
|
1
|
(3)修改模板中的Item:增加传参的变量{$USER},{PASSWD}
|
