【大数据开发运维解决方案】Sqoop全量同步mysql/Oracle数据到hive

本文涉及的产品
RDS MySQL Serverless 基础系列,0.5-2RCU 50GB
云数据库 RDS MySQL,集群版 2核4GB 100GB
推荐场景:
搭建个人博客
服务治理 MSE Sentinel/OpenSergo,Agent数量 不受限
简介: 前面文章写了如何部署一套伪分布式的handoop+hive+hbase+kylin环境,也介绍了如何在这个搭建好的伪分布式环境安装配置sqoop工具以及安装完成功后简单的使用过程中出现的错误及解决办法,接下来本篇文章详细介绍一下使用sqoop全量同步oracle/mysql数据到hive,这里实验采用oracle数据库为例,

前面文章写了如何部署一套伪分布式的handoop+hive+hbase+kylin环境,也介绍了如何在这个搭建好的伪分布式环境安装配置sqoop工具以及安装完成功后简单的使用过程中出现的错误及解决办法,
接下来本篇文章详细介绍一下使用sqoop全量同步oracle/mysql数据到hive,这里实验采用oracle数据库为例,
后面一篇文章将详细介绍:
1、sqoop --incremental append 附加模式增量同步数据到hive
2、sqoop --incremental --merge-key合并模式增量同步到hive
文章现已经写完了。

一、知识储备

sqoop import和export工具有些通用的选项,如下表所示:
数据导入工具import:

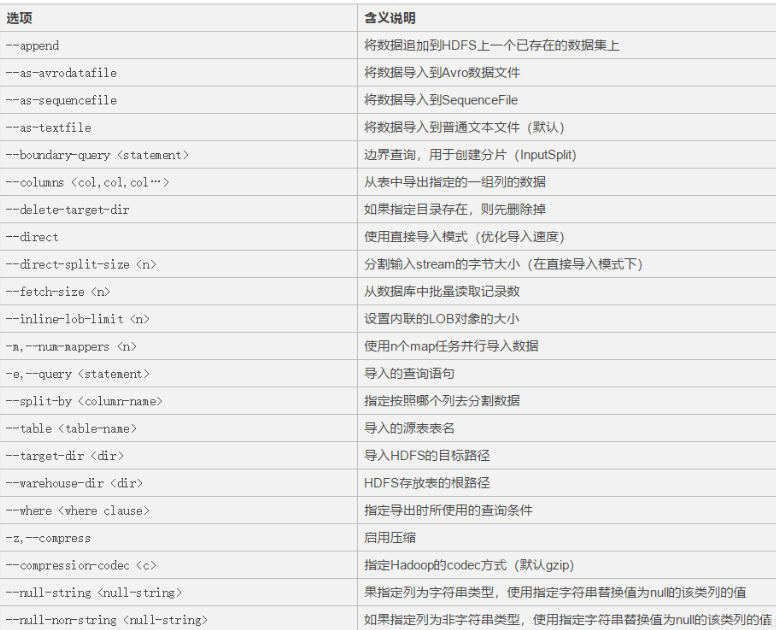

import工具,是将HDFS平台外部的结构化存储系统中的数据导入到Hadoop平台,便于后续分析。我们先看一下import工具的基本选项及其含义,如下表所示:
下面将通过一系列案例来测试这些功能。因为笔者现在只用到import,因此本文章只测试import相关功能,export参数没有列出,请读者自行测试。

二、导入实验

1、Oracle库创建测试用表初始化及hive创建表

--连接的用户为scott用户
create table inr_emp as select a.empno,
                               a.ename,
                               a.job,
                               a.mgr,
                               a.hiredate,
                               a.sal,
                               a.deptno,sysdate as etltime from emp a where job is not null;
select * from inr_emp;
EMPNO    ENAME    JOB            MGR        HIREDATE    SAL    DEPTNO    ETLTIME
7369    er        CLERK        7902    1980/12/17    800.00    20    2019/3/19 14:02:13
7499    ALLEN    SALESMAN    7698    1981/2/20    1600.00    30    2019/3/19 14:02:13
7521    WARD    SALESMAN    7698    1981/2/22    1250.00    30    2019/3/19 14:02:13
7566    JONES    MANAGER        7839    1981/4/2    2975.00    20    2019/3/19 14:02:13
7654    MARTIN    SALESMAN    7698    1981/9/28    1250.00    30    2019/3/19 14:02:13
7698    BLAKE    MANAGER        7839    1981/5/1    2850.00    30    2019/3/19 14:02:13
7782    CLARK    MANAGER        7839    1981/6/9    2450.00    10    2019/3/19 14:02:13
7839    KING    PRESIDENT            1981/11/17    5000.00    10    2019/3/19 14:02:13
7844    TURNER    SALESMAN    7698    1981/9/8    1500.00    30    2019/3/19 14:02:13
7876    ADAMS    CLERK        7788    1987/5/23    1100.00    20    2019/3/19 14:02:13
7900    JAMES    CLERK        7698    1981/12/3    950.00    30    2019/3/19 14:02:13
7902    FORD    ANALYST        7566    1981/12/3    3000.00    20    2019/3/19 14:02:13
7934    sdf        sdf            7782    1982/1/23    1300.00    10    2019/3/19 14:02:13


--hive创建表
[root@hadoop bin]# ./hive
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/hadoop/hive/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]

Logging initialized using configuration in jar:file:/hadoop/hive/lib/hive-common-2.3.2.jar!/hive-log4j2.properties Async: true
Hive-on-MR is deprecated in Hive 2 and may not be available in the future versions. Consider using a different execution engine (i.e. spark, tez) or using Hive 1.X releases.
hive> use oracle;
OK
Time taken: 1.234 seconds
hive> create table INR_EMP
    > (
    >   empno    int,
    >   ename    string,
    >   job      string,
    >   mgr      int,
    >   hiredate DATE,
    >   sal      float,
    >   deptno   int,
    >   etltime  DATE
    > );
OK
Time taken: 0.63 seconds

2、全量全列导入数据

[root@hadoop ~]# sqoop import --connect jdbc:oracle:thin:@192.168.1.6:1521:orcl --username scott --password tiger --table INR_EMP -m 1 --hive-import --hive-database oracle
Warning: /hadoop/sqoop/../accumulo does not exist! Accumulo imports will fail.
Please set $ACCUMULO_HOME to the root of your Accumulo installation.
Warning: /hadoop/sqoop/../zookeeper does not exist! Accumulo imports will fail.
Please set $ZOOKEEPER_HOME to the root of your Zookeeper installation.
19/03/12 18:28:29 INFO sqoop.Sqoop: Running Sqoop version: 1.4.7
19/03/12 18:28:29 WARN tool.BaseSqoopTool: Setting your password on the command-line is insecure. Consider using -P instead.
19/03/12 18:28:29 INFO tool.BaseSqoopTool: Using Hive-specific delimiters for output. You can override
19/03/12 18:28:29 INFO tool.BaseSqoopTool: delimiters with --fields-terminated-by, etc.
19/03/12 18:28:29 INFO oracle.OraOopManagerFactory: Data Connector for Oracle and Hadoop is disabled.
19/03/12 18:28:29 INFO manager.SqlManager: Using default fetchSize of 1000
19/03/12 18:28:29 INFO tool.CodeGenTool: Beginning code generation
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/hadoop/hbase/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/hadoop/hive/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
19/03/12 18:28:30 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:28:30 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM INR_EMP t WHERE 1=0
19/03/12 18:28:30 INFO orm.CompilationManager: HADOOP_MAPRED_HOME is /hadoop
Note: /tmp/sqoop-root/compile/cbdca745b64b4ab94902764a5ea26928/INR_EMP.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
19/03/12 18:28:33 INFO orm.CompilationManager: Writing jar file: /tmp/sqoop-root/compile/cbdca745b64b4ab94902764a5ea26928/INR_EMP.jar
19/03/12 18:28:34 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:28:34 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:28:34 INFO mapreduce.ImportJobBase: Beginning import of INR_EMP
19/03/12 18:28:35 INFO Configuration.deprecation: mapred.jar is deprecated. Instead, use mapreduce.job.jar
19/03/12 18:28:35 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:28:36 INFO Configuration.deprecation: mapred.map.tasks is deprecated. Instead, use mapreduce.job.maps
19/03/12 18:28:36 INFO client.RMProxy: Connecting to ResourceManager at /192.168.1.66:8032
19/03/12 18:28:39 INFO db.DBInputFormat: Using read commited transaction isolation
19/03/12 18:28:39 INFO mapreduce.JobSubmitter: number of splits:1
19/03/12 18:28:40 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1552371714699_0004
19/03/12 18:28:40 INFO impl.YarnClientImpl: Submitted application application_1552371714699_0004
19/03/12 18:28:40 INFO mapreduce.Job: The url to track the job: http://hadoop:8088/proxy/application_1552371714699_0004/
19/03/12 18:28:40 INFO mapreduce.Job: Running job: job_1552371714699_0004
19/03/12 18:28:51 INFO mapreduce.Job: Job job_1552371714699_0004 running in uber mode : false
19/03/12 18:28:51 INFO mapreduce.Job:  map 0% reduce 0%
19/03/12 18:29:00 INFO mapreduce.Job:  map 100% reduce 0%
19/03/12 18:29:01 INFO mapreduce.Job: Job job_1552371714699_0004 completed successfully
19/03/12 18:29:01 INFO mapreduce.Job: Counters: 30
    File System Counters
        FILE: Number of bytes read=0
        FILE: Number of bytes written=143523
        FILE: Number of read operations=0
        FILE: Number of large read operations=0
        FILE: Number of write operations=0
        HDFS: Number of bytes read=87
        HDFS: Number of bytes written=976
        HDFS: Number of read operations=4
        HDFS: Number of large read operations=0
        HDFS: Number of write operations=2
    Job Counters
        Launched map tasks=1
        Other local map tasks=1
        Total time spent by all maps in occupied slots (ms)=5538
        Total time spent by all reduces in occupied slots (ms)=0
        Total time spent by all map tasks (ms)=5538
        Total vcore-milliseconds taken by all map tasks=5538
        Total megabyte-milliseconds taken by all map tasks=5670912
    Map-Reduce Framework
        Map input records=13
        Map output records=13
        Input split bytes=87
        Spilled Records=0
        Failed Shuffles=0
        Merged Map outputs=0
        GC time elapsed (ms)=156
        CPU time spent (ms)=2560
        Physical memory (bytes) snapshot=207745024
        Virtual memory (bytes) snapshot=2150998016
        Total committed heap usage (bytes)=99090432
    File Input Format Counters
        Bytes Read=0
    File Output Format Counters
        Bytes Written=976
19/03/12 18:29:01 INFO mapreduce.ImportJobBase: Transferred 976 bytes in 25.1105 seconds (38.8683 bytes/sec)
19/03/12 18:29:01 INFO mapreduce.ImportJobBase: Retrieved 13 records.
19/03/12 18:29:01 INFO mapreduce.ImportJobBase: Publishing Hive/Hcat import job data to Listeners for table INR_EMP
19/03/12 18:29:01 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:29:01 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM INR_EMP t WHERE 1=0
19/03/12 18:29:01 WARN hive.TableDefWriter: Column EMPNO had to be cast to a less precise type in Hive
19/03/12 18:29:01 WARN hive.TableDefWriter: Column MGR had to be cast to a less precise type in Hive
19/03/12 18:29:01 WARN hive.TableDefWriter: Column HIREDATE had to be cast to a less precise type in Hive
19/03/12 18:29:01 WARN hive.TableDefWriter: Column SAL had to be cast to a less precise type in Hive
19/03/12 18:29:01 WARN hive.TableDefWriter: Column DEPTNO had to be cast to a less precise type in Hive
19/03/12 18:29:01 WARN hive.TableDefWriter: Column ETLTIME had to be cast to a less precise type in Hive
19/03/12 18:29:01 INFO hive.HiveImport: Loading uploaded data into Hive
19/03/12 18:29:01 INFO conf.HiveConf: Found configuration file file:/hadoop/hive/conf/hive-site.xml

Logging initialized using configuration in jar:file:/hadoop/hive/lib/hive-common-2.3.2.jar!/hive-log4j2.properties Async: true
19/03/12 18:29:05 INFO SessionState:
Logging initialized using configuration in jar:file:/hadoop/hive/lib/hive-common-2.3.2.jar!/hive-log4j2.properties Async: true
19/03/12 18:29:05 INFO session.SessionState: Created HDFS directory: /tmp/hive/root/ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:07 INFO session.SessionState: Created local directory: /hadoop/hive/tmp/root/ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:07 INFO session.SessionState: Created HDFS directory: /tmp/hive/root/ac8d208d-2339-4bae-aee8-c9fc1c3b93a4/_tmp_space.db
19/03/12 18:29:07 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:07 INFO session.SessionState: Updating thread name to ac8d208d-2339-4bae-aee8-c9fc1c3b93a4 main
19/03/12 18:29:07 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:07 INFO ql.Driver: Compiling command(queryId=root_20190312102907_3fbb2f16-c52a-4c3c-843d-45c9ca918228): CREATE TABLE IF NOT EXISTS `oracle`.`INR_EMP` ( `EMPNO` DOUBLE, `ENAME
` STRING, `JOB` STRING, `MGR` DOUBLE, `HIREDATE` STRING, `SAL` DOUBLE, `DEPTNO` DOUBLE, `ETLTIME` STRING) COMMENT 'Imported by sqoop on 2019/03/12 10:29:01' ROW FORMAT DELIMITED FIELDS TERMINATED BY '\001' LINES TERMINATED BY '\012' STORED AS TEXTFILE19/03/12 18:29:10 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:29:10 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:29:10 INFO hive.metastore: Connected to metastore.
19/03/12 18:29:10 INFO parse.CalcitePlanner: Starting Semantic Analysis
19/03/12 18:29:10 INFO parse.CalcitePlanner: Creating table oracle.INR_EMP position=27
19/03/12 18:29:10 INFO ql.Driver: Semantic Analysis Completed
19/03/12 18:29:10 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
19/03/12 18:29:10 INFO ql.Driver: Completed compiling command(queryId=root_20190312102907_3fbb2f16-c52a-4c3c-843d-45c9ca918228); Time taken: 3.007 seconds
19/03/12 18:29:10 INFO ql.Driver: Concurrency mode is disabled, not creating a lock manager
19/03/12 18:29:10 INFO ql.Driver: Executing command(queryId=root_20190312102907_3fbb2f16-c52a-4c3c-843d-45c9ca918228): CREATE TABLE IF NOT EXISTS `oracle`.`INR_EMP` ( `EMPNO` DOUBLE, `ENAME
` STRING, `JOB` STRING, `MGR` DOUBLE, `HIREDATE` STRING, `SAL` DOUBLE, `DEPTNO` DOUBLE, `ETLTIME` STRING) COMMENT 'Imported by sqoop on 2019/03/12 10:29:01' ROW FORMAT DELIMITED FIELDS TERMINATED BY '\001' LINES TERMINATED BY '\012' STORED AS TEXTFILE19/03/12 18:29:10 INFO sqlstd.SQLStdHiveAccessController: Created SQLStdHiveAccessController for session context : HiveAuthzSessionContext [sessionString=ac8d208d-2339-4bae-aee8-c9fc1c3b93a
4, clientType=HIVECLI]19/03/12 18:29:10 WARN session.SessionState: METASTORE_FILTER_HOOK will be ignored, since hive.security.authorization.manager is set to instance of HiveAuthorizerFactory.
19/03/12 18:29:10 INFO hive.metastore: Mestastore configuration hive.metastore.filter.hook changed from org.apache.hadoop.hive.metastore.DefaultMetaStoreFilterHookImpl to org.apache.hadoop.
hive.ql.security.authorization.plugin.AuthorizationMetaStoreFilterHook19/03/12 18:29:10 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:29:10 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:29:10 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:29:10 INFO hive.metastore: Connected to metastore.
19/03/12 18:29:10 INFO ql.Driver: Completed executing command(queryId=root_20190312102907_3fbb2f16-c52a-4c3c-843d-45c9ca918228); Time taken: 0.083 seconds
OK
19/03/12 18:29:10 INFO ql.Driver: OK
Time taken: 3.101 seconds
19/03/12 18:29:10 INFO CliDriver: Time taken: 3.101 seconds
19/03/12 18:29:10 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:10 INFO session.SessionState: Resetting thread name to  main
19/03/12 18:29:10 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:10 INFO session.SessionState: Updating thread name to ac8d208d-2339-4bae-aee8-c9fc1c3b93a4 main
19/03/12 18:29:10 INFO ql.Driver: Compiling command(queryId=root_20190312102910_d3ab56d4-1bcb-4063-aaab-badd4f8f13e2):
LOAD DATA INPATH 'hdfs://192.168.1.66:9000/user/root/INR_EMP' INTO TABLE `oracle`.`INR_EMP`
19/03/12 18:29:11 INFO ql.Driver: Semantic Analysis Completed
19/03/12 18:29:11 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
19/03/12 18:29:11 INFO ql.Driver: Completed compiling command(queryId=root_20190312102910_d3ab56d4-1bcb-4063-aaab-badd4f8f13e2); Time taken: 0.446 seconds
19/03/12 18:29:11 INFO ql.Driver: Concurrency mode is disabled, not creating a lock manager
19/03/12 18:29:11 INFO ql.Driver: Executing command(queryId=root_20190312102910_d3ab56d4-1bcb-4063-aaab-badd4f8f13e2):
LOAD DATA INPATH 'hdfs://192.168.1.66:9000/user/root/INR_EMP' INTO TABLE `oracle`.`INR_EMP`
19/03/12 18:29:11 INFO ql.Driver: Starting task [Stage-0:MOVE] in serial mode
19/03/12 18:29:11 INFO hive.metastore: Closed a connection to metastore, current connections: 0
Loading data to table oracle.inr_emp
19/03/12 18:29:11 INFO exec.Task: Loading data to table oracle.inr_emp from hdfs://192.168.1.66:9000/user/root/INR_EMP
19/03/12 18:29:11 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:29:11 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:29:11 INFO hive.metastore: Connected to metastore.
19/03/12 18:29:11 ERROR hdfs.KeyProviderCache: Could not find uri with key [dfs.encryption.key.provider.uri] to create a keyProvider !!
19/03/12 18:29:12 INFO ql.Driver: Starting task [Stage-1:STATS] in serial mode
19/03/12 18:29:12 INFO exec.StatsTask: Executing stats task
19/03/12 18:29:12 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:29:12 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:29:12 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:29:12 INFO hive.metastore: Connected to metastore.
19/03/12 18:29:12 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:29:12 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:29:12 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:29:12 INFO hive.metastore: Connected to metastore.
19/03/12 18:29:12 INFO exec.StatsTask: Table oracle.inr_emp stats: [numFiles=1, numRows=0, totalSize=976, rawDataSize=0]
19/03/12 18:29:12 INFO ql.Driver: Completed executing command(queryId=root_20190312102910_d3ab56d4-1bcb-4063-aaab-badd4f8f13e2); Time taken: 1.114 seconds
OK
19/03/12 18:29:12 INFO ql.Driver: OK
Time taken: 1.56 seconds
19/03/12 18:29:12 INFO CliDriver: Time taken: 1.56 seconds
19/03/12 18:29:12 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:12 INFO session.SessionState: Resetting thread name to  main
19/03/12 18:29:12 INFO conf.HiveConf: Using the default value passed in for log id: ac8d208d-2339-4bae-aee8-c9fc1c3b93a4
19/03/12 18:29:12 INFO session.SessionState: Deleted directory: /tmp/hive/root/ac8d208d-2339-4bae-aee8-c9fc1c3b93a4 on fs with scheme hdfs
19/03/12 18:29:12 INFO session.SessionState: Deleted directory: /hadoop/hive/tmp/root/ac8d208d-2339-4bae-aee8-c9fc1c3b93a4 on fs with scheme file
19/03/12 18:29:12 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:29:12 INFO hive.HiveImport: Hive import complete.
19/03/12 18:29:12 INFO hive.HiveImport: Export directory is contains the _SUCCESS file only, removing the directory.

查询hive表:

hive> select * from inr_emp;
OK
7369    er    CLERK    7902    NULL    800.0    20    NULL
7499    ALLEN    SALESMAN    7698    NULL    1600.0    30    NULL
7521    WARD    SALESMAN    7698    NULL    1250.0    30    NULL
7566    JONES    MANAGER    7839    NULL    2975.0    20    NULL
7654    MARTIN    SALESMAN    7698    NULL    1250.0    30    NULL
7698    BLAKE    MANAGER    7839    NULL    2850.0    30    NULL
7782    CLARK    MANAGER    7839    NULL    2450.0    10    NULL
7839    KING    PRESIDENT    NULL    NULL    5000.0    10    NULL
7844    TURNER    SALESMAN    7698    NULL    1500.0    30    NULL
7876    ADAMS    CLERK    7788    NULL    1100.0    20    NULL
7900    JAMES    CLERK    7698    NULL    950.0    30    NULL
7902    FORD    ANALYST    7566    NULL    3000.0    20    NULL
7934    sdf    sdf    7782    NULL    1300.0    10    NULL
Time taken: 3.103 seconds, Fetched: 13 row(s)

发现导入hive表时间相关的数据都成空值了,这里我们把oracle时间列对应的hive表的时间列改为string类型重新导入:

hive> drop table inr_emp;
OK
Time taken: 2.483 seconds
hive> create table INR_EMP
    > (
    >   empno    int,
    >   ename    string,
    >   job      string,
    >   mgr      int,
    >   hiredate string,
    >   sal      float,
    >   deptno   int,
    >   etltime  string
    > );
OK
Time taken: 0.109 seconds

再次执行一次上面的导入,看下结果:

hive> select * from inr_emp;
OK
7369    er    CLERK    7902    1980-12-17 00:00:00.0    800.0    20    2019-03-19 14:02:13.0
7499    ALLEN    SALESMAN    7698    1981-02-20 00:00:00.0    1600.0    30    2019-03-19 14:02:13.0
7521    WARD    SALESMAN    7698    1981-02-22 00:00:00.0    1250.0    30    2019-03-19 14:02:13.0
7566    JONES    MANAGER    7839    1981-04-02 00:00:00.0    2975.0    20    2019-03-19 14:02:13.0
7654    MARTIN    SALESMAN    7698    1981-09-28 00:00:00.0    1250.0    30    2019-03-19 14:02:13.0
7698    BLAKE    MANAGER    7839    1981-05-01 00:00:00.0    2850.0    30    2019-03-19 14:02:13.0
7782    CLARK    MANAGER    7839    1981-06-09 00:00:00.0    2450.0    10    2019-03-19 14:02:13.0
7839    KING    PRESIDENT    NULL    1981-11-17 00:00:00.0    5000.0    10    2019-03-19 14:02:13.0
7844    TURNER    SALESMAN    7698    1981-09-08 00:00:00.0    1500.0    30    2019-03-19 14:02:13.0
7876    ADAMS    CLERK    7788    1987-05-23 00:00:00.0    1100.0    20    2019-03-19 14:02:13.0
7900    JAMES    CLERK    7698    1981-12-03 00:00:00.0    950.0    30    2019-03-19 14:02:13.0
7902    FORD    ANALYST    7566    1981-12-03 00:00:00.0    3000.0    20    2019-03-19 14:02:13.0
7934    sdf    sdf    7782    1982-01-23 00:00:00.0    1300.0    10    2019-03-19 14:02:13.0
Time taken: 0.369 seconds, Fetched: 13 row(s)

这次正常了。

3、全量选择列导入

先drop了hive表inr_emp表,重建:

hive> drop table inr_emp;
OK
Time taken: 0.205 seconds
hive> create table INR_EMP
    > (
    >   empno    int,
    >   ename    string,
    >   job      string,
    >   mgr      int,
    >   hiredate string,
    >   sal      float,
    >   deptno   int,
    >   etltime  string
    > );
OK
Time taken: 0.102 seconds

然后另开一个会话挑几列导入

[root@hadoop ~]# sqoop import --connect jdbc:oracle:thin:@192.168.1.6:1521:orcl --username scott --password tiger --table INR_EMP -m 1 --columns 'EMPNO,ENAME,SAL,ETLTIME' --hive-import --hi
ve-database oracleWarning: /hadoop/sqoop/../accumulo does not exist! Accumulo imports will fail.
Please set $ACCUMULO_HOME to the root of your Accumulo installation.
Warning: /hadoop/sqoop/../zookeeper does not exist! Accumulo imports will fail.
Please set $ZOOKEEPER_HOME to the root of your Zookeeper installation.
19/03/12 18:44:23 INFO sqoop.Sqoop: Running Sqoop version: 1.4.7
19/03/12 18:44:23 WARN tool.BaseSqoopTool: Setting your password on the command-line is insecure. Consider using -P instead.
19/03/12 18:44:23 INFO tool.BaseSqoopTool: Using Hive-specific delimiters for output. You can override
19/03/12 18:44:23 INFO tool.BaseSqoopTool: delimiters with --fields-terminated-by, etc.
19/03/12 18:44:23 INFO oracle.OraOopManagerFactory: Data Connector for Oracle and Hadoop is disabled.
19/03/12 18:44:23 INFO manager.SqlManager: Using default fetchSize of 1000
19/03/12 18:44:23 INFO tool.CodeGenTool: Beginning code generation
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/hadoop/hbase/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/hadoop/hive/lib/log4j-slf4j-impl-2.6.2.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
19/03/12 18:44:24 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:44:24 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM INR_EMP t WHERE 1=0
19/03/12 18:44:24 INFO orm.CompilationManager: HADOOP_MAPRED_HOME is /hadoop
Note: /tmp/sqoop-root/compile/2e1abddfc21ac4e688984b572589f687/INR_EMP.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
19/03/12 18:44:26 INFO orm.CompilationManager: Writing jar file: /tmp/sqoop-root/compile/2e1abddfc21ac4e688984b572589f687/INR_EMP.jar
19/03/12 18:44:26 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:44:26 INFO mapreduce.ImportJobBase: Beginning import of INR_EMP
19/03/12 18:44:27 INFO Configuration.deprecation: mapred.jar is deprecated. Instead, use mapreduce.job.jar
19/03/12 18:44:27 INFO Configuration.deprecation: mapred.map.tasks is deprecated. Instead, use mapreduce.job.maps
19/03/12 18:44:28 INFO client.RMProxy: Connecting to ResourceManager at /192.168.1.66:8032
19/03/12 18:44:30 INFO db.DBInputFormat: Using read commited transaction isolation
19/03/12 18:44:30 INFO mapreduce.JobSubmitter: number of splits:1
19/03/12 18:44:30 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1552371714699_0007
19/03/12 18:44:31 INFO impl.YarnClientImpl: Submitted application application_1552371714699_0007
19/03/12 18:44:31 INFO mapreduce.Job: The url to track the job: http://hadoop:8088/proxy/application_1552371714699_0007/
19/03/12 18:44:31 INFO mapreduce.Job: Running job: job_1552371714699_0007
19/03/12 18:44:40 INFO mapreduce.Job: Job job_1552371714699_0007 running in uber mode : false
19/03/12 18:44:40 INFO mapreduce.Job:  map 0% reduce 0%
19/03/12 18:44:46 INFO mapreduce.Job:  map 100% reduce 0%
19/03/12 18:44:47 INFO mapreduce.Job: Job job_1552371714699_0007 completed successfully
19/03/12 18:44:47 INFO mapreduce.Job: Counters: 30
    File System Counters
        FILE: Number of bytes read=0
        FILE: Number of bytes written=143499
        FILE: Number of read operations=0
        FILE: Number of large read operations=0
        FILE: Number of write operations=0
        HDFS: Number of bytes read=87
        HDFS: Number of bytes written=486
        HDFS: Number of read operations=4
        HDFS: Number of large read operations=0
        HDFS: Number of write operations=2
    Job Counters
        Launched map tasks=1
        Other local map tasks=1
        Total time spent by all maps in occupied slots (ms)=4271
        Total time spent by all reduces in occupied slots (ms)=0
        Total time spent by all map tasks (ms)=4271
        Total vcore-milliseconds taken by all map tasks=4271
        Total megabyte-milliseconds taken by all map tasks=4373504
    Map-Reduce Framework
        Map input records=13
        Map output records=13
        Input split bytes=87
        Spilled Records=0
        Failed Shuffles=0
        Merged Map outputs=0
        GC time elapsed (ms)=69
        CPU time spent (ms)=1990
        Physical memory (bytes) snapshot=188010496
        Virtual memory (bytes) snapshot=2143096832
        Total committed heap usage (bytes)=111149056
    File Input Format Counters
        Bytes Read=0
    File Output Format Counters
        Bytes Written=486
19/03/12 18:44:47 INFO mapreduce.ImportJobBase: Transferred 486 bytes in 20.0884 seconds (24.193 bytes/sec)
19/03/12 18:44:47 INFO mapreduce.ImportJobBase: Retrieved 13 records.
19/03/12 18:44:47 INFO mapreduce.ImportJobBase: Publishing Hive/Hcat import job data to Listeners for table INR_EMP
19/03/12 18:44:47 INFO manager.OracleManager: Time zone has been set to GMT
19/03/12 18:44:47 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM INR_EMP t WHERE 1=0
19/03/12 18:44:48 WARN hive.TableDefWriter: Column EMPNO had to be cast to a less precise type in Hive
19/03/12 18:44:48 WARN hive.TableDefWriter: Column SAL had to be cast to a less precise type in Hive
19/03/12 18:44:48 WARN hive.TableDefWriter: Column ETLTIME had to be cast to a less precise type in Hive
19/03/12 18:44:48 INFO hive.HiveImport: Loading uploaded data into Hive
19/03/12 18:44:48 INFO conf.HiveConf: Found configuration file file:/hadoop/hive/conf/hive-site.xml

Logging initialized using configuration in jar:file:/hadoop/hive/lib/hive-common-2.3.2.jar!/hive-log4j2.properties Async: true
19/03/12 18:44:50 INFO SessionState:
Logging initialized using configuration in jar:file:/hadoop/hive/lib/hive-common-2.3.2.jar!/hive-log4j2.properties Async: true
19/03/12 18:44:50 INFO session.SessionState: Created HDFS directory: /tmp/hive/root/08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:51 INFO session.SessionState: Created local directory: /hadoop/hive/tmp/root/08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:51 INFO session.SessionState: Created HDFS directory: /tmp/hive/root/08d98a96-18e1-4474-98df-1991d7b421f5/_tmp_space.db
19/03/12 18:44:51 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:51 INFO session.SessionState: Updating thread name to 08d98a96-18e1-4474-98df-1991d7b421f5 main
19/03/12 18:44:51 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:51 INFO ql.Driver: Compiling command(queryId=root_20190312104451_88b6d963-af76-490c-8832-ccc07e0667a7): CREATE TABLE IF NOT EXISTS `oracle`.`INR_EMP` ( `EMPNO` DOUBLE, `ENAME
` STRING, `SAL` DOUBLE, `ETLTIME` STRING) COMMENT 'Imported by sqoop on 2019/03/12 10:44:48' ROW FORMAT DELIMITED FIELDS TERMINATED BY '\001' LINES TERMINATED BY '\012' STORED AS TEXTFILE19/03/12 18:44:53 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:44:53 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:44:53 INFO hive.metastore: Connected to metastore.
19/03/12 18:44:53 INFO parse.CalcitePlanner: Starting Semantic Analysis
19/03/12 18:44:53 INFO parse.CalcitePlanner: Creating table oracle.INR_EMP position=27
19/03/12 18:44:53 INFO ql.Driver: Semantic Analysis Completed
19/03/12 18:44:53 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
19/03/12 18:44:53 INFO ql.Driver: Completed compiling command(queryId=root_20190312104451_88b6d963-af76-490c-8832-ccc07e0667a7); Time taken: 2.808 seconds
19/03/12 18:44:53 INFO ql.Driver: Concurrency mode is disabled, not creating a lock manager
19/03/12 18:44:53 INFO ql.Driver: Executing command(queryId=root_20190312104451_88b6d963-af76-490c-8832-ccc07e0667a7): CREATE TABLE IF NOT EXISTS `oracle`.`INR_EMP` ( `EMPNO` DOUBLE, `ENAME
` STRING, `SAL` DOUBLE, `ETLTIME` STRING) COMMENT 'Imported by sqoop on 2019/03/12 10:44:48' ROW FORMAT DELIMITED FIELDS TERMINATED BY '\001' LINES TERMINATED BY '\012' STORED AS TEXTFILE19/03/12 18:44:54 INFO sqlstd.SQLStdHiveAccessController: Created SQLStdHiveAccessController for session context : HiveAuthzSessionContext [sessionString=08d98a96-18e1-4474-98df-1991d7b421f
5, clientType=HIVECLI]19/03/12 18:44:54 WARN session.SessionState: METASTORE_FILTER_HOOK will be ignored, since hive.security.authorization.manager is set to instance of HiveAuthorizerFactory.
19/03/12 18:44:54 INFO hive.metastore: Mestastore configuration hive.metastore.filter.hook changed from org.apache.hadoop.hive.metastore.DefaultMetaStoreFilterHookImpl to org.apache.hadoop.
hive.ql.security.authorization.plugin.AuthorizationMetaStoreFilterHook19/03/12 18:44:54 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:44:54 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:44:54 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:44:54 INFO hive.metastore: Connected to metastore.
19/03/12 18:44:54 INFO ql.Driver: Completed executing command(queryId=root_20190312104451_88b6d963-af76-490c-8832-ccc07e0667a7); Time taken: 0.092 seconds
OK
19/03/12 18:44:54 INFO ql.Driver: OK
Time taken: 2.911 seconds
19/03/12 18:44:54 INFO CliDriver: Time taken: 2.911 seconds
19/03/12 18:44:54 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:54 INFO session.SessionState: Resetting thread name to  main
19/03/12 18:44:54 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:54 INFO session.SessionState: Updating thread name to 08d98a96-18e1-4474-98df-1991d7b421f5 main
19/03/12 18:44:54 INFO ql.Driver: Compiling command(queryId=root_20190312104454_13a6c093-1f23-4362-a95e-db15aef02c97):
LOAD DATA INPATH 'hdfs://192.168.1.66:9000/user/root/INR_EMP' INTO TABLE `oracle`.`INR_EMP`
19/03/12 18:44:54 INFO ql.Driver: Semantic Analysis Completed
19/03/12 18:44:54 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
19/03/12 18:44:54 INFO ql.Driver: Completed compiling command(queryId=root_20190312104454_13a6c093-1f23-4362-a95e-db15aef02c97); Time taken: 0.411 seconds
19/03/12 18:44:54 INFO ql.Driver: Concurrency mode is disabled, not creating a lock manager
19/03/12 18:44:54 INFO ql.Driver: Executing command(queryId=root_20190312104454_13a6c093-1f23-4362-a95e-db15aef02c97):
LOAD DATA INPATH 'hdfs://192.168.1.66:9000/user/root/INR_EMP' INTO TABLE `oracle`.`INR_EMP`
19/03/12 18:44:54 INFO ql.Driver: Starting task [Stage-0:MOVE] in serial mode
19/03/12 18:44:54 INFO hive.metastore: Closed a connection to metastore, current connections: 0
Loading data to table oracle.inr_emp
19/03/12 18:44:54 INFO exec.Task: Loading data to table oracle.inr_emp from hdfs://192.168.1.66:9000/user/root/INR_EMP
19/03/12 18:44:54 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:44:54 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:44:54 INFO hive.metastore: Connected to metastore.
19/03/12 18:44:54 ERROR hdfs.KeyProviderCache: Could not find uri with key [dfs.encryption.key.provider.uri] to create a keyProvider !!
19/03/12 18:44:55 INFO ql.Driver: Starting task [Stage-1:STATS] in serial mode
19/03/12 18:44:55 INFO exec.StatsTask: Executing stats task
19/03/12 18:44:55 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:44:55 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:44:55 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:44:55 INFO hive.metastore: Connected to metastore.
19/03/12 18:44:55 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:44:55 INFO hive.metastore: Trying to connect to metastore with URI thrift://192.168.1.66:9083
19/03/12 18:44:55 INFO hive.metastore: Opened a connection to metastore, current connections: 1
19/03/12 18:44:55 INFO hive.metastore: Connected to metastore.
19/03/12 18:44:55 INFO exec.StatsTask: Table oracle.inr_emp stats: [numFiles=1, numRows=0, totalSize=486, rawDataSize=0]
19/03/12 18:44:55 INFO ql.Driver: Completed executing command(queryId=root_20190312104454_13a6c093-1f23-4362-a95e-db15aef02c97); Time taken: 1.02 seconds
OK
19/03/12 18:44:55 INFO ql.Driver: OK
Time taken: 1.431 seconds
19/03/12 18:44:55 INFO CliDriver: Time taken: 1.431 seconds
19/03/12 18:44:55 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:55 INFO session.SessionState: Resetting thread name to  main
19/03/12 18:44:55 INFO conf.HiveConf: Using the default value passed in for log id: 08d98a96-18e1-4474-98df-1991d7b421f5
19/03/12 18:44:55 INFO session.SessionState: Deleted directory: /tmp/hive/root/08d98a96-18e1-4474-98df-1991d7b421f5 on fs with scheme hdfs
19/03/12 18:44:55 INFO session.SessionState: Deleted directory: /hadoop/hive/tmp/root/08d98a96-18e1-4474-98df-1991d7b421f5 on fs with scheme file
19/03/12 18:44:55 INFO hive.metastore: Closed a connection to metastore, current connections: 0
19/03/12 18:44:55 INFO hive.HiveImport: Hive import complete.
19/03/12 18:44:55 INFO hive.HiveImport: Export directory is contains the _SUCCESS file only, removing the directory.

查询hive表

hive> select * from inr_emp;
OK
7369    er    800    NULL    NULL    NULL    NULL    NULL
7499    ALLEN    1600    NULL    NULL    NULL    NULL    NULL
7521    WARD    1250    NULL    NULL    NULL    NULL    NULL
7566    JONES    2975    NULL    NULL    NULL    NULL    NULL
7654    MARTIN    1250    NULL    NULL    NULL    NULL    NULL
7698    BLAKE    2850    NULL    NULL    NULL    NULL    NULL
7782    CLARK    2450    NULL    NULL    NULL    NULL    NULL
7839    KING    5000    NULL    NULL    NULL    NULL    NULL
7844    TURNER    1500    NULL    NULL    NULL    NULL    NULL
7876    ADAMS    1100    NULL    NULL    NULL    NULL    NULL
7900    JAMES    950    NULL    NULL    NULL    NULL    NULL
7902    FORD    3000    NULL    NULL    NULL    NULL    NULL
7934    sdf    1300    NULL    NULL    NULL    NULL    NULL
Time taken: 0.188 seconds, Fetched: 13 row(s)

发现的确只导入了这几列,其他列为空,如果hive表只创建我们需要的源端几个列来创建一个表,然后指定需要的这几列导入呢?
删除重建hive表:

hive> drop table inr_emp;
OK
Time taken: 0.152 seconds
hive> create table INR_EMP
    > (
    >   empno    int,
    >   ename    string,
    >   sal      float
    > );
OK
Time taken: 0.086 seconds

重新导入:

[root@hadoop ~]# sqoop import --connect jdbc:oracle:thin:@192.168.1.6:1521:orcl --username scott --password tiger --table INR_EMP -m 1 --columns 'EMPNO,ENAME,SAL,ETLTIME' --hive-import --hi
ve-database oracle
。。。

查询hive表

hive> select * from inr_emp;
OK
7369    er    800.0
7499    ALLEN    1600.0
7521    WARD    1250.0
7566    JONES    2975.0
7654    MARTIN    1250.0
7698    BLAKE    2850.0
7782    CLARK    2450.0
7839    KING    5000.0
7844    TURNER    1500.0
7876    ADAMS    1100.0
7900    JAMES    950.0
7902    FORD    3000.0
7934    sdf    1300.0
Time taken: 0.18 seconds, Fetched: 13 row(s)

导入的数据没问题,这样在做kylin增量时没我可以只选择需要计算的列来创建hive表,然后通过sqoop来增量数据到hive,降低空间使用,加下下一篇文章介绍增量导入,连接已经在文章开始给出。

相关实践学习
基于MSE实现微服务的全链路灰度
通过本场景的实验操作,您将了解并实现在线业务的微服务全链路灰度能力。
相关文章
|
9天前
|
SQL Oracle 关系型数据库
MySQL、SQL Server和Oracle数据库安装部署教程
数据库的安装部署教程因不同的数据库管理系统(DBMS)而异,以下将以MySQL、SQL Server和Oracle为例,分别概述其安装部署的基本步骤。请注意,由于软件版本和操作系统的不同,具体步骤可能会有所变化。
41 3
|
1月前
|
SQL 分布式计算 HIVE
实时计算 Flink版产品使用问题之同步到Hudi的数据是否可以被Hive或Spark直接读取
实时计算Flink版作为一种强大的流处理和批处理统一的计算框架,广泛应用于各种需要实时数据处理和分析的场景。实时计算Flink版通常结合SQL接口、DataStream API、以及与上下游数据源和存储系统的丰富连接器,提供了一套全面的解决方案,以应对各种实时计算需求。其低延迟、高吞吐、容错性强的特点,使其成为众多企业和组织实时数据处理首选的技术平台。以下是实时计算Flink版的一些典型使用合集。
|
1月前
|
消息中间件 存储 SQL
实时计算 Flink版产品使用问题之kafka2hive同步数据时,如何回溯历史数据
实时计算Flink版作为一种强大的流处理和批处理统一的计算框架,广泛应用于各种需要实时数据处理和分析的场景。实时计算Flink版通常结合SQL接口、DataStream API、以及与上下游数据源和存储系统的丰富连接器,提供了一套全面的解决方案,以应对各种实时计算需求。其低延迟、高吞吐、容错性强的特点,使其成为众多企业和组织实时数据处理首选的技术平台。以下是实时计算Flink版的一些典型使用合集。
|
1月前
|
SQL Oracle 关系型数据库
mysql和oracle 命令行执行sql文件 数据库执行sql文件 执行sql语句
mysql和oracle 命令行执行sql文件 数据库执行sql文件 执行sql语句
46 0
|
2月前
|
SQL 运维 调度
【Hive】运维如何对hive进行调度?
【4月更文挑战第14天】【Hive】运维如何对hive进行调度?
|
2月前
|
存储 Oracle 关系型数据库
oracle 数据库 迁移 mysql数据库
将 Oracle 数据库迁移到 MySQL 是一项复杂的任务,因为这两种数据库管理系统具有不同的架构、语法和功能。
53 0
|
2月前
|
分布式计算 关系型数据库 MySQL
oceanbase-oracle/mysql 如何导入数据
oceanbase-oracle/mysql 如何导入数据
|
2月前
|
SQL Oracle 关系型数据库
常用数据库的分页语句(mySQL、oracle、PostgreSQL、SQL Server)
常用数据库的分页语句(mySQL、oracle、PostgreSQL、SQL Server)
|
2月前
|
Oracle 关系型数据库 MySQL
数据库中对时间的操作(mySql、Oracle、pgSql)
数据库中对时间的操作(mySql、Oracle、pgSql)
|
2月前
|
Oracle 关系型数据库 MySQL
PG系、Oracle、MySQL数据库在特定场景下结果差异分析
本文主要介绍以PolarDB O引擎、ADB PG为代表的PG系数据库在某种特定事务场景下,其事务结果与Oracle、MySQL不同的现象,并分析该现象出现的原因。
97 0
PG系、Oracle、MySQL数据库在特定场景下结果差异分析

推荐镜像

更多
