手机电视系统为移动手机客户提供了丰富的数字音频视频信息,使用户能够随时随地获取最新的资讯和最优质的信息,其应用前景十分广阔.
⛄ 部分代码
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Create the parity check matrix for code rate 1/2, 2/3 and 3/4
% IEEE 802.16e standard (WiMAX)
function [H_index] = generate_ldpc_matrix_80216e(n, code_rate)
% Each H_index matrix has 24 columns (from hc1 to hc24)
% row permutation of H_index
% dimension of sub-matrix n x n;
% 19 modes for LDPC code, code rate = 1/2;
% Mode
% 1. n =24, LDPC(576,288)
% 2. n =28, LDPC(672,336)
% 3. n =32, LDPC(768,384)
% 4. n =36, LDPC(864,432)
% 5. n =40, LDPC(960,480)
% 6. n =44, LDPC(1056,528)
% 7. n =48, LDPC(1152,576)
% 8. n =52, LDPC(1248,624)
% 9. n =56, LDPC(1344,672)
% 10. n =60, LDPC(1440,720)
% 11. n =64, LDPC(1536,768)
% 12. n =68, LDPC(1632,816)
% 13. n =72, LDPC(1728,864)
% 14. n =76, LDPC(1824,912)
% 15. n =80, LDPC(1920,960)
% 16. n =84, LDPC(2016,1008)
% 17. n =88, LDPC(2112,1056)
% 18. n =92, LDPC(2208,1104)
% 19. n =96, LDPC(2304,1152)
% 19 modes for LDPC code, code rate = 2/3B;
% Mode
% 1. n =24, LDPC(576,384)
% 2. n =28, LDPC(672,448)
% 3. n =32, LDPC(768,512)
% 4. n =36, LDPC(864,432)
% 5. n =40, LDPC(960,576)
% 6. n =44, LDPC(1056,704)
% 7. n =48, LDPC(1152,768)
% 8. n =52, LDPC(1248,832)
% 9. n =56, LDPC(1344,896)
% 10. n =60, LDPC(1440,960)
% 11. n =64, LDPC(1536,1024)
% 12. n =68, LDPC(1632,1088)
% 13. n =72, LDPC(1728,1152)
% 14. n =76, LDPC(1824,1216)
% 15. n =80, LDPC(1920,1280)
% 16. n =84, LDPC(2016,1344)
% 17. n =88, LDPC(2112,1408)
% 18. n =92, LDPC(2208,1472)
% 19. n =96, LDPC(2304,1536)
if (mod(n,4) ~= 0 || n < 24 || n > 96)
error('ldpc_matrix_80216e error: sub-matrix size is not supported');
end
k = 96;
switch code_rate
case 1/2
hc1 = [-1;-1;-1;floor(61*n/k);-1;-1;-1;-1;floor(12*n/k);-1;-1;floor(43*n/k)];
hc2 = [floor(94*n/k);floor(27*n/k);-1;-1;-1;-1;-1;floor(11*n/k);-1;-1;-1;-1];
hc3 = [floor(73*n/k);-1;-1;floor(47*n/k);floor(39*n/k);-1;floor(95*n/k);floor(73*n/k);-1;-1;floor(7*n/k);-1];
hc4 = [-1;-1;floor(24*n/k);-1;-1;-1;floor(53*n/k);-1;-1;-1;floor(65*n/k);-1];
hc5 = [-1;-1;floor(22*n/k);-1;-1;floor(46*n/k);-1;-1;floor(83*n/k);-1;-1;-1];
hc6 = [-1;floor(22*n/k);floor(81*n/k);-1;-1;floor(40*n/k);-1;-1;floor(24*n/k);floor(94*n/k);-1;floor(66*n/k)];
hc7 = [-1;floor(79*n/k);-1;-1;floor(84*n/k);-1;-1;floor(2*n/k);-1;-1;-1;-1];
hc8 = [-1;floor(9*n/k);floor(33*n/k);-1;-1;floor(82*n/k);-1;-1;floor(43*n/k);floor(59*n/k);-1;floor(41*n/k)];
hc9 = [floor(55*n/k);-1;-1;floor(65*n/k);-1;-1;-1;-1;-1;-1;floor(39*n/k);-1];
hc10 = [floor(83*n/k);-1;-1;floor(25*n/k);floor(41*n/k);-1;floor(14*n/k);floor(47*n/k);-1;-1;floor(49*n/k);-1];
hc11 = [-1;-1;-1;-1;floor(72*n/k);-1;floor(18*n/k);-1;-1;floor(70*n/k);-1;-1];
hc12 = [-1;floor(12*n/k);0;-1;-1;floor(79*n/k);-1;-1;floor(51*n/k);floor(72*n/k);-1;floor(26*n/k)];
hc13 = [floor(7*n/k);-1;-1;-1;-1;0;-1;-1;-1;-1;-1;floor(7*n/k)];
hc14 = [0;0;-1;-1;-1;-1;-1;-1;-1;-1;-1;-1];
hc15 = [-1;0;0;-1;-1;-1;-1;-1;-1;-1;-1;-1];
hc16 = [-1;-1;0;0;-1;-1;-1;-1;-1;-1;-1;-1];
hc17 = [-1;-1;-1;0;0;-1;-1;-1;-1;-1;-1;-1];
hc18 = [-1;-1;-1;-1;0;0;-1;-1;-1;-1;-1;-1];
hc19 = [-1;-1;-1;-1;-1;0;0;-1;-1;-1;-1;-1];
hc20 = [-1;-1;-1;-1;-1;-1;0;0;-1;-1;-1;-1];
hc21 = [-1;-1;-1;-1;-1;-1;-1;0;0;-1;-1;-1];
hc22 = [-1;-1;-1;-1;-1;-1;-1;-1;0;0;-1;-1];
hc23 = [-1;-1;-1;-1;-1;-1;-1;-1;-1;0;0;-1];
hc24 = [-1;-1;-1;-1;-1;-1;-1;-1;-1;-1;0;0];
H_index = cat(2,hc1,hc2,hc3,hc4,hc5,hc6,hc7,hc8,hc9,hc10,hc11,hc12,...
hc13,hc14,hc15,hc16,hc17,hc18,hc19,hc20,hc21,hc22,hc23,hc24);
% temp_H = [row_1,row_3,row_5,row_12,row_7,row_9,row_11,row_2,row_4,row_6,row_8,row_10]
temp_H = cat(1,H_index(1,:),H_index(3,:),H_index(5,:),H_index(12,:),...
H_index(7,:),H_index(9,:),H_index(11,:),H_index(2,:),...
H_index(4,:),H_index(6,:),H_index(8,:),H_index(10,:));
clear H_index;
H_index = temp_H;
case 2/3
hc1 = [floor(2*n/k);-1;floor(10*n/k);-1;floor(23*n/k);-1;floor(32*n/k);-1];
hc2 = [-1;floor(69*n/k);-1;floor(28*n/k);-1;floor(30*n/k);-1;0];
hc3 = [floor(19*n/k);-1;floor(86*n/k);-1;floor(29*n/k);-1;0;-1];
hc4 = [-1;floor(88*n/k);-1;floor(32*n/k);-1;floor(65*n/k);-1;floor(47*n/k)];
hc5 = [floor(47*n/k);-1;floor(62*n/k);-1;floor(15*n/k);-1;floor(15*n/k);-1];
hc6 = [-1;floor(47*n/k);-1;floor(81*n/k);-1;floor(54*n/k);-1;floor(13*n/k)];
hc7 = [floor(48*n/k);-1;floor(28*n/k);-1;floor(30*n/k);-1;floor(56*n/k);-1];
hc8 = [-1;floor(3*n/k);-1;floor(27*n/k);-1;floor(14*n/k);-1;floor(61*n/k)];
hc9 = [floor(36*n/k);-1;floor(85*n/k);-1;floor(66*n/k);-1;floor(85*n/k);-1];
hc10 = [-1;floor(16*n/k);-1;floor(88*n/k);-1;0;-1;floor(84*n/k)];
hc11 = [floor(82*n/k);-1;floor(16*n/k);-1;floor(24*n/k);-1;floor(5*n/k);-1];
hc12 = [-1;floor(37*n/k);-1;floor(5*n/k);-1;floor(30*n/k);-1;floor(55*n/k)];
hc13 = [floor(47*n/k);-1;floor(34*n/k);-1;floor(50*n/k);-1;floor(6*n/k);-1];
hc14 = [-1;floor(40*n/k);-1;floor(56*n/k);-1;floor(74*n/k);-1;floor(78*n/k)];
hc15 = [floor(15*n/k);-1;floor(73*n/k);-1;floor(62*n/k);-1;floor(52*n/k);-1];
hc16 = [-1;floor(48*n/k);-1;floor(37*n/k);-1;0;-1;floor(41*n/k)];
hc17 = [floor(95*n/k);-1;-1;-1;-1;-1;0;floor(95*n/k)];
hc18 = [0;0;-1;-1;-1;-1;-1;-1;];
hc19 = [-1;0;0;-1;-1;-1;-1;-1;];
hc20 = [-1;-1;0;0;-1;-1;-1;-1;];
hc21 = [-1;-1;-1;0;0;-1;-1;-1;];
hc22 = [-1;-1;-1;-1;0;0;-1;-1;];
hc23 = [-1;-1;-1;-1;-1;0;0;-1;];
hc24 = [-1;-1;-1;-1;-1;-1;0;0;];
H_index = cat(2,hc1,hc2,hc3,hc4,hc5,hc6,hc7,hc8,hc9,hc10,hc11,hc12,...
hc13,hc14,hc15,hc16,hc17,hc18,hc19,hc20,hc21,hc22,hc23,hc24);
% temp_H = [row_1,row_4,row_7,row_2,row_5,row_8,row_3,row_6]
temp_H = cat(1,H_index(1,:),H_index(4,:),H_index(7,:),H_index(2,:),...
H_index(5,:),H_index(8,:),H_index(3,:),H_index(6,:));
clear H_index;
H_index = temp_H;
case 3/4
hc1 = [floor(6*n/k);floor(62*n/k);floor(71*n/k);floor(38*n/k);-1;-1];
hc2 = [floor(38*n/k);floor(94*n/k);-1;floor(61*n/k);-1;floor(63*n/k)];
hc3 = [floor(3*n/k);floor(19*n/k);floor(55*n/k);-1;-1;floor(31*n/k)];
hc4 = [floor(93*n/k);floor(84*n/k);-1;floor(66*n/k);-1;floor(88*n/k)];
hc5 = [-1;-1;floor(12*n/k);floor(9*n/k);floor(32*n/k);floor(20*n/k)];
hc6 = [-1;floor(92*n/k);floor(66*n/k);floor(73*n/k);floor(52*n/k);-1];
hc7 = [-1;floor(78*n/k);floor(45*n/k);floor(47*n/k);floor(55*n/k);-1];
hc8 = [floor(30*n/k);-1;floor(79*n/k);floor(64*n/k);floor(80*n/k);-1];
hc9 = [floor(70*n/k);floor(15*n/k);-1;-1;floor(95*n/k);floor(6*n/k)];
hc10 = [-1;-1;floor(78*n/k);floor(39*n/k);floor(22*n/k);floor(40*n/k)];
hc11 = [floor(86*n/k);-1;-1;floor(61*n/k);floor(6*n/k);floor(56*n/k)];
hc12 = [-1;floor(92*n/k);-1;floor(43*n/k);floor(51*n/k);floor(16*n/k)];
hc13 = [floor(37*n/k);-1;floor(10*n/k);-1;floor(24*n/k);floor(71*n/k)];
hc14 = [floor(38*n/k);floor(45*n/k);-1;-1;floor(90*n/k);floor(53*n/k)];
hc15 = [floor(4*n/k);floor(24*n/k);floor(22*n/k);-1;floor(44*n/k);-1];
hc16 = [floor(11*n/k);floor(32*n/k);floor(55*n/k);-1;floor(20*n/k);-1];
hc17 = [-1;floor(30*n/k);floor(70*n/k);floor(95*n/k);-1;floor(27*n/k)];
hc18 = [floor(46*n/k);-1;floor(82*n/k);floor(32*n/k);-1;floor(26*n/k)];
hc19 = [floor(48*n/k);-1;-1;0;-1;floor(48*n/k)];
hc20 = [0;0;-1;-1;-1;-1];
hc21 = [-1;0;0;-1;-1;-1];
hc22 = [-1;-1;0;0;-1;-1];
hc23 = [-1;-1;-1;0;0;-1];
hc24 = [-1;-1;-1;-1;0;0];
H_index = cat(2,hc1,hc2,hc3,hc4,hc5,hc6,hc7,hc8,hc9,hc10,hc11,hc12,...
hc13,hc14,hc15,hc16,hc17,hc18,hc19,hc20,hc21,hc22,hc23,hc24);
otherwise
error('ldpc_matrix_80216e error: code rate is not supported');
end

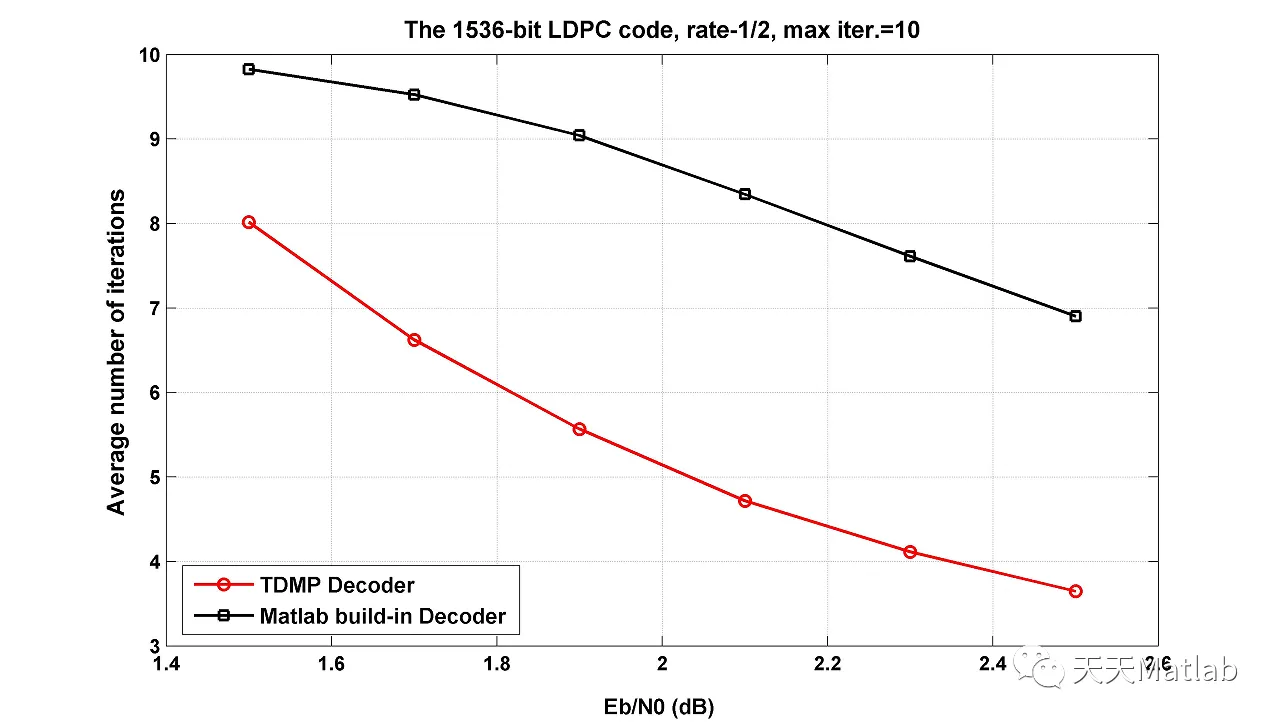

⛄ 运行结果
⛄ 参考文献
[1] 向波, 鲍丹, 黄双渠,等. 基于ＴＤＭＰ的超高速低功耗ＱＣ－ＬＤＰＣ码解码器:.
[2] 杨文斌. T-MMB标准中准循环LDPC码解码器的仿真与实现[D]. 天津大学.
[3] 向波, 鲍丹, 黄双渠,等. 一种基于TDMP的高速可配置QC-LDPC码解码器:, CN101800559A[P]. 2010.
[4] 鲍丹, 向波, 申睿,等. 基于TDMP优化算法的QC-LDPC译码器VLSI实现[J]. 计算机研究与发展, 2009(2):7.
