【ASH】如何导出视图DBA_HIST_ACTIVE_SESS_HISTORY的查询结果数据

简介: 【ASH】如何导出视图DBA_HIST_ACTIVE_SESS_HISTORY的查询结果数据   1.1  BLOG文档结构图   1.
+关注继续查看

ASH如何导出视图DBA_HIST_ACTIVE_SESS_HISTORY的查询结果数据

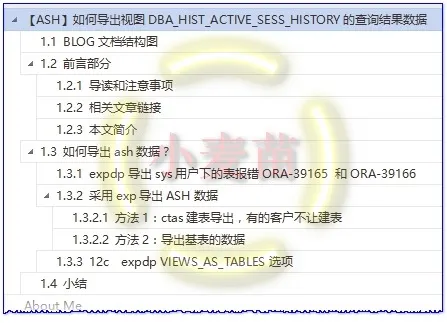

1.1  BLOG文档结构图

wpsF4F7.tmp

1.2  前言部分

1.2.1  导读和注意事项

各位技术爱好者,看完本文后,你可以掌握如下的技能,也可以学到一些其它你所不知道的知识,~O(∩_∩)O~

如何导出ASH数据--利用exp导出基表的数据(重点)

12c的expdp参数VIEWS_AS_TABLES选项

expdp工具不能导出哪些对象?

Tips

本文在itpub(http://blog.itpub.net/26736162)、博客园(http://www.cnblogs.com/lhrbest)和微信公众号(xiaomaimiaolhr)有同步更新

文章中用到的所有代码相关软件相关资料及本文的pdf版本都请前往小麦苗的云盘下载小麦苗的云盘地址见:http://blog.itpub.net/26736162/viewspace-1624453/

若网页文章代码格式有错乱,下载pdf格式的文档来阅读

本篇BLOG,代码输出部分一般放在一行一列的表格中。

本文有错误或不完善的地方请大家多多指正,您的批评指正是我写作的最大动力。



1.2.2  相关文章链接

12c的dmp文件导入11g中参考:【故障处理】IMP-00010错误 12Cdmp文件导入11G,地址为:http://blog.itpub.net/26736162/viewspace-2128197/



1.2.3  本文简介

众所周知,视图只是一个查询数据的窗口,其不存储数据,所以在使用exp等工具导出的时候只能导出其定义,而不能导出视图的查询结果数据。在Oracle 12c中,可以采用expdp中的一个新增参数VIEWS_AS_TABLES来将视图作为表来导出,非常实用,不过对于一些特殊的表仍然不能采用expdp导出,例如SYSSYSTEM下的一些表,AUD$表不能使用expdp来导出。

另外,对于一些安全类很高的系统是不允许随意创建表,也不允许使用PLSQL Developer等客户端的工具,那么若是查询DBA_HIST_ACTIVE_SESS_HISTORY等视图的时候就非常不方便了,这个时候我们可以将该视图的内容导出来,然后导入到我们自己的测试库中就可以随意的进行分析了。那么,如何来导出这些数据的内容呢?本文将详细介绍这些内容

1.3  如何导出ash数据?

根据前边的分析,我们知道视图的查询结果数据不能直接导出,那么我们可以导出这个视图的基表数据:

SELECT D.NAME, D.TYPE, D.REFERENCED_NAME, D.REFERENCED_TYPE

  FROM DBA_DEPENDENCIES D

 WHERE D.NAME IN ('DBA_HIST_ACTIVE_SESS_HISTORY',

                  'DBA_HIST_PLAN_OPERATION_NAME',

                  'DBA_HIST_PLAN_OPTION_NAME',

                  'DBA_HIST_SQLCOMMAND_NAME',

                  'DBA_HIST_TOPLEVELCALL_NAME')

   AND D.TYPE = 'VIEW'

 ORDER BY D.NAME, D.REFERENCED_NAME;

wpsF4F8.tmp

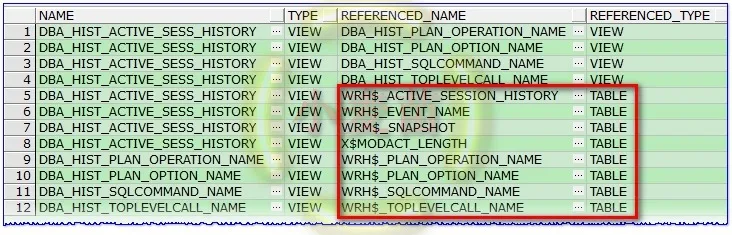

主要涉及的表是图中方框里的去掉X$表后的7个表,其中最主要的还是WRH$_ACTIVE_SESSION_HISTORY表,该表是一个分区表,导出的时候可以按照时间进行导出。其它表都是很小的表,可以全量导出。

下面尝试使用exp和expdp来导出。



1.3.1  expdp导出sys用户下的表报错ORA-39165 ORA-39166

[oracle@orcltest ~]$ more /tmp/expdp_ash_lhr_01.par

query=SYS.WRH$_ACTIVE_SESSION_HISTORY:"WHERE SAMPLE_TIME BETWEEN TO_DATE('2016-12-02 08:30:00', 'YYYY-MM-DD HH24:MI:SS') AND TO_DATE('2016-12-08 23:38:00', 'YYYY-MM-DD HH24:MI:SS')"

[oracle@orcltest ~]$

[oracle@orcltest ~]$ expdp \'/ AS SYSDBA\' directory=DATA_PUMP_DIR tables='SYS.WRH$_ACTIVE_SESSION_HISTORY','SYS.WRM$_SNAPSHOT','SYS.WRH$_EVENT_NAME','SYS.WRH$_SQLCOMMAND_NAME','SYS.WRH$_PLAN_OPERATION_NAME','SYS.WRH$_PLAN_OPTION_NAME','SYS.WRH$_TOPLEVELCALL_NAME' dumpfile=expdp_ash_lhr_01.dmp parfile=/tmp/expdp_ash_lhr_01.par  EXCLUDE=STATISTICS VERSION=11.2.0.1  REUSE_DUMPFILES=Y



Export: Release 11.2.0.3.0 - Production on Fri Dec 16 16:49:52 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.



Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options

Starting "SYS"."SYS_EXPORT_TABLE_03":  "/******** AS SYSDBA" directory=DATA_PUMP_DIR tables=SYS.WRH$_ACTIVE_SESSION_HISTORY,SYS.WRM$_SNAPSHOT,SYS.WRH$_EVENT_NAME,SYS.WRH$_SQLCOMMAND_NAME,SYS.WRH$_PLAN_OPERATION_NAME,SYS.WRH$_PLAN_OPTION_NAME,SYS.WRH$_TOPLEVELCALL_NAME dumpfile=expdp_ash_lhr_01.dmp parfile=/tmp/expdp_ash_lhr_01.par EXCLUDE=STATISTICS VERSION=11.2.0.1 REUSE_DUMPFILES=Y

Estimate in progress using BLOCKS method...

Total estimation using BLOCKS method: 0 KB

ORA-39166: Object SYS.WRH$_ACTIVE_SESSION_HISTORY was not found.

ORA-39166: Object SYS.WRM$_SNAPSHOT was not found.

ORA-39166: Object SYS.WRH$_EVENT_NAME was not found.

ORA-39166: Object SYS.WRH$_SQLCOMMAND_NAME was not found.

ORA-39166: Object SYS.WRH$_PLAN_OPERATION_NAME was not found.

ORA-39166: Object SYS.WRH$_PLAN_OPTION_NAME was not found.

ORA-39166: Object SYS.WRH$_TOPLEVELCALL_NAME was not found.

ORA-31655: no data or metadata objects selected for job

Job "SYS"."SYS_EXPORT_TABLE_03" completed with 8 error(s) at 16:49:53





查询MOS

DataPump Export (EXPDP) Fails With Error ORA-39165: Schema SYS Was Not Found (文档 ID 553402.1)

该文章给出了如下答案:

1. There is a restriction on dataPump export. It cannot export schemas like SYS, ORDSYS, EXFSYS, MDSYS, DMSYS, CTXSYS, ORDPLUGINS, LBACSYS, XDB, SI_INFORMTN_SCHEMA, DIP, DBSNMP and WMSYS in any mode.

2. The Utilities Guide indicates the restriction only on full export mode, but the restriction actually applies to all modes.

wpsF4F9.tmp

而:MOS:Why Can an Object Not Be Exported? Expdp of SYSTEM User's Table Returns ORA-39166 or ORA-31655 (文档 ID 2114233.1)列出来了哪些对象不能导出:

Objects (tables, views, schemas, etc) which fall under either of below conditions are not exported with expdp because they are regarded as system maintained objects.

Object is listed in ku_noexp_view.

This view is a union of ku_noexp_tab and noexp$ tables.

Objects that are listed in this view are not exported.



Object is ORACLE_MAINTAINED='Y' in ALL_OBJECTS (and DBA_OBJECTS).----针对12c

在视图sys.Ku_Noexp_View中或DBA_OBJECTSORACLE_MAINTAINED列为Y的对象不能导出。

SELECT * FROM sys.Ku_Noexp_View d WHERE d.name LIKE '%WRH%' ;

SELECT * FROM DBA_OBJECTS d WHERE d.ORACLE_MAINTAINED='Y' AND D.object_name LIKE 'WR%';



解决该报错的方法是:

1. 使用exp 导出

2.ctas的方法在不受限制的schema下创建表,然后导出该新建的表

3. use the DBMS_AUDIT_MGMT package of Audit Vault to manage and purge audit data (see Note 731908.1). This allows for the facility to move the AUD$ table out of the SYSTEM tablespace, which can negate the need to export the table.

注意:This issue also applies to other SYS owned auditing tables such as FGA_LOG$

1.3.2  采用exp导出ASH数据

1.3.2.1  方法1ctas建表导出有的客户不让建表

CREATE TABLE ASH_TEMP_20161219  NOLOGGING AS

SELECT *

  FROM DBA_HIST_ACTIVE_SESS_HISTORY D

WHERE D.SAMPLE_TIME BETWEEN

       TO_DATE('2016-12-01 02:00:00', 'YYYY-MM-DD HH24:MI:SS') AND

       TO_DATE('2016-12-17 06:00:00', 'YYYY-MM-DD HH24:MI:SS')

;



exp   \'/ AS SYSDBA\'  tables=ASH_TEMP_20161219  file=/tmp/exp_ASH_TEMP_20161219.dmp  log=/tmp/ASH_TEMP_20161117.log  buffer=41943040

imp  lhr/lhr  tables=ASH_TEMP_20161219  file=/tmp/ASH_TEMP_20161219.dmp  log=/tmp/imp_ASH_TEMP_20161117.log  buffer=41943040







实验过程:

[oracle@orcltest ~]$ sqlplus / as sysdba



SQL*Plus: Release 11.2.0.3.0 Production on Mon Dec 19 09:51:09 2016



Copyright (c) 1982, 2011, Oracle.  All rights reserved.





Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options



SYS@lhrdb> CREATE TABLE ASH_TEMP_20161219  NOLOGGING AS

  2  SELECT *

  3    FROM DBA_HIST_ACTIVE_SESS_HISTORY D

  4   WHERE D.SAMPLE_TIME BETWEEN

  5         TO_DATE('2016-12-01 02:00:00', 'YYYY-MM-DD HH24:MI:SS') AND

  6         TO_DATE('2016-12-17 06:00:00', 'YYYY-MM-DD HH24:MI:SS')

  7  ;



Table created.



SYS@lhrdb> exit

Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options

[oracle@orcltest ~]$

[oracle@orcltest ~]$

[oracle@orcltest ~]$ exp   \'/ AS SYSDBA\'  tables=ASH_TEMP_20161219  file=/tmp/ASH_TEMP_20161219.dmp  log=/tmp/ASH_TEMP_20161219.log  buffer=41943040



Export: Release 11.2.0.3.0 - Production on Mon Dec 19 09:51:44 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options

Export done in ZHS16GBK character set and AL16UTF16 NCHAR character set



About to export specified tables via Conventional Path ...

. . exporting table              ASH_TEMP_20161219        102 rows exported

Export terminated successfully without warnings.

[oracle@orcltest ~]$ imp  lhr/lhr  tables=ASH_TEMP_20161219  file=/tmp/ASH_TEMP_20161219.dmp  log=/tmp/ASH_TEMP_20161117.log  buffer=41943040



Import: Release 11.2.0.3.0 - Production on Mon Dec 19 09:52:20 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options



Export file created by EXPORT:V11.02.00 via conventional path



Warning: the objects were exported by SYS, not by you



import done in ZHS16GBK character set and AL16UTF16 NCHAR character set

. importing SYS's objects into LHR

. importing SYS's objects into LHR

. . importing table            "ASH_TEMP_20161219"        102 rows imported

Import terminated successfully without warnings.

[oracle@orcltest ~]$





1.3.2.2  方法2:导出基表的数据

导出基表数据:

---more /tmp/exp_ash_lhr_01.par

query="WHERE SAMPLE_TIME BETWEEN TO_DATE('2016-12-02 08:30:00', 'YYYY-MM-DD HH24:MI:SS') AND TO_DATE('2016-12-08 23:38:00', 'YYYY-MM-DD HH24:MI:SS')"



exp \'/ AS SYSDBA\'  tables='WRH$_ACTIVE_SESSION_HISTORY' file=/tmp/exp_ash_lhr_01.dmp parfile=/tmp/exp_ash_lhr_01.par log=/tmp/exp_ash_lhr_01.log GRANTS=N CONSTRAINTS=N  STATISTICS=NONE

exp \'/ AS SYSDBA\'  tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' file=/tmp/exp_ash_lhr_02.dmp log=/tmp/exp_ash_lhr_02.log  GRANTS=N  CONSTRAINTS=N  STATISTICS=NONE



导入到测试用户:

imp lhr/lhr file=/tmp/exp_ash_lhr_01.dmp tables='WRH$_ACTIVE_SESSION_HISTORY' log=/tmp/imp_ash_lhr_01.log  FROMUSER=SYS TOUSER=LHR

imp lhr/lhr file=/tmp/exp_ash_lhr_02.dmp tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' log=/tmp/imp_ash_lhr_02.log   FROMUSER=SYS TOUSER=LHR





DROP TABLE LHR.WRH$_ACTIVE_SESSION_HISTORY PURGE;

DROP TABLE LHR.WRM$_SNAPSHOT PURGE;

DROP TABLE LHR.WRH$_EVENT_NAME PURGE;

DROP TABLE LHR.WRH$_SQLCOMMAND_NAME PURGE;

DROP TABLE LHR.WRH$_PLAN_OPERATION_NAME PURGE;

DROP TABLE LHR.WRH$_PLAN_OPTION_NAME PURGE;

DROP TABLE LHR.WRH$_TOPLEVELCALL_NAME PURGE;







实验:

[oracle@orcltest ~]$ more /tmp/exp_ash_lhr_01.par

query="WHERE SAMPLE_TIME BETWEEN TO_DATE('2016-12-02 08:30:00', 'YYYY-MM-DD HH24:MI:SS') AND TO_DATE('2016-12-08 23:38:00', 'YYYY-MM-DD HH24:MI:SS')"

[oracle@orcltest ~]$ exp \'/ AS SYSDBA\'  tables='WRH$_ACTIVE_SESSION_HISTORY' file=/tmp/exp_ash_lhr_01.dmp parfile=/tmp/exp_ash_lhr_01.par log=/tmp/exp_ash_lhr_01.log GRANTS=N CONSTRAINTS=N  STATISTICS=NONE



Export: Release 11.2.0.3.0 - Production on Mon Dec 19 10:25:05 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options

Export done in ZHS16GBK character set and AL16UTF16 NCHAR character set

Note: grants on tables/views/sequences/roles will not be exported

Note: constraints on tables will not be exported



About to export specified tables via Conventional Path ...

. . exporting table    WRH$_ACTIVE_SESSION_HISTORY

. . exporting partition        WRH$_ACTIVE_971836524_0         55 rows exported

. . exporting partition       WRH$_ACTIVE_971836524_35          0 rows exported

. . exporting partition      WRH$_ACTIVE_SES_MXDB_MXSN          0 rows exported

Export terminated successfully without warnings.

[oracle@orcltest ~]$ exp \'/ AS SYSDBA\'  tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' file=/tmp/exp_ash_lhr_02.dmp log=/tmp/exp_ash_lhr_02.log  GRANTS=N  CONSTRAINTS=N  STATISTICS=NONE



Export: Release 11.2.0.3.0 - Production on Mon Dec 19 10:25:12 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options

Export done in ZHS16GBK character set and AL16UTF16 NCHAR character set

Note: grants on tables/views/sequences/roles will not be exported

Note: constraints on tables will not be exported



About to export specified tables via Conventional Path ...

. . exporting table                  WRM$_SNAPSHOT         23 rows exported

. . exporting table                WRH$_EVENT_NAME       1152 rows exported

. . exporting table           WRH$_SQLCOMMAND_NAME        165 rows exported

. . exporting table       WRH$_PLAN_OPERATION_NAME        130 rows exported

. . exporting table          WRH$_PLAN_OPTION_NAME        165 rows exported

. . exporting table         WRH$_TOPLEVELCALL_NAME        151 rows exported

Export terminated successfully without warnings.





[oracle@orcltest ~]$ imp lhr/lhr file=/tmp/exp_ash_lhr_01.dmp tables='WRH$_ACTIVE_SESSION_HISTORY' log=/tmp/imp_ash_lhr_01.log  FROMUSER=SYS TOUSER=LHR



Import: Release 11.2.0.3.0 - Production on Mon Dec 19 10:28:37 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options



Export file created by EXPORT:V11.02.00 via conventional path



Warning: the objects were exported by SYS, not by you



import done in ZHS16GBK character set and AL16UTF16 NCHAR character set

. importing SYS's objects into LHR

. . importing partition "WRH$_ACTIVE_SESSION_HISTORY":"WRH$_ACTIVE_971836524_0"         55 rows imported

. . importing partition "WRH$_ACTIVE_SESSION_HISTORY":"WRH$_ACTIVE_971836524_35"          0 rows imported

. . importing partition "WRH$_ACTIVE_SESSION_HISTORY":"WRH$_ACTIVE_SES_MXDB_MXSN"          0 rows imported

Import terminated successfully without warnings.

[oracle@orcltest ~]$



[oracle@orcltest ~]$

[oracle@orcltest ~]$ imp lhr/lhr file=/tmp/exp_ash_lhr_02.dmp tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' log=/tmp/imp_ash_lhr_02.log   FROMUSER=SYS TOUSER=LHR



Import: Release 11.2.0.3.0 - Production on Mon Dec 19 10:27:26 2016



Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.





Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Automatic Storage Management, OLAP, Data Mining

and Real Application Testing options



Export file created by EXPORT:V11.02.00 via conventional path



Warning: the objects were exported by SYS, not by you



import done in ZHS16GBK character set and AL16UTF16 NCHAR character set

. importing SYS's objects into LHR

. . importing table                "WRM$_SNAPSHOT"         23 rows imported

. . importing table              "WRH$_EVENT_NAME"       1152 rows imported

. . importing table         "WRH$_SQLCOMMAND_NAME"        165 rows imported

. . importing table     "WRH$_PLAN_OPERATION_NAME"        130 rows imported

. . importing table        "WRH$_PLAN_OPTION_NAME"        165 rows imported

. . importing table       "WRH$_TOPLEVELCALL_NAME"        151 rows imported

Import terminated successfully without warnings.

[oracle@orcltest ~]$



接下来就是根据这些基表来创建自己的视图了,不再详述。



1.3.3  12c  expdp VIEWS_AS_TABLES选项

expdp VIEWS_AS_TABLES选项可以将视图看做表并将其数据导出。

expdp system/lhr DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=expdp_vw.log VIEWS_AS_TABLES=lhr.my_view

表数据准备:

create table lhr.my_tab1 (nr number, txt varchar2(10));

insert into lhr.my_tab1 values (1,'Line 1');

insert into lhr.my_tab1 values (2,'Line 2');



create table lhr.my_tab2 (nr number, col2 number, col3 varchar2(10));

insert into lhr.my_tab2 values (1,1,'c3_1');

insert into lhr.my_tab2 values (2,2,'c3_2');

commit;

create view lhr.my_view (nr, txt, col3) as

   select t1.nr, t1.txt, t2.col3

     from lhr.my_tab1 t1, lhr.my_tab2 t2

    where t1.nr=t2.nr;





开始导出:

C:\Users\xiaomaimiao>expdp system/lhr DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=expdp_vw.log VIEWS_AS_TABLES=lhr.my_view



Export: Release 12.1.0.2.0 - Production on 星期五 1216 16:31:49 2016



Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.



连接到: Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

启动 "SYSTEM"."SYS_EXPORT_TABLE_01":  system/******** DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=expdp_vw.log VIEWS_AS_TABLES=lhr.my_view

正在使用 BLOCKS 方法进行估计...

处理对象类型 TABLE_EXPORT/VIEWS_AS_TABLES/TABLE_DATA

使用 BLOCKS 方法的总估计: 16 KB

处理对象类型 TABLE_EXPORT/VIEWS_AS_TABLES/TABLE

. . 导出了 "LHR"."MY_VIEW"                             5.929 KB       2

已成功加载/卸载了主表 "SYSTEM"."SYS_EXPORT_TABLE_01"

******************************************************************************

SYSTEM.SYS_EXPORT_TABLE_01 的转储文件集为:

  E:\APP\ORACLE\ADMIN\LHRDB12C\DPDUMP\EXPDP_VW.DMP

作业 "SYSTEM"."SYS_EXPORT_TABLE_01" 已于 星期五 1216 16:32:36 2016 elapsed 0 00:00:31 成功完成







查看其DDL语句:



C:\Users\xiaomaimiao>impdp system/lhr DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=impdp_vw.log sqlfile=a.txt



Import: Release 12.1.0.2.0 - Production on 星期五 1216 16:35:14 2016



Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.



连接到: Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

已成功加载/卸载了主表 "SYSTEM"."SYS_SQL_FILE_FULL_01"

启动 "SYSTEM"."SYS_SQL_FILE_FULL_01":  system/******** DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=impdp_vw.log sqlfile=a.txt

处理对象类型 TABLE_EXPORT/VIEWS_AS_TABLES/TABLE

作业 "SYSTEM"."SYS_SQL_FILE_FULL_01" 已于 星期五 1216 16:35:26 2016 elapsed 0 00:00:10 成功完成





DDL语句内容:

-- CONNECT SYSTEM

ALTER SESSION SET EVENTS '10150 TRACE NAME CONTEXT FOREVER, LEVEL 1';

ALTER SESSION SET EVENTS '10904 TRACE NAME CONTEXT FOREVER, LEVEL 1';

ALTER SESSION SET EVENTS '25475 TRACE NAME CONTEXT FOREVER, LEVEL 1';

ALTER SESSION SET EVENTS '10407 TRACE NAME CONTEXT FOREVER, LEVEL 1';

ALTER SESSION SET EVENTS '10851 TRACE NAME CONTEXT FOREVER, LEVEL 1';

ALTER SESSION SET EVENTS '22830 TRACE NAME CONTEXT FOREVER, LEVEL 192 ';

-- new object type path: TABLE_EXPORT/VIEWS_AS_TABLES/TABLE

CREATE TABLE "LHR"."MY_VIEW"

   ("NR" NUMBER,

"TXT" VARCHAR2(10 BYTE),

"COL3" VARCHAR2(10 BYTE)

   ) SEGMENT CREATION DEFERRED

  PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255

NOCOMPRESS LOGGING

  TABLESPACE "USERS" ;





进行导入:

C:\Users\xiaomaimiao>sqlplus / as sysdba



SQL*Plus: Release 12.1.0.2.0 Production on 星期五 1216 16:37:03 2016



Copyright (c) 1982, 2014, Oracle.  All rights reserved.





连接到:

Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options



SQL> create user lhr01 identified by lhr;



用户已创建。



SQL> grant dba to lhr01;



授权成功。



SQL> exit

Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options 断开



C:\Users\xiaomaimiao>impdp system/lhr DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=impdp_vw.log remap_schema=lhr:lhr01



Import: Release 12.1.0.2.0 - Production on 星期五 1216 16:39:49 2016



Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.



连接到: Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

已成功加载/卸载了主表 "SYSTEM"."SYS_IMPORT_FULL_02"

启动 "SYSTEM"."SYS_IMPORT_FULL_02":  system/******** DIRECTORY=data_pump_dir DUMPFILE=expdp_vw.dmp LOGFILE=impdp_vw.log remap_schema=lhr:lhr01

处理对象类型 TABLE_EXPORT/VIEWS_AS_TABLES/TABLE

处理对象类型 TABLE_EXPORT/VIEWS_AS_TABLES/TABLE_DATA

. . 导入了 "LHR01"."MY_VIEW"                           5.929 KB       2

作业 "SYSTEM"."SYS_IMPORT_FULL_02" 已于 星期五 1216 16:39:57 2016 elapsed 0 00:00:06 成功完成







1.4  小结

--- 方法1ctas建表导出 有的客户不让建表

CREATE TABLE ASH_TEMP_20161117  NOLOGGING AS

SELECT *

  FROM DBA_HIST_ACTIVE_SESS_HISTORY D

WHERE D.SAMPLE_TIME BETWEEN

       TO_DATE('2016-11-10 02:00:00', 'YYYY-MM-DD HH24:MI:SS') AND

       TO_DATE('2016-11-17 06:00:00', 'YYYY-MM-DD HH24:MI:SS')

;



exp   \'/ AS SYSDBA\'  tables=ASH_TEMP_20161117  file=/tmp/ASH_TEMP_20161117.dmp  log=/tmp/ASH_TEMP_20161117.log  buffer=41943040







--- 方法2:导出基表的数据

采用exp导出ASH数据的命令:

---more /tmp/exp_ash_lhr_01.par

query="WHERE SAMPLE_TIME BETWEEN TO_DATE('2016-12-02 08:30:00', 'YYYY-MM-DD HH24:MI:SS') AND TO_DATE('2016-12-08 23:38:00', 'YYYY-MM-DD HH24:MI:SS')"



exp \'/ AS SYSDBA\'  tables='WRH$_ACTIVE_SESSION_HISTORY' file=/tmp/exp_ash_lhr_01.dmp parfile=/tmp/exp_ash_lhr_01.par log=/tmp/exp_ash_lhr_01.log GRANTS=N CONSTRAINTS=N  STATISTICS=NONE

exp \'/ AS SYSDBA\'  tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' file=/tmp/exp_ash_lhr_02.dmp log=/tmp/exp_ash_lhr_02.log  GRANTS=N  CONSTRAINTS=N  STATISTICS=NONE



imp lhr/lhr file=/tmp/exp_ash_lhr_01.dmp tables='WRH$_ACTIVE_SESSION_HISTORY' log=/tmp/imp_ash_lhr_01.log  FROMUSER=SYS TOUSER=LHR

imp lhr/lhr file=/tmp/exp_ash_lhr_02.dmp tables='WRM$_SNAPSHOT','WRH$_EVENT_NAME','WRH$_SQLCOMMAND_NAME','WRH$_PLAN_OPERATION_NAME','WRH$_PLAN_OPTION_NAME','WRH$_TOPLEVELCALL_NAME' log=/tmp/imp_ash_lhr_02.log   FROMUSER=SYS TOUSER=LHR





DROP TABLE LHR.WRH$_ACTIVE_SESSION_HISTORY PURGE;

DROP TABLE LHR.WRM$_SNAPSHOT PURGE;

DROP TABLE LHR.WRH$_EVENT_NAME PURGE;

DROP TABLE LHR.WRH$_SQLCOMMAND_NAME PURGE;

DROP TABLE LHR.WRH$_PLAN_OPERATION_NAME PURGE;

DROP TABLE LHR.WRH$_PLAN_OPTION_NAME PURGE;

DROP TABLE LHR.WRH$_TOPLEVELCALL_NAME PURGE;





创建自己的ASH视图:

---- 11.2.0.3

create or replace view dh_ash_11g_lhr

(snap_id, dbid, instance_number, sample_id, sample_time, session_id, session_serial#, session_type, flags, user_id, sql_id, is_sqlid_current, sql_child_number, sql_opcode, sql_opname, force_matching_signature, top_level_sql_id, top_level_sql_opcode, sql_plan_hash_value, sql_plan_line_id, sql_plan_operation, sql_plan_options, sql_exec_id, sql_exec_start, plsql_entry_object_id, plsql_entry_subprogram_id, plsql_object_id, plsql_subprogram_id, qc_instance_id, qc_session_id, qc_session_serial#, px_flags, event, event_id, seq#, p1text, p1, p2text, p2, p3text, p3, wait_class, wait_class_id, wait_time, session_state, time_waited, blocking_session_status, blocking_session, blocking_session_serial#, blocking_inst_id, blocking_hangchain_info, current_obj#, current_file#, current_block#, current_row#, top_level_call#, top_level_call_name, consumer_group_id, xid, remote_instance#, time_model, in_connection_mgmt, in_parse, in_hard_parse, in_sql_execution, in_plsql_execution, in_plsql_rpc, in_plsql_compilation, in_java_execution, in_bind, in_cursor_close, in_sequence_load, capture_overhead, replay_overhead, is_captured, is_replayed, service_hash, program, module, action, client_id, machine, port, ecid, dbreplay_file_id, dbreplay_call_counter, tm_delta_time, tm_delta_cpu_time, tm_delta_db_time, delta_time, delta_read_io_requests, delta_write_io_requests, delta_read_io_bytes, delta_write_io_bytes, delta_interconnect_io_bytes, pga_allocated, temp_space_allocated)

as

select /* ASH/AWR meta attributes */

       ash.snap_id, ash.dbid, ash.instance_number,

       ash.sample_id, ash.sample_time,

       /* Session/User attributes */

       ash.session_id, ash.session_serial#,

       decode(ash.session_type, 1,'FOREGROUND', 'BACKGROUND'),

       ash.flags,

       ash.user_id,

       /* SQL attributes */

       ash.sql_id,

       decode(bitand(ash.flags, power(2, 4)), NULL, 'N', 0, 'N', 'Y'),

       ash.sql_child_number, ash.sql_opcode,

       (select command_name from WRH$_SQLCOMMAND_NAME

        where command_type = ash.sql_opcode

        and dbid = ash.dbid) as sql_opname,

       ash.force_matching_signature,

       decode(ash.top_level_sql_id, NULL, ash.sql_id, ash.top_level_sql_id),

       decode(ash.top_level_sql_id, NULL, ash.sql_opcode,

              ash.top_level_sql_opcode),

       /* SQL Plan/Execution attributes */

       ash.sql_plan_hash_value,

       decode(ash.sql_plan_line_id, 0, to_number(NULL), ash.sql_plan_line_id),

       (select operation_name from WRH$_PLAN_OPERATION_NAME

        where  operation_id = ash.sql_plan_operation#

          and  dbid = ash.dbid) as sql_plan_operation,

       (select option_name from WRH$_PLAN_OPTION_NAME

        where  option_id = ash.sql_plan_options#

          and  dbid = ash.dbid) as sql_plan_options,

       decode(ash.sql_exec_id, 0, to_number(NULL), ash.sql_exec_id),

       ash.sql_exec_start,

       /* PL/SQL attributes */

       decode(ash.plsql_entry_object_id,0,to_number(NULL),

              ash.plsql_entry_object_id),

       decode(ash.plsql_entry_object_id,0,to_number(NULL),

              ash.plsql_entry_subprogram_id),

       decode(ash.plsql_object_id,0,to_number(NULL),

              ash.plsql_object_id),

       decode(ash.plsql_object_id,0,to_number(NULL),

              ash.plsql_subprogram_id),

       /* PQ attributes */

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_instance_id),

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_session_id),

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_session_serial#),

       decode(ash.px_flags,      0, to_number(NULL), ash.px_flags),

       /* Wait event attributes */

       decode(ash.wait_time, 0, evt.event_name, NULL),

       decode(ash.wait_time, 0, evt.event_id,   NULL),

       ash.seq#,

       evt.parameter1, ash.p1,

       evt.parameter2, ash.p2,

       evt.parameter3, ash.p3,

       decode(ash.wait_time, 0, evt.wait_class,    NULL),

       decode(ash.wait_time, 0, evt.wait_class_id, NULL),

       ash.wait_time,

       decode(ash.wait_time, 0, 'WAITING', 'ON CPU'),

       ash.time_waited,

       (case when ash.blocking_session = 4294967295

               then 'UNKNOWN'

             when ash.blocking_session = 4294967294

               then 'GLOBAL'

             when ash.blocking_session = 4294967293

               then 'UNKNOWN'

             when ash.blocking_session = 4294967292

               then 'NO HOLDER'

             when ash.blocking_session = 4294967291

               then 'NOT IN WAIT'

             else 'VALID'

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_session

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_session_serial#

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_inst_id

          end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then NULL

             else decode(bitand(ash.flags, power(2, 3)), NULL, 'N',

                         0, 'N', 'Y')

          end),

       /* Session's working context */

       ash.current_obj#, ash.current_file#, ash.current_block#,

       ash.current_row#, ash.top_level_call#,

       (select top_level_call_name from WRH$_TOPLEVELCALL_NAME

        where top_level_call# = ash.top_level_call#

        and dbid = ash.dbid) as top_level_call_name,

       decode(ash.consumer_group_id, 0, to_number(NULL),

              ash.consumer_group_id),

       ash.xid,

       decode(ash.remote_instance#, 0, to_number(NULL), ash.remote_instance#),

       ash.time_model,

       decode(bitand(ash.time_model,power(2, 3)),0,'N','Y')

                                                         as in_connection_mgmt,

       decode(bitand(ash.time_model,power(2, 4)),0,'N','Y')as in_parse,

       decode(bitand(ash.time_model,power(2, 7)),0,'N','Y')as in_hard_parse,

       decode(bitand(ash.time_model,power(2,10)),0,'N','Y')as in_sql_execution,

       decode(bitand(ash.time_model,power(2,11)),0,'N','Y')

                                                         as in_plsql_execution,

       decode(bitand(ash.time_model,power(2,12)),0,'N','Y')as in_plsql_rpc,

       decode(bitand(ash.time_model,power(2,13)),0,'N','Y')

                                                       as in_plsql_compilation,

       decode(bitand(ash.time_model,power(2,14)),0,'N','Y')

                                                       as in_java_execution,

       decode(bitand(ash.time_model,power(2,15)),0,'N','Y')as in_bind,

       decode(bitand(ash.time_model,power(2,16)),0,'N','Y')as in_cursor_close,

       decode(bitand(ash.time_model,power(2,17)),0,'N','Y')as in_sequence_load,

       decode(bitand(ash.flags,power(2,5)),NULL,'N',0,'N','Y')

                                                       as capture_overhead,

       decode(bitand(ash.flags,power(2,6)), NULL,'N',0,'N','Y' )

                                                           as replay_overhead,

       decode(bitand(ash.flags,power(2,0)),NULL,'N',0,'N','Y') as is_captured,

       decode(bitand(ash.flags,power(2,2)), NULL,'N',0,'N','Y' )as is_replayed,

       /* Application attributes */

       ash.service_hash, ash.program,

       ash.module module,

       ash.action action,

       ash.client_id,

       ash.machine, ash.port, ash.ecid,

       /* DB Replay info */

       ash.dbreplay_file_id, ash.dbreplay_call_counter,

       /* stash columns */

       ash.tm_delta_time,

       ash.tm_delta_cpu_time,

       ash.tm_delta_db_time,

       ash.delta_time,

       ash.delta_read_io_requests,

       ash.delta_write_io_requests,

       ash.delta_read_io_bytes,

       ash.delta_write_io_bytes,

       ash.delta_interconnect_io_bytes,

       ash.pga_allocated,

       ash.temp_space_allocated

from WRM$_SNAPSHOT sn, WRH$_ACTIVE_SESSION_HISTORY ash, WRH$_EVENT_NAME evt

where      ash.snap_id          = sn.snap_id(+)

      and  ash.dbid             = sn.dbid(+)

      and  ash.instance_number  = sn.instance_number(+)

      and  ash.dbid             = evt.dbid

      and  ash.event_id         = evt.event_id;



---------- 12c

create or replace view dh_ash_12c_lhr

(snap_id, dbid, instance_number, sample_id, sample_time, session_id, session_serial#, session_type, flags, user_id, sql_id, is_sqlid_current, sql_child_number, sql_opcode, sql_opname, force_matching_signature, top_level_sql_id, top_level_sql_opcode, sql_plan_hash_value, sql_full_plan_hash_value, sql_adaptive_plan_resolved, sql_plan_line_id, sql_plan_operation, sql_plan_options, sql_exec_id, sql_exec_start, plsql_entry_object_id, plsql_entry_subprogram_id, plsql_object_id, plsql_subprogram_id, qc_instance_id, qc_session_id, qc_session_serial#, px_flags, event, event_id, seq#, p1text, p1, p2text, p2, p3text, p3, wait_class, wait_class_id, wait_time, session_state, time_waited, blocking_session_status, blocking_session, blocking_session_serial#, blocking_inst_id, blocking_hangchain_info, current_obj#, current_file#, current_block#, current_row#, top_level_call#, top_level_call_name, consumer_group_id, xid, remote_instance#, time_model, in_connection_mgmt, in_parse, in_hard_parse, in_sql_execution, in_plsql_execution, in_plsql_rpc, in_plsql_compilation, in_java_execution, in_bind, in_cursor_close, in_sequence_load, in_inmemory_query, in_inmemory_populate, in_inmemory_prepopulate, in_inmemory_repopulate, in_inmemory_trepopulate, capture_overhead, replay_overhead, is_captured, is_replayed, service_hash, program, module, action, client_id, machine, port, ecid, dbreplay_file_id, dbreplay_call_counter, tm_delta_time, tm_delta_cpu_time, tm_delta_db_time, delta_time, delta_read_io_requests, delta_write_io_requests, delta_read_io_bytes, delta_write_io_bytes, delta_interconnect_io_bytes, pga_allocated, temp_space_allocated, dbop_name, dbop_exec_id, con_dbid/*, con_id*/)

as

select /* ASH/AWR meta attributes */

       ash.snap_id, ash.dbid, ash.instance_number,

       ash.sample_id, ash.sample_time,

       /* Session/User attributes */

       ash.session_id, ash.session_serial#,

       decode(ash.session_type, 1,'FOREGROUND', 'BACKGROUND'),

       ash.flags,

       ash.user_id,

       /* SQL attributes */

       ash.sql_id,

       decode(bitand(ash.flags, power(2, 4)), NULL, 'N', 0, 'N', 'Y'),

       ash.sql_child_number, ash.sql_opcode,

       (select command_name

          from WRH$_SQLCOMMAND_NAME s

         where s.command_type = ash.sql_opcode

           and s.dbid = ash.dbid

           and s.con_dbid = ash.dbid) as sql_opname,

       ash.force_matching_signature,

       decode(ash.top_level_sql_id, NULL, ash.sql_id, ash.top_level_sql_id),

       decode(ash.top_level_sql_id, NULL, ash.sql_opcode,

              ash.top_level_sql_opcode),

       /* SQL Plan/Execution attributes */

       ash.sql_plan_hash_value,

       ash.sql_full_plan_hash_value,

       ash.sql_adaptive_plan_resolved,

       decode(ash.sql_plan_line_id, 0, to_number(NULL), ash.sql_plan_line_id),

       (select operation_name

          from WRH$_PLAN_OPERATION_NAME pn

         where  pn.operation_id = ash.sql_plan_operation#

           and  pn.dbid = ash.dbid

           and  pn.con_dbid = ash.dbid) as sql_plan_operation,

       (select option_name

          from WRH$_PLAN_OPTION_NAME po

         where  po.option_id = ash.sql_plan_options#

           and  po.dbid = ash.dbid

           and  po.con_dbid = ash.dbid) as sql_plan_options,

       decode(ash.sql_exec_id, 0, to_number(NULL), ash.sql_exec_id),

       ash.sql_exec_start,

       /* PL/SQL attributes */

       decode(ash.plsql_entry_object_id,0,to_number(NULL),

              ash.plsql_entry_object_id),

       decode(ash.plsql_entry_object_id,0,to_number(NULL),

              ash.plsql_entry_subprogram_id),

       decode(ash.plsql_object_id,0,to_number(NULL),

              ash.plsql_object_id),

       decode(ash.plsql_object_id,0,to_number(NULL),

              ash.plsql_subprogram_id),

       /* PQ attributes */

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_instance_id),

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_session_id),

       decode(ash.qc_session_id, 0, to_number(NULL), ash.qc_session_serial#),

       decode(ash.px_flags,      0, to_number(NULL), ash.px_flags),

       /* Wait event attributes */

       decode(ash.wait_time, 0, evt.event_name, NULL),

       decode(ash.wait_time, 0, evt.event_id,   NULL),

       ash.seq#,

       evt.parameter1, ash.p1,

       evt.parameter2, ash.p2,

       evt.parameter3, ash.p3,

       decode(ash.wait_time, 0, evt.wait_class,    NULL),

       decode(ash.wait_time, 0, evt.wait_class_id, NULL),

       ash.wait_time,

       decode(ash.wait_time, 0, 'WAITING', 'ON CPU'),

       ash.time_waited,

       (case when ash.blocking_session = 4294967295

               then 'UNKNOWN'

             when ash.blocking_session = 4294967294

               then 'GLOBAL'

             when ash.blocking_session = 4294967293

               then 'UNKNOWN'

             when ash.blocking_session = 4294967292

               then 'NO HOLDER'

             when ash.blocking_session = 4294967291

               then 'NOT IN WAIT'

             else 'VALID'

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_session

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_session_serial#

        end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then to_number(NULL)

             else ash.blocking_inst_id

          end),

       (case when ash.blocking_session between 4294967291 and 4294967295

               then NULL

             else decode(bitand(ash.flags, power(2, 3)), NULL, 'N',

                         0, 'N', 'Y')

          end),

       /* Session's working context */

       ash.current_obj#, ash.current_file#, ash.current_block#,

       ash.current_row#, ash.top_level_call#,

       (select top_level_call_name

          from WRH$_TOPLEVELCALL_NAME t

         where top_level_call# = ash.top_level_call#

           and t.dbid = ash.dbid

           and t.con_dbid = ash.dbid) as top_level_call_name,

       decode(ash.consumer_group_id, 0, to_number(NULL),

              ash.consumer_group_id),

       ash.xid,

       decode(ash.remote_instance#, 0, to_number(NULL), ash.remote_instance#),

       ash.time_model,

       decode(bitand(ash.time_model,power(2, 3)),0,'N','Y')

                                                         as in_connection_mgmt,

       decode(bitand(ash.time_model,power(2, 4)),0,'N','Y')as in_parse,

       decode(bitand(ash.time_model,power(2, 7)),0,'N','Y')as in_hard_parse,

       decode(bitand(ash.time_model,power(2,10)),0,'N','Y')as in_sql_execution,

       decode(bitand(ash.time_model,power(2,11)),0,'N','Y')

                                                         as in_plsql_execution,

       decode(bitand(ash.time_model,power(2,12)),0,'N','Y')as in_plsql_rpc,

       decode(bitand(ash.time_model,power(2,13)),0,'N','Y')

                                                       as in_plsql_compilation,

       decode(bitand(ash.time_model,power(2,14)),0,'N','Y')

                                                       as in_java_execution,

       decode(bitand(ash.time_model,power(2,15)),0,'N','Y')as in_bind,

       decode(bitand(ash.time_model,power(2,16)),0,'N','Y')as in_cursor_close,

       decode(bitand(ash.time_model,power(2,17)),0,'N','Y')as in_sequence_load,

       decode(bitand(ash.time_model,power(2,18)),0,'N','Y')as in_inmemory_query,

       decode(bitand(ash.time_model,power(2,19)),0,'N','Y')

                                                        as in_inmemory_populate,

       decode(bitand(ash.time_model,power(2,20)),0,'N','Y')

                                                     as in_inmemory_prepopulate,

       decode(bitand(ash.time_model,power(2,21)),0,'N','Y')

                                                      as in_inmemory_repopulate,

       decode(bitand(ash.time_model,power(2,22)),0,'N','Y')

                                                     as in_inmemory_trepopulate,

       decode(bitand(ash.flags,power(2,5)),NULL,'N',0,'N','Y')

                                                       as capture_overhead,

       decode(bitand(ash.flags,power(2,6)), NULL,'N',0,'N','Y' )

                                                           as replay_overhead,

       decode(bitand(ash.flags,power(2,0)),NULL,'N',0,'N','Y') as is_captured,

       decode(bitand(ash.flags,power(2,2)), NULL,'N',0,'N','Y' )as is_replayed,

       /* Application attributes */

       ash.service_hash, ash.program,

       ash.module module,

       ash.action action,

       ash.client_id,

       ash.machine, ash.port, ash.ecid,

       /* DB Replay info */

       ash.dbreplay_file_id, ash.dbreplay_call_counter,

       /* stash columns */

       ash.tm_delta_time,

       ash.tm_delta_cpu_time,

       ash.tm_delta_db_time,

       ash.delta_time,

       ash.delta_read_io_requests,

       ash.delta_write_io_requests,

       ash.delta_read_io_bytes,

       ash.delta_write_io_bytes,

       ash.delta_interconnect_io_bytes,

       ash.pga_allocated,

       ash.temp_space_allocated,

       ash.dbop_name,

       ash.dbop_exec_id,

       decode(ash.con_dbid, 0, ash.dbid, ash.con_dbid)/*,

       con_dbid_to_id(decode(ash.con_dbid, 0, ash.dbid, ash.con_dbid)) con_id*/

from WRM$_SNAPSHOT sn, WRH$_ACTIVE_SESSION_HISTORY ash, WRH$_EVENT_NAME evt

where      ash.snap_id          = sn.snap_id(+)

      and  ash.dbid             = sn.dbid(+)

      and  ash.instance_number  = sn.instance_number(+)

      and  ash.dbid             = evt.dbid

      and  ash.event_id         = evt.event_id;



About Me

...............................................................................................................................

本文作者:小麦苗,只专注于数据库的技术,更注重技术的运用

本文在itpubhttp://blog.itpub.net/26736162)、博客园http://www.cnblogs.com/lhrbest和个人微信公众号(xiaomaimiaolhr)上有同步更新

本文itpub地址:http://blog.itpub.net/26736162/viewspace-2130980/

本文博客园地址:http://www.cnblogs.com/lhrbest/p/6200899.html

本文pdf小麦苗云盘地址:http://blog.itpub.net/26736162/viewspace-1624453/

● QQ群:230161599     微信群:私聊

联系我请加QQ好友(642808185),注明添加缘由

2016-11-28 10:00 ~ 2016-11-30 22:00农行完成

文章内容来源于小麦苗的学习笔记,部分整理自网络,若有侵权或不当之处还请谅解

版权所有,欢迎分享本文,转载请保留出处

...............................................................................................................................

手机长按下图识别二维码或微信客户端扫描下边的二维码来关注小麦苗的微信公众号:xiaomaimiaolhr,免费学习最实用的数据库技术。

wpsF8C8.tmp




版权声明:本文内容由阿里云实名注册用户自发贡献,版权归原作者所有,阿里云开发者社区不拥有其著作权,亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容,填写侵权投诉表单进行举报,一经查实,本社区将立刻删除涉嫌侵权内容。

相关文章
使用 BOL API 创建 SAP CRM IBASE 数据
使用 BOL API 创建 SAP CRM IBASE 数据
7 0
LeetCode(数据库)- 购买了产品 A 和产品 B 却没有购买产品 C 的顾客
LeetCode(数据库)- 购买了产品 A 和产品 B 却没有购买产品 C 的顾客
20 0
❀ 开发带数据的javaWeb项目的步骤:【jdbc+servlet+jsp】
❀ 开发带数据的javaWeb项目的步骤:【jdbc+servlet+jsp】
28 0
[python作业AI毕业设计博客]Java Programming 9th Edition - 2019 java程序设计第9版 下载
Farrell的JAVA PROGRAMMING,9E中有引人入胜的实际操作方法时,会发现Java(TM)在开发应用程序方面的强大功能。 即使您是第一次使用,JAVA PROGRAMMING也可以向您展示如何快速开始开发有用的程序,同时仍然掌握结构化和面向对象编程的基本原理。
1588 0
《Java EE核心框架实战》—— 2.2 连接DB数据库的参数来自于Properties对象
在前面的示例中,连接数据库时的具体参数是直接在mybatis-config.xml文件中进行定义的,比如url.username和password这些信息。MyBatis还支持将这些参数值写入*.properties属性文件中。
1322 0
PLSQL_海量数据处理系列7_DBSM_STATS
2013-05-07 Created By BaoXinjian     Thanks and RegardsERP技术讨论群: 288307890 技术交流,技术讨论,欢迎加入 Technology Blog Created By Oracle ERP - 鲍新建
702 0
CSS设置DIV Herf底层图片和链接同时改变,兼容IE,Firefox,Opera,Safari,Chrome等
/*CSS樣式設置 塗聚文 Geovin Du**/ .text8 { font-family: Arial, Helvetica, sans-serif; background-image: url(../images/05.jpg); height:42px; text-align:center; } .geovindu { cur
957 0
字符集为ZHS16GBK的数据库导入到字符集为AL32UTF8的数据库
相信大家都对字符集有相当的了解了,废话就不多说了!直接步入正题:这里主要是测试含有 汉字的数据从ZHS16GBK的数据库导入到字符集为AL32UTF8 数据库. 如有我没想到的其他情况,请大家提建议,我继续完善测试实验。
836 0
+关注
小麦苗
小麦苗,专注于数据库,Oracle OCM,PostgreSQL PGCM,PostgreSQL ACE,中国PG分会官方认证讲师,PGfans签约作者,PGfans年度MVP;微信公众号: DB宝,个人网站:www.xmmup.com
888
文章
0
问答
文章排行榜
最热
最新
相关电子书
更多
低代码开发师(初级)实战教程
立即下载
阿里巴巴DevOps 最佳实践手册
立即下载
冬季实战营第三期:MySQL数据库进阶实战
立即下载
