计及电转气协同的含碳捕集与垃圾焚烧虚拟电厂优化调度（matlab代码）

P_CHP=sdpvar(1,24); %CHP机组的输出电功率
H_CHP=sdpvar(1,24); %CHP机组的输出热功率
V_CHP=sdpvar(1,24); %CHP机组消耗的天然气量
H_GB=sdpvar(1,24); %燃气锅炉的输出热功率
V_GB=sdpvar(1,24); %燃气锅炉消耗的天然气量
S_ES=sdpvar(1,24);  %电储能在t时段末的蓄电量,单位为MW
P_ESC=sdpvar(1,24); %电储能的充电功率
P_ESD=sdpvar(1,24); %电储能的放电功率
S_TS=sdpvar(1,24);  %热储能在t时段末的蓄热量,单位为MW
H_TSC=sdpvar(1,24); %热储能的充热功率
H_TSD=sdpvar(1,24); %热储能的放热功率
P_EM=sdpvar(1,24);  %系统在电网的购电量
P_CUT=sdpvar(1,24); %各级中断负荷功率之和
lamda_CC=sdpvar(1,24); %碳捕捉系统的烟气分流比
P_Cmax=sdpvar(1,24); %碳捕集系统的运行能耗上限
miu_ESC=binvar(1,24); %充电的布尔变量
miu_ESD=binvar(1,24); %放电的布尔变量
miu_TSC=binvar(1,24); %充热的布尔变量
miu_TSD=binvar(1,24); %放热的布尔变量
lambda_WI=sdpvar(1,24); %烟气分流比
V_WIalpha=sdpvar(1,24); %烟气存储罐储气量
alpha_2=sdpvar(1,24); %流入烟气存储罐的气量
Q_CS=sdpvar(1,24); %流入烟气存储罐的气量
Q_P2G=sdpvar(1,24); %流入烟气存储罐的气量
%
P_A=15*ones(1,24);   %CCPP-P2G系统能耗(因占比较少设为定值),单位为MW
%风电机组的预测出力
P_W=[232.75,247.44,219.09,188.78,239.58,232.84,188.52,159.84,111.45,51.23,119.88,137.29,141.39,115.78,135.24,143.44,151.64,195.69,159.70,180.94,203.38,193.64,155.32,247.43];
%光伏机组的预测出力
P_V=[0,0,0,0,0,22,63,97,110,118,128,132,133,136,131,133,120,85,37,0,0,0,0,0];
%电负荷
P_EL=[457,319,296,228,184,297,406,509,607,687,803,857,845,793,832,801,795,731,640,593,554,518,525,409];
%热功率
H_HL=[109,131,158,153,139,121,111,98,82,57,22,12,42,62,89,99,122,131,148,160,139,131,119,74];
%购电价
k_EM=[38.85,39.18,36.89,35.57,39.84,43.77,51.31,64.10,74.59,77.21,85.41,89.02,82.46,80.49,83.11,81.80,78.52,73.93,69.67,76.89,74.26,66.39,55.57,46.72];
S_ES_init=60;S_TS_init=30;
%% 约束条件
C=[];
%CCPP-P2G系统能耗以及CCPP出力
for t=1:24
    C=[C,
       P_C2P(t)==P_P2G(t)+P_CC(t), %CCPP-P2G系统总能耗约束
       P_P2G(t)==P_WA(t)+P_VA(t),  %P2G消纳的弃风光量约束
       P_CC(t)==P_A(t)+P_OP(t),    %碳捕集能耗约束
       P_GN(t)==P_G(t)-P_GC(t)-P_Galpha(t),  %碳捕集电厂功率约束
      ];
end
%CCPP-P2G系统碳利用量以及天然气生成量
for t=1:24
    C=[C,
       Q_CC(t)==P_OP(t)/0.269, %CCPP-P2G系统捕集的CO2的总量与耗能约束
       Q_P2Gsum(t)==0.2*0.6*P_P2G(t), %P2G设备的消耗的CO2量和电功率约束
       V_P2G(t)==3.6*0.6*P_P2G(t)/39, %P2G设备的生成天然气的体积
      ];
end
%垃圾焚烧电厂烟气处理模型
for t=1:24
    C=[C,P_alpha(t)==0.513*(alpha_1(t)+alpha_3(t)),]; %烟气处理系统能耗
end
%碳捕集-垃圾焚烧-风电-光伏联合运行策略
for t=1:24
    C=[C,
       P_GC(t)+P_WC(t)+P_VC(t)+P_WIC(t)==P_CC(t), %碳捕集能耗等式约束
       P_OP(t)==0.269*Q_CC(t), %CCPP-P2G系统捕集的CO2的总量与耗能约束(这个好像和前面的约束重复了)
       P_Valpha(t)+P_Walpha(t)+P_Galpha(t)+P_WIalpha(t)==P_alpha(t), %烟气处理能耗等式约束
       P_WA(t)+P_WN(t)+P_WC(t)+P_Walpha(t)==P_W(t), %风力机组的出力约束
       P_VA(t)+P_VN(t)+P_VC(t)+P_Valpha(t)==P_V(t), %光伏机组的出力约束
       P_WIN(t)+P_WIC(t)+P_WIalpha(t)==P_WI(t), %垃圾焚烧电厂的出力约束
       Q_N(t)==0.96*P_G(t)-Q_CC(t), %碳捕集电厂的碳排放约束
      ];
end
%CHP机组和燃气锅炉模型
for t=1:24
    C=[C,
       P_PH(t)==P_CHP(t)+H_CHP(t), %CHP机组的输出功率约束
       P_CHP(t)==V_CHP(t)*39*0.35, %CHP机组的输出电功率约束
       H_CHP(t)==V_CHP(t)*39*0.40, %CHP机组的输出热功率约束
       H_GB(t)==V_GB(t)*39*0.40, %CHP机组的输出热功率约束
      ];
end
%储能装置模型
for t=2:24
    C=[C,
       S_ES(t)==S_ES(t-1)*(1-0.001)+0.95*P_ESC(t)-P_ESD(t)/0.95, %电储能运行约束
       S_TS(t)==S_TS(t-1)*(1-0.01)+0.88*H_TSC(t)-H_TSD(t)/0.88, %热储能运行约束
      ];
end
%电功率和热功率平衡约束
for t=1:24
    C=[C,
       P_GN(t)+P_WIN(t)+P_CHP(t)+P_WN(t)+P_VN(t)+P_ESD(t)+P_EM(t)==P_P2G(t)+P_EL(t)+P_ESC(t), %电功率平衡约束
       H_CHP(t)+H_GB(t)+H_TSD(t)==H_HL(t)+H_TSC(t), %热功率平衡约束
      ];
end
%碳捕集电厂约束
for t=1:24
    C=[C,
       100<=P_G(t)<=400, %碳捕集电厂出力上下限约束

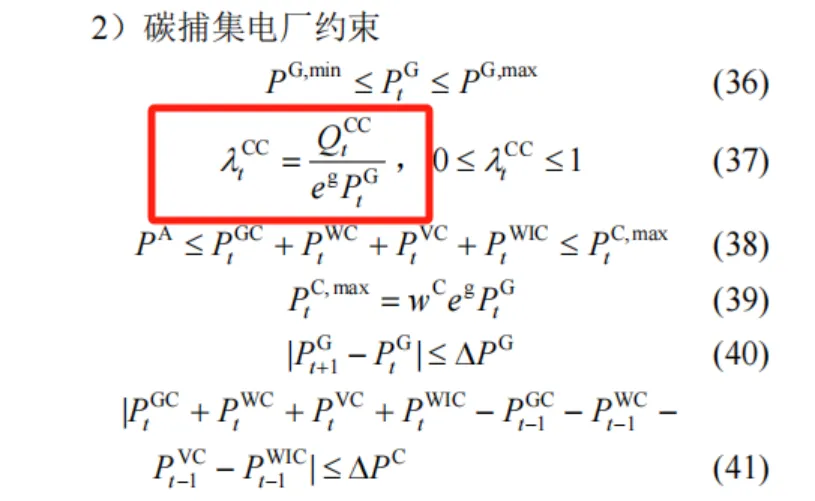

       %lamda_CC(t)==Q_CC(t)/(0.96*P_G(t)), %碳捕捉系统的烟气分流比(要考虑分段线性可能)
       %0<=lamda_CC(t)<=1, %烟气分流比上下限   %% 因为非线性
       0<=Q_CC(t)<=0.96*400,
       15<=P_GC(t)+P_WC(t)+P_VC(t)+P_WIC(t)<=P_Cmax(t), %碳捕集系统的运行能耗上下限
       P_Cmax(t)==0.269*0.96*P_G(t), %碳捕集系统的运行能耗上限赋值
      ];
end
for t=2:24
    C=[C,
       -60<=P_G(t)-P_G(t-1)<=60, %碳捕集电厂出力爬坡速率约束
       -65<=P_GC(t)+P_WC(t)+P_VC(t)+P_WIC(t)-P_GC(t-1)-P_WC(t-1)-P_VC(t-1)-P_WIC(t-1)<=65, %碳捕集电厂碳捕集能耗爬坡速率约束
      ];
end
%CHP机组电热出力以及爬坡约束
for t=1:24
    C=[C,
       0<=P_CHP(t)<=140, %CHP的电功率出力约束
       0<=H_CHP(t)<=160, %CHP的热功率出力约束
      ];
end
