Pytorch学习笔记-05 可视化工具 TensorBoard

2023-02-22 155

版权

本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。

简介： Pytorch学习笔记-05 可视化工具 TensorBoard

SummaryWriter

功能：提供创建event file 的高级接口

主要属性：

log_dir event file 输出文件夹

comment ：不指定 log_dir 时，文件夹后缀

filename_suffix event file

add_scalar

功能：记录标量

tag ：图像的标签名，图的唯一标识

scalar_value ：要记录的标量

global_step x 轴

add_scalars

main_tag ：该图的标签

tag_scalar_dict key 是变量的 tag value 是变量的值

or x in range(100):
    writer.add_scalar('y=2x', x * 2, x)
    writer.add_scalar('y=pow(2, x)',  2 ** x, x)
    writer.add_scalars('data/scalar_group', {"xsinx": x * np.sin(x),
                                             "xcosx": x * np.cos(x),
                                             "arctanx": np.arctan(x)}, x)

add_histogram

功能：统计直方图与多分位数折线图

tag ：图像的标签名，图的唯一标识

values ：要统计的参数

global_step y 轴

bins ：取直方图的 bins

from torch.utils.tensorboard import SummaryWriter
import numpy as np
writer = SummaryWriter()
for i in range(10):
    x = np.random.random(1000)
    writer.add_histogram('distribution centers', x + i, i)
writer.close()

add_image

功能：记录图像

tag ：图像的标签名，图的唯一标识

img_tensor ：图像数据，注意尺度

global_step x 轴

dataformats ：数据形式 CHW HWC HW

from torch.utils.tensorboard import SummaryWriter
import numpy as np
img_batch = np.zeros((16, 3, 100, 100))
for i in range(16):
    img_batch[i, 0] = np.arange(0, 10000).reshape(100, 100) / 10000 / 16 * i
    img_batch[i, 1] = (1 - np.arange(0, 10000).reshape(100, 100) / 10000) / 16 * i
writer = SummaryWriter()
writer.add_images('my_image_batch', img_batch, 0)
writer.close()

torchvision.utils.make_grid

功能：制作网格图像

tensor ：图像数据 BCH*W 形式

nrow ：行数（列数自动计算

padding ：图像间距（像素单位

normalize ：是否将像素值标准化

range ：标准化范围

scale_each ：是否单张图维度标准化

pad_value padding 的像素值

img_grid = vutils.make_grid(data_batch, nrow=4, normalize=True, scale_each=True)

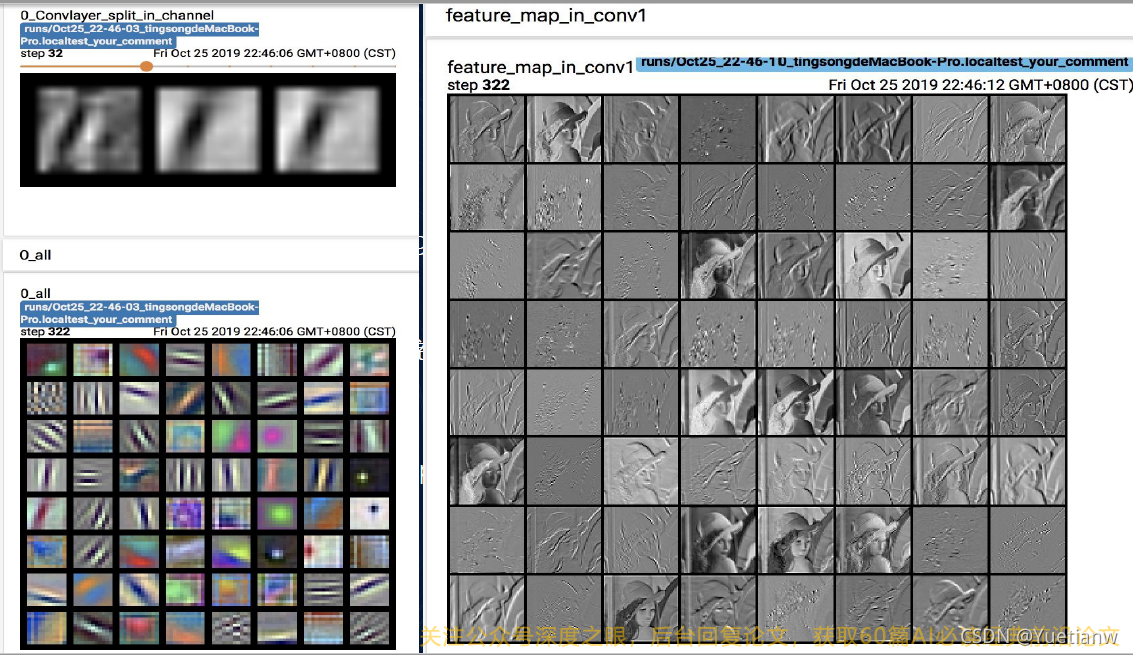

e.g.卷积核的可视化

# ----------------------------------- kernel visualization -----------------------------------
# flag = 0
flag = 1
if flag:
    writer = SummaryWriter(comment='test_your_comment', filename_suffix="_test_your_filename_suffix")
    alexnet = models.alexnet(pretrained=True)
    kernel_num = -1
    vis_max = 1
    # 避免pytorch1.7下的一个小bug，增加 torch.no_grad
    with torch.no_grad():
        for sub_module in alexnet.modules():
            if isinstance(sub_module, nn.Conv2d):
                kernel_num += 1
                if kernel_num > vis_max:
                    break
                kernels = sub_module.weight
                c_out, c_int, k_w, k_h = tuple(kernels.shape)
                for o_idx in range(c_out):
                    kernel_idx = kernels[o_idx, :, :, :].unsqueeze(1)   # make_grid需要 BCHW，这里拓展C维度
                    kernel_grid = vutils.make_grid(kernel_idx, normalize=True, scale_each=True, nrow=c_int)
                    writer.add_image('{}_Convlayer_split_in_channel'.format(kernel_num), kernel_grid, global_step=o_idx)
                kernel_all = kernels.view(-1, 3, k_h, k_w)  # 3, h, w
                kernel_grid = vutils.make_grid(kernel_all, normalize=True, scale_each=True, nrow=8)  # c, h, w
                writer.add_image('{}_all'.format(kernel_num), kernel_grid, global_step=322)
                print("{}_convlayer shape:{}".format(kernel_num, tuple(kernels.shape)))
        writer.close()

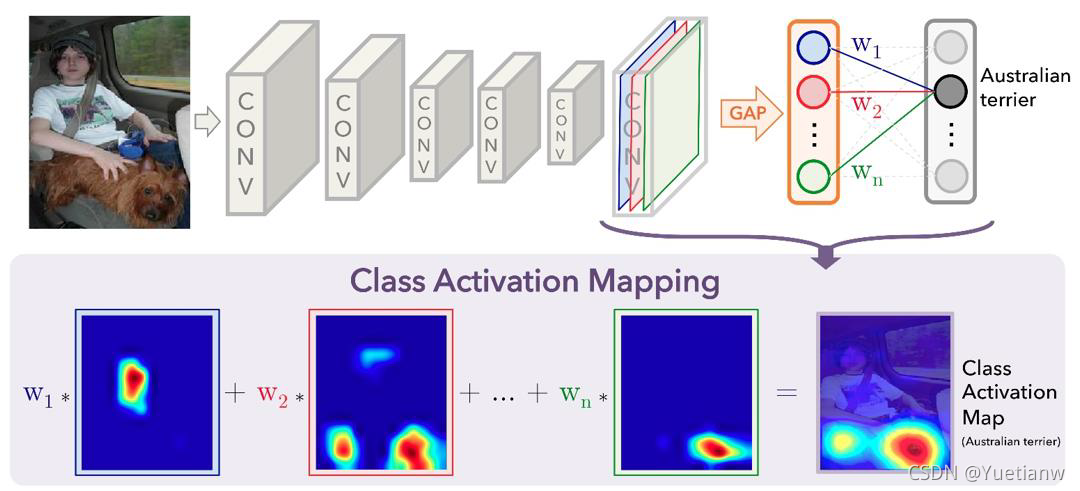

# ----------------------------------- feature map visualization -----------------------------------
# flag = 0
flag = 1
if flag:
    with torch.no_grad():
        writer = SummaryWriter(comment='test_your_comment', filename_suffix="_test_your_filename_suffix")
        # 数据
        path_img = "./lena.png"     # your path to image
        normMean = [0.49139968, 0.48215827, 0.44653124]
        normStd = [0.24703233, 0.24348505, 0.26158768]
        norm_transform = transforms.Normalize(normMean, normStd)
        img_transforms = transforms.Compose([
            transforms.Resize((224, 224)),
            transforms.ToTensor(),
            norm_transform
        ])
        img_pil = Image.open(path_img).convert('RGB')
        if img_transforms is not None:
            img_tensor = img_transforms(img_pil)
        img_tensor.unsqueeze_(0)    # chw --> bchw
        # 模型
        alexnet = models.alexnet(pretrained=True)
        # forward
        convlayer1 = alexnet.features[0]
        fmap_1 = convlayer1(img_tensor)
        # 预处理
        fmap_1.transpose_(0, 1)  # bchw=(1, 64, 55, 55) --> (64, 1, 55, 55)
        fmap_1_grid = vutils.make_grid(fmap_1, normalize=True, scale_each=True, nrow=8)
        writer.add_image('feature map in conv1', fmap_1_grid, global_step=322)
        writer.close()
