Mysql组复制-简单集群搭建

本文涉及的产品
云数据库 RDS MySQL Serverless,0.5-2RCU 50GB
云数据库 RDS MySQL Serverless,价值2615元额度,1个月
简介: Mysql组复制-简单集群搭建

主机分配:

主机名

IP地址
MGR-node1 192.168.182.100
MOR-node2 192.168.182.101
MGR-node3 192.168.182.102


一 环境准备


编辑三台主机的hosts文件:重点:一定要注意设置好主机名以及hosts文件要不然mysql会找不到对应的机器

192.168.182.100 MGR-node1
192.168.182.101 MGR-node2
192.168.182.102 MGR-node3

系统版本查看

[root@MGR-node1 ~]# cat /etc/redhat-release
CentOS Linux release 7.6.1810 (Core)

为了方便实验,关闭所有节点的防火墙

[root@MGR-node1 ~]# systemctl stop firewalld
[root@MGR-node1 ~]# firewall-cmd --state
not running
[root@MGR-node1 ~]# cat /etc/sysconfig/selinux |grep "SELINUX=disabled"
SELINUX=disabled
[root@MGR-node1 ~]# setenforce 0
setenforce: SELinux is disabled
[root@MGR-node1 ~]# getenforce
Disabled


二 在三个节点上安装Mysql5.7


下载mysql官方源

[root@MGR-node1 ~]# yum localinstall https://dev.mysql.com/get/mysql57-community-release-el7-8.noarch.rpm

安装MySQL 5.7

[root@MGR-node1 ~]# yum install -y mysql-community-server

启动MySQL服务器和MySQL的自动启动

[root@MGR-node1 ~]# systemctl start mysqld.service
[root@MGR-node1 ~]# systemctl enable mysqld.service

核对三台主机的mysql版本

[root@MGR-node1 ~]# mysql -V
mysql  Ver 14.14 Distrib 5.7.31, for Linux (x86_64) using  EditLine wrapper

查看初始密码并登录

[root@MGR-node1 ~]# cat /var/log/mysqld.log|grep 'A temporary password'
2020-07-18T06:54:38.562194Z 1 [Note] A temporary password is generated for root@localhost: <Ezzv8w+pX7,

使用上面查看的密码<Ezzv8w+pX7, 登录mysql,并重置密码为123456

[root@MGR-node1 ~]# mysql -p'<Ezzv8w+pX7,'

进入数据库设置简单密码策略

mysql> set global validate_password_policy=0;
Query OK, 0 rows affected (0.00 sec)
mysql> set global validate_password_length=1;
Query OK, 0 rows affected (0.00 sec)
mysql> set password=password("123456");
Query OK, 0 rows affected, 1 warning (0.00 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)


三、MGR组复制环境部署 (多写模式)


这里有几个命令大家可能会用到,在部署环境命令错误时,需要初始化mysql。

# systemctl  stop  mysqld
# rm -rf /var/lib/mysql
# systemctl start mysqld


执行完,需要重新查看初始密码登入并修改密码


注意:3台节点的操作略有不同,不建议克隆操作


1) MGR-node1 配置

[root@MGR-node1 ~]# cp /etc/my.cnf /etc/my.cnf.bak
[root@MGR-node1 ~]# >/etc/my.cnf
[root@MGR-node1 ~]# vim /etc/my.cnf
[mysqld]
datadir = /var/lib/mysql
socket = /var/lib/mysql/mysql.sock
symbolic-links = 0
log-error = /var/log/mysqld.log
pid-file = /var/run/mysqld/mysqld.pid
#GTID:
server_id = 1
gtid_mode = on
enforce_gtid_consistency = on
master_info_repository=TABLE
relay_log_info_repository=TABLE
binlog_checksum=NONE
#binlog
log_bin = mysql-bin
log-slave-updates = 1
binlog_format = row
sync-master-info = 1
sync_binlog = 1
#relay log
skip_slave_start = 1
transaction_write_set_extraction=XXHASH64
loose-group_replication_group_name="5db40c3c-180c-11e9-afbf-005056ac6820"
loose-group_replication_start_on_boot=off
loose-group_replication_local_address= "192.168.182.100:24901"
loose-group_replication_group_seeds= "192.168.182.100:24901,192.168.182.101:24901,192.168.182.102:24901"
loose-group_replication_bootstrap_group=off
loose-group_replication_single_primary_mode=off
loose-group_replication_enforce_update_everywhere_checks=on
loose-group_replication_ip_whitelist="192.168.182.0/24,127.0.0.1/8"

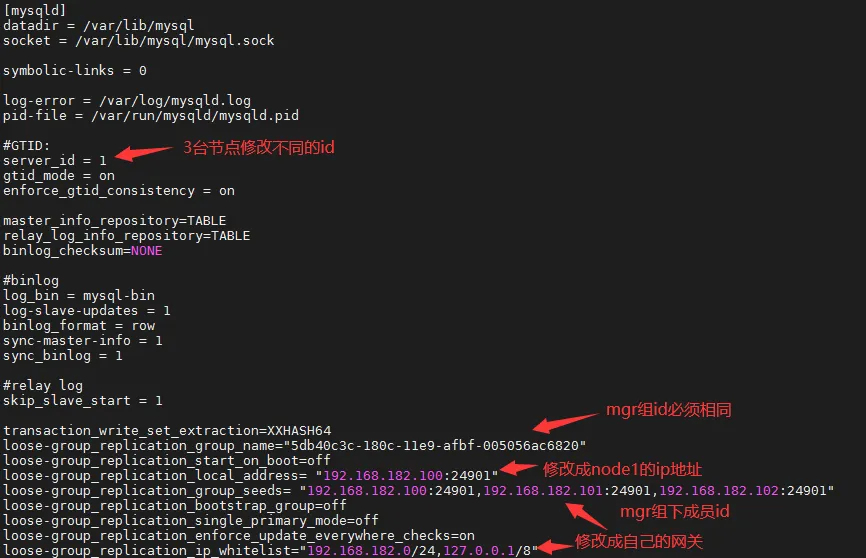

注意下图的几点:

修改完成后保存

重启mysql服务

[root@MGR-node1 ~]# systemctl restart mysqld

登录mysql进行相关设置操作

[root@MGR-node1 ~]# mysql -p123456
mysql> SET SQL_LOG_BIN=0;
Query OK, 0 rows affected (0.00 sec)
mysql> GRANT REPLICATION SLAVE ON *.* TO rpl_slave@'%' IDENTIFIED BY 'slave@123';
Query OK, 0 rows affected, 1 warning (0.00 sec)
mysql> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.01 sec)
mysql> reset master;
Query OK, 0 rows affected (0.19 sec)
mysql> SET SQL_LOG_BIN=1;
Query OK, 0 rows affected (0.00 sec)
mysql> CHANGE MASTER TO MASTER_USER='rpl_slave', MASTER_PASSWORD='slave@123' FOR CHANNEL 'group_replication_recovery';
Query OK, 0 rows affected, 2 warnings (0.33 sec)
mysql> INSTALL PLUGIN group_replication SONAME 'group_replication.so';
Query OK, 0 rows affected (0.03 sec)
mysql> SHOW PLUGINS;
+----------------------------+----------+--------------------+----------------------+---------+
| Name                       | Status   | Type               | Library              | License |
+----------------------------+----------+--------------------+----------------------+---------+
...............
...............
| group_replication          | ACTIVE   | GROUP REPLICATION  | group_replication.so | GPL     |
+----------------------------+----------+--------------------+----------------------+---------+
46 rows in set (0.00 sec)
mysql> SET GLOBAL group_replication_bootstrap_group=ON;
Query OK, 0 rows affected (0.00 sec)
mysql> START GROUP_REPLICATION;
Query OK, 0 rows affected (2.34 sec)
mysql> SET GLOBAL group_replication_bootstrap_group=OFF;
Query OK, 0 rows affected (0.00 sec)
mysql> SELECT * FROM performance_schema.replication_group_members;
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| group_replication_applier | 42ca8591-34bb-11e9-8296-005056ac6820 | MGR-node1   |        3306 | ONLINE       |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
1 row in set (0.00 sec)


最后一栏保证是ONLINE 才是正常的!


创建一个测试库

mysql> CREATE DATABASE xingming CHARACTER SET utf8 COLLATE utf8_general_ci;
Query OK, 1 row affected (0.03 sec)
mysql> use xingming;
Database changed
mysql> create table if not exists haha (id int(10) PRIMARY KEY AUTO_INCREMENT,name varchar(50) NOT NULL);
Query OK, 0 rows affected (0.24 sec)
mysql> insert into xingming.ziliao values(1,"maliu"),(2,"tangwu"),(3,"lisi"),(4,"zhangsan");
Query OK, 4 rows affected (0.01 sec)
Records: 4  Duplicates: 0  Warnings: 0
mysql> select * from xingming.ziliao;
+----+----------+
| id | name     |
+----+----------+
|  1 | maliu    |
|  2 | tangwu   |
|  3 | lisi     |
|  4 | zhangsan |
+----+----------+
4 rows in set (0.00 sec)


2) MGR-node2 配置

[root@MGR-node2 ~]# cp /etc/my.cnf /etc/my.cnf.bak
[root@MGR-node2 ~]# >/etc/my.cnf
[root@MGR-node2 ~]# vim /etc/my.cnf
[mysqld]
datadir = /var/lib/mysql
socket = /var/lib/mysql/mysql.sock
symbolic-links = 0
log-error = /var/log/mysqld.log
pid-file = /var/run/mysqld/mysqld.pid
#GTID:
server_id = 2
gtid_mode = on
enforce_gtid_consistency = on
master_info_repository=TABLE
relay_log_info_repository=TABLE
binlog_checksum=NONE
#binlog
log_bin = mysql-bin
log-slave-updates = 1
binlog_format = row
sync-master-info = 1
sync_binlog = 1
#relay log
skip_slave_start = 1
transaction_write_set_extraction=XXHASH64
loose-group_replication_group_name="5db40c3c-180c-11e9-afbf-005056ac6820"
loose-group_replication_start_on_boot=off
loose-group_replication_local_address= "192.168.182.101:24901"
loose-group_replication_group_seeds= "192.168.182.100:24901,192.168.182.101:24901,192.168.182.102:24901"
loose-group_replication_bootstrap_group=off
loose-group_replication_single_primary_mode=off
loose-group_replication_enforce_update_everywhere_checks=on
loose-group_replication_ip_whitelist="192.168.182.0/24,127.0.0.1/8"


重启mysql服务

[root@MGR-node2 ~]# systemctl restart mysqld

登录mysql进行相关设置操作

[root@MGR-node2 ~]# mysql -p123456
.........
mysql> SET SQL_LOG_BIN=0;
Query OK, 0 rows affected (0.00 sec)
mysql> GRANT REPLICATION SLAVE ON *.* TO rpl_slave@'%' IDENTIFIED BY 'slave@123';
Query OK, 0 rows affected, 1 warning (0.00 sec)
mysql> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.00 sec)
mysql> reset master;
Query OK, 0 rows affected (0.17 sec)
mysql> SET SQL_LOG_BIN=1;
Query OK, 0 rows affected (0.00 sec)
mysql> CHANGE MASTER TO MASTER_USER='rpl_slave', MASTER_PASSWORD='slave@123' FOR CHANNEL 'group_replication_recovery';
Query OK, 0 rows affected, 2 warnings (0.21 sec)
mysql> INSTALL PLUGIN group_replication SONAME 'group_replication.so';
Query OK, 0 rows affected (0.20 sec)
mysql> SHOW PLUGINS;
+----------------------------+----------+--------------------+----------------------+---------+
| Name                       | Status   | Type               | Library              | License |
+----------------------------+----------+--------------------+----------------------+---------+
.............
.............
| group_replication          | ACTIVE   | GROUP REPLICATION  | group_replication.so | GPL     |
+----------------------------+----------+--------------------+----------------------+---------+
46 rows in set (0.00 sec)
mysql> START GROUP_REPLICATION;
Query OK, 0 rows affected (6.25 sec)
mysql> SELECT * FROM performance_schema.replication_group_members;
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| group_replication_applier | 8af18ff4-c8c3-11ea-bb9d-000c29e59105 | mgr-node1   |        3306 | ONLINE       |
| group_replication_applier | b9bfc6e9-c8c7-11ea-b043-000c29c3f2a0 | mgr-node2   |        3306 | ONLINE       |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
2 rows in set (0.00 sec)


查看下,发现已经将MGR-node1节点添加的数据同步过来了

mysql> use xingming
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> select * from ziliao;
+----+----------+
| id | name     |
+----+----------+
|  1 | maliu    |
|  2 | tangwu   |
|  3 | lisi     |
|  4 | zhangsan |
+----+----------+
4 rows in set (0.01 sec)


3) MGR-node3 配置

[root@MGR-node3 ~]# cp /etc/my.cnf /etc/my.cnf.bak
[root@MGR-node3 ~]# >/etc/my.cnf
[root@MGR-node3 ~]# vim /etc/my.cnf
[mysqld]
datadir = /var/lib/mysql
socket = /var/lib/mysql/mysql.sock
symbolic-links = 0
log-error = /var/log/mysqld.log
pid-file = /var/run/mysqld/mysqld.pid
#GTID:
server_id = 3
gtid_mode = on
enforce_gtid_consistency = on
master_info_repository=TABLE
relay_log_info_repository=TABLE
binlog_checksum=NONE
#binlog
log_bin = mysql-bin
log-slave-updates = 1
binlog_format = row
sync-master-info = 1
sync_binlog = 1
#relay log
skip_slave_start = 1
transaction_write_set_extraction=XXHASH64
loose-group_replication_group_name="5db40c3c-180c-11e9-afbf-005056ac6820"
loose-group_replication_start_on_boot=off
loose-group_replication_local_address= "192.168.182.102:24901"
loose-group_replication_group_seeds= "192.168.182.100:24901,192.168.182.101:24901,192.168.182.102:24901"
loose-group_replication_bootstrap_group=off
loose-group_replication_single_primary_mode=off
loose-group_replication_enforce_update_everywhere_checks=on
loose-group_replication_ip_whitelist="192.168.182.0/24,127.0.0.1/8"


重启mysql服务

[root@MGR-node3 ~]# systemctl restart mysqld

登录mysql进行相关设置操作

[root@MGR-node3 ~]# mysql -p123456
..........
mysql> SET SQL_LOG_BIN=0;
Query OK, 0 rows affected (0.00 sec)
mysql> GRANT REPLICATION SLAVE ON *.* TO rpl_slave@'%' IDENTIFIED BY 'slave@123';
Query OK, 0 rows affected, 1 warning (0.00 sec)
mysql> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.01 sec)
mysql> reset master;
Query OK, 0 rows affected (0.10 sec)
mysql> SET SQL_LOG_BIN=1;
Query OK, 0 rows affected (0.00 sec)
mysql> CHANGE MASTER TO MASTER_USER='rpl_slave', MASTER_PASSWORD='slave@123' FOR CHANNEL 'group_replication_recovery';
Query OK, 0 rows affected, 2 warnings (0.27 sec)
mysql> INSTALL PLUGIN group_replication SONAME 'group_replication.so';
Query OK, 0 rows affected (0.04 sec)
mysql> SHOW PLUGINS;
+----------------------------+----------+--------------------+----------------------+---------+
| Name                       | Status   | Type               | Library              | License |
+----------------------------+----------+--------------------+----------------------+---------+
.............
| group_replication          | ACTIVE   | GROUP REPLICATION  | group_replication.so | GPL     |
+----------------------------+----------+--------------------+----------------------+---------+
46 rows in set (0.00 sec)
mysql> START GROUP_REPLICATION;
Query OK, 0 rows affected (4.54 sec)
mysql> SELECT * FROM performance_schema.replication_group_members;
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| group_replication_applier | 8af18ff4-c8c3-11ea-bb9d-000c29e59105 | mgr-node1   |        3306 | ONLINE       |
| group_replication_applier | 8af6f48d-c8c3-11ea-8105-000c2908dcc4 | mgr-node3   |        3306 | ONLINE       |
| group_replication_applier | b9bfc6e9-c8c7-11ea-b043-000c29c3f2a0 | mgr-node2   |        3306 | ONLINE       |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
3 rows in set (0.00 sec)


验证一下是否同步数据

mysql> use xingming
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> select * from ziliao;
+----+----------+
| id | name     |
+----+----------+
|  1 | maliu    |
|  2 | tangwu   |
|  3 | lisi     |
|  4 | zhangsan |
+----+----------+
4 rows in set (0.00 sec)


只要组状态栏里都是online就说明是正常的

大功告成,可以测试一下是否一个节点写入,同时更新


node2节点操作

mysql> select * from ziliao;
+----+----------+
| id | name     |
+----+----------+
|  1 | maliu    |
|  2 | tangwu   |
|  3 | lisi     |
|  4 | zhangsan |
+----+----------+
4 rows in set (0.00 sec)
mysql> insert into xingming.ziliao values(11,"beijing"),(12,"shanghai"),(13,"anhui");
Query OK, 3 rows affected (0.01 sec)
Records: 3  Duplicates: 0  Warnings: 0


node1查看

mysql> select * from xingming.ziliao;
+----+----------+
| id | name     |
+----+----------+
|  1 | maliu    |
|  2 | tangwu   |
|  3 | lisi     |
|  4 | zhangsan |
| 11 | beijing  |
| 12 | shanghai |
| 13 | anhui    |
+----+----------+
7 rows in set (0.00 sec)
mysql> update xingming.ziliao set id=100 where name="anhui"; ##更新一个数据
Query OK, 1 row affected (0.01 sec)
Rows matched: 1  Changed: 1  Warnings: 0


在node3上验证

mysql> select * from ziliao;
+-----+----------+
| id  | name     |
+-----+----------+
|   1 | maliu    |
|   2 | tangwu   |
|   3 | lisi     |
|   4 | zhangsan |
|  11 | beijing  |
|  12 | shanghai |
| 100 | anhui    |
+-----+----------+
7 rows in set (0.00 sec)


验证成功,说明mysql的gtid组复制多点写入搭建就成功了,

下面分享一些常见报错和解决方法

mysql> SELECT * FROM performance_schema.replication_group_members;
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
+---------------------------+--------------------------------------+-------------+-------------+--------------+
| group_replication_applier | 8af18ff4-c8c3-11ea-bb9d-000c29e59105 | mgr-node1   |        3306 | ONLINE       |
| group_replication_applier | 8af6f48d-c8c3-11ea-8105-000c2908dcc4 | mgr-node3   |        3306 | ONLINE       |
| group_replication_applier | b9bfc6e9-c8c7-11ea-b043-000c29c3f2a0 | mgr-node2   |        3306 | RECOVERING   |
+---------------------------+--------------------------------------+-------------+-------------+--------------+


原因:如果my.cnf没问题的话,那就是hosts文件和主机名了。


当配置了错误的组信息,也无法插入数据时,

可以使用如下命令重新配置组信息

mysql> stop group_replication;  ##先停止组复制集群
mysql> reset master;            ##初始化master
mysql> start group_replication; ##开始组复制集群
mysql> SELECT * FROM performance_schema.replication_group_members; ##查看组复制状态
相关实践学习
基于CentOS快速搭建LAMP环境
本教程介绍如何搭建LAMP环境,其中LAMP分别代表Linux、Apache、MySQL和PHP。
全面了解阿里云能为你做什么
阿里云在全球各地部署高效节能的绿色数据中心,利用清洁计算为万物互联的新世界提供源源不断的能源动力,目前开服的区域包括中国(华北、华东、华南、香港)、新加坡、美国(美东、美西)、欧洲、中东、澳大利亚、日本。目前阿里云的产品涵盖弹性计算、数据库、存储与CDN、分析与搜索、云通信、网络、管理与监控、应用服务、互联网中间件、移动服务、视频服务等。通过本课程,来了解阿里云能够为你的业务带来哪些帮助 &nbsp; &nbsp; 相关的阿里云产品:云服务器ECS 云服务器 ECS(Elastic Compute Service)是一种弹性可伸缩的计算服务,助您降低 IT 成本,提升运维效率,使您更专注于核心业务创新。产品详情: https://www.aliyun.com/product/ecs
目录
相关文章
|
17天前
|
SQL 存储 关系型数据库
MySQL Cluster集群安装及使用
MySQL Cluster集群安装及使用
|
4月前
|
存储 关系型数据库 MySQL
Mysql集群
Mysql集群
71 0
|
7月前
|
SQL 存储 关系型数据库
MySQL主从复制之原理&一主一从部署流程—2023.04
MySQL主从复制之原理&一主一从部署流程—2023.04
232 0
|
2月前
|
SQL 存储 运维
MySQL高可用性:主从复制和集群
MySQL高可用性:主从复制和集群
50 0
|
4天前
|
关系型数据库 MySQL 数据库
MySQL集群 双主架构(配置命令)
MySQL集群 双主架构(配置命令)
|
17天前
|
监控 关系型数据库 MySQL
MySQL高可用集群之MySQL-MMM
MySQL高可用集群之MySQL-MMM
|
1月前
|
存储 SQL 分布式计算
搭建Mysql Cluster集群实现高可用
搭建Mysql Cluster集群实现高可用
19 0
|
2月前
|
关系型数据库 MySQL 数据库
使用 Docker 搭建一个“一主一从”的 MySQL 读写分离集群(超详细步骤
使用 Docker 搭建一个“一主一从”的 MySQL 读写分离集群(超详细步骤
69 0
|
2月前
|
SQL 关系型数据库 MySQL
OBCP实践 - 迁移 MySQL 数据到 OceanBase 集群
OBCP实践 - 迁移MySQL数据到OceanBase集群,这是一个涉及到将现有MySQL数据库的数据和表结构迁移到OceanBase分布式数据库集群的实际操作过程。OceanBase是一款高度兼容MySQL协议的分布式数据库产品,支持在线平滑迁移,以便企业用户可以从传统的MySQL数据库平滑迁移到OceanBase,以实现更高的可用性、扩展性和性能。
49 0
|
7月前
|
关系型数据库 MySQL Nacos
生产环境下的终极指南:在生产环境部署 Nacos 集群和高可用 MySQL 使用 Docker
生产环境下的终极指南:在生产环境部署 Nacos 集群和高可用 MySQL 使用 Docker
334 0
