Google Earth Engine——GOES-16/17 MCMIPC Series ABI Level 2 云层和水分图像产品的分辨率都是2公里数据集

// Band aliases.
var BLUE = 'CMI_C01';
var RED = 'CMI_C02';
var VEGGIE = 'CMI_C03';
var GREEN = 'GREEN';
// 16 pairs of CMI and DQF followed by Bah 2018 synthetic green.
// Band numbers in the EE asset, 0-based.
var NUM_BANDS = 33;
// Skipping the interleaved DQF bands.
var BLUE_BAND_INDEX = (1 - 1) * 2;
var RED_BAND_INDEX = (2 - 1) * 2;
var VEGGIE_BAND_INDEX = (3 - 1) * 2;
var GREEN_BAND_INDEX = NUM_BANDS - 1;
// Visualization range for GOES RGB.
var GOES_MIN = 0.0;
var GOES_MAX = 0.7;  // Alternatively 1.0 or 1.3.
var GAMMA = 1.3;
var goesRgbViz = {
  bands: [RED, GREEN, BLUE],
  min: GOES_MIN,
  max: GOES_MAX,
  gamma: GAMMA
};
var applyScaleAndOffset = function(image) {
  image = ee.Image(image);
  var bands = new Array(NUM_BANDS);
  for (var i = 1; i < 17; i++) {
    var bandName = 'CMI_C' + (100 + i + '').slice(-2);
    var offset = ee.Number(image.get(bandName + '_offset'));
    var scale =  ee.Number(image.get(bandName + '_scale'));
    bands[(i-1) * 2] = image.select(bandName).multiply(scale).add(offset);
    var dqfName = 'DQF_C' + (100 + i + '').slice(-2);
    bands[(i-1) * 2 + 1] = image.select(dqfName);
  }
  // Bah, Gunshor, Schmit, Generation of GOES-16 True Color Imagery without a
  // Green Band, 2018. https://doi.org/10.1029/2018EA000379
  // Green = 0.45 * Red + 0.10 * NIR + 0.45 * Blue
  var green1 = bands[RED_BAND_INDEX].multiply(0.45);
  var green2 = bands[VEGGIE_BAND_INDEX].multiply(0.10);
  var green3 = bands[BLUE_BAND_INDEX].multiply(0.45);
  var green = green1.add(green2).add(green3);
  bands[GREEN_BAND_INDEX] = green.rename(GREEN);
  return ee.Image(ee.Image(bands).copyProperties(image, image.propertyNames()));
};
var collection = 'NOAA/GOES/16/MCMIPC/';
var imageName = '2020211203115800000';
var assetId = collection + imageName;
var image = applyScaleAndOffset(assetId);
Map.addLayer(image, goesRgbViz);

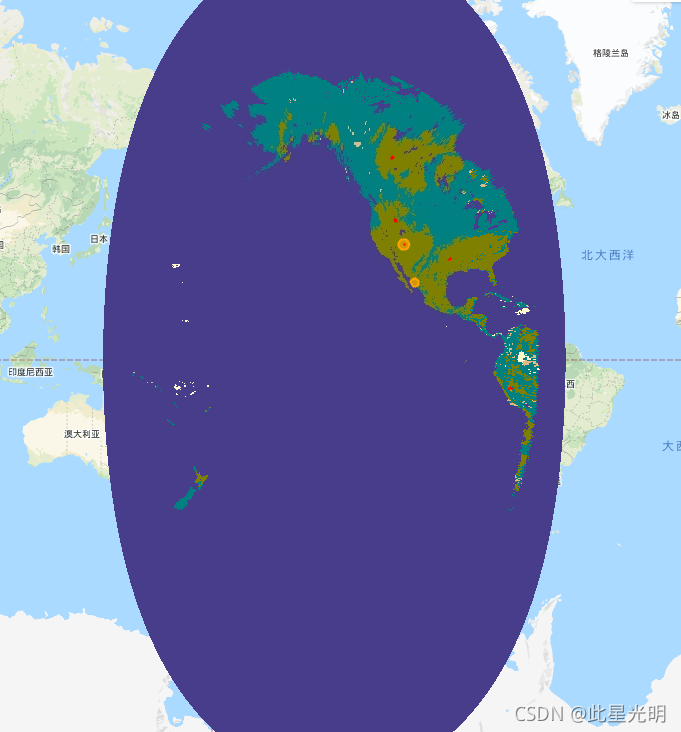

// NOAA GOES-17 full disk fire product for a single time slice.
var image = ee.Image('NOAA/GOES/17/FDCF/2019275191034100000');
var area = image.select('Area');
var temp = image.select('Temp');
var dqf = image.select('DQF');
var xmin = -205;  // On station as GOES-W
var xmax = xmin + 135;
Map.setCenter((xmin+xmax)/2, 15, 3);
var geometry = ee.Geometry.Rectangle([xmin, -65, xmax, 65], null, true);
var DQFVis = {
  min: 0,
  max: 5,
  palette: [
    'blanchedalmond',  // Good quality fire pixel
    'olive',           // Good quality fire free land
    'teal',            // Opaque cloud
                       // Bad surface type, sunglint, LZA threshold exceeded,
    'darkslateblue',   // off earth, or missing input data
    'lemonchiffon',    // Bad input data
    'burlywood'        // Algorithm failure
  ]};
Map.addLayer(dqf, DQFVis, 'DQF');
// Fires are small enough that they are difficult to see at the scale of
// an entire GOES image.  Buffer fires based on area to make them stand out.
var area = area.reduceToVectors({
  geometry: geometry,
  scale: 2000,
  geometryType: 'centroid',
  labelProperty: 'area',
  maxPixels: 1e10,
}).map(function(feature){
  return feature.buffer(ee.Number(feature.get('area')).add(1).pow(1.5));
});
Map.addLayer(area, {color: 'orange'}, 'area');
// Buffer fires based on temperature to make them stand out.
var temp = temp.reduceToVectors({
  geometry: geometry,
  scale: 2000,
  geometryType: 'centroid',
  labelProperty: 'temp',
  maxPixels: 1e10,
}).map(function(feature){
  return feature.buffer(ee.Number(feature.get('temp')).add(2).pow(1.2));
});
Map.addLayer(temp, {color: 'red'}, 'temp');
