Prometheus-部署Grafana

  Grafana是一个开源的度量分析与可视化套件。经常被用作基础设施的时间序列数据和应用程序分析的可视化，我们这里用它来做Kubernetes集群监控数据的可视化。本文将采取kubectl命令的方式部署Grafana。

准备工作

1. Kubernetes集群，如果你还没有搭建好Kubernetes集群，可以参考这篇文章－Kubernetes-离线部署Kubernetes 1.9.0；

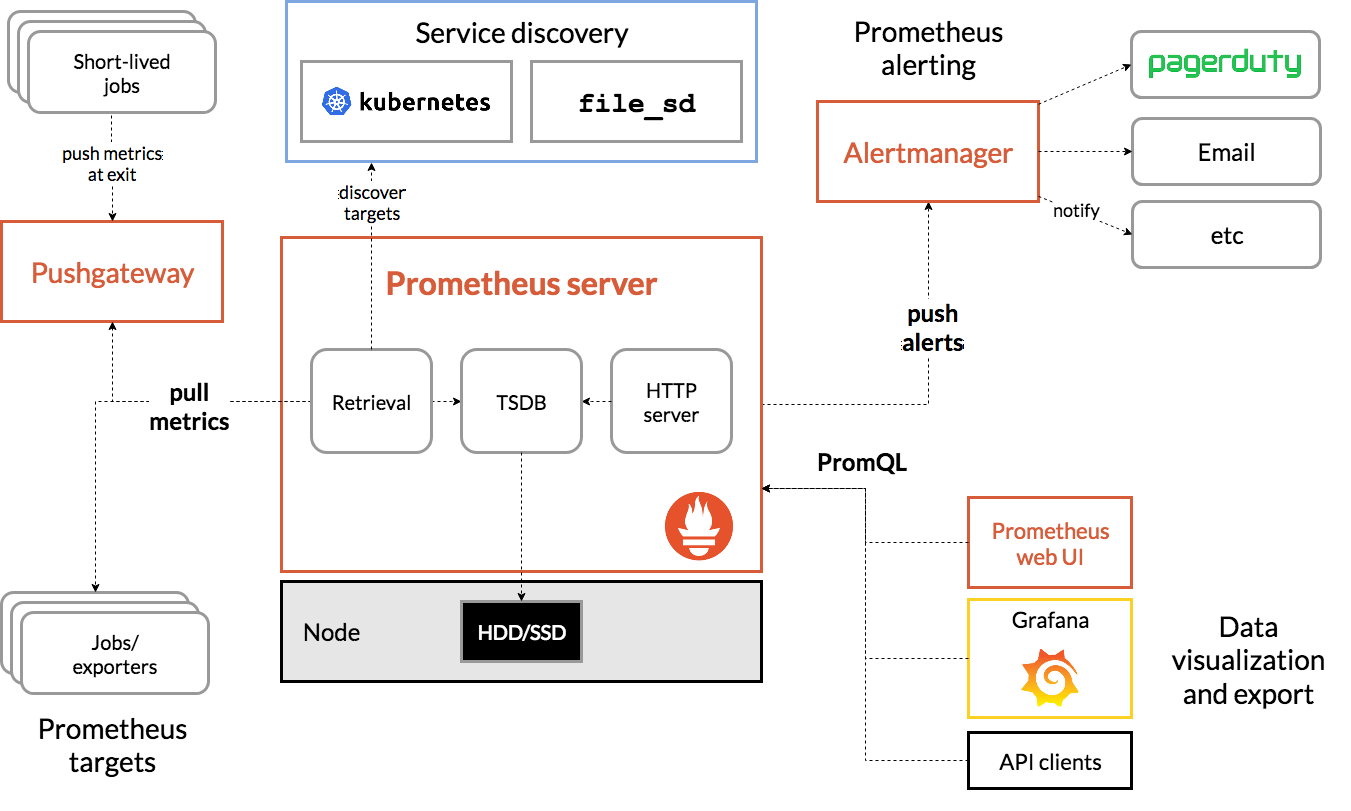

2. Prometheus监控组件，可以参考这篇文章－Prometheus-使用Prometheus监控Kubernetes集群；
3. Grafana镜像，截至笔者写这篇文章之时，最新的版本是5.2.2，但是如果使用该版本搭建，并且使用外挂存储的话，会出现以下错误

kubectl logs pod/grafanademo-5c4ff67949-pvcrs GF_PATHS_DATA='/var/lib/grafana' is not writable. You may have issues with file permissions, more information here: http://docs.grafana.org/installation/docker/#migration-from-a-previous-version-of-the-docker-container-to-5-1-or-later mkdir: cannot create directory '/var/lib/grafana/plugins': Permission denied

这是因为Grafana启动使用的用户和用户组都是472，造成对外挂存储没有权限，有人参考这里的方案给解决了，但是笔者没有测试通过，所以退而求其次，使用5.0.0版本进行搭建。

部署Grafana

新建以下yaml文件

grafana-dashboard-provider.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-dashboard-provider
  namespace: monitoring
data:
  default-dashboard.yaml: |
    - name: 'default'
      org_id: 1
      folder: ''
      type: file
      options:
        folder: /var/lib/grafana/dashboards

grafana.yaml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: grafana
  namespace: monitoring
  labels:
    app: grafana
    component: core
spec:
  replicas: 1
  template:
    metadata:
      labels:
        app: grafana
        component: core
    spec:
      containers:
        - image: registry.docker.uih/library/grafana:5.0.0
          name: grafana
          ports:
          - containerPort: 3000
          resources:
            limits:
              cpu: 100m
              memory: 100Mi
            requests:
              cpu: 100m
              memory: 100Mi
          volumeMounts:
          - name: grafana-persistent-storage
            mountPath: /var
          - name: grafana-datasources
            mountPath: /etc/grafana/provisioning/datasources
          - name: grafana-dashboard-provider
            mountPath: /etc/grafana/provisioning/dashboards
          - name: grafana-dashboards
            mountPath: /var/lib/grafana/dashboards
      volumes:
      - name: grafana-datasources
        configMap:
          name: grafana-datasources
      - name: grafana-dashboards
        configMap:
          name: grafana-dashboards
      - name: grafana-dashboard-provider
        configMap:
          name: grafana-dashboard-provider
      - name: grafana-persistent-storage
        emptyDir: {}

grafana-service.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    name: grafana
  name: grafana
  namespace: monitoring
spec:
  type: NodePort
  selector:
    app: grafana
  ports:
  - protocol: TCP
    port: 3000
    targetPort: 3000
    nodePort: 30300

执行如下命令进行创建

kubectl create -f grafana-dashboard-provider.yaml -f grafana.yaml -f grafana-service.yaml

部署完成后通过Kubernetes Dashboard可以看到

Dashboard

根据服务暴露出来的端口30300通过浏览器访问【http://10.3.14.193:30300】看到如下界面：

Grafana login

输入用户名和密码（admin/admin）即可登录

Grafana Dashboard

接着我们配置数据源

Configuration

data source configuration

Prometheus

点击import

Grafana Dashboard

import

将JSON文件上传

grafana-dashboard.json

{
