在 Docker 上搭建 PostGIS 数据库实现空间数据存储及可视化

本文涉及的产品
云原生数据库 PolarDB MySQL 版,通用型 2核8GB 50GB
云原生数据库 PolarDB PostgreSQL 版,标准版 2核4GB 50GB
简介: 此文旨在记录与传播在 Docker 上搭建 PostGIS 数据库实现空间数据存储及可视化的知识要点。

此文旨在记录与传播在 Docker 上搭建 PostGIS 数据库实现空间数据存储及可视化的知识要点。

PostGIS

已经有PostGIS经验的大佬可以忽略此段了。解释 PostGIS 之前需要介绍 PostgreSQL (简称 postgres ); postgres 是一个数据库服务器软件,由加州大学伯克利分校计算机系开发;部署在服务器上可以由不同数量的客户端连接,进而操作postgres 数据库中的数据。PostGIS 是在 postgres 之上的一款扩展软件,他主要用来存储及操作空间数据(矢量和栅格),还可以对进行空间分析。

Docker

对于一位不熟悉命令行的用户来说可能Docker 是一头野兽;有点吓人吧。 因为他的大部分操作都是基于命令行的;但是它为您提供了一种构建和运行软件的方式,通过构建一种名为LXC容器的技术,以非常一致和可控的方式运行软件。

对于GISer来说,Docker 和 PostGIS 又意味着什么呢? 如果有 Docker 和 PostGIS 技术,GISer或者其他人都能以最小的配置在任何机器上安装软件,而且环境都是一致的,这在开发和运维中至关重要。当然 Docker 这项技术并不限于和 PostGIS 结合。

安装Docker

Docker 是夸平台的可以安装在任何机器上。前面已经有关于 Docker 安装及使用的文章,可以去参考,在这就不去一一解释了,直接给出通过 Vagrant 安装的简略步骤。

环境

序号 名称 版本 用途
1 centos 7 系统
2 kartoza/postgis 9.6-2.4 docker镜像
3 Virtual Box latest 虚拟机

注: 因为我们安装好的 PostGIS 要和我们本机的软件进行通信,所以需要使用 host-only

Vagrantfile文件内容

注:假定已安装Virtual Box 及 Vagrant.

# -*- mode: ruby -*-
# vi: set ft=ruby :

# All Vagrant configuration is done below. The "2" in Vagrant.configure
# configures the configuration version (we support older styles for
# backwards compatibility). Please don't change it unless you know what
# you're doing.
Vagrant.configure("2") do |config|
  # The most common configuration options are documented and commented below.
  # For a complete reference, please see the online documentation at
  # https://docs.vagrantup.com.

  # Every Vagrant development environment requires a box. You can search for
  # boxes at https://vagrantcloud.com/search.
  config.vm.box = "centos/7"

  # Disable automatic box update checking. If you disable this, then
  # boxes will only be checked for updates when the user runs
  # `vagrant box outdated`. This is not recommended.
  # config.vm.box_check_update = false

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine. In the example below,
  # accessing "localhost:8080" will access port 80 on the guest machine.
  # NOTE: This will enable public access to the opened port
  # config.vm.network "forwarded_port", guest: 80, host: 8080

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine and only allow access
  # via 127.0.0.1 to disable public access
  # config.vm.network "forwarded_port", guest: 80, host: 8080, host_ip: "127.0.0.1"

  # Create a private network, which allows host-only access to the machine
  # using a specific IP.
  config.vm.network "private_network", ip: "192.168.33.10"
  # config.vm.network "public_network", ip: "192.168.141.204"

  # Create a public network, which generally matched to bridged network.
  # Bridged networks make the machine appear as another physical device on
  # your network.
  # config.vm.network "public_network"

  # Share an additional folder to the guest VM. The first argument is
  # the path on the host to the actual folder. The second argument is
  # the path on the guest to mount the folder. And the optional third
  # argument is a set of non-required options.
  # config.vm.synced_folder "../data", "/vagrant_data"

  # Provider-specific configuration so you can fine-tune various
  # backing providers for Vagrant. These expose provider-specific options.
  # Example for VirtualBox:
  #
  # config.vm.provider "virtualbox" do |vb|
  #   # Display the VirtualBox GUI when booting the machine
  #   vb.gui = true
  #
  #   # Customize the amount of memory on the VM:
  #   vb.memory = "1024"
  # end
  #
  # View the documentation for the provider you are using for more
  # information on available options.

  # Enable provisioning with a shell script. Additional provisioners such as
  # Puppet, Chef, Ansible, Salt, and Docker are also available. Please see the
  # documentation for more information about their specific syntax and use.
  # config.vm.provision "shell", inline: <<-SHELL
  #   apt-get update
  #   apt-get install -y apache2
  # SHELL
end

安装 centos 系统

$ vagrant up
Bringing machine 'default' up with 'virtualbox' provider...
==> default: Checking if box 'centos/7' is up to date...
==> default: Clearing any previously set forwarded ports...
==> default: Clearing any previously set network interfaces...
==> default: Preparing network interfaces based on configuration...
......
==> default: Rsyncing folder: /cygdrive/c/VM/Vagrant/ => /vagrant
==> default: Machine already provisioned. Run `vagrant provision` or use the `--provision`
==> default: flag to force provisioning. Provisioners marked to run always will still run.

查看虚拟机系统状态

$ vagrant status
Current machine states:

default                   running (virtualbox)

The VM is running. To stop this VM, you can run `vagrant halt` to
shut it down forcefully, or you can run `vagrant suspend` to simply
suspend the virtual machine. In either case, to restart it again,
simply run `vagrant up`.

连接 centos 虚拟机

$ vagrant ssh
Last login: Wed May  9 07:01:18 2018 from 10.0.2.2
[vagrant@localhost ~]$

安装Docker, 安装参考官网

在刚才连接的虚拟机中执行如下命令

$ sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-selinux \
                  docker-engine-selinux \
                  docker-engine
$ sudo yum install -y yum-utils \
  device-mapper-persistent-data \
  lvm2
$ sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo
$ sudo yum install docker-ce
# 安装完成后启动 Docker
$ sudo systemctl start docker

解决权限问题

$ sudo groupadd docker
$ sudo gpasswd -a vagrant docker
$ exit
$ vagrant ssh
$ docker version
Client:
 Version:      18.03.1-ce
 API version:  1.37
 Go version:   go1.9.5
 Git commit:   9ee9f40
 Built:        Thu Apr 26 07:20:16 2018
 OS/Arch:      linux/amd64
 Experimental: false
 Orchestrator: swarm

Server:
 Engine:
  Version:      18.03.1-ce
  API version:  1.37 (minimum version 1.12)
  Go version:   go1.9.5
  Git commit:   9ee9f40
  Built:        Thu Apr 26 07:23:58 2018
  OS/Arch:      linux/amd64
  Experimental: false

安装 PostGIS 镜像

$ mdkir postgre_data && cd postgre_data
$ pwd
/home/vagrant/postgre_data
$ docker run --name=postgis -d -e POSTGRES_USER=sde -e POSTGRES_PASS=sde -e POSTGRES_DBNAME=gis -e ALLOW_IP_RANGE=0.0.0.0/0 -p 5432:5432 -v $(pwd):/var/lib/postgresql --restart=always kartoza/postgis:9.6-2.4
d6f14f3e815fbca4d644582c45aca90dff2b16aba58f0b5765409a140930a3bb
  • docker run --name=postgis 告诉 docker新建一个名为postgis的镜像
  • -d 后台运行
  • -e POSTGRES_USER=sde 通过 -e 参数向镜像写入POSTGRES_USER=sde的环境变量作为 PostgreSQL的超级用户,你可以在任何地方改变他。
  • -e POSTGRES_PASS=sde 通过 -e 参数向镜像写入POSTGRES_PASS=sde的环境变量作为 PostgreSQL的超级用户的密码,你可以在任何地方改变他。
  • -e POSTGRES_DBNAME=gis 通过 -e 参数向镜像写入POSTGRES_DBNAME=gis的环境变量作为操作 PostgreSQL 的当前数据库,你可以在任何地方改变他。
  • -e ALLOW_IP_RANGE=0.0.0.0/0 通过 -e 参数向镜像写入ALLOW_IP_RANGE=0.0.0.0/0的环境变量,使任何客户端都可以连接当前数据库的配置,你可以在任何地方改变他。
  • -p 5432:5432 因为 PostgreSQL 向外暴露5432,我们要使用外面实体机的 pgAdmin 连接Docker中的数据库,故向外映射5432端口,又因为 centos 虚拟机和实体机质检室host-only网络,故在连接。
  • -v $(pwd):/var/lib/postgresql 挂载(bind)当前目录与PostgreSQL生产的数据库,这样两边的数据会同步。
  • --restart=always 创建一条自动启动的规则,告诉 Docker , 每次启动的时候 postgis 容器自动启动。
  • kartoza/postgis:9.6-2.4 指定 postgis的镜像为 kartoza/postgis, 且版本为 PostgreSQL 9.6 和 PostGIS 2.4

查看运行的镜像

$ docker ps
CONTAINER ID        IMAGE                     COMMAND                  CREATED             STATUS              PORTS                    NAMES
d6f14f3e815f        kartoza/postgis:9.6-2.4   "/bin/sh -c /docker-…"   51 seconds ago      Up 50 seconds       0.0.0.0:5432->5432/tcp   postgis

查看运行的 postgis 镜像的日志

$ docker logs postgis
Add rule to pg_hba: 0.0.0.0/0
Add rule to pg_hba: replication user
Setup master database
# ......略
Success. You can now start the database server using:

    /usr/lib/postgresql/9.6/bin/pg_ctl -D /var/lib/postgresql/9.6/main -l logfile start

WARNING: enabling "trust" authentication for local connections
You can change this by editing pg_hba.conf or using the option -A, or
--auth-local and --auth-host, the next time you run initdb.
2018-05-10 07:08:38.015 UTC [51] LOG:  database system was shut down at 2018-05-10 07:08:37 UTC
2018-05-10 07:08:38.015 UTC [52] postgres@postgres FATAL:  the database system is starting up
psql: FATAL:  the database system is starting up
2018-05-10 07:08:38.023 UTC [51] LOG:  MultiXact member wraparound protections are now enabled
2018-05-10 07:08:38.026 UTC [39] LOG:  database system is ready to accept connections
2018-05-10 07:08:38.026 UTC [57] LOG:  autovacuum launcher started
                             List of databases
   Name    |  Owner   | Encoding  | Collate | Ctype |   Access privileges
-----------+----------+-----------+---------+-------+-----------------------
 postgres  | postgres | SQL_ASCII | C       | C     |
 template0 | postgres | SQL_ASCII | C       | C     | =c/postgres          +
           |          |           |         |       | postgres=CTc/postgres
 template1 | postgres | SQL_ASCII | C       | C     | =c/postgres          +
           |          |           |         |       | postgres=CTc/postgres
(3 rows)

postgres ready
# .....略
Setup postgres User:Password
CREATE ROLE
Check default db exists
Create default db gis
                                 List of databases
       Name       |  Owner   | Encoding  | Collate | Ctype |   Access privileges
------------------+----------+-----------+---------+-------+-----------------------
 gis              | sde      | UTF8      | C       | C     |
 postgres         | postgres | SQL_ASCII | C       | C     |
 template0        | postgres | SQL_ASCII | C       | C     | =c/postgres          +
                  |          |           |         |       | postgres=CTc/postgres
 template1        | postgres | SQL_ASCII | C       | C     | =c/postgres          +
                  |          |           |         |       | postgres=CTc/postgres
 template_postgis | postgres | UTF8      | C       | C     |
(5 rows)

2018-05-10 07:08:41.291 UTC [39] LOG:  received smart shutdown request
2018-05-10 07:08:41.291 UTC [57] LOG:  autovacuum launcher shutting down
2018-05-10 07:08:41.293 UTC [54] LOG:  shutting down
2018-05-10 07:08:41.300 UTC [39] LOG:  database system is shut down

/docker-entrypoint.sh: ignoring /docker-entrypoint-initdb.d/*

Postgres initialisation process completed .... restarting in foreground
2018-05-10 07:08:41.328 UTC [231] LOG:  database system was shut down at 2018-05-10 07:08:41 UTC
2018-05-10 07:08:41.329 UTC [231] LOG:  MultiXact member wraparound protections are now enabled
2018-05-10 07:08:41.330 UTC [228] LOG:  database system is ready to accept connections
2018-05-10 07:08:41.331 UTC [235] LOG:  autovacuum launcher started

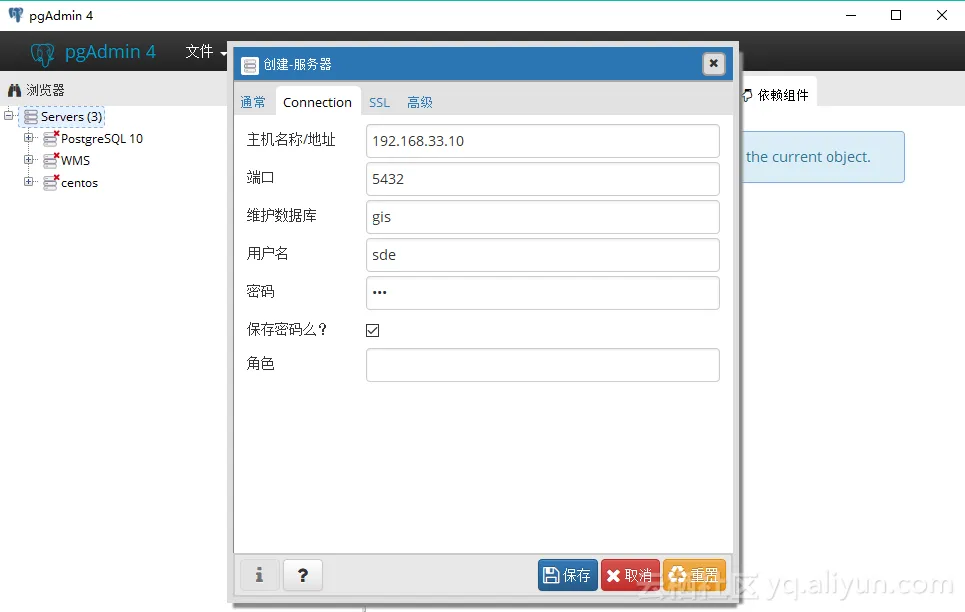

主机 pgAdmin 连接 postgis 容器

连接信息

名称
名称 docker_postgis
ip 192.168.33.10
端口 5432
维护数据库 gis
用户名 sde
密码 sde

postgres_docker_postgis

导入 ShapeFile 数据

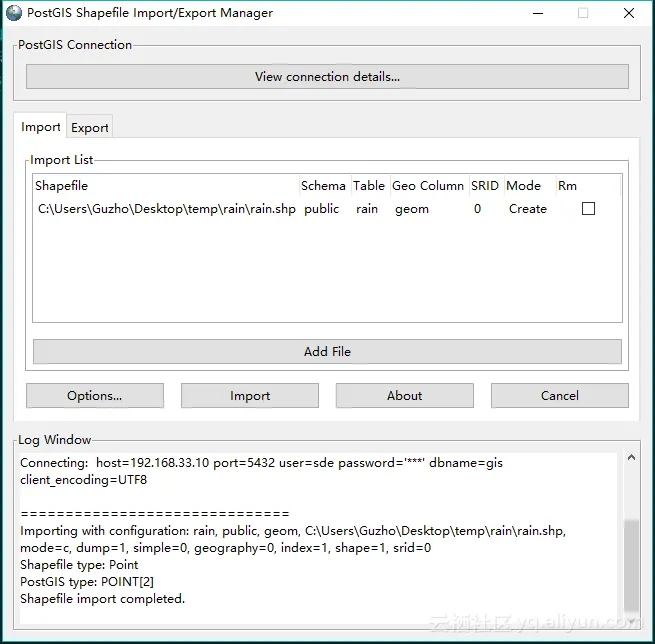

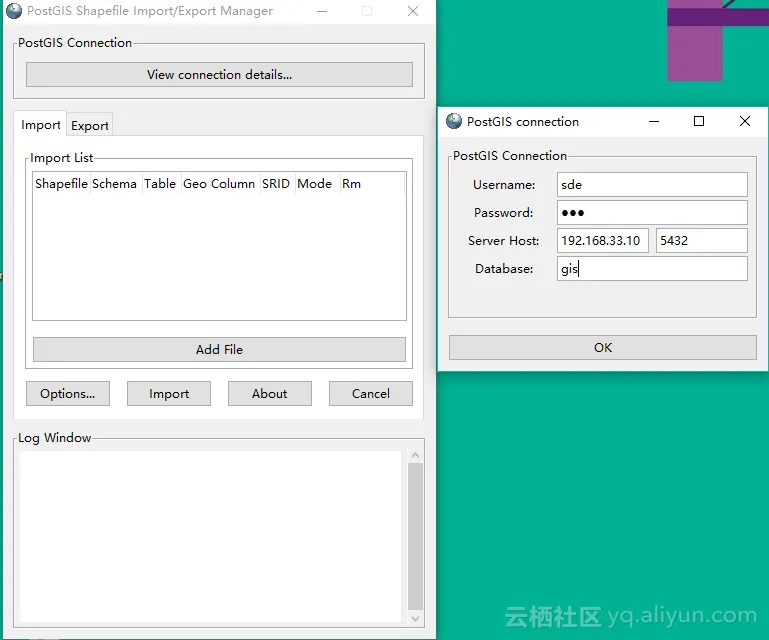

使用主机上的PostGIS Shapefile Import/Export Manager 连接 Docker 中的 PostgreSql数据库

连接信息
|名称 |值|
|:----|:----|
|用户名|sde|
|密码|sde|
|ip|192.168.33.10|
|端口|5432|
|数据库|gis|

shapefile_manager

添加文件后点击导入(import)

import

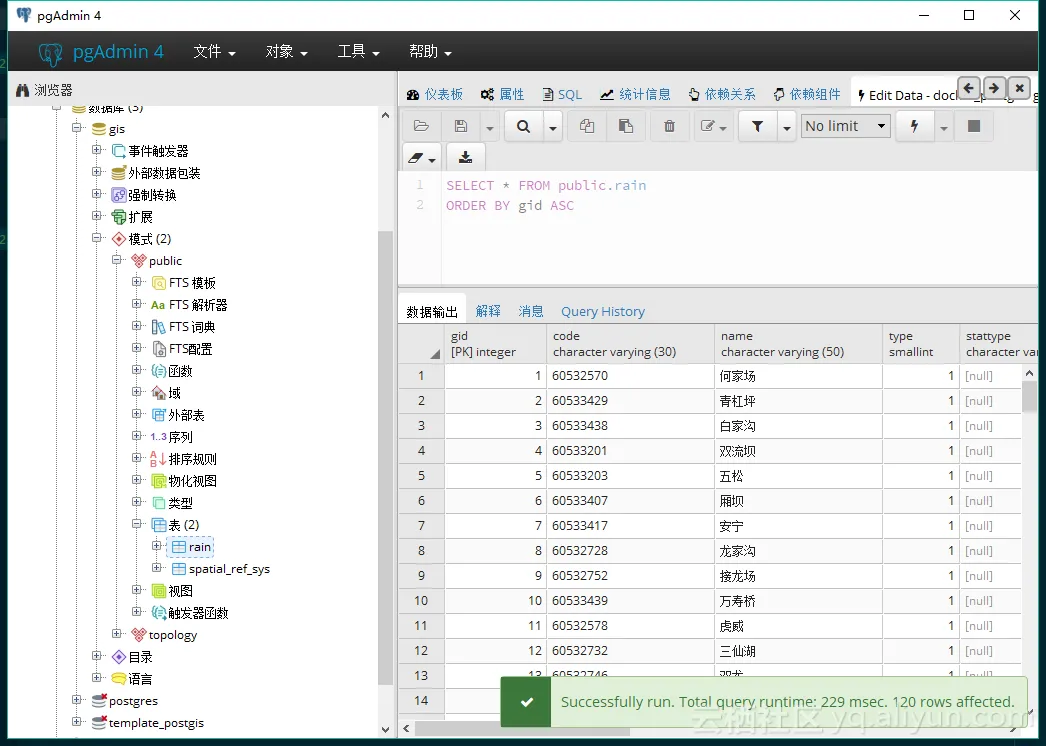

在数据库中查看导入的 shape 数据

shape_database

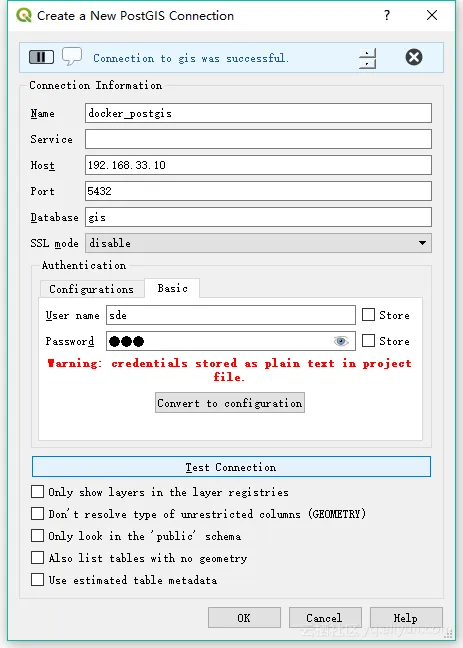

连接QGIS

qgis_connect

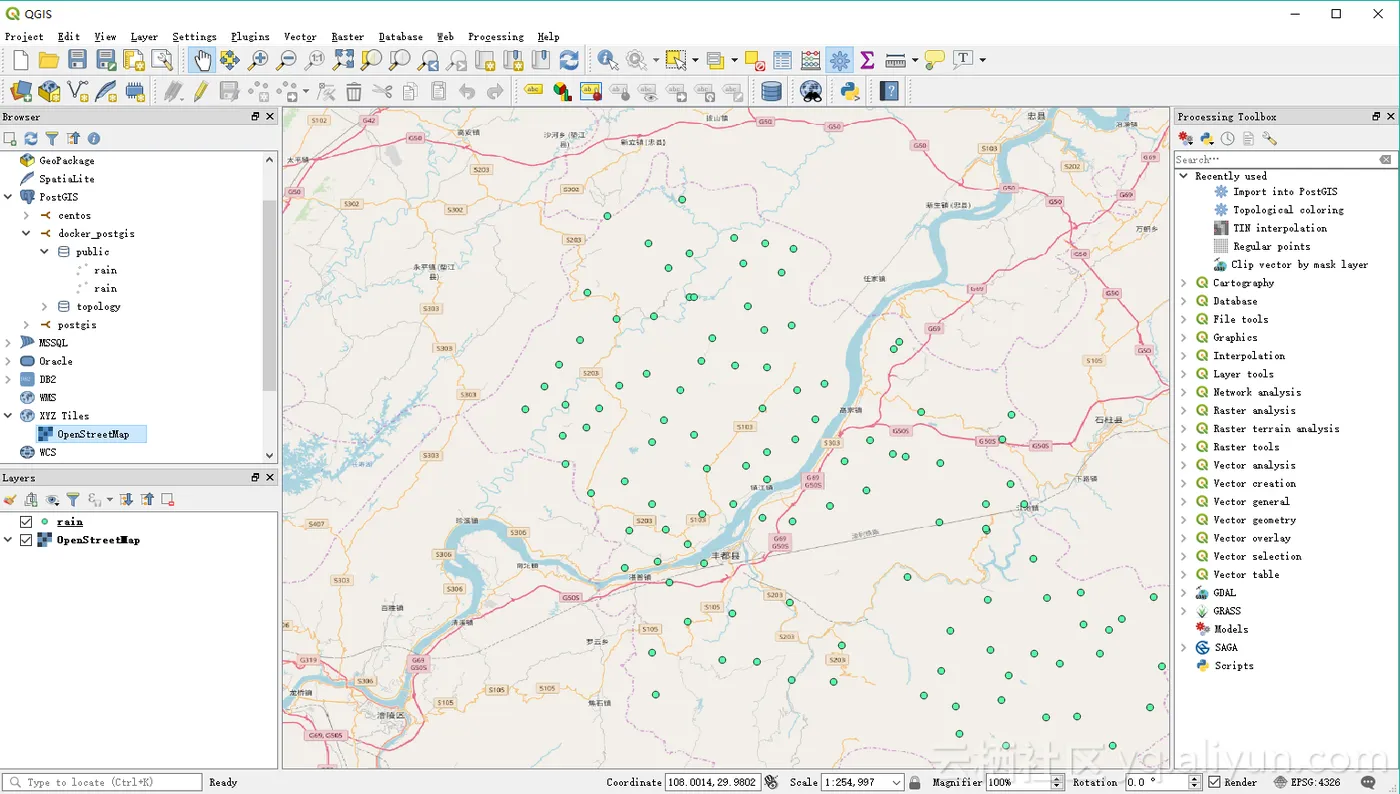

将数据导入 QGIS 查看

look_data

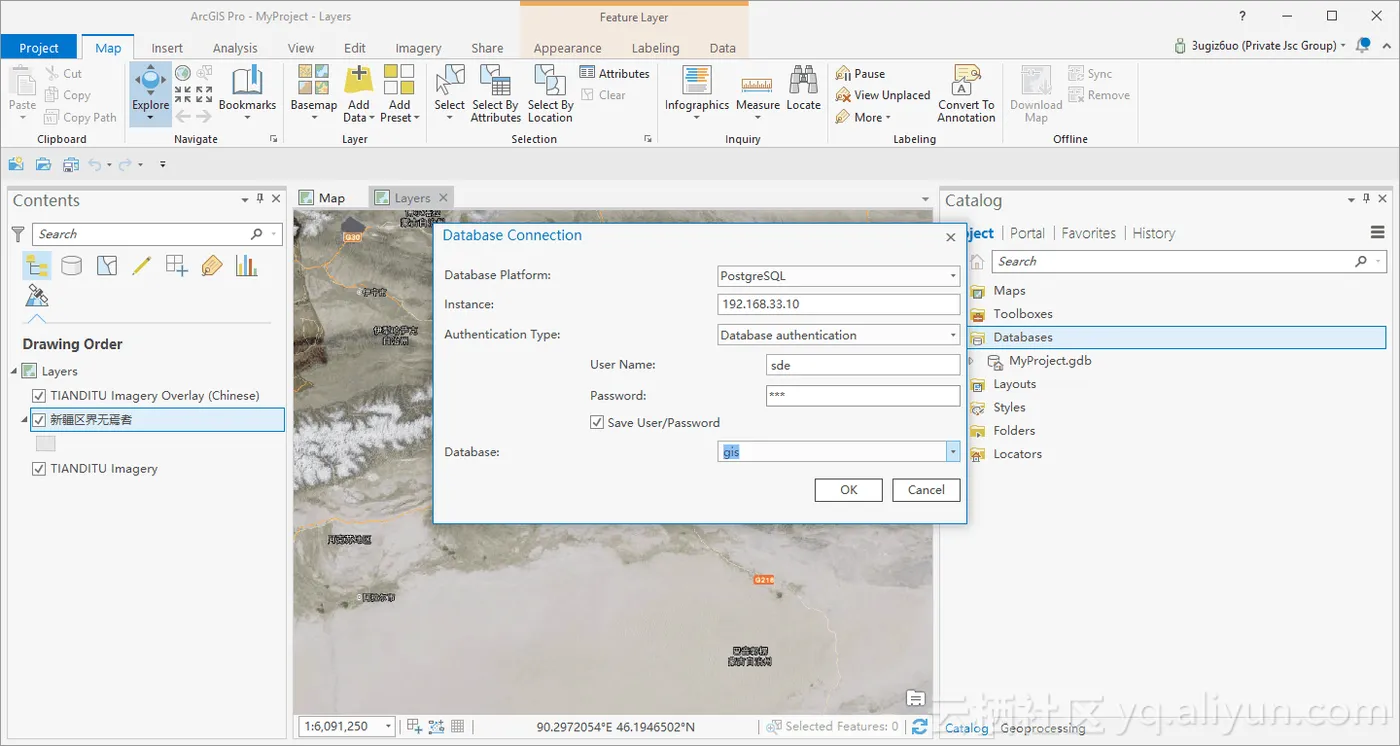

连接 ArcGIS Pro

连接信息
|名称 |值|
|:----|:----|
|数据库平台|PostgreSQL|
|实例|192.168.33.10|
|认证类|数据库认证|
|用户名|sde|
|密码|sde|
|数据库|gis|

arcgis_pro_connect

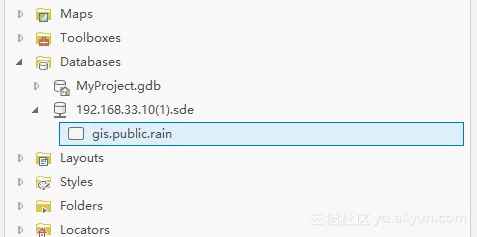

查看数据记录

注: 通过PostGIS Shapefile Import/Export Manager 导入的数据加载到ArcGIS Pro 中没有空间参考,故添加到地图中没有意义,但可以在 Catalog 中看到。

data_in_arcgis

导入新数据到sde中

在导入之前需要在连接的数据库中创建与用户名一致的模式,在这我们是sde。

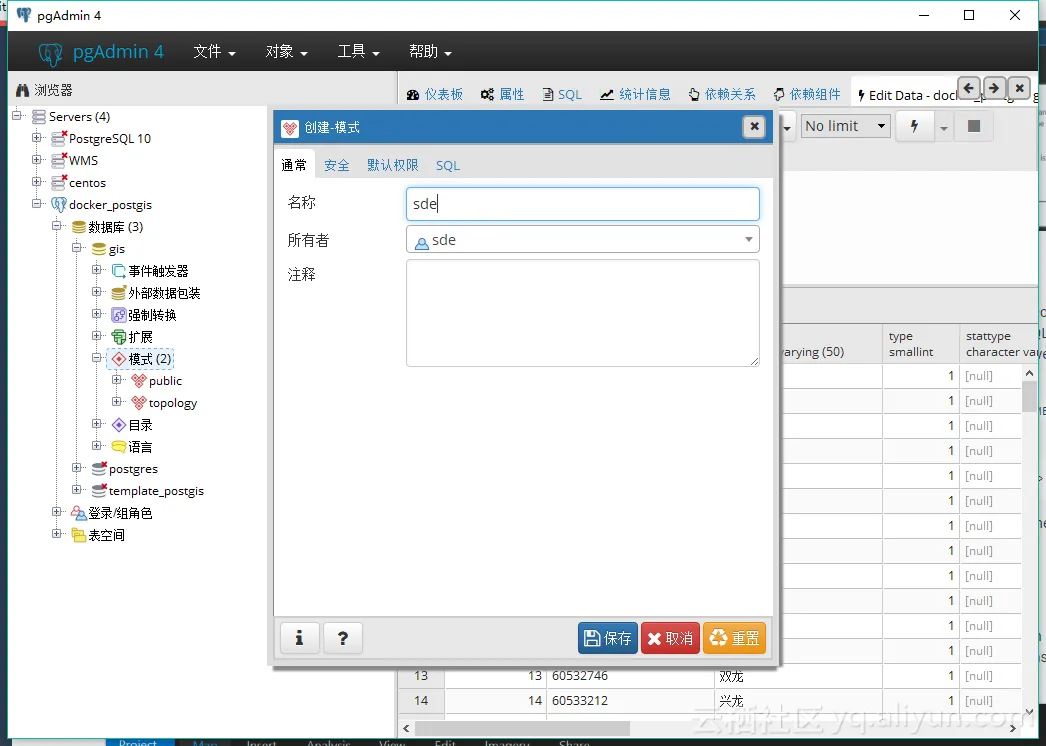

创建 sde 模式

create_sde_schame
create sde schame

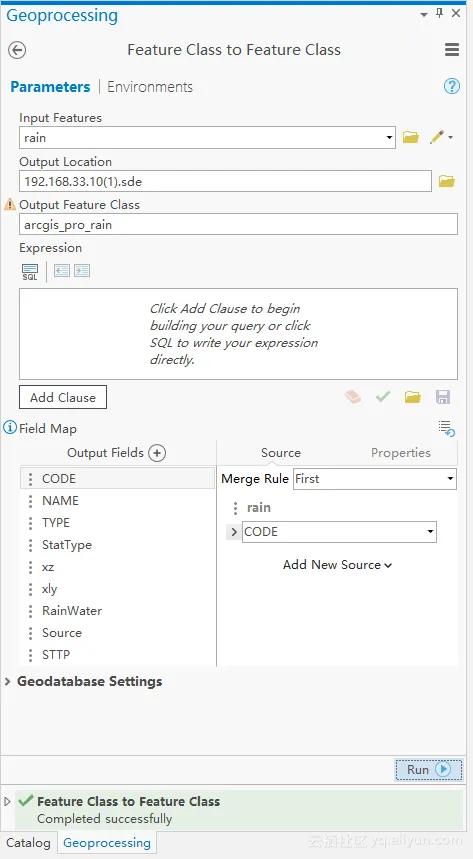

导入数据

import_to_sde

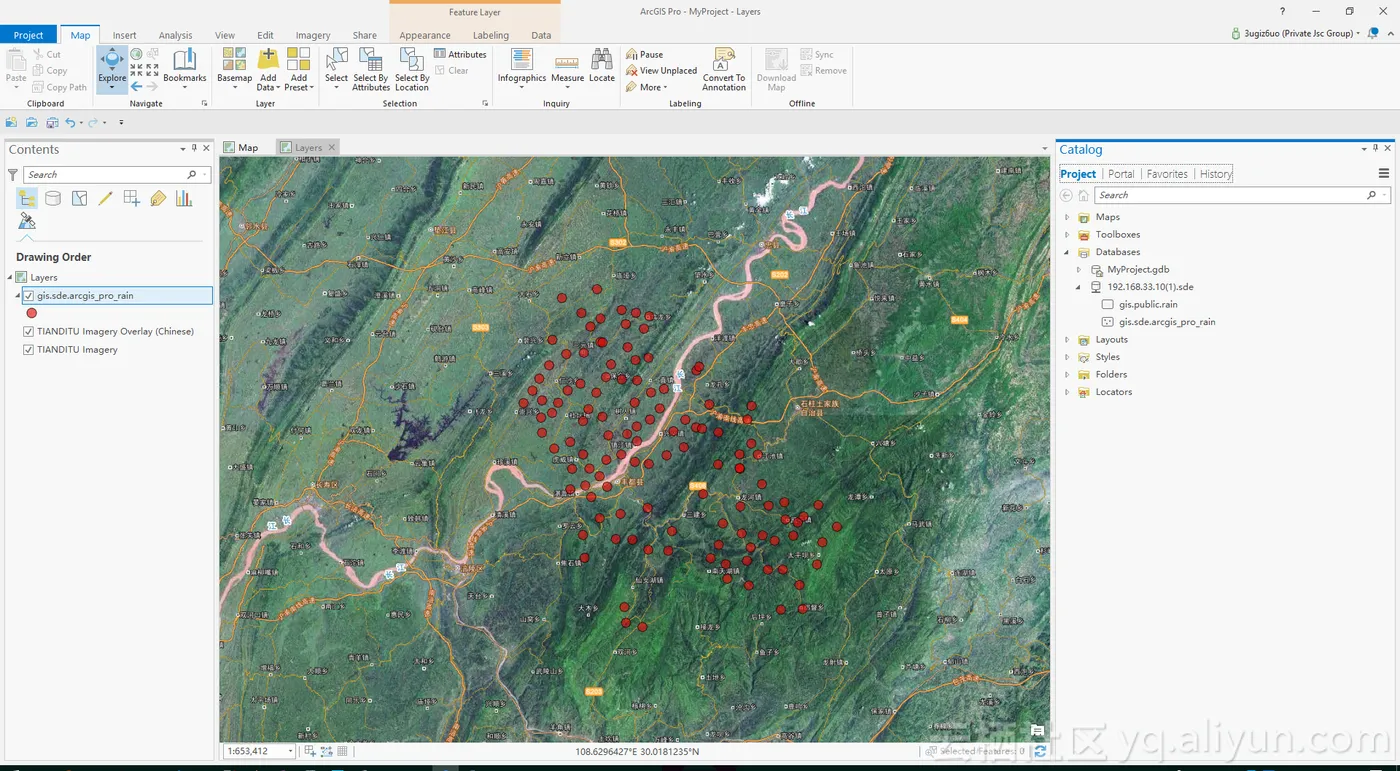

在 ArcGIS Pro 中查看数据

view_in_arcgis_pro

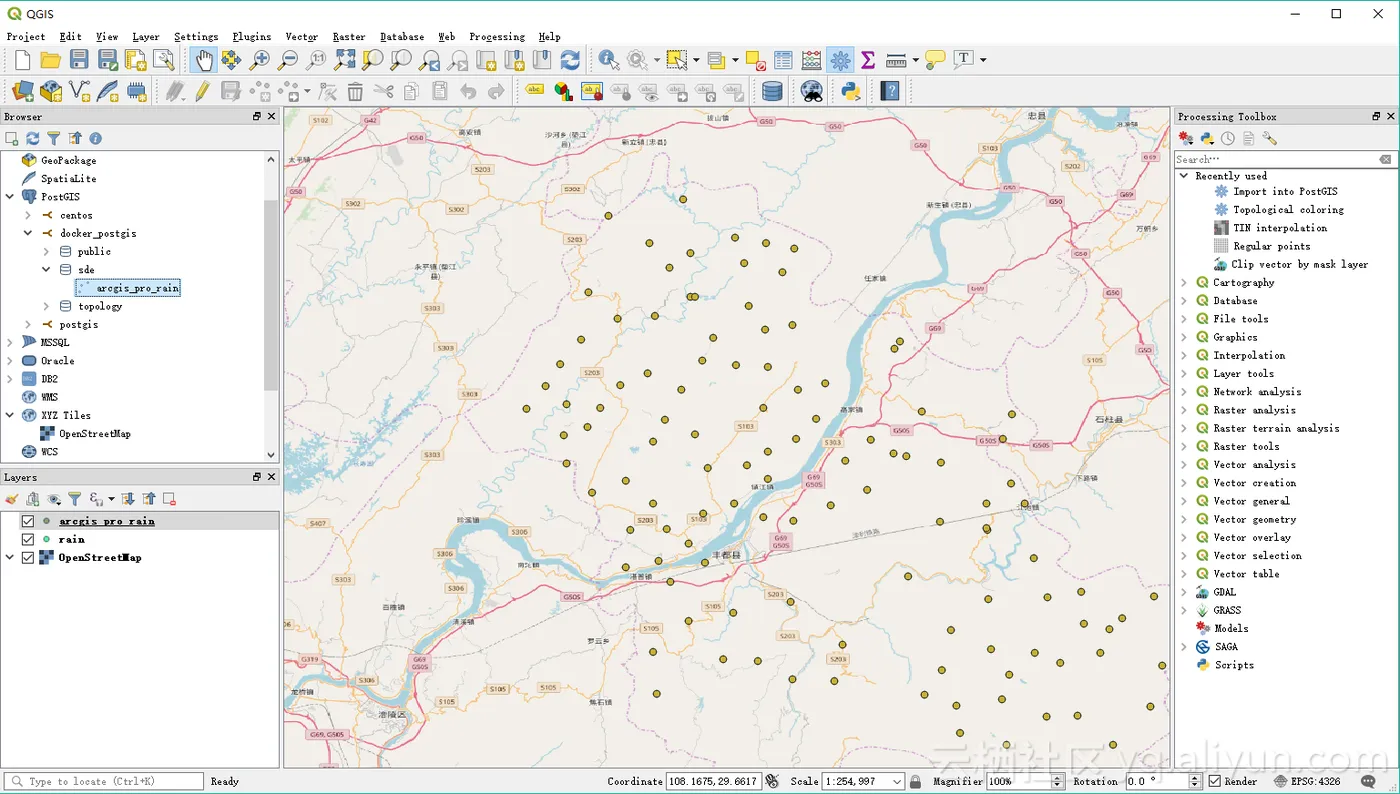

在 QGIS 中查看数据

view_data_in_qgis

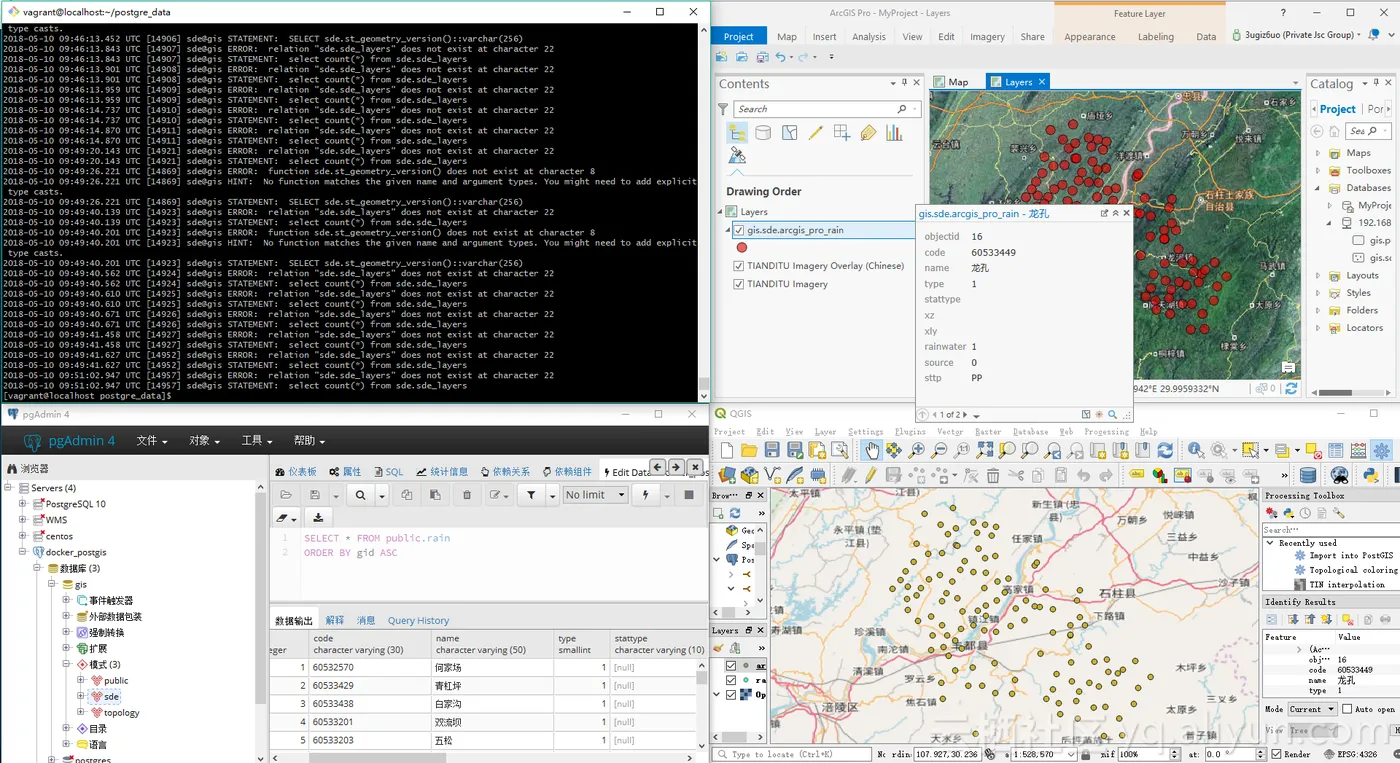

总的效果

final

总结

整个过程通过使用 Vagrant 创建Centos系统,在创建的系统之上安装 Docker, 然后在Docker的基础上安装整合好的 PostGIS 镜像,并运行容器,接着使用 QGIS 和 ArcGIS Pro 连接PostGIS容器导入各种格式的数据、查看数据等。说了这么多,那这样做究竟有什么好处呢? 个人认为有以下几方面的好处。

  • 解决开发和部署环境不一致性的问题;

  • 快速安装所需软件,避免一个一个安装,节省时间;

  • 数据库数据是存储在Linux上且绑定到容器里面的,保证了数据的安全性,同时可以多次挂载、测试及连接(link),即使是在原有镜像基础上增加了新的功能;

  • 跨平台

参考

目录
相关文章
|
2月前
|
关系型数据库 MySQL 数据库连接
docker拉取MySQL后数据库连接失败解决方案
通过以上方法,可以解决Docker中拉取MySQL镜像后数据库连接失败的常见问题。关键步骤包括确保容器正确启动、配置正确的环境变量、合理设置网络和权限,以及检查主机防火墙设置等。通过逐步排查,可以快速定位并解决连接问题,确保MySQL服务的正常使用。
461 82
|
2月前
|
SQL 数据库 Docker
【赵渝强老师】在Docker中运行达梦数据库
本文介绍了在Docker容器中部署达梦数据库(DM 8)的具体步骤,包括创建文件夹、下载安装包、导入镜像、启动容器、登录数据库及查看状态等操作。同时,通过视频讲解辅助理解。文中还分析了将数据库服务容器化的潜在问题,如数据安全性、硬件资源争用、网络带宽占用和额外隔离带来的挑战,指出数据库服务在生产环境中可能不适合容器化的原因。
106 4
【赵渝强老师】在Docker中运行达梦数据库
|
3月前
|
关系型数据库 MySQL 数据库
Docker Compose V2 安装常用数据库MySQL+Mongo
以上内容涵盖了使用 Docker Compose 安装和管理 MySQL 和 MongoDB 的详细步骤,希望对您有所帮助。
314 42
|
3月前
|
中间件 关系型数据库 数据库
docker快速部署OS web中间件 数据库 编程应用
通过Docker,可以轻松地部署操作系统、Web中间件、数据库和编程应用。本文详细介绍了使用Docker部署这些组件的基本步骤和命令,展示了如何通过Docker Compose编排多容器应用。希望本文能帮助开发者更高效地使用Docker进行应用部署和管理。
96 19
|
6月前
|
SQL 关系型数据库 数据库
国产数据实战之docker部署MyWebSQL数据库管理工具
【10月更文挑战第23天】国产数据实战之docker部署MyWebSQL数据库管理工具
474 4
国产数据实战之docker部署MyWebSQL数据库管理工具
|
7月前
|
数据可视化 数据库 数据安全/隐私保护
在IDEA中如何用可视化界面操作数据库? 在idea中如何操作数据库? 在idea中如何像Navicat一样操作数据库?
文章介绍了如何在IDEA中使用可视化界面操作数据库,类似于Navicat,以提高数据库操作的效率和管理性。
195 1
在IDEA中如何用可视化界面操作数据库? 在idea中如何操作数据库? 在idea中如何像Navicat一样操作数据库?
|
6月前
|
存储 关系型数据库 MySQL
查询服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息
查询服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息
2160 2
|
7月前
|
存储 Linux Docker
使用Docker存储驱动
【10月更文挑战第9天】
154 3
|
7月前
|
存储 Kubernetes Docker
|
7月前
|
数据可视化 API PHP
学生信息管理系统-可视化-科目管理CRUD代码生成器
学生信息管理系统-可视化-科目管理CRUD代码生成器
99 5
