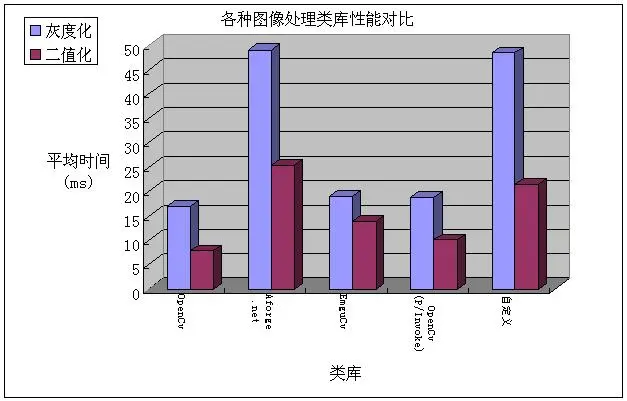

[转]几种图像处理类库的比较

#include  " stdafx.h "
#include  " cv.h "
#include  " cxcore.h "
#include  " highgui.h "
#include  " winbase.h "

int  _tmain( int  argc, _TCHAR *  argv[])
{
     // 初始化图像
    IplImage  *  pIplSource = cvLoadImage( " E:\\xrwang\\ImageProcessLearn\\Debug\\wky_tms_2272x1704.jpg " );
    IplImage  *  pIplGrayscale = cvCreateImage(cvSize(pIplSource -> width,pIplSource -> height),IPL_DEPTH_8U, 1 );
    IplImage  *  pIplThreshold = cvCreateImage(cvSize(pIplSource -> width,pIplSource -> height),IPL_DEPTH_8U, 1 );
     // 执行灰度化和二值化，并输出所用时间
    LARGE_INTEGER frequency,count1,count2,count3;
     double  time1,time2;
    QueryPerformanceFrequency( & frequency);
     for ( int  i = 0 ;i < 10 ;i ++ )
    {
        QueryPerformanceCounter( & count1);
        cvCvtColor(pIplSource,pIplGrayscale,CV_BGR2GRAY);
        QueryPerformanceCounter( & count2);
        cvThreshold(pIplGrayscale,pIplThreshold, 128 , 255 ,CV_THRESH_BINARY);
        QueryPerformanceCounter( & count3);
        time1 = ( double ) 1000.0 * (count2.QuadPart - count1.QuadPart) / frequency.QuadPart;
        time2 = ( double ) 1000.0 * (count3.QuadPart - count2.QuadPart) / frequency.QuadPart;

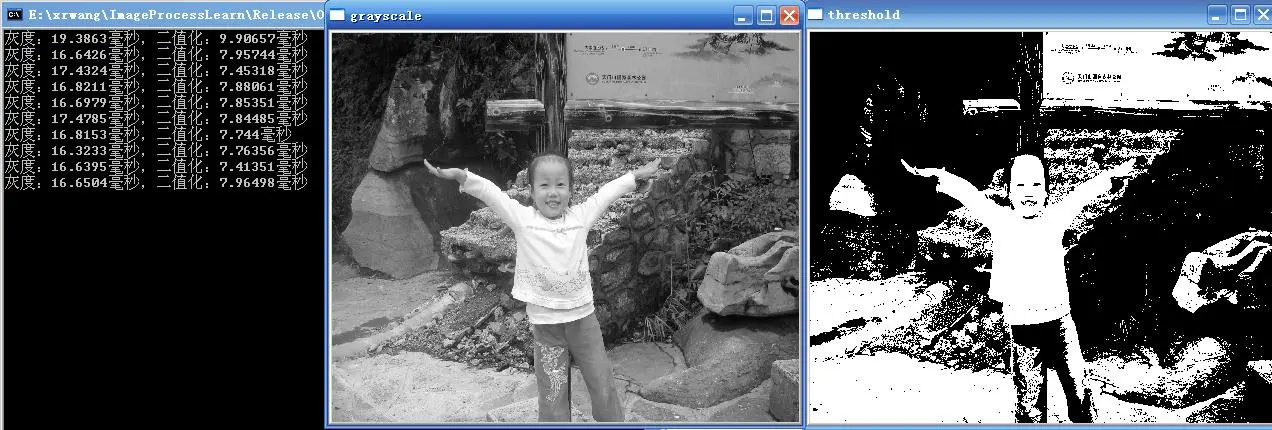

        printf( " 灰度：%g毫秒，二值化：%g毫秒\r\n " ,time1,time2);
    }
     // 显示图像
    cvNamedWindow( " grayscale " , 0 );
    cvNamedWindow( " threshold " , 0 );
    cvResizeWindow( " grayscale " , 600 , 480 );
    cvResizeWindow( " threshold " , 600 , 480 );
    cvShowImage( " grayscale " ,pIplGrayscale);
    cvShowImage( " threshold " ,pIplThreshold);
    cvWaitKey( 0 );
     // 销毁对象
    cvDestroyAllWindows();
    cvReleaseImage( & pIplThreshold);
    cvReleaseImage( & pIplGrayscale);
    cvReleaseImage( & pIplSource);
     return   0 ;
}

using  System;
using  System.Collections.Generic;
using  System.ComponentModel;
using  System.Data;
using  System.Drawing;
using  System.Drawing.Imaging;
using  System.Linq;
using  System.Text;
using  System.Windows.Forms;
using  System.Diagnostics;
using  System.Runtime.InteropServices;
using  AForge.Imaging.Filters;
using  Emgu.CV;
using  Emgu.CV.Structure;
using  Emgu.CV.CvEnum;

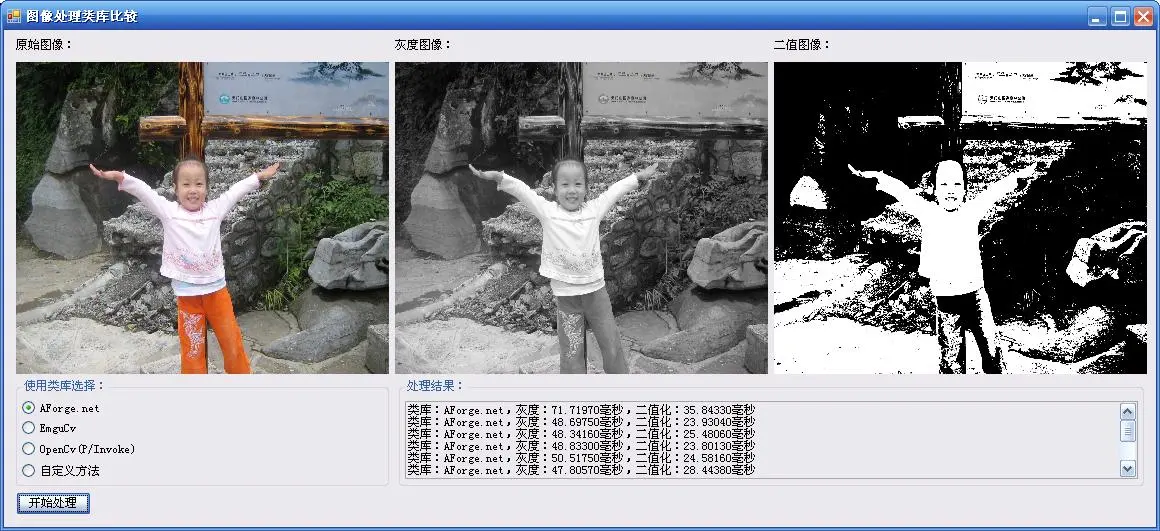

namespace  ImageProcessLearn
{
     public   partial   class  FormMain : Form
    {
         public  FormMain()
        {
            InitializeComponent();
        }

         // 窗体加载时
         private   void  FormMain_Load( object  sender, EventArgs e)
        {
             // 显示原始图像
            pbSource.Image  =  Image.FromFile( " wky_tms_2272x1704.jpg " );
        }

         // 使用选定的类库处理图像
         private   void  btnProcess_Click( object  sender, EventArgs e)
        {
             if  (rbAForge.Checked)
            {
                ProcessImageWithAforge();
            }
             else   if  (rbEmgucv.Checked)
            {
                ProcessImageWithEmgucv();
            }
             else   if  (rbOpencv.Checked)
            {
                ProcessImageWithOpencv();
            }
             else   if  (rbOwnMethod.Checked)
                ProcessImageWithOwnMethod();
        }

         ///   <summary>
         ///  使用AForge.net处理图像
         ///   </summary>
         private   void  ProcessImageWithAforge()
        {
            Stopwatch sw  =   new  Stopwatch();  // 计时器
             // 灰度
            sw.Start();
            Grayscale grayscaleFilter  =   new  Grayscale( 0.299 ,  0.587 ,  0.114 );
            Bitmap bitmapGrayscale  =  grayscaleFilter.Apply((Bitmap)pbSource.Image);
            sw.Stop();
             double  timeGrayscale  =  sw.Elapsed.TotalMilliseconds;
             if  (pbGrayscale.Image  !=   null )
            {
                pbGrayscale.Image.Dispose();
                pbGrayscale.Image  =   null ;
            }
            pbGrayscale.Image  =  bitmapGrayscale;
             // 二值化
            sw.Reset();
            sw.Start();
            Threshold thresholdFilter  =   new  Threshold( 128 );
            Bitmap bitmapThreshold  =  thresholdFilter.Apply(bitmapGrayscale);
            sw.Stop();
             double  timeThreshold  =  sw.Elapsed.TotalMilliseconds;
             if  (pbThreshold.Image  !=   null )
            {
                pbThreshold.Image.Dispose();
                pbThreshold.Image  =   null ;
            }
            pbThreshold.Image  =  bitmapThreshold;
             // 输出所用时间
            txtResult.Text  +=   string .Format( " 类库：AForge.net，灰度：{0:F05}毫秒，二值化：{1:F05}毫秒\r\n " , timeGrayscale, timeThreshold);
        }

         ///   <summary>
         ///  使用EmguCv处理图像
         ///   </summary>
         private   void  ProcessImageWithEmgucv()
        {
            Stopwatch sw  =   new  Stopwatch();  // 计时器
             // 灰度
            Image < Bgr, Byte >  imageSource  =   new  Image < Bgr,  byte > ((Bitmap)pbSource.Image);
            sw.Start();
            Image < Gray, Byte >  imageGrayscale  =  imageSource.Convert < Gray, Byte > ();
            sw.Stop();
             double  timeGrayscale  =  sw.Elapsed.TotalMilliseconds;
             if  (pbGrayscale.Image  !=   null )
            {
                pbGrayscale.Image.Dispose();
                pbGrayscale.Image  =   null ;
            }
            pbGrayscale.Image  =  imageGrayscale.ToBitmap();
             // 二值化
            sw.Reset();
            sw.Start();
            Image < Gray, Byte >  imageThreshold  =  imageGrayscale.ThresholdBinary( new  Gray( 128 ),  new  Gray( 255 ));
            sw.Stop();
             double  timeThreshold  =  sw.Elapsed.TotalMilliseconds;
             if  (pbThreshold.Image  !=   null )
            {
                pbThreshold.Image.Dispose();
                pbThreshold.Image  =   null ;
            }
            pbThreshold.Image  =  imageThreshold.ToBitmap();
             // 输出所用时间
            txtResult.Text  +=   string .Format( " 类库：EmguCv，灰度：{0:F05}毫秒，二值化：{1:F05}毫秒\r\n " , timeGrayscale, timeThreshold);
        }

         ///   <summary>
         ///  使用Open Cv P/Invoke处理图像
         ///   </summary>
         unsafe   private   void  ProcessImageWithOpencv()
        {
            Stopwatch sw  =   new  Stopwatch();  // 计时器
             // 灰度
            Image < Bgr, Byte >  imageSource  =   new  Image < Bgr,  byte > ((Bitmap)pbSource.Image);
            IntPtr ptrSource  =  Marshal.AllocHGlobal(Marshal.SizeOf( typeof (MIplImage)));
            Marshal.StructureToPtr(imageSource.MIplImage, ptrSource,  true );
            sw.Start();
            IntPtr ptrGrayscale  =  CvInvoke.cvCreateImage(imageSource.Size, IPL_DEPTH.IPL_DEPTH_8U,  1 );
            CvInvoke.cvCvtColor(ptrSource, ptrGrayscale, COLOR_CONVERSION.CV_BGR2GRAY);
            sw.Stop();
             double  timeGrayscale  =  sw.Elapsed.TotalMilliseconds;
             if  (pbGrayscale.Image  !=   null )
            {
                pbGrayscale.Image.Dispose();
                pbGrayscale.Image  =   null ;
            }
            pbGrayscale.Image  =  ImageConverter.IplImagePointerToBitmap(ptrGrayscale);
             // 二值化
            sw.Reset();
            sw.Start();
            IntPtr ptrThreshold  =  CvInvoke.cvCreateImage(imageSource.Size, IPL_DEPTH.IPL_DEPTH_8U,  1 );
            CvInvoke.cvThreshold(ptrGrayscale, ptrThreshold, 128d, 255d, THRESH.CV_THRESH_BINARY);
            sw.Stop();
             double  timeThreshold  =  sw.Elapsed.TotalMilliseconds;
             if  (pbThreshold.Image  !=   null )
            {
                pbThreshold.Image.Dispose();
                pbThreshold.Image  =   null ;
            }
            pbThreshold.Image  =  ImageConverter.IplImagePointerToBitmap(ptrThreshold);
             // 释放资源
             // CvInvoke.cvReleaseImage(ref ptrThreshold);
             // CvInvoke.cvReleaseImage(ref ptrGrayscale);
            Marshal.FreeHGlobal(ptrSource);
             // 输出所用时间
            txtResult.Text  +=   string .Format( " 类库：OpenCv P/Invoke，灰度：{0:F05}毫秒，二值化：{1:F05}毫秒\r\n " , timeGrayscale, timeThreshold);
        }

         ///   <summary>
         ///  使用自定义的方法处理图像
         ///   </summary>
         private   void  ProcessImageWithOwnMethod()
        {
            Stopwatch sw  =   new  Stopwatch();  // 计时器
             // 灰度
            sw.Start();
            Bitmap bitmapGrayscale  =  Grayscale((Bitmap)pbSource.Image);
            sw.Stop();
             double  timeGrayscale  =  sw.Elapsed.TotalMilliseconds;
             if  (pbGrayscale.Image  !=   null )
            {
                pbGrayscale.Image.Dispose();
                pbGrayscale.Image  =   null ;
            }
            pbGrayscale.Image  =  bitmapGrayscale;
             // 二值化
            sw.Reset();
            sw.Start();
            Bitmap bitmapThreshold  =  Threshold(bitmapGrayscale,  128 );
            sw.Stop();
             double  timeThreshold  =  sw.Elapsed.TotalMilliseconds;
             if  (pbThreshold.Image  !=   null )
            {
                pbThreshold.Image.Dispose();
                pbThreshold.Image  =   null ;
            }
            pbThreshold.Image  =  bitmapThreshold;
             // 输出所用时间
            txtResult.Text  +=   string .Format( " 类库：自定义方法，灰度：{0:F05}毫秒，二值化：{1:F05}毫秒\r\n " , timeGrayscale, timeThreshold);
        }

         ///   <summary>
         ///  将指定图像转换成灰度图
         ///   </summary>
         ///   <param name="bitmapSource"> 源图像支持3通道或者4通道图像，支持Format24bppRgb、Format32bppRgb和Format32bppArgb这3种像素格式 </param>
         ///   <returns> 返回灰度图，如果转化失败，返回null。 </returns>
         private  Bitmap Grayscale(Bitmap bitmapSource)
        {
            Bitmap bitmapGrayscale  =   null ;
             if  (bitmapSource  !=   null   &&  (bitmapSource.PixelFormat  ==  PixelFormat.Format24bppRgb  ||  bitmapSource.PixelFormat  ==  PixelFormat.Format32bppArgb  ||  bitmapSource.PixelFormat  ==  PixelFormat.Format32bppRgb))
            {
                 int  width  =  bitmapSource.Width;
                 int  height  =  bitmapSource.Height;
                Rectangle rect  =   new  Rectangle( 0 ,  0 , width, height);
                bitmapGrayscale  =   new  Bitmap(width, height, PixelFormat.Format8bppIndexed);
                 // 设置调色板
                ColorPalette palette  =  bitmapGrayscale.Palette;
                 for  ( int  i  =   0 ; i  <  palette.Entries.Length; i ++ )
                    palette.Entries[i]  =  Color.FromArgb( 255 , i, i, i);
                bitmapGrayscale.Palette  =  palette;
                BitmapData dataSource  =  bitmapSource.LockBits(rect, ImageLockMode.ReadOnly, bitmapSource.PixelFormat);
                BitmapData dataGrayscale  =  bitmapGrayscale.LockBits(rect, ImageLockMode.WriteOnly, PixelFormat.Format8bppIndexed);
                 byte  b, g, r;
                 int  strideSource  =  dataSource.Stride;
                 int  strideGrayscale  =  dataGrayscale.Stride;
                 unsafe
                {
                     byte *  ptrSource  =  ( byte * )dataSource.Scan0.ToPointer();
                     byte *  ptr1;
                     byte *  ptrGrayscale  =  ( byte * )dataGrayscale.Scan0.ToPointer();
                     byte *  ptr2;
                     if  (bitmapSource.PixelFormat  ==  PixelFormat.Format24bppRgb)
                    {
                         for  ( int  row  =   0 ; row  <  height; row ++ )
                        {
                            ptr1  =  ptrSource  +  strideSource  *  row;
                            ptr2  =  ptrGrayscale  +  strideGrayscale  *  row;
                             for  ( int  col  =   0 ; col  <  width; col ++ )
                            {
                                b  =   * ptr1;
                                ptr1 ++ ;
                                g  =   * ptr1;
                                ptr1 ++ ;
                                r  =   * ptr1;
                                ptr1 ++ ;
                                 * ptr2  =  ( byte )( 0.114   *  b  +   0.587   *  g  +   0.299   *  r);
                                ptr2 ++ ;
                            }
                        }
                    }
                     else      // bitmapSource.PixelFormat == PixelFormat.Format32bppArgb || bitmapSource.PixelFormat == PixelFormat.Format32bppRgb
                    {
                         for  ( int  row  =   0 ; row  <  height; row ++ )
                        {
                            ptr1  =  ptrSource  +  strideGrayscale  *  row;
                            ptr2  =  ptrGrayscale  +  strideGrayscale  *  row;
                             for  ( int  col  =   0 ; col  <  width; col ++ )
                            {
                                b  =   * ptr1;
                                ptr1 ++ ;
                                g  =   * ptr1;
                                ptr1 ++ ;
                                r  =   * ptr1;
                                ptr1  +=   2 ;
                                 * ptr2  =  ( byte )( 0.114   *  b  +   0.587   *  g  +   0.299   *  r);
                                ptr2 ++ ;
                            }
                        }
                    }
                }
                bitmapGrayscale.UnlockBits(dataGrayscale);
                bitmapSource.UnlockBits(dataSource);
            }
             return  bitmapGrayscale;
        }

         ///   <summary>
         ///  将指定的灰度图像转换成二值图像。如果某个像素的值大于等于阀值，该像素置为白色；否则置为黑色。
         ///  目前支持8bpp和16bpp两种灰度图像的转换，对于8bpp，阀值介于0~255之间；对于16bpp，阀值介于0~65535之间。
         ///   </summary>
         ///   <param name="bitmapGrayscale"> 灰度图像 </param>
         ///   <param name="thresholdValue"> 阀值 </param>
         ///   <returns> 返回转换之后的二值图像；如果转换失败，返回null。 </returns>
         private  Bitmap Threshold(Bitmap bitmapGrayscale, int  thresholdValue)
        {
            Bitmap bitmapThreshold  =   null ;
             if  (bitmapGrayscale  !=   null )
            {
                 int  width  =  bitmapGrayscale.Width;
                 int  height  =  bitmapGrayscale.Height;
                Rectangle rect  =   new  Rectangle( 0 ,  0 , width, height);
                PixelFormat pixelFormat  =  bitmapGrayscale.PixelFormat;
                 if  (pixelFormat  ==  PixelFormat.Format8bppIndexed)
                {
                     if  (thresholdValue  >=   0   &&  thresholdValue  <=   255 )
                    {
                        bitmapThreshold  =  (Bitmap)bitmapGrayscale.Clone();
                         byte  white  =   255 ;
                         byte  black  =   0 ;
                        BitmapData data  =  bitmapThreshold.LockBits(rect, ImageLockMode.ReadWrite, pixelFormat);
                         unsafe
                        {
                             byte *  ptrStart  =  ( byte * )data.Scan0.ToPointer();
                             byte *  ptr1;
                             for  ( int  row  =   0 ; row  <  height; row ++ )
                            {
                                ptr1  =  ptrStart  +  data.Stride  *  row;
                                 for  ( int  col  =   0 ; col  <  width; col ++ )
                                {
                                     * ptr1  =  ( * ptr1  <  thresholdValue)  ?  black : white;
                                    ptr1 ++ ;
                                }
                            }
                        }
                        bitmapThreshold.UnlockBits(data);
                    }
                }
                 else   if  (pixelFormat  ==  PixelFormat.Format16bppGrayScale)
                {
                    bitmapThreshold  =  (Bitmap)bitmapGrayscale.Clone();
                    UInt16 white  =   65535 ;
                    UInt16 black  =   0 ;
                    BitmapData data  =  bitmapThreshold.LockBits(rect, ImageLockMode.ReadWrite, pixelFormat);
                     unsafe
                    {
                         byte *  ptrStart  =  ( byte * )data.Scan0.ToPointer();
                        UInt16 *  ptr1;
                         for  ( int  row  =   0 ; row  <  height; row ++ )
                        {
                            ptr1  =  (UInt16 * )(ptrStart  +  data.Stride  *  row);
                             for  ( int  col  =   0 ; col  <  width; col ++ )
                            {
                                 * ptr1  =  ( * ptr1  <  thresholdValue)  ?  black : white;
                                ptr1 ++ ;
                            }
                        }
                    }
                    bitmapThreshold.UnlockBits(data);
                }
            }
             return  bitmapThreshold;
        }
    }
}
