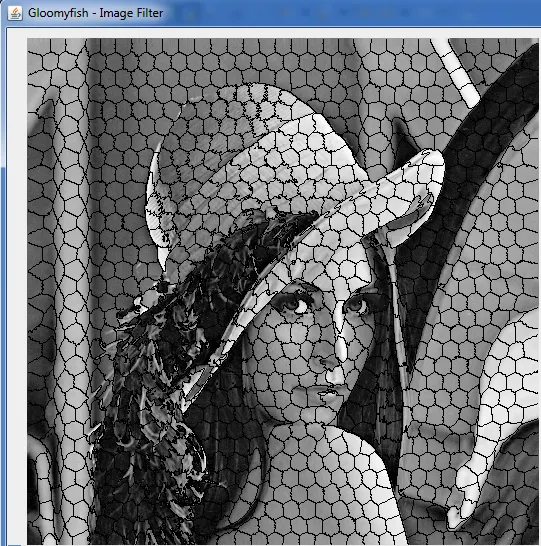

图像处理之六边形网格分割效果

package com.gloomyfish.image.cluster.effect;

import java.awt.image.BufferedImage;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

import com.gloomyfish.filter.study.AbstractBufferedImageOp;

public class SuperPixelsFilter extends AbstractBufferedImageOp {

  private double[] distances;
  private int[] labels;
  private MyCluster[] clusters;
  private int maxClusteringLoops = 50;

  private double blockSize;
  private double modifier;

  public SuperPixelsFilter()
  {
    blockSize = 16;
    modifier = 130;
  }

  public double getBlockSize() {
    return blockSize;
  }

  public void setBlockSize(double blockSize) {
    this.blockSize = blockSize;
  }

  public double getModifier() {
    return modifier;
  }

  public void setModifier(double modifier) {
    this.modifier = modifier;
  }

  @Override
  public BufferedImage filter(BufferedImage src, BufferedImage dest) {
    int width = src.getWidth();
        int height = src.getHeight();

        if ( dest == null )
            dest = createCompatibleDestImage( src, null );

        int[] inPixels = new int[width*height];
        getRGB( src, 0, 0, width, height, inPixels );
        int index = 0;
        // initialization
        distances = new double[width*height];
        labels = new int[width*height];
        Arrays.fill(distances, Integer.MAX_VALUE);
        Arrays.fill(labels, -1);
        initClusters(width, height, inPixels, blockSize, modifier);
        // loop to get all block/cells, image segmentation
        int loops = 0;
        boolean pixelChangedCluster = true;
        while (pixelChangedCluster&&loops<maxClusteringLoops) {
            pixelChangedCluster = false;
            loops++;
            // for each cluster center C
            for (int i=0;i<clusters.length;i++) {
              MyCluster c = clusters[i];
                // for each pixel i in 2S region around
                // cluster center
                int xs = Math.max((int)(c.avg_x-blockSize),0);
                int ys = Math.max((int)(c.avg_y-blockSize),0);
                int xe = Math.min((int)(c.avg_x+blockSize),width);
                int ye = Math.min((int)(c.avg_y+blockSize),height);
                for (int y=ys;y<ye;y++) {
                    for (int x=xs;x<xe;x++) {
                        int pos = x+width*y;
                        int tr = (inPixels[pos] >> 16) & 0xff;
                        int tg = (inPixels[pos] >> 8) & 0xff;
                        int tb = inPixels[pos] & 0xff;
                        double D = c.distance(x, y, tr,
                                                    tg,
                                                    tb,
                                                    blockSize, modifier, width, height);
                        if ((D<distances[pos])&&(labels[pos]!=c.id)) {
                            distances[pos]         = D;
                            labels[pos]            = c.id;
                            pixelChangedCluster = true;
                        }
                    } // end for x
                } // end for y
            } // end for clusters
            // reset clusters
            for (index=0;index<clusters.length;index++) {
                clusters[index].reset();
            }
            // add every pixel to cluster based on label
            for (int y=0;y<height;y++) {
                for (int x=0;x<width;x++) {
                    int pos = x+y*width;
                    int tr = (inPixels[pos] >> 16) & 0xff;
                    int tg = (inPixels[pos] >> 8) & 0xff;
                    int tb = inPixels[pos] & 0xff;
                    clusters[labels[pos]].addPixel(x, y,
                            tr, tg, tb);
                }
            }

            // calculate centers
            for (index=0;index<clusters.length;index++) {
                clusters[index].calculateCenter();
            }
        }

        // Create output image with pixel edges
        for (int y=1;y<height-1;y++) {
            for (int x=1;x<width-1;x++) {
                int id1 = labels[x+y*width];
                int id2 = labels[(x+1)+y*width];
                int id3 = labels[x+(y+1)*width];
                if (id1!=id2||id1!=id3) {
                  int pos = x+y*width;
                  inPixels[pos] = (255 << 24) | (0 << 16) | (0 << 8) | 0;
                }
            }
        }

        setRGB( dest, 0, 0, width, height, inPixels );
        return dest;
  }

  public void initClusters(int width, int height, int[] input,
            double S, double m) {
    List<MyCluster> temp = new ArrayList<MyCluster>();
    boolean even = false;
    double xstart = 0;
    int id = 0;
    for (double y = S / 2; y < height; y += S) {
      // 创建六边形网格
      if (even) {
        xstart = S / 2.0;
        even = false;
      } else {
        xstart = S;
        even = true;
      }
      for (double x = xstart; x < width; x += S) {
        int index = (int) (x + y * width);
                int tr = (input[index] >> 16) & 0xff;
                int tg = (input[index] >> 8) & 0xff;
                int tb = input[index] & 0xff;
        MyCluster c = new MyCluster(id, tr, tg, tb,
            (int) x, (int) y, S, m);
        temp.add(c);
        id++;
      }
    }
    clusters = new MyCluster[temp.size()];
    for (int i = 0; i < temp.size(); i++) {
      clusters[i] = temp.get(i);
    }
}

}

package com.gloomyfish.image.cluster.effect;

public class MyCluster {

  int id;
  double inv = 0; // inv variable for optimization
  double pixelCount; // pixels in this cluster
  double avg_red; // average red value
  double avg_green; // average green value
  double avg_blue; // average blue value
  double sum_red; // sum red values
  double sum_green; // sum green values
  double sum_blue; // sum blue values
  double sum_x; // sum x
  double sum_y; // sum y
  double avg_x; // average x
  double avg_y; // average y

  public MyCluster(int id, int in_red, int in_green, int in_blue, int x,
      int y, double S, double m) {
    // inverse for distance calculation
    this.inv = 1.0 / ((S / m) * (S / m));
    this.id = id;
    addPixel(x, y, in_red, in_green, in_blue);
    // calculate center with initial one pixel
    calculateCenter();
  }

  public void reset() {
    avg_red = 0;
    avg_green = 0;
    avg_blue = 0;
    sum_red = 0;
    sum_green = 0;
    sum_blue = 0;
    pixelCount = 0;
    avg_x = 0;
    avg_y = 0;
    sum_x = 0;
    sum_y = 0;
  }

  /*
   * Add pixel color values to sum of previously added color values.
   */
  void addPixel(int x, int y, int in_red, int in_green, int in_blue) {
    sum_x += x;
    sum_y += y;
    sum_red += in_red;
    sum_green += in_green;
    sum_blue += in_blue;
    pixelCount++;
  }

  public void calculateCenter() {
    // Optimization: using "inverse"
    // to change divide to multiply
    double inv = 1 / pixelCount;
    avg_red = sum_red * inv;
    avg_green = sum_green * inv;
    avg_blue = sum_blue * inv;
    avg_x = sum_x * inv;
    avg_y = sum_y * inv;
  }

  double distance(int x, int y, int red, int green, int blue, double S,
      double m, int w, int h) {
    // power of color difference between
    // given pixel and cluster center
    double dx_color = (avg_red - red) * (avg_red - red)
        + (avg_green - green) * (avg_green - green) + (avg_blue - blue)
        * (avg_blue - blue);
    // power of spatial difference between
    // given pixel and cluster center
    double dx_spatial = (avg_x - x) * (avg_x - x) + (avg_y - y)
        * (avg_y - y);
    // Calculate approximate distance D
    // double D = dx_color+dx_spatial*inv;
    // Calculate squares to get more accurate results
    double D = Math.sqrt(dx_color) + Math.sqrt(dx_spatial * inv);
    return D;
  }
}1.
