一：数学原理
在临近点插值的数学基础上，双线性插值，不是简单copy源像素的值，而是获取四个最邻
近目标像素的像素值乘以权重系数，简单的数学公式可以表示为:
D(x, y) = S(j, k) * a + S(j+1, k) *b + S(j+1,k+1) * c + S(j, K+1) * d 公式一
问题转化如何提取源像素的中四个临近点，根据临近点插值中从目标像素寻找最临近的源像
素点的方法:
Sx= Dx * (Sh/Dh) // row
Sy= Dy * (Sw/Dw) // column
公式的详细说明参见这里http://blog.csdn.net/jia20003/article/details/6907152
计算出来的值是浮点数坐标，分别取整数部分坐标为(j, k), 小数部分坐标为(t, u)
根据小数部分的(t,u)坐标，首先进行水平方向的权重计算得出
Q11 = S(j,k) * (1-t) + S(j, k+1) * t;
Q22 = S(j+1, k) * (1-t) + S(j+1,K+1) *t
利用Q11, Q22的值，进行垂直方向权重计算得出计算采样点值
D(x, y) = Q11*(1-u) + Q22 * u; 把Q11, Q22带入,最终有等式:
D(x, y) = S(j, k) *(1-t)*(1-u) + S(j, k+1)*t*(1-u) + S(j+1,k)*(1-t)*u + S(j+1,k+1)*t*u
从而得出四个对应的权重系数分别为:
a = (1-t)*(1-u)
b = (1-t)*u
c = t*u
d = t*(1-u)
带入公式一，即可得出目标像素的值。
二：双线性内插值算法优缺点
双线性内插值算法在图像的放缩处理中，具有抗锯齿功能, 是最简单和常见的图像放缩算法，但是双线性内插值算法没有考虑边缘和图像的梯度变化，相比之下双立方插值算法更好解决这些问题。
三：关键程序代码解析
根据目标像素坐标，计算采样点浮点数坐标的代码如下：
float rowRatio = ((float)srcH)/((float)destH);
float colRatio = ((float)srcW)/((float)destW);
double srcRow = ((float)row)*rowRatio;
double srcCol = ((float)col)*colRatio;
计算采样点的整数坐标和小数部分坐标代码如下：
double j = Math.floor(srcRow);
double t = srcRow – j
double k = Math.floor(srcCol);
double u = srcCol - k;
根据小数坐标(t,u)来计算四个相邻像素点权重系数代码如下：
double coffiecent1 = (1.0d-t)*(1.0d-u);
double coffiecent2 = (t)*(1.0d-u);
double coffiecent3 = t*u;
double coffiecent4 = (1.0d-t)*u;
处理边缘像素代码如下：
return x>max ? max : x<min? min : x;
四：程序运行效果如下

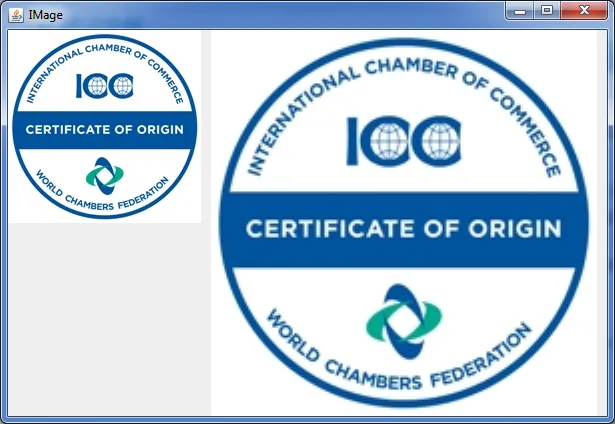

左边为源图像，右边为基于双线性内插值放大两倍以后的图像
五：双线性内插值JAVA算法代码
public class BilineInterpolationScale implements ImageScale { public BilineInterpolationScale() { } /** * */ @Override public int[] imgScale(int[] inPixelsData, int srcW, int srcH, int destW, int destH) { double[][][] input3DData = processOneToThreeDeminsion(inPixelsData, srcH, srcW); int[][][] outputThreeDeminsionData = new int[destH][destW][4]; float rowRatio = ((float)srcH)/((float)destH); float colRatio = ((float)srcW)/((float)destW); for(int row=0; row<destH; row++) { // convert to three dimension data double srcRow = ((float)row)*rowRatio; double j = Math.floor(srcRow); double t = srcRow - j; for(int col=0; col<destW; col++) { double srcCol = ((float)col)*colRatio; double k = Math.floor(srcCol); double u = srcCol - k; double coffiecent1 = (1.0d-t)*(1.0d-u); double coffiecent2 = (t)*(1.0d-u); double coffiecent3 = t*u; double coffiecent4 = (1.0d-t)*u; outputThreeDeminsionData[row][col][0] = (int)(coffiecent1 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)k,srcW-1, 0)][0] + coffiecent2 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)k,srcW-1,0)][0] + coffiecent3 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)(k+1),srcW-1,0)][0] + coffiecent4 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)(k+1),srcW-1,0)][0]); // alpha outputThreeDeminsionData[row][col][1] = (int)(coffiecent1 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)k,srcW-1, 0)][1] + coffiecent2 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)k,srcW-1,0)][1] + coffiecent3 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)(k+1),srcW-1,0)][1] + coffiecent4 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)(k+1),srcW-1,0)][1]); // red outputThreeDeminsionData[row][col][2] = (int)(coffiecent1 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)k,srcW-1, 0)][2] + coffiecent2 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)k,srcW-1,0)][2] + coffiecent3 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)(k+1),srcW-1,0)][2] + coffiecent4 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)(k+1),srcW-1,0)][2]);// green outputThreeDeminsionData[row][col][3] = (int)(coffiecent1 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)k,srcW-1, 0)][3] + coffiecent2 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)k,srcW-1,0)][3] + coffiecent3 * input3DData[getClip((int)(j+1),srcH-1,0)][getClip((int)(k+1),srcW-1,0)][3] + coffiecent4 * input3DData[getClip((int)j,srcH-1,0)][getClip((int)(k+1),srcW-1,0)][3]); // blue } } return convertToOneDim(outputThreeDeminsionData, destW, destH); } private int getClip(int x, int max, int min) { return x>max ? max : x<min? min : x; } /* <p> The purpose of this method is to convert the data in the 3D array of ints back into </p> * <p> the 1d array of type int. </p> * */ public int[] convertToOneDim(int[][][] data, int imgCols, int imgRows) { // Create the 1D array of type int to be populated with pixel data int[] oneDPix = new int[imgCols * imgRows * 4]; // Move the data into the 1D array. Note the // use of the bitwise OR operator and the // bitwise left-shift operators to put the // four 8-bit bytes into each int. for (int row = 0, cnt = 0; row < imgRows; row++) { for (int col = 0; col < imgCols; col++) { oneDPix[cnt] = ((data[row][col][0] << 24) & 0xFF000000) | ((data[row][col][1] << 16) & 0x00FF0000) | ((data[row][col][2] << 8) & 0x0000FF00) | ((data[row][col][3]) & 0x000000FF); cnt++; }// end for loop on col }// end for loop on row return oneDPix; }// end convertToOneDim private double [][][] processOneToThreeDeminsion(int[] oneDPix2, int imgRows, int imgCols) { double[][][] tempData = new double[imgRows][imgCols][4]; for(int row=0; row<imgRows; row++) { // per row processing int[] aRow = new int[imgCols]; for (int col = 0; col < imgCols; col++) { int element = row * imgCols + col; aRow[col] = oneDPix2[element]; } // convert to three dimension data for(int col=0; col<imgCols; col++) { tempData[row][col][0] = (aRow[col] >> 24) & 0xFF; // alpha tempData[row][col][1] = (aRow[col] >> 16) & 0xFF; // red tempData[row][col][2] = (aRow[col] >> 8) & 0xFF; // green tempData[row][col][3] = (aRow[col]) & 0xFF; // blue } } return tempData; } }
