SpringBootWeb案例
前面我们已经讲解了Web前端开发的基础知识,也讲解了Web后端开发的基础(HTTP协议、请求响应),并且也讲解了数据库MySQL,以及通过Mybatis框架如何来完成数据库的基本操作。 那接下来,我们就通过一个案例,来将前端开发、后端开发、数据库整合起来。 而这个案例呢,就是我们前面提到的Tlias智能学习辅助系统。
在这个案例中,前端开发人员已经将前端工程开发完毕了。 我们需要做的,就是参考接口文档完成后端功能的开发,然后结合前端工程进行联调测试即可。

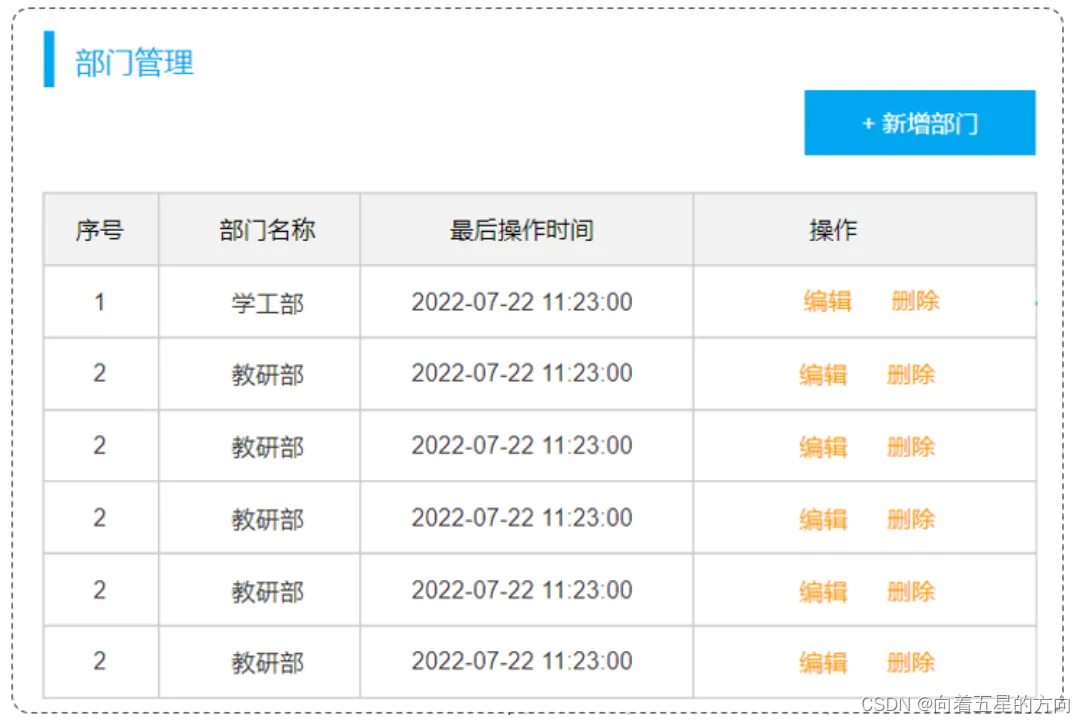

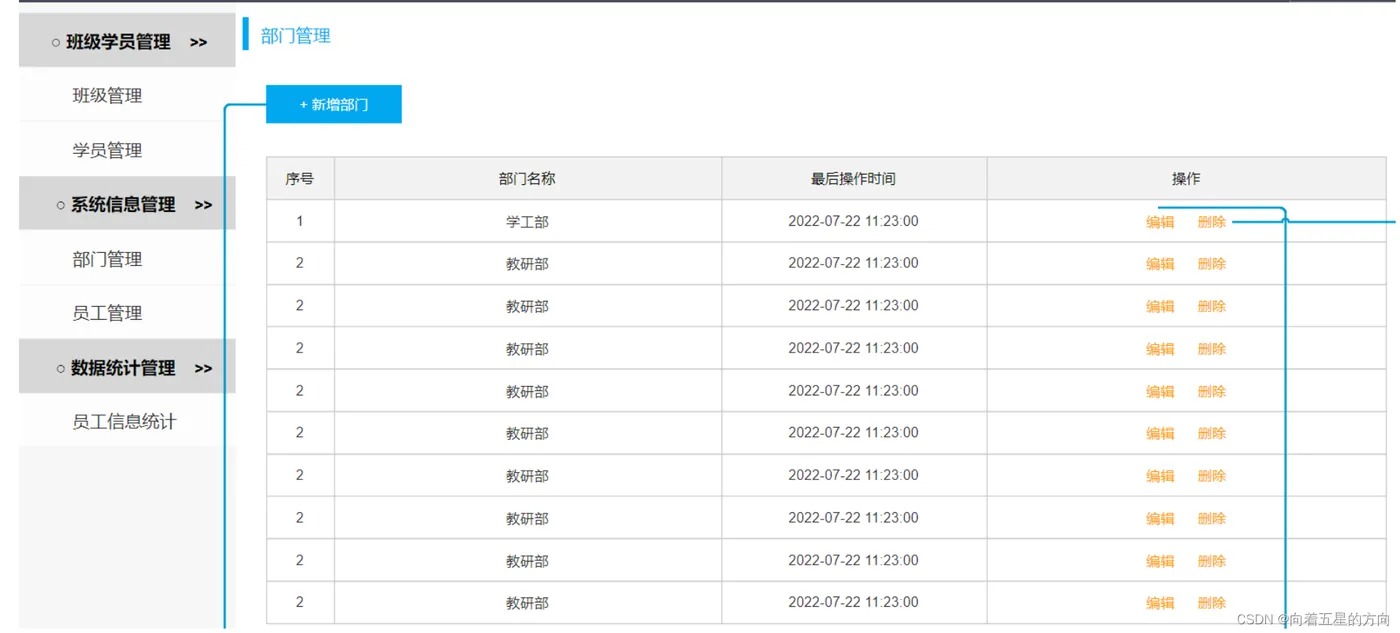

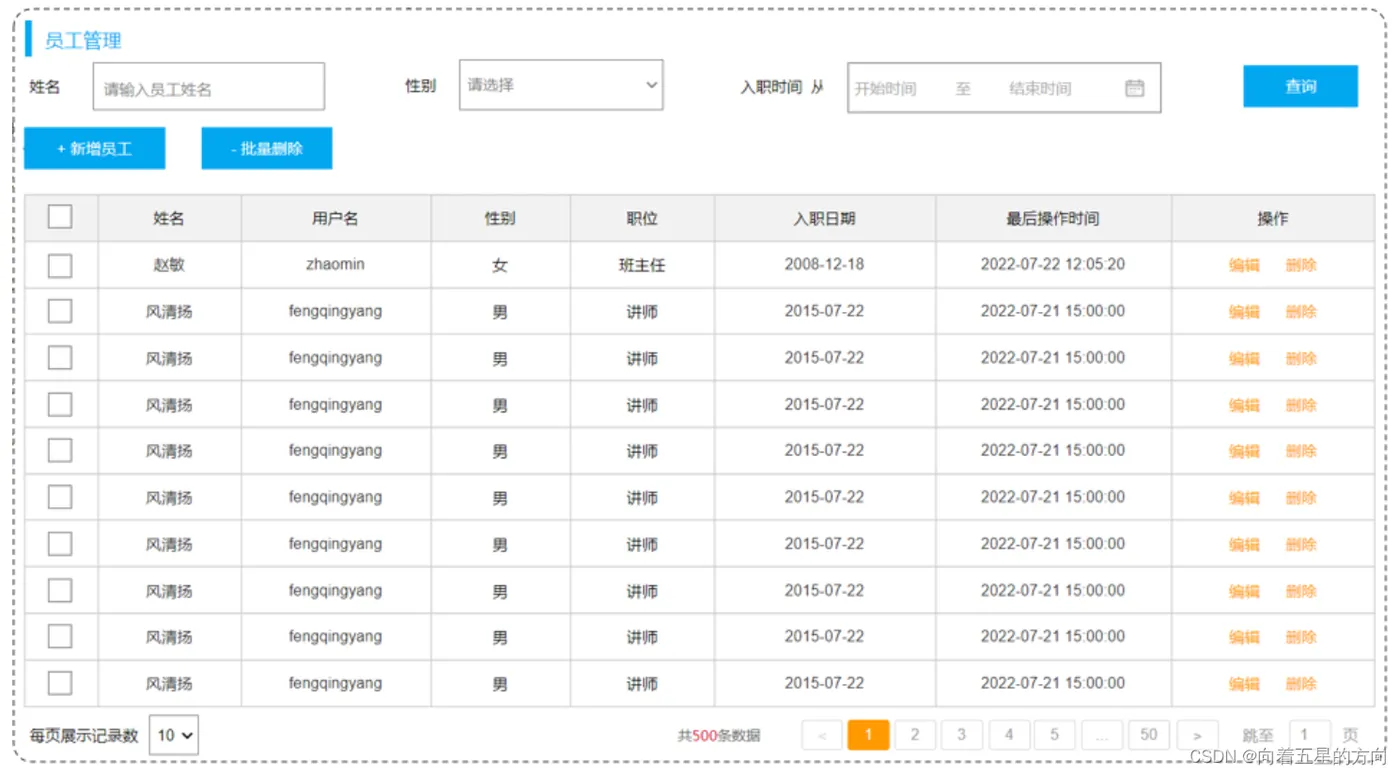

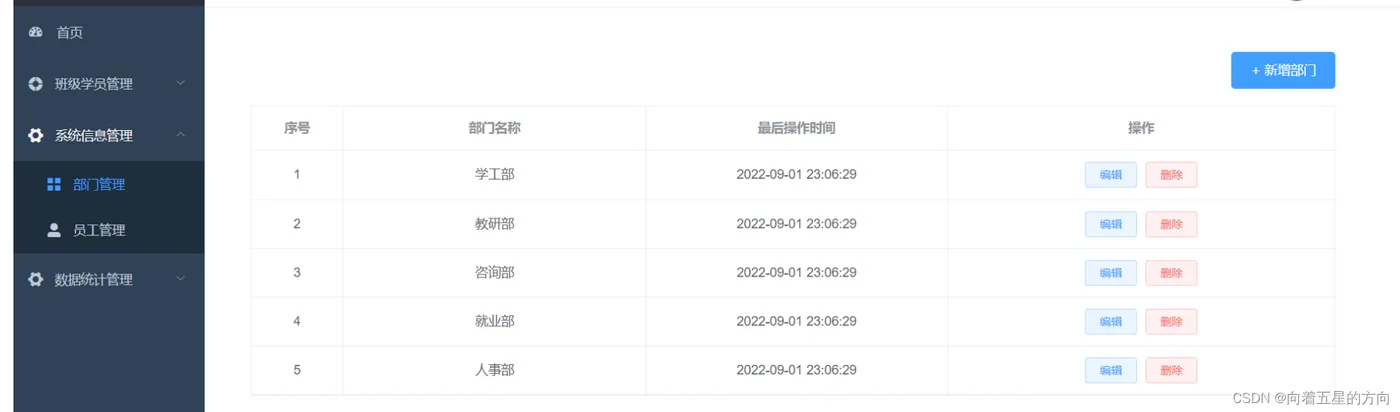

完成后的成品效果展示:
今天的主要内容如下:
- 准备工作
- 部门管理
- 员工管理
下面我们就进入到今天的第1个内容准备工作
的学习。
1. 准备工作
准备工作的学习,我们先从"需求"和"环境搭建"开始入手。
1.1 需求&环境搭建
1.1.1 需求说明
1、部门管理
部门管理功能开发包括:
- 查询部门列表
- 删除部门
- 新增部门
- 修改部门
2、员工管理
员工管理功能开发包括:
- 查询员工列表(分页、条件)
- 删除员工
- 新增员工
- 修改员工

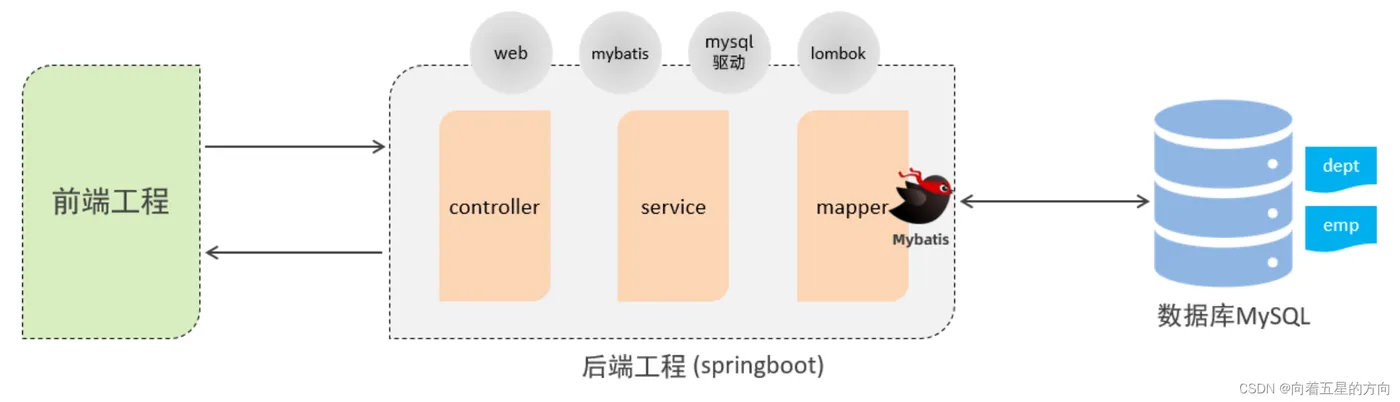

1.1.2 环境搭建
步骤:
- 准备数据库表(dept、emp)
- 创建springboot工程,引入对应的起步依赖(web、mybatis、mysql驱动、lombok)
- 配置文件application.properties中引入mybatis的配置信息,准备对应的实体类
- 准备对应的Mapper、Service(接口、实现类)、Controller基础结构
第1步:准备数据库表
-- 部门管理 create table dept( id int unsigned primary key auto_increment comment '主键ID', name varchar(10) not null unique comment '部门名称', create_time datetime not null comment '创建时间', update_time datetime not null comment '修改时间' ) comment '部门表'; -- 部门表测试数据 insert into dept (id, name, create_time, update_time) values(1,'学工部',now(),now()),(2,'教研部',now(),now()),(3,'咨询部',now(),now()), (4,'就业部',now(),now()),(5,'人事部',now(),now());
-- 员工管理(带约束) create table emp ( id int unsigned primary key auto_increment comment 'ID', username varchar(20) not null unique comment '用户名', password varchar(32) default '123456' comment '密码', name varchar(10) not null comment '姓名', gender tinyint unsigned not null comment '性别, 说明: 1 男, 2 女', image varchar(300) comment '图像', job tinyint unsigned comment '职位, 说明: 1 班主任,2 讲师, 3 学工主管, 4 教研主管, 5 咨询师', entrydate date comment '入职时间', dept_id int unsigned comment '部门ID', create_time datetime not null comment '创建时间', update_time datetime not null comment '修改时间' ) comment '员工表'; -- 员工表测试数据 INSERT INTO emp (id, username, password, name, gender, image, job, entrydate,dept_id, create_time, update_time) VALUES (1,'jinyong','123456','金庸',1,'1.jpg',4,'2000-01-01',2,now(),now()), (2,'zhangwuji','123456','张无忌',1,'2.jpg',2,'2015-01-01',2,now(),now()), (3,'yangxiao','123456','杨逍',1,'3.jpg',2,'2008-05-01',2,now(),now()), (4,'weiyixiao','123456','韦一笑',1,'4.jpg',2,'2007-01-01',2,now(),now()), (5,'changyuchun','123456','常遇春',1,'5.jpg',2,'2012-12-05',2,now(),now()), (6,'xiaozhao','123456','小昭',2,'6.jpg',3,'2013-09-05',1,now(),now()), (7,'jixiaofu','123456','纪晓芙',2,'7.jpg',1,'2005-08-01',1,now(),now()), (8,'zhouzhiruo','123456','周芷若',2,'8.jpg',1,'2014-11-09',1,now(),now()), (9,'dingminjun','123456','丁敏君',2,'9.jpg',1,'2011-03-11',1,now(),now()), (10,'zhaomin','123456','赵敏',2,'10.jpg',1,'2013-09-05',1,now(),now()), (11,'luzhangke','123456','鹿杖客',1,'11.jpg',5,'2007-02-01',3,now(),now()), (12,'hebiweng','123456','鹤笔翁',1,'12.jpg',5,'2008-08-18',3,now(),now()), (13,'fangdongbai','123456','方东白',1,'13.jpg',5,'2012-11-01',3,now(),now()), (14,'zhangsanfeng','123456','张三丰',1,'14.jpg',2,'2002-08-01',2,now(),now()), (15,'yulianzhou','123456','俞莲舟',1,'15.jpg',2,'2011-05-01',2,now(),now()), (16,'songyuanqiao','123456','宋远桥',1,'16.jpg',2,'2007-01-01',2,now(),now()), (17,'chenyouliang','123456','陈友谅',1,'17.jpg',NULL,'2015-03-21',NULL,now(),now());

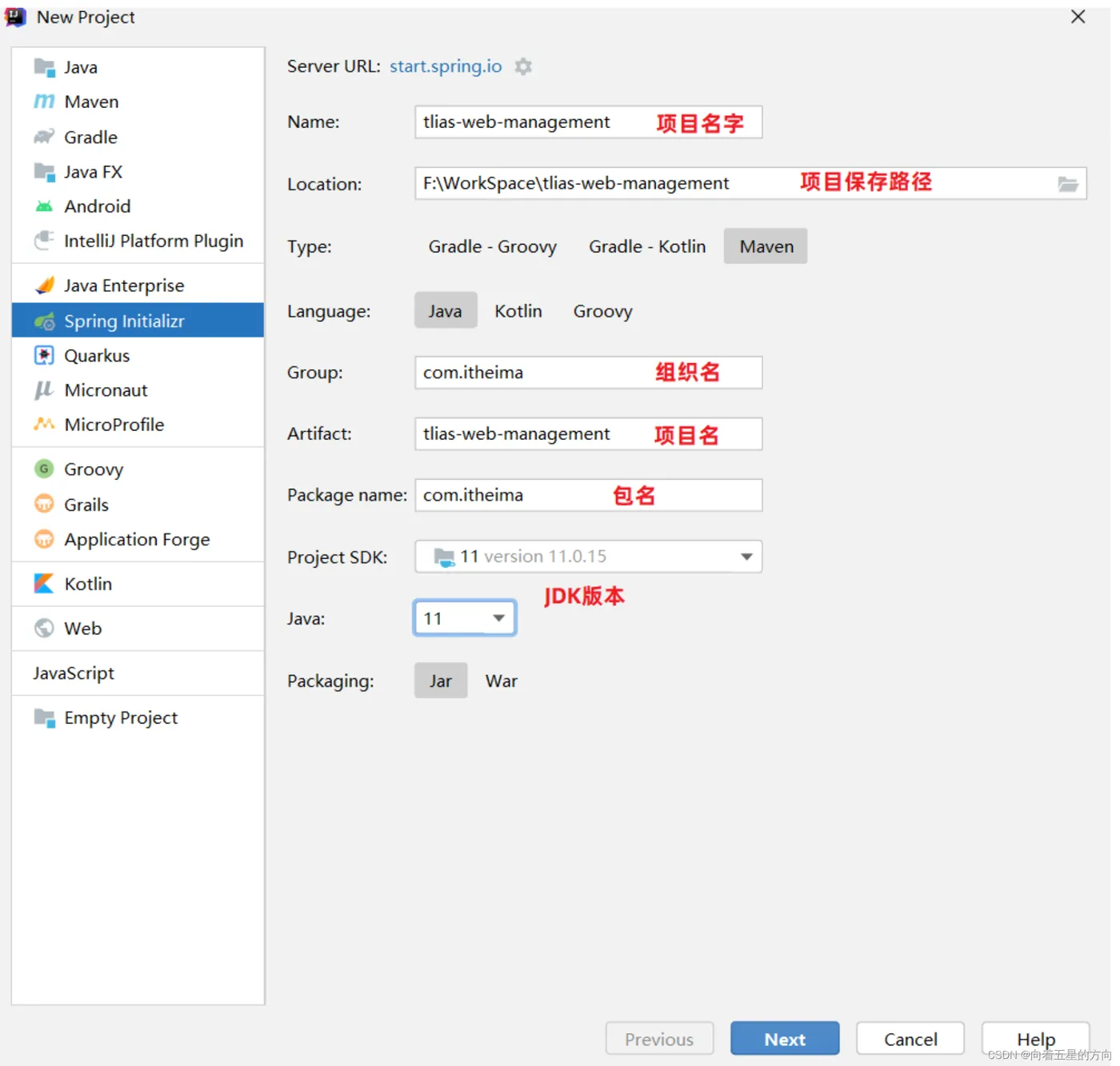

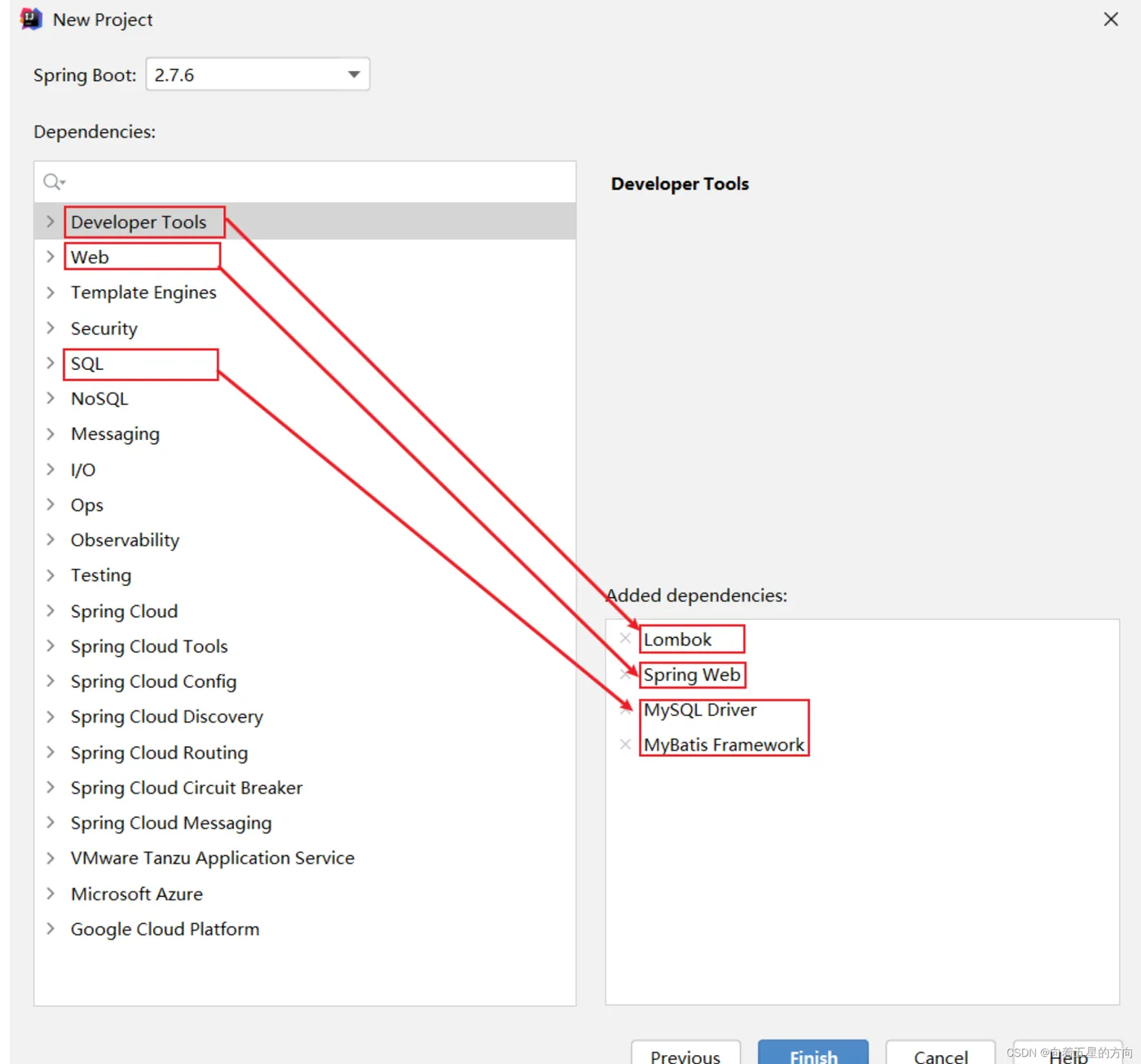

第2步:创建一个SpringBoot工程,选择引入对应的起步依赖(web、mybatis、mysql驱动、lombok) (版本选择2.7.5版本,可以创建完毕之后,在pom.xml文件中更改版本号)
生成的pom.xml文件:
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.7.5</version> <relativePath/> </parent> <groupId>com.itheima</groupId> <artifactId>tlias-web-management</artifactId> <version>0.0.1-SNAPSHOT</version> <name>tlias-web-management</name> <description>Demo project for Spring Boot</description> <properties> <java.version>11</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.3.0</version> </dependency> <dependency> <groupId>com.mysql</groupId> <artifactId>mysql-connector-j</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <excludes> <exclude> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </exclude> </excludes> </configuration> </plugin> </plugins> </build> </project>

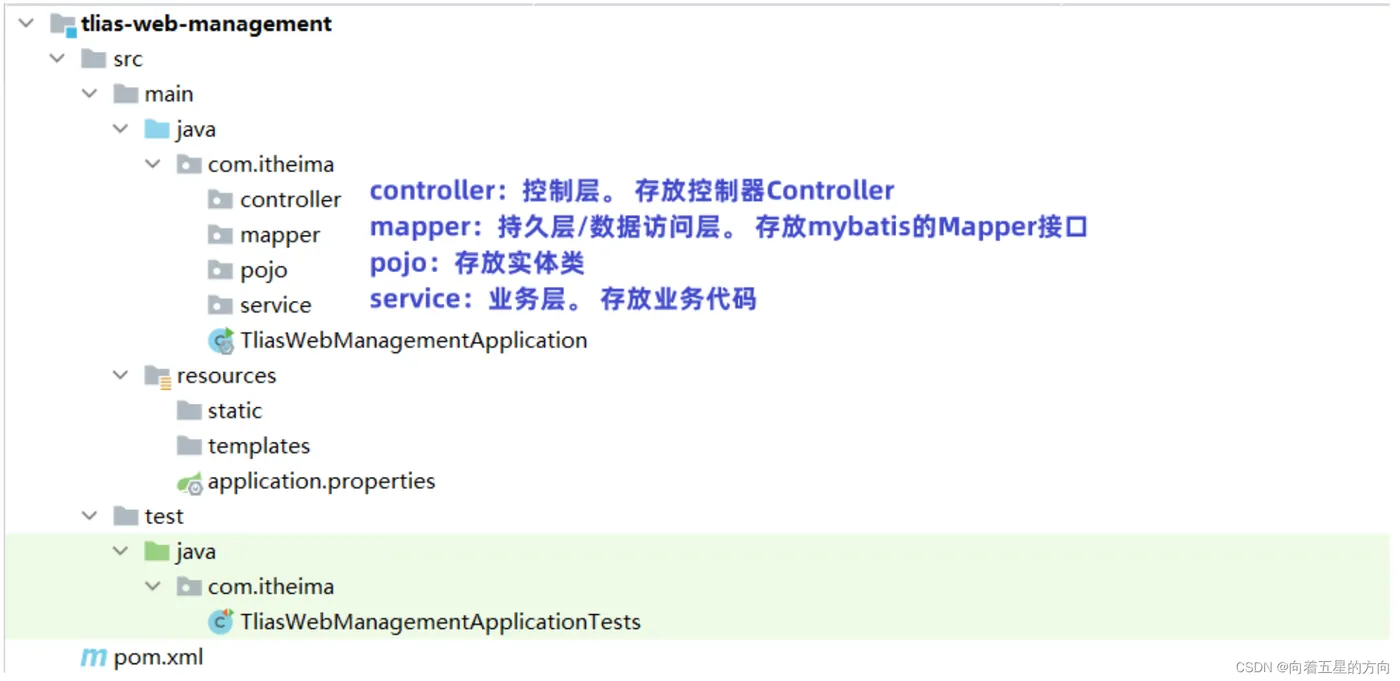

创建项目工程目录结构:
第3步:配置文件application.properties中引入mybatis的配置信息,准备对应的实体类
- application.properties (直接把之前项目中的复制过来)
#数据库连接 spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver spring.datasource.url=jdbc:mysql://localhost:3306/tlias spring.datasource.username=root spring.datasource.password=1234 #开启mybatis的日志输出 mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl #开启数据库表字段 到 实体类属性的驼峰映射 mybatis.configuration.map-underscore-to-camel-case=true
- 实体类
/*部门类*/ @Data @NoArgsConstructor @AllArgsConstructor public class Dept { private Integer id; private String name; private LocalDateTime createTime; private LocalDateTime updateTime; } /*员工类*/ @Data @NoArgsConstructor @AllArgsConstructor public class Emp { private Integer id; private String username; private String password; private String name; private Short gender; private String image; private Short job; private LocalDate entrydate; private Integer deptId; private LocalDateTime createTime; private LocalDateTime updateTime; }
第4步:准备对应的Mapper、Service(接口、实现类)、Controller基础结构
数据访问层:
- DeptMapper
package com.itheima.mapper; import org.apache.ibatis.annotations.Mapper; @Mapper public interface DeptMapper { }
- EmpMapper
package com.itheima.mapper; import org.apache.ibatis.annotations.Mapper; @Mapper public interface EmpMapper { }
业务层:
- DeptService
package com.itheima.service; //部门业务规则 public interface DeptService { }
- DeptServiceImpl
package com.itheima.service.impl; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; //部门业务实现类 @Slf4j @Service public class DeptServiceImpl implements DeptService { }
- EmpService
package com.itheima.service; //员工业务规则 public interface EmpService { }
- EmpServiceImpl
package com.itheima.service.impl; import com.itheima.service.EmpService; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; //员工业务实现类 @Slf4j @Service public class EmpServiceImpl implements EmpService { }
控制层:
- DeptController
package com.itheima.controller; import org.springframework.web.bind.annotation.RestController; //部门管理控制器 @RestController public class DeptController { }
- EmpController
package com.itheima.controller; import org.springframework.web.bind.annotation.RestController; //员工管理控制器 @RestController public class EmpController { }

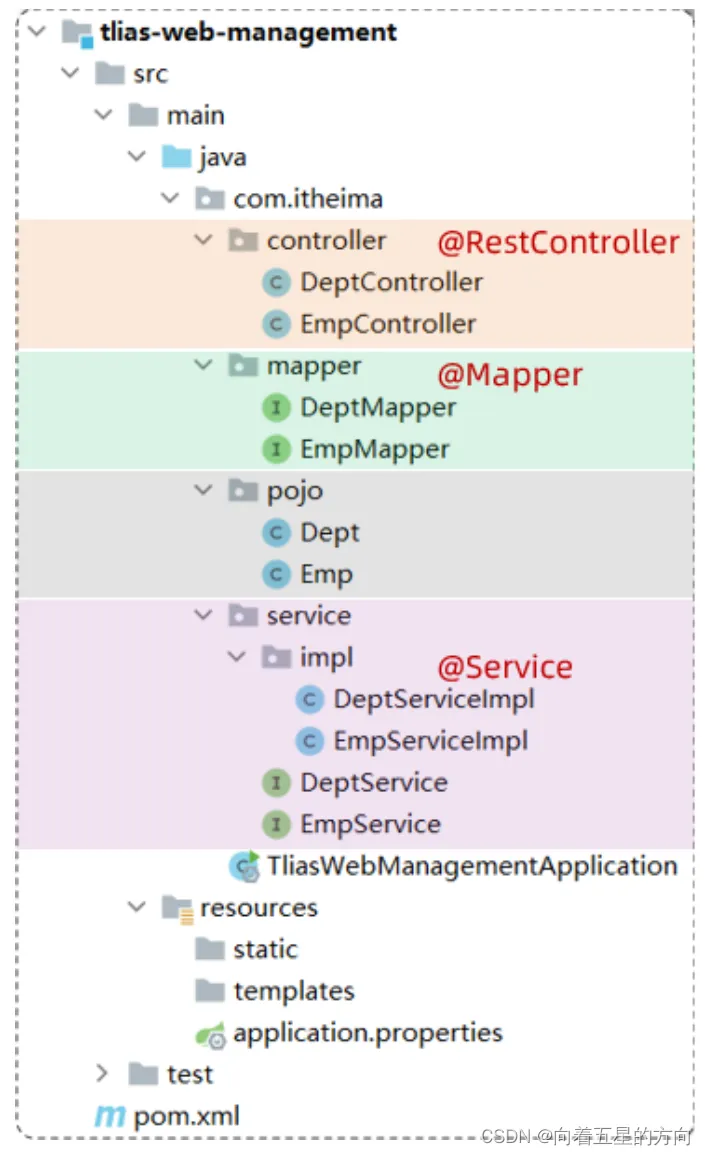

项目工程结构:
