本篇概览

本文是《k8s自定义controller三部曲》的终篇，前面的章节中，我们创建了CRD，再通过自动生成代码的工具将controller所需的informer、client等依赖全部准备好，到了本章，就该编写controller的代码了，也就是说，现在已经能监听到Student对象的增删改等事件，接下来就是根据这些事件来做不同的事情，满足个性化的业务需求；

三部曲所有文章链接

源码下载

接下来详细讲述应用的编码过程，如果您不想自己写代码，也可以在GitHub下载完整的应用源码，地址和链接信息如下表所示：

名称	链接	备注
项目主页	https://github.com/zq2599/blog_demos	该项目在GitHub上的主页
git仓库地址(https)	https://github.com/zq2599/blog_demos.git	该项目源码的仓库地址，https协议
git仓库地址(ssh)	git@github.com:zq2599/blog_demos.git	该项目源码的仓库地址，ssh协议

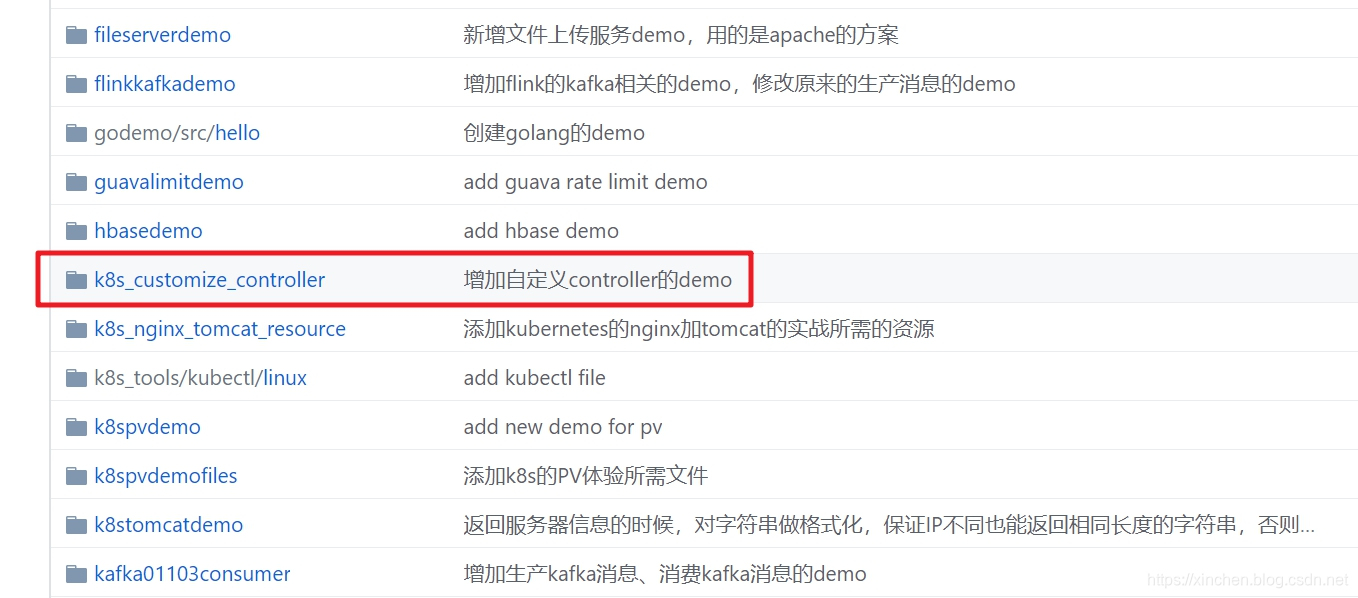

这个git项目中有多个文件夹，本章源码在k8s_customize_controller这个文件夹下，如下图红框所示：

在这里插入图片描述

开始实战

回顾一下，上一章通过自动代码生成工具生成代码后，源码目录的内容如下：

[root@golang k8s_customize_controller]# tree
.
└── pkg
    ├── apis
    │   └── bolingcavalry
    │       ├── register.go
    │       └── v1
    │           ├── doc.go
    │           ├── register.go
    │           ├── types.go
    │           └── zz_generated.deepcopy.go
    └── client
        ├── clientset
        │   └── versioned
        │       ├── clientset.go
        │       ├── doc.go
        │       ├── fake
        │       │   ├── clientset_generated.go
        │       │   ├── doc.go
        │       │   └── register.go
        │       ├── scheme
        │       │   ├── doc.go
        │       │   └── register.go
        │       └── typed
        │           └── bolingcavalry
        │               └── v1
        │                   ├── bolingcavalry_client.go
        │                   ├── doc.go
        │                   ├── fake
        │                   │   ├── doc.go
        │                   │   ├── fake_bolingcavalry_client.go
        │                   │   └── fake_student.go
        │                   ├── generated_expansion.go
        │                   └── student.go
        ├── informers
        │   └── externalversions
        │       ├── bolingcavalry
        │       │   ├── interface.go
        │       │   └── v1
        │       │       ├── interface.go
        │       │       └── student.go
        │       ├── factory.go
        │       ├── generic.go
        │       └── internalinterfaces
        │           └── factory_interfaces.go
        └── listers
            └── bolingcavalry
                └── v1
                    ├── expansion_generated.go
                    └── student.go

21 directories, 27 files

本章要编写的第一个go文件就是controller.go，在k8s_customize_controller目录下创建controller.go，代码内容如下：

package main

import (
    "fmt"
    "time"

    "github.com/golang/glog"
    corev1 "k8s.io/api/core/v1"
    "k8s.io/apimachinery/pkg/api/errors"
    "k8s.io/apimachinery/pkg/util/runtime"
    utilruntime "k8s.io/apimachinery/pkg/util/runtime"
    "k8s.io/apimachinery/pkg/util/wait"
    "k8s.io/client-go/kubernetes"
    "k8s.io/client-go/kubernetes/scheme"
    typedcorev1 "k8s.io/client-go/kubernetes/typed/core/v1"
    "k8s.io/client-go/tools/cache"
    "k8s.io/client-go/tools/record"
    "k8s.io/client-go/util/workqueue"

    bolingcavalryv1 "github.com/zq2599/k8s-controller-custom-resource/pkg/apis/bolingcavalry/v1"
    clientset "github.com/zq2599/k8s-controller-custom-resource/pkg/client/clientset/versioned"
    studentscheme "github.com/zq2599/k8s-controller-custom-resource/pkg/client/clientset/versioned/scheme"
    informers "github.com/zq2599/k8s-controller-custom-resource/pkg/client/informers/externalversions/bolingcavalry/v1"
    listers "github.com/zq2599/k8s-controller-custom-resource/pkg/client/listers/bolingcavalry/v1"
)

const controllerAgentName = "student-controller"

const (
    SuccessSynced = "Synced"

    MessageResourceSynced = "Student synced successfully"
)

// Controller is the controller implementation for Student resources
type Controller struct {
    // kubeclientset is a standard kubernetes clientset
    kubeclientset kubernetes.Interface
    // studentclientset is a clientset for our own API group
    studentclientset clientset.Interface

    studentsLister listers.StudentLister
    studentsSynced cache.InformerSynced

    workqueue workqueue.RateLimitingInterface

    recorder record.EventRecorder
}

// NewController returns a new student controller
func NewController(
    kubeclientset kubernetes.Interface,
    studentclientset clientset.Interface,
    studentInformer informers.StudentInformer) *Controller {

    utilruntime.Must(studentscheme.AddToScheme(scheme.Scheme))
    glog.V(4).Info("Creating event broadcaster")
    eventBroadcaster := record.NewBroadcaster()
    eventBroadcaster.StartLogging(glog.Infof)
    eventBroadcaster.StartRecordingToSink(&typedcorev1.EventSinkImpl{Interface: kubeclientset.CoreV1().Events("")})
    recorder := eventBroadcaster.NewRecorder(scheme.Scheme, corev1.EventSource{Component: controllerAgentName})

    controller := &Controller{
        kubeclientset:    kubeclientset,
        studentclientset: studentclientset,
        studentsLister:   studentInformer.Lister(),
        studentsSynced:   studentInformer.Informer().HasSynced,
        workqueue:        workqueue.NewNamedRateLimitingQueue(workqueue.DefaultControllerRateLimiter(), "Students"),
        recorder:         recorder,
    }

    glog.Info("Setting up event handlers")
    // Set up an event handler for when Student resources change
    studentInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
        AddFunc: controller.enqueueStudent,
        UpdateFunc: func(old, new interface{}) {
            oldStudent := old.(*bolingcavalryv1.Student)
            newStudent := new.(*bolingcavalryv1.Student)
            if oldStudent.ResourceVersion == newStudent.ResourceVersion {
                //版本一致，就表示没有实际更新的操作，立即返回
                return
            }
            controller.enqueueStudent(new)
        },
        DeleteFunc: controller.enqueueStudentForDelete,
    })

    return controller
}

//在此处开始controller的业务
func (c *Controller) Run(threadiness int, stopCh <-chan struct{}) error {
    defer runtime.HandleCrash()
    defer c.workqueue.ShutDown()

    glog.Info("开始controller业务，开始一次缓存数据同步")
    if ok := cache.WaitForCacheSync(stopCh, c.studentsSynced); !ok {
        return fmt.Errorf("failed to wait for caches to sync")
    }

    glog.Info("worker启动")
    for i := 0; i < threadiness; i++ {
        go wait.Until(c.runWorker, time.Second, stopCh)
    }

    glog.Info("worker已经启动")
    <-stopCh
    glog.Info("worker已经结束")

    return nil
}

func (c *Controller) runWorker() {
    for c.processNextWorkItem() {
    }
}

// 取数据处理
func (c *Controller) processNextWorkItem() bool {

    obj, shutdown := c.workqueue.Get()

    if shutdown {
        return false
    }

    // We wrap this block in a func so we can defer c.workqueue.Done.
    err := func(obj interface{}) error {
        defer c.workqueue.Done(obj)
        var key string
        var ok bool

        if key, ok = obj.(string); !ok {

            c.workqueue.Forget(obj)
            runtime.HandleError(fmt.Errorf("expected string in workqueue but got %#v", obj))
            return nil
        }
        // 在syncHandler中处理业务
        if err := c.syncHandler(key); err != nil {
            return fmt.Errorf("error syncing '%s': %s", key, err.Error())
        }

        c.workqueue.Forget(obj)
        glog.Infof("Successfully synced '%s'", key)
        return nil
    }(obj)

    if err != nil {
        runtime.HandleError(err)
        return true
    }

    return true
}

// 处理
func (c *Controller) syncHandler(key string) error {
    // Convert the namespace/name string into a distinct namespace and name
    namespace, name, err := cache.SplitMetaNamespaceKey(key)
    if err != nil {
        runtime.HandleError(fmt.Errorf("invalid resource key: %s", key))
        return nil
    }

    // 从缓存中取对象
    student, err := c.studentsLister.Students(namespace).Get(name)
    if err != nil {
        // 如果Student对象被删除了，就会走到这里，所以应该在这里加入执行
        if errors.IsNotFound(err) {
            glog.Infof("Student对象被删除，请在这里执行实际的删除业务: %s/%s ...", namespace, name)

            return nil
        }

        runtime.HandleError(fmt.Errorf("failed to list student by: %s/%s", namespace, name))

        return err
    }

    glog.Infof("这里是student对象的期望状态: %#v ...", student)
    glog.Infof("实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)")

    c.recorder.Event(student, corev1.EventTypeNormal, SuccessSynced, MessageResourceSynced)
    return nil
}

// 数据先放入缓存，再入队列
func (c *Controller) enqueueStudent(obj interface{}) {
    var key string
    var err error
    // 将对象放入缓存
    if key, err = cache.MetaNamespaceKeyFunc(obj); err != nil {
        runtime.HandleError(err)
        return
    }

    // 将key放入队列
    c.workqueue.AddRateLimited(key)
}

// 删除操作
func (c *Controller) enqueueStudentForDelete(obj interface{}) {
    var key string
    var err error
    // 从缓存中删除指定对象
    key, err = cache.DeletionHandlingMetaNamespaceKeyFunc(obj)
    if err != nil {
        runtime.HandleError(err)
        return
    }
    //再将key放入队列
    c.workqueue.AddRateLimited(key)
}

上述代码有以下几处关键点：

a. 创建controller的NewController方法中，定义了收到Student对象的增删改消息时的具体处理逻辑，除了同步本地缓存，就是将该对象的key放入消息中；
b. 实际处理消息的方法是syncHandler，这里面可以添加实际的业务代码，来响应Student对象的增删改情况，达到业务目的；

接下来可以写main.go了，不过在此之前把处理系统信号量的辅助类先写好，然后在main.go中会用到（处理例如ctrl+c的退出），在&dollar;GOPATH/src/k8s_customize_controller/pkg目录下新建目录signals；
在signals目录下新建文件signal_posix.go：

// +build !windows

package signals

import (
    "os"
    "syscall"
)

var shutdownSignals = []os.Signal{os.Interrupt, syscall.SIGTERM}

在signals目录下新建文件signal_posix.go：

package signals

import (
    "os"
)

var shutdownSignals = []os.Signal{os.Interrupt}

在signals目录下新建文件signal.go：

package signals

import (
        "os"
        "os/signal"
)

var onlyOneSignalHandler = make(chan struct{})

func SetupSignalHandler() (stopCh <-chan struct{}) {
        close(onlyOneSignalHandler) // panics when called twice

        stop := make(chan struct{})
        c := make(chan os.Signal, 2)
        signal.Notify(c, shutdownSignals...)
        go func() {
                <-c
                close(stop)
                <-c
                os.Exit(1) // second signal. Exit directly.
        }()

        return stop
}

接下来可以编写main.go了，在k8s_customize_controller目录下创建main.go文件，内容如下，关键位置已经加了注释，就不再赘述了：

package main

import (
    "flag"
    "time"

    "github.com/golang/glog"
    "k8s.io/client-go/kubernetes"
    "k8s.io/client-go/tools/clientcmd"
    // Uncomment the following line to load the gcp plugin (only required to authenticate against GKE clusters).
    // _ "k8s.io/client-go/plugin/pkg/client/auth/gcp"

    clientset "k8s_customize_controller/pkg/client/clientset/versioned"
    informers "k8s_customize_controller/pkg/client/informers/externalversions"
    "k8s_customize_controller/pkg/signals"
)

var (
    masterURL  string
    kubeconfig string
)

func main() {
    flag.Parse()

    // 处理信号量
    stopCh := signals.SetupSignalHandler()

    // 处理入参
    cfg, err := clientcmd.BuildConfigFromFlags(masterURL, kubeconfig)
    if err != nil {
        glog.Fatalf("Error building kubeconfig: %s", err.Error())
    }

    kubeClient, err := kubernetes.NewForConfig(cfg)
    if err != nil {
        glog.Fatalf("Error building kubernetes clientset: %s", err.Error())
    }

    studentClient, err := clientset.NewForConfig(cfg)
    if err != nil {
        glog.Fatalf("Error building example clientset: %s", err.Error())
    }

    studentInformerFactory := informers.NewSharedInformerFactory(studentClient, time.Second*30)

    //得到controller
    controller := NewController(kubeClient, studentClient,
        studentInformerFactory.Bolingcavalry().V1().Students())

    //启动informer
    go studentInformerFactory.Start(stopCh)

    //controller开始处理消息
    if err = controller.Run(2, stopCh); err != nil {
        glog.Fatalf("Error running controller: %s", err.Error())
    }
}

func init() {
    flag.StringVar(&kubeconfig, "kubeconfig", "", "Path to a kubeconfig. Only required if out-of-cluster.")
    flag.StringVar(&masterURL, "master", "", "The address of the Kubernetes API server. Overrides any value in kubeconfig. Only required if out-of-cluster.")
}

至此，所有代码已经编写完毕，接下来是编译构建；

编译构建和启动

在$GOPATH/src/k8s_customize_controller目录下，执行以下命令：

go get k8s.io/client-go/kubernetes/scheme \
&& go get github.com/golang/glog \
&& go get k8s.io/kube-openapi/pkg/util/proto \
&& go get k8s.io/utils/buffer \
&& go get k8s.io/utils/integer \
&& go get k8s.io/utils/trace

上述脚本将编译过程中依赖的库通过go get方式进行获取，属于笨办法，更好的方法是选用一种包依赖工具，具体的可以参照k8s的官方demo，这个代码中同时提供了godep和vendor两种方式来处理上面的包依赖问题，地址是：https://github.com/kubernetes/sample-controller
解决了包依赖问题后，在$GOPATH/src/k8s_customize_controller目录下执行命令go build，即可在当前目录生成k8s_customize_controller文件；
将文件k8s_customize_controller复制到k8s环境中，记得通过chmod a+x命令给其可执行权限；
执行命令./k8s_customize_controller -kubeconfig=$HOME/.kube/config -alsologtostderr=true，会立即启动controller，看到控制台输出如下：

[root@master 31]# ./k8s_customize_controller -kubeconfig=$HOME/.kube/config -alsologtostderr=true
I0331 23:27:17.909265   21540 controller.go:72] Setting up event handlers
I0331 23:27:17.909450   21540 controller.go:96] 开始controller业务，开始一次缓存数据同步
I0331 23:27:18.110448   21540 controller.go:101] worker启动
I0331 23:27:18.110516   21540 controller.go:106] worker已经启动
I0331 23:27:18.110653   21540 controller.go:181] 这里是student对象的期望状态: &v1.Student{TypeMeta:v1.TypeMeta{Kind:"Student", APIVersion:"bolingcavalry.k8s.io/v1"}, ObjectMeta:v1.ObjectMeta{Name:"object-student", GenerateName:"", Namespace:"default", SelfLink:"/apis/bolingcavalry.k8s.io/v1/namespaces/default/students/object-student", UID:"92927d0d-5360-11e9-9d2a-000c29f1f9c9", ResourceVersion:"310395", Generation:1, CreationTimestamp:v1.Time{Time:time.Time{wall:0x0, ext:63689597785, loc:(*time.Location)(0x1f9c200)}}, DeletionTimestamp:(*v1.Time)(nil), DeletionGracePeriodSeconds:(*int64)(nil), Labels:map[string]string(nil), Annotations:map[string]string{"kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"bolingcavalry.k8s.io/v1\",\"kind\":\"Student\",\"metadata\":{\"annotations\":{},\"name\":\"object-student\",\"namespace\":\"default\"},\"spec\":{\"name\":\"张三\",\"school\":\"深圳中学\"}}\n"}, OwnerReferences:[]v1.OwnerReference(nil), Initializers:(*v1.Initializers)(nil), Finalizers:[]string(nil), ClusterName:"", ManagedFields:[]v1.ManagedFieldsEntry(nil)}, Spec:v1.StudentSpec{name:"", school:""}} ...
I0331 23:27:18.111105   21540 controller.go:182] 实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)
I0331 23:27:18.111187   21540 controller.go:145] Successfully synced 'default/object-student'
I0331 23:27:18.112263   21540 event.go:209] Event(v1.ObjectReference{Kind:"Student", Namespace:"default", Name:"object-student", UID:"92927d0d-5360-11e9-9d2a-000c29f1f9c9", APIVersion:"bolingcavalry.k8s.io/v1", ResourceVersion:"310395", FieldPath:""}): type: 'Normal' reason: 'Synced' Student synced successfully

至此，自定义controller已经启动成功了，并且从缓存中获取到了上一章中创建的对象的信息，接下来我们在k8s环境对Student对象做增删改，看看controller是否能做出响应；

验证controller

新开一个窗口连接到k8s环境，新建一个名为new-student.yaml的文件，内容如下：

apiVersion: bolingcavalry.k8s.io/v1
kind: Student
metadata:
  name: new-student
spec:
  name: "李四"
  school: "深圳小学"

在new-student.yaml所在目录执行命令kubectl apply -f new-student.yaml；
返回controller所在的控制台窗口，发现新输出了如下内容，可见新增student对象的事件已经被controller监听并处理：

I0331 23:43:03.789894   21540 controller.go:181] 这里是student对象的期望状态: &v1.Student{TypeMeta:v1.TypeMeta{Kind:"", APIVersion:""}, ObjectMeta:v1.ObjectMeta{Name:"new-student", GenerateName:"", Namespace:"default", SelfLink:"/apis/bolingcavalry.k8s.io/v1/namespaces/default/students/new-student", UID:"abcd77d6-53cb-11e9-9d2a-000c29f1f9c9", ResourceVersion:"370653", Generation:1, CreationTimestamp:v1.Time{Time:time.Time{wall:0x0, ext:63689643783, loc:(*time.Location)(0x1f9c200)}}, DeletionTimestamp:(*v1.Time)(nil), DeletionGracePeriodSeconds:(*int64)(nil), Labels:map[string]string(nil), Annotations:map[string]string{"kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"bolingcavalry.k8s.io/v1\",\"kind\":\"Student\",\"metadata\":{\"annotations\":{},\"name\":\"new-student\",\"namespace\":\"default\"},\"spec\":{\"name\":\"李四\",\"school\":\"深圳小学\"}}\n"}, OwnerReferences:[]v1.OwnerReference(nil), Initializers:(*v1.Initializers)(nil), Finalizers:[]string(nil), ClusterName:"", ManagedFields:[]v1.ManagedFieldsEntry(nil)}, Spec:v1.StudentSpec{name:"", school:""}} ...
I0331 23:43:03.790076   21540 controller.go:182] 实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)
I0331 23:43:03.790120   21540 controller.go:145] Successfully synced 'default/new-student'
I0331 23:43:03.790141   21540 event.go:209] Event(v1.ObjectReference{Kind:"Student", Namespace:"default", Name:"new-student", UID:"abcd77d6-53cb-11e9-9d2a-000c29f1f9c9", APIVersion:"bolingcavalry.k8s.io/v1", ResourceVersion:"370653", FieldPath:""}): type: 'Normal' reason: 'Synced' Student synced successfully

接下来您也可以尝试修改和删除已有的Student对象，观察controller控制台的输出，确定是否已经监听到所有student变化的事件，例如删除的事件日志如下：

I0331 23:44:37.236090   21540 controller.go:171] Student对象被删除，请在这里执行实际的删除业务: default/new-student ...
I0331 23:44:37.236118   21540 controller.go:145] Successfully synced 'default/new-student'

小结

至此，controller的编码和验证就全部完成了，现在小结一下自定义controller开发的整个过程：
创建CRD（Custom Resource Definition），令k8s明白我们自定义的API对象；
编写代码，将CRD的情况写入对应的代码中，然后通过自动代码生成工具，将controller之外的informer，client等内容较为固定的代码通过工具生成；
编写controller，在里面判断实际情况是否达到了API对象的声明情况，如果未达到，就要进行实际业务处理，而这也是controller的通用做法；
实际编码过程并不负载，动手编写的文件如下：

├── controller.go
├── main.go
└── pkg
    ├── apis
    │   └── bolingcavalry
    │       ├── register.go
    │       └── v1
    │           ├── doc.go
    │           ├── register.go
    │           └── types.go
    └── signals
        ├── signal.go
        ├── signal_posix.go
        └── signal_windows.go

以上就是k8s自定义controller的整个开发过程，希望在您的开发过程中本文能提供一些参考；

欢迎关注阿里云开发者社区博客：程序员欣宸

学习路上，你不孤单，欣宸原创一路相伴...

k8s自定义controller三部曲之三：编写controller代码

欢迎访问我的GitHub

本篇概览

三部曲所有文章链接

源码下载

开始实战

编译构建和启动

验证controller

小结

欢迎关注阿里云开发者社区博客：程序员欣宸

热门文章

最新文章

相关课程

相关电子书

相关实验场景

推荐镜像
