Akka集群原理
Akka集群支持去中心化的基于P2P的集群服务，没有单点故障（SPOF）问题，它主要是通过Gossip协议来实现。对于集群成员的状态，Akka提供了一种故障检测机制，能够自动发现出现故障而离开集群的成员节点，通过事件驱动的方式，将状态传播到整个集群的其它成员节点。

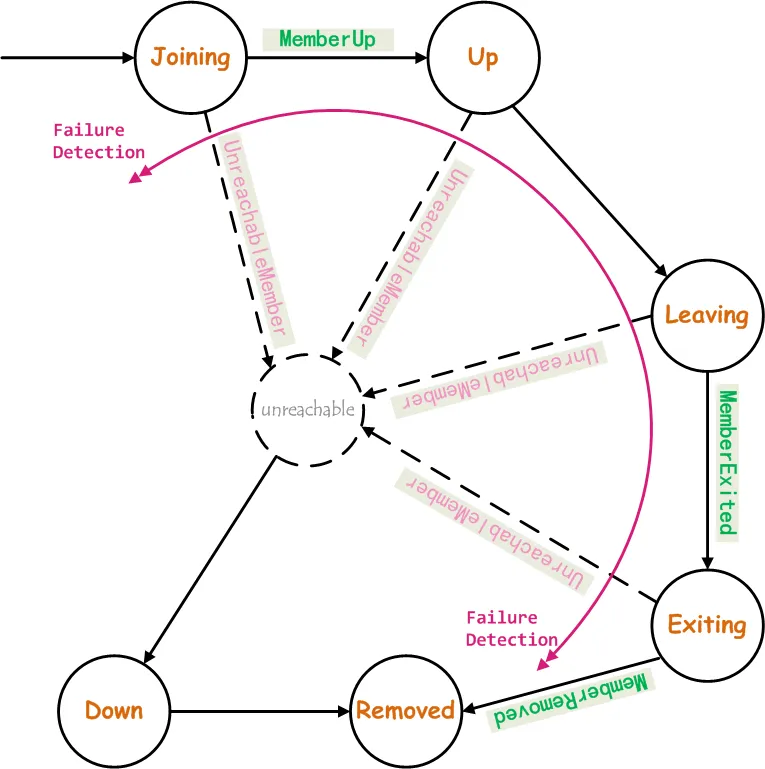

Akka内部为集群成员定义了一组有限状态（6种状态），并给出了一个状态转移矩阵，代码如下所示：
1 |
private[cluster] val allowedTransitions: Map[MemberStatus, Set[MemberStatus]] = |
3 |
Joining -> Set(Up, Down, Removed), |
4 |
Up -> Set(Leaving, Down, Removed), |
5 |
Leaving -> Set(Exiting, Down, Removed), |
7 |
Exiting -> Set(Removed, Down), |
8 |
Removed -> Set.empty[MemberStatus]) |
Akka集群中的每个成员节点，都有可能处于上面的一种状态，在发生某些事件以后，会发生状态转移。需要注意的是，除了Down和Removed状态以外，节点处于其它任何一个状态时都有可能变成Down状态，即节点故障而无法提供服务，而在变成Down状态之前有一个虚拟的Unreachable状态，因为在Gossip收敛过程中，是无法到达或者经由Unreachable状态的节点，这个状态是由Akka实现的故障探测器（Failure Detector）来检测到的。处于Down状态的节点如果想要再次加入Akka集群，需要重新启动，并进入Joining状态，然后才能进行后续状态的转移变化。Akka集群成员节点状态及其转移情况，如下图所示：
我们说明一下Akka中的故障检测机制。在Akka中，集群中每一个成员节点M会被集群中的其他另一组节点（默认是5个）G监控，这一组节点G并不是整个集群中的其他所有节点，只是整个集群全部节点的一个子集，组G中的节点会检测节点M是否处于Unreachable状态，这是通过发送心跳来确认节点M是否可达，如果不可达则组G中的节点会将节点M的Unreachable状态向集群中组G之外的其它节点传播，最终使得集群中的每个成员节点都知道节点M故障。

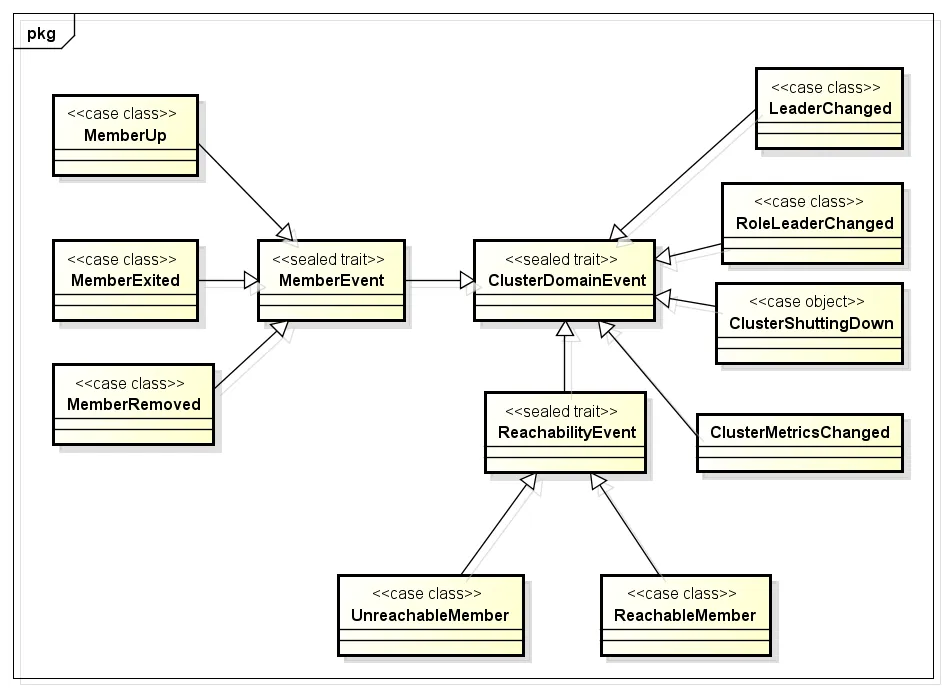

节点状态发生转移会触发某个事件，我们可以根据不同类型的事件来进行相应的处理，为了能够详细捕获到各种事件，我们先看一下Akka定义的事件集合，如图所示：
通常，在基于Akka Cluster的应用中实现Actor时，可以重写Actor的preStart方法，通过Cluster来订阅集群事件，代码示例如下所示：
1 |
val cluster = Cluster(context.system) |
3 |
override def preStart(): Unit = { |
4 |
cluster.subscribe(self, initialStateMode = InitialStateAsEvents, |
5 |
classOf[MemberUp], classOf[MemberRemoved], classOf[UnreachableMember]) |
例如，对于MemberUp事件，我们可以获取到对应Actor的引用ActorRef，然后通过与其进行消息交换，一起协同完成特定任务。
Akka支持在每个成员节点加入集群的时候，设置成员自己的角色。通过角色划分，可以将使用Akka集群处理业务的系统划分为多个处理逻辑独立的子系统，每个子系统处理自己的业务逻辑，而且，划分得到的多个子系统都处于一个统一的Akka集群中。因此，每个子系统也具备了Akka集群所具有的特性，如故障检测、状态转移、状态传播等等。
Akka集群应用实践
我们基于Akka实现了一个简单的模拟日志实时处理的集群系统，可以从任何数据源输入数据，如文件、消息中间件Kafka、数据库，还可以是一个远程调用请求，我们收集数据，然数据经过一个拦截器层，最后解析处理数据为特定格式，最后数据写入Kafka。具体实现逻辑如下图所示：

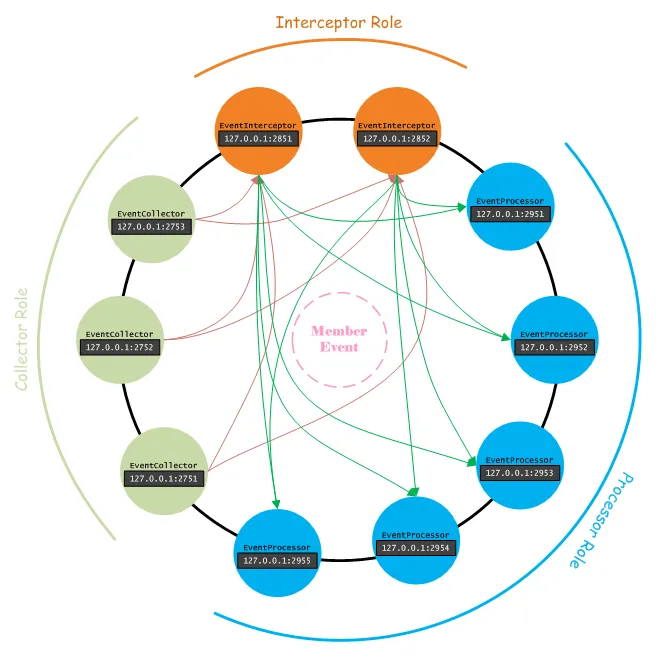

上图中，我们将日志实时处理系统分为3个子系统，通过Akka的Role来进行划分，3个角色分别为collector、interceptor、processor，3个子系统中的节点都是整个Akka集群的成员。整个集群系统中的数据流向是：collector接收数据（或者直接对接特定数据源而产生数据），我们这里模式发送Nginx日志记录行，将数据发送到interceptor；interceptor收到collector发送的日志记录行，解析出请求的真是IP地址，拦截在黑名单IP列表中的请求，如果IP地址不在黑名单，则发送给processor去处理；processor对整个日志记录行进行处理，最后保存到Kakfa中。
我们抽象出用来订阅集群事件相关的逻辑，实现抽象类为ClusterRoledWorker，代码如下所示：
01 |
package org.shirdrn.scala.akka.cluster |
04 |
import akka.cluster.ClusterEvent.{InitialStateAsEvents, MemberEvent, MemberUp, UnreachableMember} |
05 |
import akka.cluster.{Cluster, Member} |
07 |
abstract class ClusterRoledWorker extends Actor with ActorLogging { |
10 |
val cluster = Cluster(context.system) |
12 |
var workers = IndexedSeq.empty[ActorRef] |
14 |
override def preStart(): Unit = { |
16 |
cluster.subscribe(self, initialStateMode = InitialStateAsEvents, |
17 |
classOf[MemberUp], classOf[UnreachableMember], classOf[MemberEvent]) |
20 |
override def postStop(): Unit = cluster.unsubscribe(self) |
25 |
def register(member: Member, createPath: (Member) => ActorPath): Unit = { |
26 |
val actorPath = createPath(member) |
27 |
log.info("Actor path: " + actorPath) |
28 |
val actorSelection = context.actorSelection(actorPath) |
29 |
actorSelection ! Registration |
另外，定义了一些case class作为消息，方便在各个Actor之间进行发送/接收，代码如下所示：
1 |
package org.shirdrn.scala.akka.cluster |
3 |
object Registration extends Serializable |
5 |
trait EventMessage extends Serializable |
6 |
case class RawNginxRecord(sourceHost: String, line: String) extends EventMessage |
7 |
case class NginxRecord(sourceHost: String, eventCode: String, line: String) extendsEventMessage |
8 |
case class FilteredRecord(sourceHost: String, eventCode: String, line: String, logDate: String, realIp: String) extends EventMessage |
Akka Cluster使用一个配置文件，用来指定一些有关Actor的配置，我们使用的配置文件为application.conf，配置内容如下所示：
03 |
stdout-loglevel = INFO |
04 |
event-handlers = ["akka.event.Logging$DefaultLogger"] |
07 |
provider = "akka.cluster.ClusterActorRefProvider" |
11 |
enabled-transports = ["akka.remote.netty.tcp"] |
12 |
log-remote-lifecycle-events = off |
14 |
hostname = "127.0.0.1" |
24 |
seed-node-timeout = 60s |
25 |
auto-down-unreachable-after = 10s |
上述配置中，我们创建的Akka Cluster的名称为event-cluster-system，初始指定了3个seed节点，实际上这3个节点是我们实现的collector角色的节点，用来收集数据。
下面，我们依次说明collector、interceptor、processor这3中角色的集群节点的处理逻辑：
我们实现的collector实现类为EventCollector，它是一个Actor，该实现类继承自ClusterRoledWorker抽象类，具体实现代码如下所示：
001 |
package org.shirdrn.scala.akka.cluster |
004 |
import akka.cluster.ClusterEvent._ |
005 |
import com.typesafe.config.ConfigFactory |
007 |
import scala.concurrent.ExecutionContext |
008 |
import scala.concurrent.duration._ |
009 |
import scala.concurrent.forkjoin.ForkJoinPool |
011 |
class EventCollector extends ClusterRoledWorker { |
013 |
@volatile var recordCounter : Int = 0 |
016 |
case MemberUp(member) => |
017 |
log.info("Member is Up: {}", member.address) |
018 |
case UnreachableMember(member) => |
019 |
log.info("Member detected as Unreachable: {}", member) |
020 |
case MemberRemoved(member, previousStatus) => |
021 |
log.info("Member is Removed: {} after {}", member.address, previousStatus) |
022 |
case _: MemberEvent => |
024 |
case Registration => { |
027 |
workers = workers :+ sender |
028 |
log.info("Interceptor registered: " + sender) |
029 |
log.info("Registered interceptors: " + workers.size) |
031 |
case Terminated(interceptingActorRef) => |
033 |
workers = workers.filterNot(_ == interceptingActorRef) |
034 |
case RawNginxRecord(sourceHost, line) => { |
036 |
val eventCode = "eventcode=(\\d+)".r.findFirstIn(line).get |
037 |
log.info("Raw message: eventCode=" + eventCode + ", sourceHost=" + sourceHost +", line=" + line) |
039 |
if(workers.size > 0) { |
041 |
val interceptorIndex = (if(recordCounter < 0) 0 else recordCounter) %workers.size |
042 |
workers(interceptorIndex) ! NginxRecord(sourceHost, eventCode, line) |
043 |
log.info("Details: interceptorIndex=" + interceptorIndex + ", interceptors=" + workers.size) |
053 |
class EventClientActor extends Actor with ActorLogging { |
055 |
implicit val ec: ExecutionContext = ExecutionContext.fromExecutor(newForkJoinPool()) |
063 |
"""10.10.2.72 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000lAOX&udid=25371384b2eb1a5dc5643e14626ecbd4&sessionid=25371384b2eb1a5dc5643e14626ecbd41440152875362&imsi=460002830862833&operator=1&network=1×tamp=1440152954&action=14&eventcode=300039&page=200002& HTTP/1.0" "-" 204 0 "-" "Dalvik/1.6.0 (Linux; U; Android 4.4.4; R8207 Build/KTU84P)" "121.25.190.146"""", |
064 |
"""10.10.2.8 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000VACO&udid=f6b0520cbc36fda6f63a72d91bf305c0&imsi=460012927613645&operator=2&network=1×tamp=1440152956&action=1840&eventcode=100003&type=1&result=0& HTTP/1.0" "-" 204 0 "-" "Dalvik/1.6.0 (Linux; U; Android 4.4.2; GT-I9500 Build/KOT49H)" "61.175.219.69"""" |
067 |
"""10.10.2.72 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000gCo4&udid=636d127f4936109a22347b239a0ce73f&sessionid=636d127f4936109a22347b239a0ce73f1440150695096&imsi=460036010038180&operator=3&network=4×tamp=1440152902&action=1566&eventcode=101010&playid=99d5a59f100cb778b64b5234a189e1f4&radioid=1100000048450&audioid=1000001535718&playtime=3& HTTP/1.0" "-" 204 0 "-" "Dalvik/1.6.0 (Linux; U; Android 4.4.4; R8205 Build/KTU84P)" "106.38.128.67"""", |
068 |
"""10.10.2.72 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000kPSC&udid=2ee585cde388ac57c0e81f9a76f5b797&operator=0&network=1×tamp=1440152968&action=6423&eventcode=100003&type=1&result=0& HTTP/1.0" "-" 204 0 "-" "Dalvik/v3.3.85 (Linux; U; Android L; P8 Build/KOT49H)" "202.103.133.112"""", |
069 |
"""10.10.2.72 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000lABW&udid=face1161d739abacca913dcb82576e9d&sessionid=face1161d739abacca913dcb82576e9d1440151582673&operator=0&network=1×tamp=1440152520&action=1911&eventcode=101010&playid=b07c241010f8691284c68186c42ab006&radioid=1100000000762&audioid=1000001751983&playtime=158& HTTP/1.0" "-" 204 0 "-" "Dalvik/1.6.0 (Linux; U; Android 4.1; H5 Build/JZO54K)" "221.232.36.250"""" |
072 |
"""10.10.2.8 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000krJw&udid=939488333889f18e2b406d2ece8f938a&sessionid=939488333889f18e2b406d2ece8f938a1440137301421&imsi=460028180045362&operator=1&network=1×tamp=1440152947&action=1431&eventcode=300030&playid=e1fd5467085475dc4483d2795f112717&radioid=1100000001123&audioid=1000000094911&playtime=951992& HTTP/1.0" "-" 204 0 "-" "Dalvik/1.6.0 (Linux; U; Android 4.0.4; R813T Build/IMM76D)" "5.45.64.205"""", |
073 |
"""10.10.2.72 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000kcpz&udid=cbc7bbb560914c374cb7a29eef8c2144&sessionid=cbc7bbb560914c374cb7a29eef8c21441440152816008&imsi=460008782944219&operator=1&network=1×tamp=1440152873&action=360&eventcode=200003&page=200003&radioid=1100000046018& HTTP/1.0" "-" 204 0 "-" "Dalvik/v3.3.85 (Linux; U; Android 4.4.2; MX4S Build/KOT49H)" "119.128.106.232"""", |
074 |
"""10.10.2.8 [21/Aug/2015:18:29:19 +0800] "GET /t.gif?installid=0000juRL&udid=3f9a5ffa69a5cd5f0754d2ba98c0aeb2&imsi=460023744091238&operator=1&network=1×tamp=1440152957&action=78&eventcode=100003&type=1&result=0& HTTP/1.0" "-" 204 0 "-" "Dalvik/v3.3.85 (Linux; U; Android 4.4.3; S?MSUNG. Build/KOT49H)" "223.153.72.78"""" |
078 |
val ports = Seq("2751","2752", "2753") |
079 |
val actors = scala.collection.mutable.HashMap[String, ActorRef]() |
081 |
ports.foreach { port => |
083 |
val config = ConfigFactory.parseString("akka.remote.netty.tcp.port=" + port) |
084 |
.withFallback(ConfigFactory.parseString("akka.cluster.roles = [collector]")) |
085 |
.withFallback(ConfigFactory.load()) |
087 |
val system = ActorSystem("event-cluster-system", config) |
088 |
actors(port) = system.actorOf(Props[EventCollector], name = "collectingActor") |
093 |
context.system.scheduler.schedule(0 millis, 5000 millis) { |
095 |
ports.foreach { port => |
096 |
events(port).foreach { line => |
097 |
println("RAW: port=" + port + ", line=" + line) |
098 |
actors(port) ! RawNginxRecord("host.me:" + port, line) |
104 |
object EventClient extends App { |
106 |
val system = ActorSystem("client") |
108 |
val clientActorRef = system.actorOf(Props[EventClientActor], name = "clientActor") |
109 |
system.log.info("Client actor started: " + clientActorRef) |
上面代码中，EventClientActor并不是属于我们创建的Akka集群event-cluster-system，它是一个位于集群外部的节点，它模拟向各个collector角色的节点发送消息。
与编写collector类似，实现的interceptor的Actor实现类为EventInterceptor，代码如下所示：
01 |
package org.shirdrn.scala.akka.cluster |
04 |
import akka.cluster.ClusterEvent._ |
05 |
import akka.cluster.Member |
06 |
import akka.cluster.protobuf.msg.ClusterMessages.MemberStatus |
07 |
import com.typesafe.config.ConfigFactory |
08 |
import net.sf.json.JSONObject |
09 |
import org.shirdrn.scala.akka.cluster.utils.DatetimeUtils |
11 |
class EventInterceptor extends ClusterRoledWorker { |
13 |
@volatile var interceptedRecords : Int = 0 |
14 |
val IP_PATTERN = "[^\\s]+\\s+\\[([^\\]]+)\\].+\"(\\d+\\.\\d+\\.\\d+\\.\\d+)\"".r |
15 |
val blackIpList = Array( |
16 |
"5.9.116.101", "103.42.176.138", "123.182.148.65", "5.45.64.205", |
17 |
"27.159.226.192", "76.164.228.218", "77.79.178.186", "104.200.31.117", |
18 |
"104.200.31.32", "104.200.31.238", "123.182.129.108", "220.161.98.39", |
19 |
"59.58.152.90", "117.26.221.236", "59.58.150.110", "123.180.229.156", |
20 |
"59.60.123.239", "117.26.222.6", "117.26.220.88", "59.60.124.227", |
21 |
"142.54.161.50", "59.58.148.52", "59.58.150.85", "202.105.90.142" |
24 |
log.info("Black IP count: " + blackIpList.size) |
25 |
blackIpList.foreach(log.info(_)) |
28 |
case MemberUp(member) => |
29 |
log.info("Member is Up: {}", member.address) |
30 |
register(member, getCollectorPath) |
31 |
case state: CurrentClusterState => |
33 |
state.members.filter(_.status == MemberStatus.Up) foreach(register(_, getCollectorPath)) |
34 |
case UnreachableMember(member) => |
35 |
log.info("Member detected as Unreachable: {}", member) |
36 |
case MemberRemoved(member, previousStatus) => |
37 |
log.info("Member is Removed: {} after {}", member.address, previousStatus) |
38 |
case _: MemberEvent => |
40 |
case Registration => { |
42 |
workers = workers :+ sender |
43 |
log.info("Processor registered: " + sender) |
44 |
log.info("Registered processors: " + workers.size) |
46 |
case Terminated(processingActorRef) => |
47 |
workers = workers.filterNot(_ == processingActorRef) |
48 |
case NginxRecord(sourceHost, eventCode, line) => { |
49 |
val (isIpInBlackList, data) = checkRecord(eventCode, line) |
50 |
if(!isIpInBlackList) { |
51 |
interceptedRecords += 1 |
52 |
if(workers.size > 0) { |
53 |
val processorIndex = (if (interceptedRecords < 0) 0 else interceptedRecords)% workers.size |
54 |
workers(processorIndex) ! FilteredRecord(sourceHost, eventCode, line, data.getString("eventdate"), data.getString("realip")) |
55 |
log.info("Details: processorIndex=" + processorIndex + ", processors=" + workers.size) |
57 |
log.info("Intercepted data: data=" + data) |
59 |
log.info("Discarded: " + line) |
64 |
def getCollectorPath(member: Member): ActorPath = { |
65 |
RootActorPath(member.address) / "user" / "collectingActor" |
71 |
private def checkRecord(eventCode: String, line: String): (Boolean, JSONObject) = { |
72 |
val data: JSONObject = new JSONObject() |
73 |
var isIpInBlackList = false |
74 |
IP_PATTERN.findFirstMatchIn(line).foreach { m => |
75 |
val rawDt = m.group(1) |
76 |
val dt = DatetimeUtils.format(rawDt) |
77 |
val realIp = m.group(2) |
79 |
data.put("eventdate", dt) |
80 |
data.put("realip", realIp) |
81 |
data.put("eventcode", eventCode) |
82 |
isIpInBlackList = blackIpList.contains(realIp) |
84 |
(isIpInBlackList, data) |
88 |
object EventInterceptor extends App { |
90 |
Seq("2851","2852").foreach { port => |
91 |
val config = ConfigFactory.parseString("akka.remote.netty.tcp.port=" + port) |
92 |
.withFallback(ConfigFactory.parseString("akka.cluster.roles = [interceptor]")) |
93 |
.withFallback(ConfigFactory.load()) |
94 |
val system = ActorSystem("event-cluster-system", config) |
95 |
val processingActor = system.actorOf(Props[EventInterceptor], name ="interceptingActor") |
96 |
system.log.info("Processing Actor: " + processingActor) |
上述代码中，解析出Nginx日志记录中的IP地址，查看其是否在IP黑名单列表中，如果在内名单中则直接丢掉该记录数据。
EventProcessor的实现代码，如下所示：
01 |
package org.shirdrn.scala.akka.cluster |
03 |
import java.util.Properties |
06 |
import akka.cluster.ClusterEvent._ |
07 |
import akka.cluster.Member |
08 |
import akka.cluster.protobuf.msg.ClusterMessages.MemberStatus |
09 |
import com.typesafe.config.ConfigFactory |
10 |
import kafka.producer.{KeyedMessage, Producer, ProducerConfig} |
11 |
import net.sf.json.JSONObject |
13 |
class EventProcessor extends ClusterRoledWorker { |
15 |
val topic = "app_events" |
16 |
val producer = KakfaUtils.createProcuder |
19 |
case MemberUp(member) => |
20 |
log.info("Member is Up: {}", member.address) |
22 |
register(member, getProcessorPath) |
23 |
case state: CurrentClusterState => |
24 |
state.members.filter(_.status == MemberStatus.Up).foreach(register(_, getProcessorPath)) |
25 |
case UnreachableMember(member) => |
26 |
log.info("Member detected as Unreachable: {}", member) |
27 |
case MemberRemoved(member, previousStatus) => |
28 |
log.info("Member is Removed: {} after {}", member.address, previousStatus) |
29 |
case _: MemberEvent => |
31 |
case FilteredRecord(sourceHost, eventCode, line, nginxDate, realIp) => { |
32 |
val data = process(eventCode, line, nginxDate, realIp) |
33 |
log.info("Processed: data=" + data) |
35 |
producer.send(new KeyedMessage[String, String](topic, sourceHost, data.toString)) |
39 |
def getProcessorPath(member: Member): ActorPath = { |
40 |
RootActorPath(member.address) / "user" / "interceptingActor" |
43 |
private def process(eventCode: String, line: String, eventDate: String, realIp:String): JSONObject = { |
44 |
val data: JSONObject = new JSONObject() |
45 |
"[\\?|&]{1}([^=]+)=([^&]+)&".r.findAllMatchIn(line) foreach { m => |
47 |
val value = m.group(2) |
50 |
data.put("eventdate", eventDate) |
51 |
data.put("realip", realIp) |
58 |
val props = new Properties() |
60 |
"metadata.broker.list" -> "hadoop2:9092,hadoop3:9092", |
61 |
"serializer.class" -> "kafka.serializer.StringEncoder", |
62 |
"producer.type" -> "async" |
64 |
config.foreach(entry => props.put(entry._1, entry._2)) |
65 |
val producerConfig = new ProducerConfig(props) |
67 |
def createProcuder() : Producer[String, String] = { |
68 |
new Producer[String, String](producerConfig) |
72 |
object EventProcessor extends App { |
75 |
Seq("2951","2952", "2953", "2954", "2955") foreach { port => |
76 |
val config = ConfigFactory.parseString("akka.remote.netty.tcp.port=" + port) |
77 |
.withFallback(ConfigFactory.parseString("akka.cluster.roles = [processor]")) |
78 |
.withFallback(ConfigFactory.load()) |
79 |
val system = ActorSystem("event-cluster-system", config) |
80 |
val processingActor = system.actorOf(Props[EventProcessor], name ="processingActor") |
81 |
system.log.info("Processing Actor: " + processingActor) |
角色为processor的Actor的实现类为EventProcessor，我们在其伴生对象中创建了5个实例，分别对应不同的端口。解析的Nginx日志记录最后保存到Kafka，示例如下所示：
查看源代码打印帮助
1 |
{"installid":"0000VACO","imsi":"460012927613645","network":"1","action":"1840","type":"1","eventdate":"2015-08-21 18:29:19","realip":"61.175.219.69"} |
2 |
{"installid":"0000kcpz","sessionid":"cbc7bbb560914c374cb7a29eef8c21441440152816008","operator":"1","timestamp":"1440152873","eventcode":"200003","radioid":"1100000046018","eventdate":"2015-08-21 18:29:19","realip":"119.128.106.232"} |
3 |
{"installid":"0000lAOX","sessionid":"25371384b2eb1a5dc5643e14626ecbd41440152875362","operator":"1","timestamp":"1440152954","eventcode":"300039","eventdate":"2015-08-21 18:29:19","realip":"121.25.190.146"} |
