【STL】priority_queue的底层原理及其实现

简介: 【STL】priority_queue的底层原理及其实现

priority_queue的介绍

1.解释以上内容

priority_queue(优先级队列)跟stack、queue一样,都是一种容器适配器,根据严格的弱排序标准,它的第一个元素总是它所包含的元素中最大或者最小的(默认最大)。

2.优先队列的底层数据结构是用堆来实现的。

3.作为容器适配器,priority_queue默认是由 vector类

来实现的。优先队列(堆)这种数据结构需要快速随机访问元素的能力。除了vector,deque类也可以用来作为优先队列的底层容器。严格来说,只要满足以下能力的容器都可以作为优先队列的底层容器:

(1)empty():检测容器是否为空

(2)size():返回容器中有效元素个数

(3)front():返回容器中第一个元素的引用

(4)push_back():在容器尾部插入元素

(5)pop_back():删除容器尾部元素

库中priority_queue的使用

虽然我们将priority_queue称为优先队列,但是其本质就是堆,而堆的本质又是一颗完全二叉树。所以,我们需要一种符合以上这些数据结构所有特点的容器来存储元素。vector就显得非常合适。可以用下标映射节点的父子关系,高效尾删,快速随机访问。

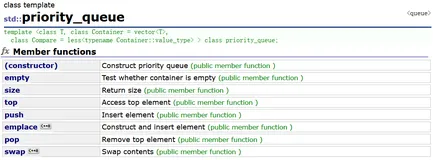

现在我们来看库中priority_queue主要有哪些功能吧

函数声明 接口说明
priority_queue()和priority_queue(first, last) 构造一个空的优先队列
empty() 检测优先级队列是否为空,是返回true,否则返回false
top() 返回堆顶元素的值,即当前优先队列中的最大值或者最小值
push(val) 在优先队列中插入val,并且调整优先队列
pop() 弹出堆顶元素,即优先队列的最大值或者最小值

1.使用演示:创建大堆,默认就是最大堆

2.使用演示:创建最小堆, 将第三个模板参数换成greater比较方式

其中,greater是一个类模板,实例化出来之后可以当函数一样使用(仿函数)。greater里面控制了比较对象的关系,是一个比较剂。

什么叫仿函数?

仿函数又叫函数对象。本质是一个类实例化出来的对象,因为重载了()我们可以像使用函数一样使用其operator()

比如下面就是一个仿函数:

class fun {
public:
  int operator()(int& A, int& B) {
    return A + B;
  }

};

我们可以创建一个fun类来调用operator():

class fun {
public:
  int operator()(int& A, int& B) {
    return A + B;
  }
};
void test3() {
  fun f;
  int a = 1;
  int b = 2;
  cout << f(a, b) << endl;
}

借用模板之后,仿函数比普通函数显得更加灵活

priority_queue<int, vector<int>, greater<int>>中的greater其实就是一个函数对象,通过实例化int类型,来控制两个int类型变量的顺序关系。

模拟实现greater类:

template<class T>
class Greater {
public:
  bool operator()(T& A, T& B) {
    return A > B;
  }
};

当我们将greater作为第三个参数传递给priority_queue时,二叉树的父子节点的关系也就确定了,即确定了优先级。

那为什么默认是小堆呢?

这是因为priority_queue的第三个参数的缺省值设置成了less,而less其实就是一个仿函数,控制了堆顶元素永远是最小值。

当然,我们同样可以不用仿函数做参数,用一个函数指针也可以达到一样的效果

值得注意的是,如果priority_queue的元素是自定义类型,那我们需要在自定义类型中提供比较运算符的重载,以便达到我们想要的目的

给出以下代码示例:

class Date
{
public:
 Date(int year = 1900, int month = 1, int day = 1)
 : _year(year)
 , _month(month)
 , _day(day)
 {}

 bool operator<(const Date& d)const
 {
 return (_year < d._year) ||
 (_year == d._year && _month < d._month) ||
 (_year == d._year && _month == d._month && _day < d._day);
 }

 bool operator>(const Date& d)const
 {
 return (_year > d._year) ||
 (_year == d._year && _month > d._month) ||
 (_year == d._year && _month == d._month && _day > d._day);
 }

 friend ostream& operator<<(ostream& _cout, const Date& d)
 {
 _cout << d._year << "-" << d._month << "-" << d._day;
 return _cout;
 }

private:
 int _year;
 int _month;
 int _day;
};

void TestPriorityQueue()
{
 // 大堆,需要用户在自定义类型中提供<的重载
 priority_queue<Date> q1;
 q1.push(Date(2018, 10, 29));
 q1.push(Date(2018, 10, 28));
 q1.push(Date(2018, 10, 30));
 cout << q1.top() << endl;

 // 如果要创建小堆,需要用户提供>的重载
 priority_queue<Date, vector<Date>, greater<Date>> q2;
 q2.push(Date(2018, 10, 29));
 q2.push(Date(2018, 10, 28));
 q2.push(Date(2018, 10, 30));
 cout << q2.top() << endl;
}

模拟实现prioprity_queue类

#define _CRT_SECURE_NO_WARNINGS 1
#include<vector>
#include<algorithm>

template<class T>
class Less {
public:
  bool operator()(T& A, T& B) {
    return A < B;
  }

};

template<class T>
class Greater {
public:
  bool operator()(T& A, T& B) {
    return A > B;
  }

};



template<class T,class Container=std::vector<T>, class Compare = Less<T> >
class priority_queue {
public:
  int size() {
    return _con.size();
  }
  bool empty() {
    return _con.empty();
  }

  void adjust_up(int n) {
    int child = n;
      int father = (n - 1) / 2;
    Compare com;
    while (child >= 0) {
      if (com(_con[father], _con[child])) {
        std::swap(_con[father], _con[child]);
        child = father;
        father = (child - 1) / 2;
      }
      else {
        break;
      }
    }
  }

  void adjust_down(int n) {
    int father = n;
    int child = father * 2 + 1;
    Compare com;
    while (child < size()) {
      if (child + 1 < size() && com(_con[child ],_con[child+1])) {
        child++;
      }

      if (com(_con[father], _con[child])) {
        std::swap(_con[father], _con[child]);
        father = child;
        child = child * 2 + 1;
      }
      else {
        break;
      }

    }
  }

  void push(const T& val) {
    _con.push_back(val);
    adjust_up(_con.size()-1);
  }

  T& top() {
    return _con[0];
  }

  void pop() {
    std::swap(_con[0], _con[size() - 1]);
    _con.pop_back();
    adjust_down(0);
  }
  T& operator[](size_t n) {
    return _con[n];
  }
private:
  Container _con;
};
