MistoLine算法介绍
MistoLine 是一个可以适配任意类型线稿，准确性高，稳定性优秀的SDXL-ControlnetNet模型。它可以基于用户输入的任意类型的线稿图（手绘、各类controlnet-line preprocessor、模型线框轮廓等）作为条件，生成高质量图像（短边大于1024px），无需再根据不同线预处理器选择不同的controlnet模型，MistoLine在各类线稿条件下都有较好的泛化能力。
MistoLine采用了全新的线预处理算法（Anyline），并基于stabilityai/stable-diffusion-xl-base-1.0的Unet以及大模型训练工程上的创新，重新进行训练的Controlnet模型。MistoLine对于不同类型的线稿输入都有较好的表现，在更加复杂的场景下对于细节还原，prompt对齐，稳定性方面对比现有的Controlnet模型都有更好的表现结果。
MistoLine与lllyasviel公布的Controlnet架构保持一致，原理图如下：
更多关于ControlNet相关的介绍请参考：
More information about ControlNet can be found in the following references:
https://github.com/lllyasviel/ControlNet
https://huggingface.co/docs/diffusers/main/en/api/pipelines/controlnet_sdxl
该模型适配目前除（PlaygroundV2.5以及CosXL）之外的大部分SDXL模型，可以配合LCM以及其他ControlNet模型一并使用。
MistoLine在不同类型线稿下的表现对比
对于各种线预处理器，MistoLine均有良好的表现效果
MistoLine与其他controlnet的对比
对于现有各种sdxl的线控制controlnet，MistoLine在准确性和泛化性上表现出明显的优势
应用场景 Application examples
手绘渲染 Sketch rendering
以下案例只使用了MistoLine这个controlnet
模型渲染 Model rendering
以下案例只使用了Anyline作为预处理器以及MistoLine这个controlnet
魔搭社区最佳实践
环境配置与安装
本文主要演示的模型推理代码可在魔搭社区免费实例PAI-DSW的配置下运行（显存24G） ：
点击模型右侧Notebook快速开发按钮，选择GPU环境
打开Notebook环境：
模型推理代码
from diffusers import ControlNetModel, StableDiffusionXLControlNetPipeline, AutoencoderKL from diffusers.utils import load_image from PIL import Image from modelscope import snapshot_download import torch import numpy as np import cv2 prompt = "sea turtle" negative_prompt = 'low quality, bad quality, sketches' image = load_image("https://modelscope.oss-cn-beijing.aliyuncs.com/resource/sea%20turtle.jpeg") controlnet_conditioning_scale = 0.5 controlnet_dir = snapshot_download("TheMisto.ai/MistoLine") VAE_dir = snapshot_download("AI-ModelScope/sdxl-vae-fp16-fix") SDXL_dir = snapshot_download("AI-ModelScope/stable-diffusion-xl-base-1.0") controlnet = ControlNetModel.from_pretrained( controlnet_dir, torch_dtype=torch.float16 ) vae = AutoencoderKL.from_pretrained(VAE_dir, torch_dtype=torch.float16) pipe = StableDiffusionXLControlNetPipeline.from_pretrained( SDXL_dir, controlnet=controlnet, vae=vae, torch_dtype=torch.float16, ) pipe.enable_model_cpu_offload() image = np.array(image) image = cv2.Canny(image, 100, 200) image = image[:, :, None] image = np.concatenate([image, image, image], axis=2) image = Image.fromarray(image) images = pipe( prompt, negative_prompt=negative_prompt, image=image, controlnet_conditioning_scale=controlnet_conditioning_scale, ).images images[0].save(f"turtle.png")

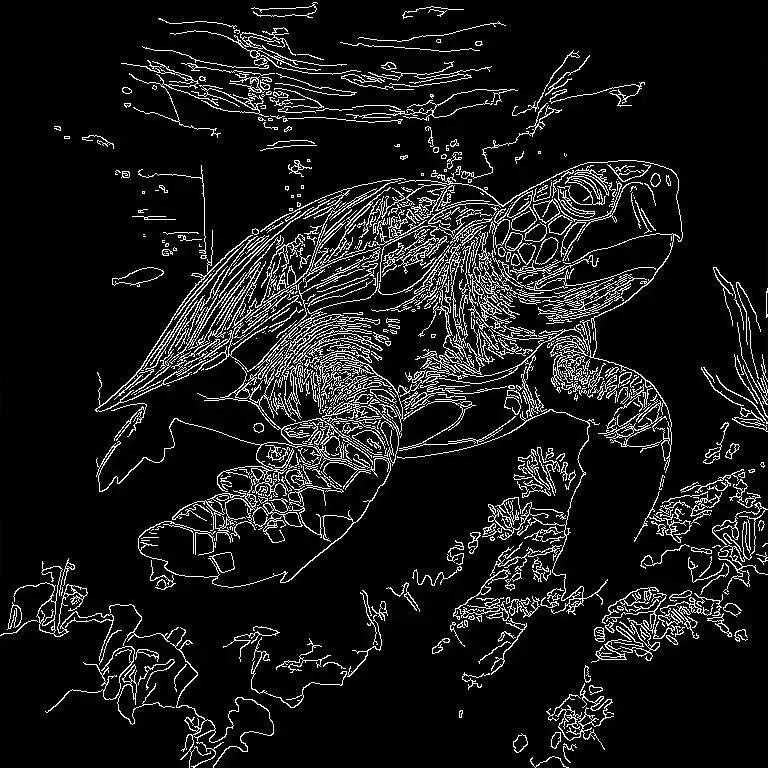

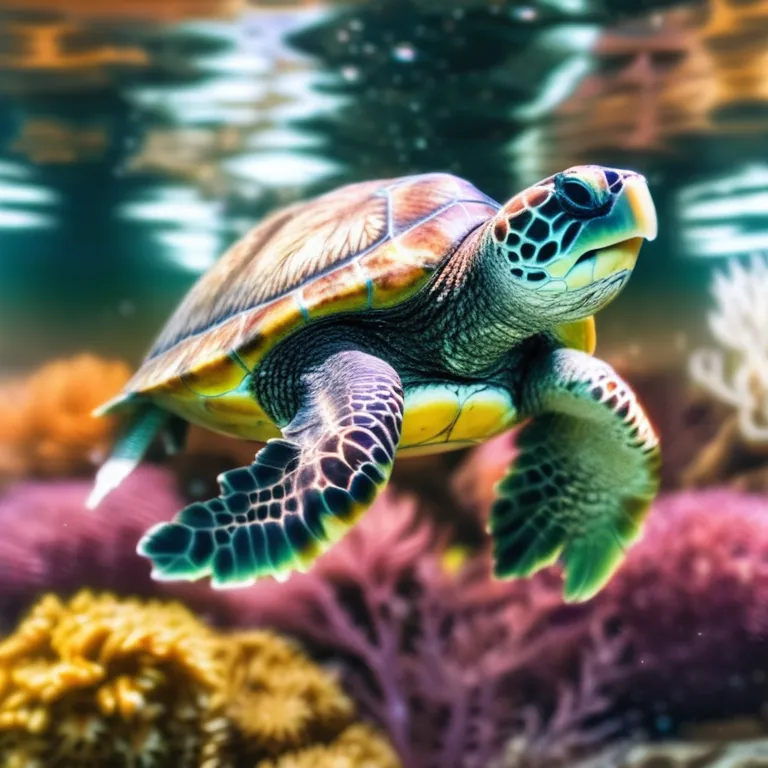

效果展示：
|
|
在ComfyUI使用MistoLine
clone ComfyUI代码并安装环境
# #@title Environment Setup from pathlib import Path OPTIONS = {} UPDATE_COMFY_UI = True #@param {type:"boolean"} INSTALL_COMFYUI_MANAGER = True #@param {type:"boolean"} INSTALL_ANIMATEDIFF = True #@param {type:"boolean"} INSTALL_CUSTOM_NODES_DEPENDENCIES = True #@param {type:"boolean"} OPTIONS['UPDATE_COMFY_UI'] = UPDATE_COMFY_UI OPTIONS['INSTALL_COMFYUI_MANAGER'] = INSTALL_COMFYUI_MANAGER OPTIONS['INSTALL_ANIMATEDIFF'] = INSTALL_ANIMATEDIFF OPTIONS['INSTALL_CUSTOM_NODES_DEPENDENCIES'] = INSTALL_CUSTOM_NODES_DEPENDENCIES current_dir = !pwd WORKSPACE = f"{current_dir[0]}/ComfyUI" %cd /mnt/workspace/ ![ ! -d $WORKSPACE ] && echo -= Initial setup ComfyUI =- && git clone https://github.com/comfyanonymous/ComfyUI %cd $WORKSPACE if OPTIONS['UPDATE_COMFY_UI']: !echo "-= Updating ComfyUI =-" !git pull if OPTIONS['INSTALL_COMFYUI_MANAGER']: %cd custom_nodes ![ ! -d ComfyUI-Manager ] && echo -= Initial setup ComfyUI-Manager =- && git clone https://github.com/ltdrdata/ComfyUI-Manager %cd ComfyUI-Manager !git pull %cd $WORKSPACE if OPTIONS['INSTALL_CUSTOM_NODES_DEPENDENCIES']: !pwd !echo "-= Install custom nodes dependencies =-" ![ -f "custom_nodes/ComfyUI-Manager/scripts/colab-dependencies.py" ] && python "custom_nodes/ComfyUI-Manager/scripts/colab-dependencies.py"
下载相关模型：
#@markdown ###Download standard resources ### SDXL ### I recommend these workflow examples: https://comfyanonymous.github.io/ComfyUI_examples/sdxl/ OPTIONS = {} #@markdown **Models** SDXL_1_0_BASE_AND_REFINER = True #@param {type:"boolean"} OPTIONS['SDXL_1_0_BASE_AND_REFINER'] = SDXL_1_0_BASE_AND_REFINER if OPTIONS['SDXL_1_0_BASE_AND_REFINER']: !wget -c "https://modelscope.cn/api/v1/models/AI-ModelScope/stable-diffusion-xl-base-1.0/repo?Revision=master&FilePath=sd_xl_base_1.0.safetensors" -P ./models/checkpoints/ !wget -c "https://modelscope.cn/api/v1/models/AI-ModelScope/stable-diffusion-xl-refiner-1.0/repo?Revision=master&FilePath=sd_xl_refiner_1.0.safetensors" -P ./models/checkpoints/ #@markdown **VAEs** SDXL_1_0_VAE = True #@param {type:"boolean"} OPTIONS['SDXL_1_0_VAE'] = SDXL_1_0_VAE if OPTIONS['SDXL_1_0_VAE']: !wget -c "https://modelscope.cn/api/v1/models/AI-ModelScope/sdxl-vae-fp16-fix/repo?Revision=master&FilePath=diffusion_pytorch_model.safetensors" -O ./models/vae/sdxl-vae-fp16-fix.safetensors #sdxl-vae-fp16-fix.safetensors #@markdown **Controlnets** !wget -c "https://modelscope.cn/api/v1/models/TheMisto.ai/MistoLine/repo?Revision=master&FilePath=mistoLine_rank256.safetensors" -P /mnt/workspace/ComfyUI/models/controlnet/
使用Cloudflared生成链接
!wget "https://modelscope.oss-cn-beijing.aliyuncs.com/resource/cloudflared-linux-amd64.deb" !dpkg -i cloudflared-linux-amd64.deb %cd /mnt/workspace/ComfyUI import subprocess import threading import time import socket import urllib.request def iframe_thread(port): while True: time.sleep(0.5) sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM) result = sock.connect_ex(('127.0.0.1', port)) if result == 0: break sock.close() print("\nComfyUI finished loading, trying to launch cloudflared (if it gets stuck here cloudflared is having issues)\n") p = subprocess.Popen(["cloudflared", "tunnel", "--url", "http://127.0.0.1:{}".format(port)], stdout=subprocess.PIPE, stderr=subprocess.PIPE) for line in p.stderr: l = line.decode() if "trycloudflare.com " in l: print("This is the URL to access ComfyUI:", l[l.find("http"):], end='') #print(l, end='') threading.Thread(target=iframe_thread, daemon=True, args=(8188,)).start() !python main.py --dont-print-server
导入controlnet流程，推荐工作流下载链接：
https://modelscope.oss-cn-beijing.aliyuncs.com/resource/CN_mistoline.json
ComfyUI 推荐配置
sampler steps:30 CFG:7.0 sampler_name:dpmpp_2m_sde scheduler:karras denoise:0.93 controlnet_strength:1.0 stargt_percent:0.0 end_percent:0.9
ComfyUI使用示例：
点击链接直达开源
