Kubernetes CKS 2021【4】---Cluster Setup - Secure Ingress

2022-12-13 277
版权
版权声明：
本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《 阿里云开发者社区用户服务协议》和 《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写 侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。
简介： Kubernetes CKS 2021【4】---Cluster Setup - Secure Ingress

文章目录

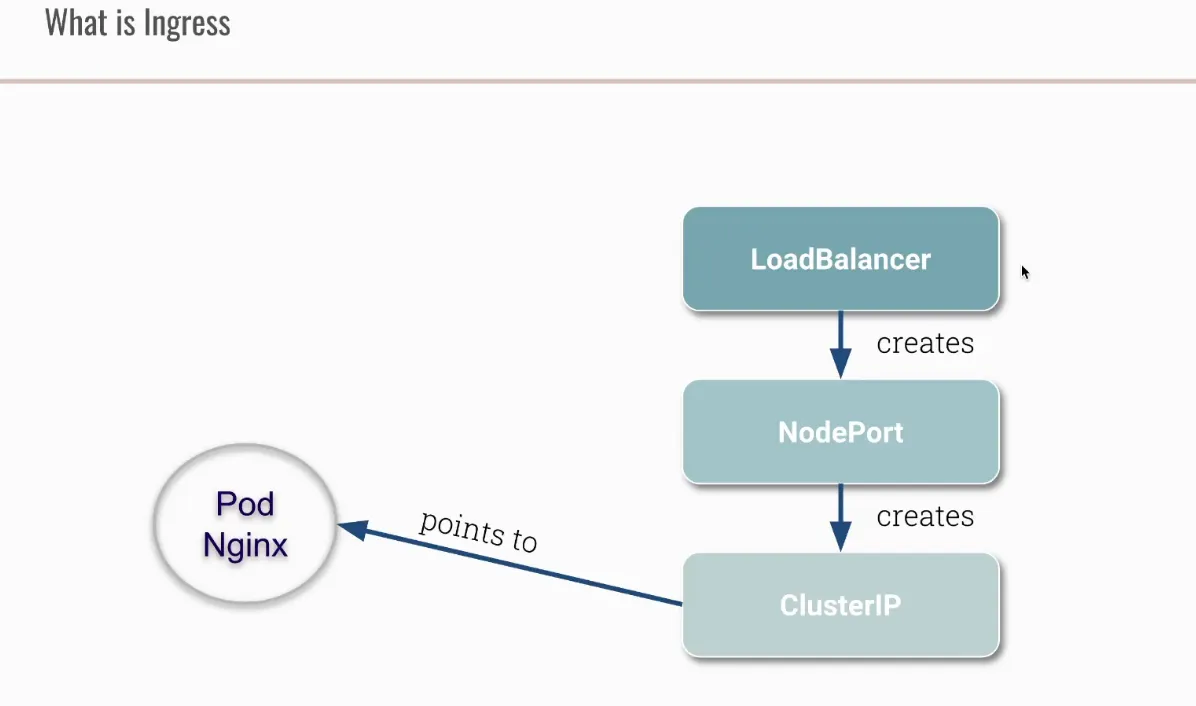

1. 介绍

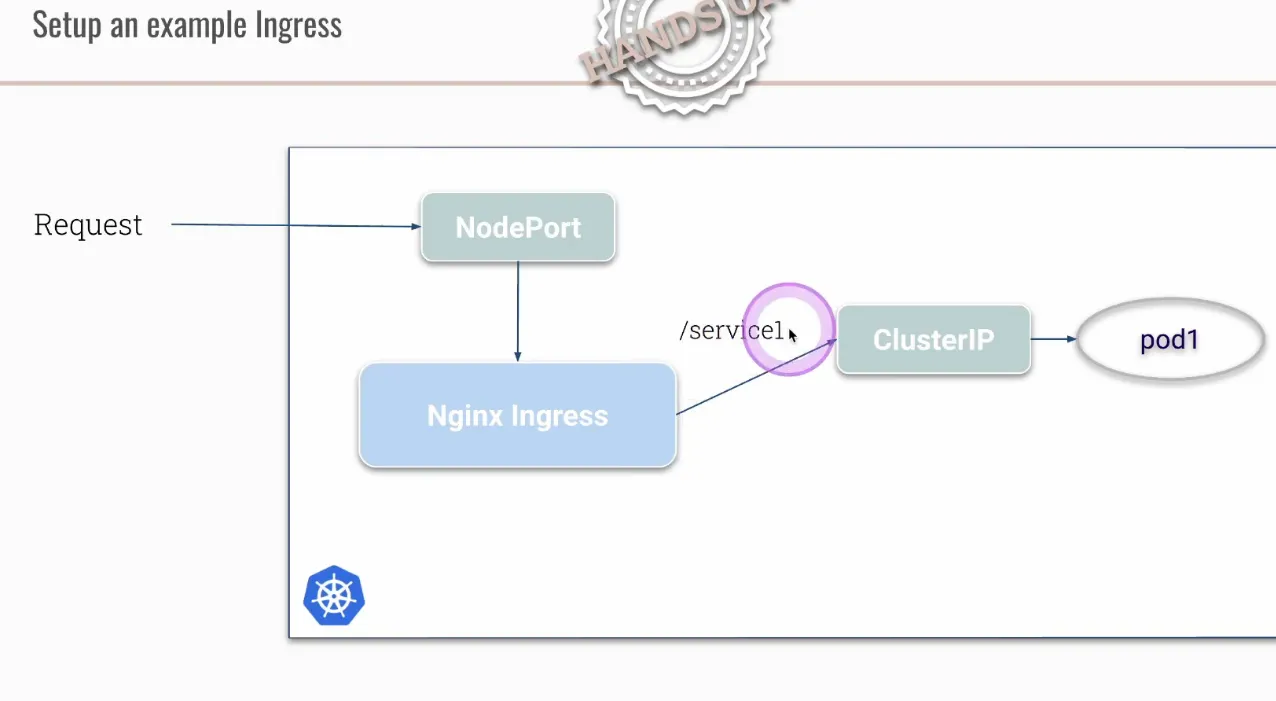

2. Practice - create an Ingress


部署链接：https://kubernetes.github.io/ingress-nginx/deploy/#bare-metal

root@master:~/cks/nginx-ingress# kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.40.2/deploy/static/provider/baremetal/deploy.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
service/ingress-nginx-controller-admission created
service/ingress-nginx-controller created
deployment.apps/ingress-nginx-controller created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
serviceaccount/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
root@master:~/cks/nginx-ingress# k get pod,svc -n ingress-nginx
NAME                                            READY   STATUS      RESTARTS   AGE
pod/ingress-nginx-admission-create-2zdxl        0/1     Completed   0          41s
pod/ingress-nginx-admission-patch-tnwlh         0/1     Completed   1          41s
pod/ingress-nginx-controller-548df9766d-6m74x   1/1     Running     0          41s
NAME                                         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
service/ingress-nginx-controller             NodePort    10.104.236.124   <none>        80:31459/TCP,443:30640/TCP   42s
service/ingress-nginx-controller-admission   ClusterIP   10.97.93.128     <none>        443/TCP                      42s

应用ingress链接：https://kubernetes.io/zh/docs/concepts/services-networking/ingress/

root@master:~/cks/nginx-ingress# cat secure-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: secure-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - http:
      paths:
      - path: /service1
        pathType: Prefix
        backend:
          service:
            name: service1
            port:
              number: 80
      - path: /service2
        pathType: Prefix
        backend:
          service:
            name: service2
            port:
              number: 80
root@master:~/cks/nginx-ingress# k create -f secure-ingress.yaml
ingress.networking.k8s.io/secure-ingress created
root@master:~/cks/nginx-ingress# k get ing
NAME             CLASS    HOSTS   ADDRESS          PORTS   AGE
secure-ingress   <none>   *       192.168.211.41   80      30s
root@master:~/cks/nginx-ingress# k run pod1 --image=nginx
root@master:~/cks/nginx-ingress# k run pod2 --image=httpd
root@master:~/cks/nginx-ingress# k expose pod pod1 --port 80 --name service1
service/service1 exposed
root@master:~/cks/nginx-ingress# k expose pod pod2 --port 80 --name service2
service/service2 exposed
root@master:~/cks/nginx-ingress# curl  http://192.168.211.40:31459/service1
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
root@master:~/cks/nginx-ingress# curl  http://192.168.211.40:31459/service2
<html><body><h1>It works!</h1></body></html>

3. Practice - Secure an Ingress

参考链接：https://kubernetes.io/docs/concepts/services-networking/ingress/#tls


root@master:~/cks/nginx-ingress# curl  https://192.168.211.40:32300/service1 -kv
*   Trying 192.168.211.40...
* TCP_NODELAY set
* Connected to 192.168.211.40 (192.168.211.40) port 32300 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* successfully set certificate verify locations:
*   CAfile: /etc/ssl/certs/ca-certificates.crt
  CApath: /etc/ssl/certs
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Unknown (8):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Client hello (1):
* TLSv1.3 (OUT), TLS Unknown, Certificate Status (22):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN, server accepted to use h2
* Server certificate:                                   #认证失败，没有tls证书
*  subject: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
*  start date: Apr 21 07:16:50 2021 GMT
*  expire date: Apr 21 07:16:50 2022 GMT
*  issuer: O=Acme Co; CN=Kubernetes Ingress Controller Fake Certificate
*  SSL certificate verify result: unable to get local issuer certificate (20), continuing anyway.
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* Using Stream ID: 1 (easy handle 0x558de9977430)
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
> GET /service1 HTTP/2
> Host: 192.168.211.40:32300
> User-Agent: curl/7.58.0
> Accept: */*
>
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* Connection state changed (MAX_CONCURRENT_STREAMS updated)!
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
< HTTP/2 200
< date: Wed, 21 Apr 2021 07:51:52 GMT
< content-type: text/html
< content-length: 612
< last-modified: Tue, 13 Apr 2021 15:13:59 GMT
< etag: "6075b537-264"
< accept-ranges: bytes
< strict-transport-security: max-age=15724800; includeSubDomains
<
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* Connection #0 to host 192.168.211.40 left intact
#创建证书
root@master:~/cks/nginx-ingress# openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -days 365 -nodes
Generating a 4096 bit RSA private key
....++
........................................................................................................................................................................++
writing new private key to 'key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
State or Province Name (full name) [Some-State]:
Locality Name (eg, city) []:
Organization Name (eg, company) [Internet Widgits Pty Ltd]:
Organizational Unit Name (eg, section) []:
Common Name (e.g. server FQDN or YOUR name) []:secure-ingress.com
Email Address []:
root@master:~/cks/nginx-ingress# ls
cert.pem  deploy_0.40.2.yaml  deploy_0.43.0.yaml  key.pem  secure-ingress.yaml
#创建secret
root@master:~/cks/nginx-ingress# k create secret tls secure-ingress --cert=cert.pem --key=key.pem
secret/secure-ingress created
root@master:~/cks/nginx-ingress# k get sec
error: the server doesn't have a resource type "sec"
root@master:~/cks/nginx-ingress# k get secret
NAME                  TYPE                                  DATA   AGE
default-token-rkqr7   kubernetes.io/service-account-token   3      92d
secure-ingress        kubernetes.io/tls                     2      9s
root@master:~/cks/nginx-ingress# vim secure-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: secure-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  tls:
  - hosts:
      - secure-ingress.com
    secretName: secure-ingress
  rules:
  - host: secure-ingress.com
    http:
      paths:
      - path: /service1
        pathType: Prefix
        backend:
          service:
            name: service1
            port:
              number: 80
      - path: /service2
        pathType: Prefix
        backend:
          service:
            name: service2
            port:
              number: 80
root@master:~/cks/nginx-ingress# k apply -f secure-ingress.yaml
ingress.networking.k8s.io/secure-ingress configured
root@master:~/cks/nginx-ingress# curl  https://secure-ingress.com:32300/service2 -kv --resolv secure-ingress.com:32300:192.168.211.41
* Added secure-ingress.com:32300:192.168.211.41 to DNS cache
* Hostname secure-ingress.com was found in DNS cache
*   Trying 192.168.211.41...
* TCP_NODELAY set
* Connected to secure-ingress.com (192.168.211.41) port 32300 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* successfully set certificate verify locations:
*   CAfile: /etc/ssl/certs/ca-certificates.crt
  CApath: /etc/ssl/certs
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Unknown (8):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Client hello (1):
* TLSv1.3 (OUT), TLS Unknown, Certificate Status (22):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN, server accepted to use h2
* Server certificate:                        #认证成功
*  subject: C=AU; ST=Some-State; O=Internet Widgits Pty Ltd; CN=secure-ingress.com
*  start date: Apr 21 07:55:47 2021 GMT
*  expire date: Apr 21 07:55:47 2022 GMT
*  issuer: C=AU; ST=Some-State; O=Internet Widgits Pty Ltd; CN=secure-ingress.com
*  SSL certificate verify result: self signed certificate (18), continuing anyway.
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* Using Stream ID: 1 (easy handle 0x55b3c09e2430)
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
> GET /service2 HTTP/2
> Host: secure-ingress.com:32300
> User-Agent: curl/7.58.0
> Accept: */*
>
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS Unknown, Certificate Status (22):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* Connection state changed (MAX_CONCURRENT_STREAMS updated)!
* TLSv1.3 (OUT), TLS Unknown, Unknown (23):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
< HTTP/2 200
< date: Wed, 21 Apr 2021 08:13:30 GMT
< content-type: text/html
< content-length: 45
< last-modified: Mon, 11 Jun 2007 18:53:14 GMT
< etag: "2d-432a5e4a73a80"
< accept-ranges: bytes
< strict-transport-security: max-age=15724800; includeSubDomains
<
<html><body><h1>It works!</h1></body></html>
* TLSv1.3 (IN), TLS Unknown, Unknown (23):
* Connection #0 to host secure-ingress.com left intact
文章标签：
容器服务Kubernetes版
容器
Kubernetes
关键词：
容器服务Kubernetes版ingress
容器服务Kubernetes版 Ingress
容器服务Kubernetes版setup
容器服务Kubernetes版 cluster
容器服务Kubernetes版cks setup
相关实践学习
深入解析Docker容器化技术
Docker是一个开源的应用容器引擎，让开发者可以打包他们的应用以及依赖包到一个可移植的容器中，然后发布到任何流行的Linux机器上，也可以实现虚拟化，容器是完全使用沙箱机制，相互之间不会有任何接口。Docker是世界领先的软件容器平台。开发人员利用Docker可以消除协作编码时“在我的机器上可正常工作”的问题。运维人员利用Docker可以在隔离容器中并行运行和管理应用，获得更好的计算密度。企业利用Docker可以构建敏捷的软件交付管道，以更快的速度、更高的安全性和可靠的信誉为Linux和Windows Server应用发布新功能。 在本套课程中，我们将全面的讲解Docker技术栈，从环境安装到容器、镜像操作以及生产环境如何部署开发的微服务应用。本课程由黑马程序员提供。 &nbsp; &nbsp; 相关的阿里云产品：容器服务 ACK 容器服务 Kubernetes 版（简称 ACK）提供高性能可伸缩的容器应用管理能力，支持企业级容器化应用的全生命周期管理。整合阿里云虚拟化、存储、网络和安全能力，打造云端最佳容器化应用运行环境。 了解产品详情: https://www.aliyun.com/product/kubernetes
爱死亡机器人
目录
相关文章
XiaoHHSuperme
|
Kubernetes 应用服务中间件 nginx
Kubernetes上安装Metallb和Ingress并部署应用程序
Kubernetes上安装Metallb和Ingress并部署nginx应用程序，使用LoadBalancer类型的KubernetesService
XiaoHHSuperme
1129 109
咕噜咕噜wy
|
Kubernetes 负载均衡 应用服务中间件
深入理解 Kubernetes Ingress：路由流量、负载均衡和安全性配置
深入理解 Kubernetes Ingress：路由流量、负载均衡和安全性配置
咕噜咕噜wy
2557 1
栈江湖
|
Kubernetes 网络协议 应用服务中间件
Kubernetes Ingress：灵活的集群外部网络访问的利器
《Kubernetes Ingress：集群外部访问的利器-打造灵活的集群网络》介绍了如何通过Ingress实现Kubernetes集群的外部访问。前提条件是已拥有Kubernetes集群并安装了kubectl工具。文章详细讲解了Ingress的基本组成（Ingress Controller和资源对象），选择合适的版本，以及具体的安装步骤，如下载配置文件、部署Nginx Ingress Controller等。此外，还提供了常见问题的解决方案，例如镜像下载失败的应对措施。最后，通过部署示例应用展示了Ingress的实际使用方法。
栈江湖
580 2
游客cxtb2yf2r55as
|
缓存 Kubernetes 负载均衡
在K8S中，ingress 有何作用？
在K8S中，ingress 有何作用？
游客cxtb2yf2r55as
663 0
爱吃龙利鱼
|
Kubernetes 负载均衡 应用服务中间件
k8s学习--ingress详细解释与应用(nginx ingress controller))
k8s学习--ingress详细解释与应用(nginx ingress controller))
爱吃龙利鱼
2651 0
土木林森
|
Kubernetes 应用服务中间件 API
【Ingress 秘籍】集群进出流量的总管：揭秘 Kubernetes 中 Ingress 的终极奥秘！
【8月更文挑战第25天】Ingress是Kubernetes中用于管理HTTP与HTTPS流量进入集群的核心功能。作为集群内外通信的桥梁，Ingress通过定义规则将外部请求导向内部服务。本文详细介绍了Ingress的基本概念、配置方法及其实现方式。通过使用不同的Ingress控制器（如Nginx、Traefik等），用户可以根据需要选择最适合的方案。文中还提供了示例代码展示如何创建服务、部署应用及配置Ingress规则。
土木林森
491 6
游客mldfis24krfue
|
Kubernetes 负载均衡 应用服务中间件
在k8S中，ingress是什么？
在k8S中，ingress是什么？
游客mldfis24krfue
394 3
土木林森
|
API UED 开发者
超实用技巧大放送：彻底革新你的WinForms应用，从流畅动画到丝滑交互设计，全面解析如何在保证性能的同时大幅提升用户体验，让软件操作变得赏心悦目不再是梦！
【8月更文挑战第31天】在Windows平台上，使用WinForms框架开发应用程序时，如何在保持性能的同时提升用户界面的吸引力和响应性是一个常见挑战。本文探讨了在不牺牲性能的前提下实现流畅动画与交互设计的最佳实践，包括使用BackgroundWorker处理耗时任务、利用Timer控件创建简单动画，以及使用Graphics类绘制自定义图形。通过具体示例代码展示了这些技术的应用，帮助开发者显著改善用户体验，使应用程序更加吸引人和易于使用。
土木林森
295 0
游客mldfis24krfue
|
Kubernetes API 网络安全
在K8S中，ingress该如何使用?
在K8S中，ingress该如何使用?
游客mldfis24krfue
674 0
薛伟同学
|
Kubernetes 负载均衡 应用服务中间件
Kubernetes的Ingress
Kubernetes的Ingress
薛伟同学
419 0
Kubernetes的Ingress

热门文章

最新文章

  • 1
    阿里云容器服务ACK云原生AI套件测评
  • 2
    使用阿里云容器服务Kubernetes实现蓝绿发布功能
  • 3
    技术赋能无止境 Kubernetes Meetup 北京站完美闭幕
  • 4
    Kubernetes Meetup深秋成都行 Ghostcloud精灵云获好评如云
  • 5
    寻找 K8s 1.14 Release 里的“蚌中之珠”
  • 6
    【云栖大会】Docker与阿里云达成战略合作 为企业级客户提供容器服务
  • 7
    阿里云 K8s 环境创建（上）|学习笔记
  • 8
    K8s + prometheus + vm(VictoriaMetrics)
  • 9
    K8s网络不通Calico网络不通flannel网络不通
  • 10
    在K8S中，K8S本身优势、适应场景及其特点有什么？
  • 1
    阿里云ACK托管集群Pro版共享GPU调度操作指南
    462
  • 2
    ACK One 注册集群云端节点池升级：IDC 集群一键接入云端 GPU 算力，接入效率提升 80%
    320
  • 3
    基于 Azure DevOps 与阿里云 ACK 构建企业级 CI/CD 流水线
    652
  • 4
    关于阿里云 Kubernetes 容器服务（ACK）添加镜像仓库的快速说明
    643
  • 5
    ACK GIE配置建议
    508
  • 6
    ACK One GitOps：让全球化游戏服务持续交付更简单
    197
  • 7
    Ray on ACK 最佳实践，保障 AI 数据处理/训练/推理等环境的安全部署
    632
  • 8
    智联招聘 × 阿里云 ACK One：云端弹性算力颠覆传统 IDC 架构，打造春招技术新范式
    312
  • 9
    智联招聘 × 阿里云 ACK One：云端弹性算力颠覆传统 IDC 架构，打造春招技术新范式
    481
  • 10
    KubeRay on ACK：更高效、更安全
    581

    • 相关课程

    更多
  • 如何使用Kubernetes监控定位慢调用
  • 使用Kubernetes监控发现资源使用，流量分布不均匀的问题
  • 如何发现Kubernetes中服务和工作负载的异常
  • 企业级运维之云原生与Kubernetes实战课程
  • 阿里云 EMR on ACK 实战
  • 阿里云K8S微服务部署案例

    • 相关电子书

    更多
  • ACK集群类型选择最佳实践
  • 容器服务重磅升级，打造高效安全、智能无界新平台
  • 《拥抱容器存储，使用阿里云容器服务 ACK +文件存储 NAS 构建现代化企业应用》

    • 推荐镜像

    更多
  • kubernetes
    • 下一篇
    ECS账号安全防护最佳实践
