Google Earth Engine ——MOD17A2H V6总初级生产力（GPP）产品是一个具有500米分辨率的8天累积综合数据产品

2022-04-28 1013

版权

本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。

简介： Google Earth Engine ——MOD17A2H V6总初级生产力（GPP）产品是一个具有500米分辨率的8天累积综合数据产品

The MOD17A2H V6 Gross Primary Productivity (GPP) product is a cumulative 8-day composite with a 500m resolution. The product is based on the radiation-use efficiency concept and can be potentially used as inputs to data models to calculate terrestrial energy, carbon, water cycle processes, and biogeochemistry of vegetation.

Documentation:

MOD17A2H V6总初级生产力（GPP）产品是一个具有500米分辨率的8天累积综合数据。该产品基于辐射利用效率的概念，可作为数据模型的输入，计算陆地能源、碳、水循环过程和植被的生物地球化学。

Dataset Availability

2000-03-05T00:00:00 - 2021-09-06T00:00:00

Dataset Provider

NASA LP DAAC at the USGS EROS Center

Collection Snippet

ee.ImageCollection("MODIS/006/MOD17A2H")

Resolution

500 meters

Bands Table

Name	Description	Min	Max	Units	Scale
Gpp	Gross primary production	0	3000	kg*C/m^2	0.0001
PsnNet	Net photosynthesis; GPP minus the maintenance respiration (MR)	-3000	3000	kg*C/m^2	0.0001
Psn_QC	Quality control bits				0
Psn_QC Bitmask	Bit 0: MODLAND QC bits 0: Good quality 1: Other quality Bit 1: Sensor 0: Terra 1: Aqua Bit 2: Dead detector 0: Detectors apparently fine for up to 50% of channels 1, 2 1: Dead detectors caused >50% adjacent detector retrieval Bits 3-4: Cloud state 0: Significant clouds NOT present (clear) 1: Significant clouds WERE present 2: Mixed cloud present on pixel 3: Cloud state not defined, assumed clear Bits 5-7: 5-level confidence quality score 0: Very best possible 1: Good, very usable, but not the best 2: Substandard due to geometry problems - use with caution 3: Substandard due to other than geometry problems - use with caution 4: Couldn't retrieve pixel (NOT PRODUCED AT ALL - non-terrestrial biome) 7: Fill Value

使用说明：

MODIS data and products acquired through the LP DAAC have no restrictions on subsequent use, sale, or redistribution.

数据引用：

LP DAAC - MOD17A2H

代码：

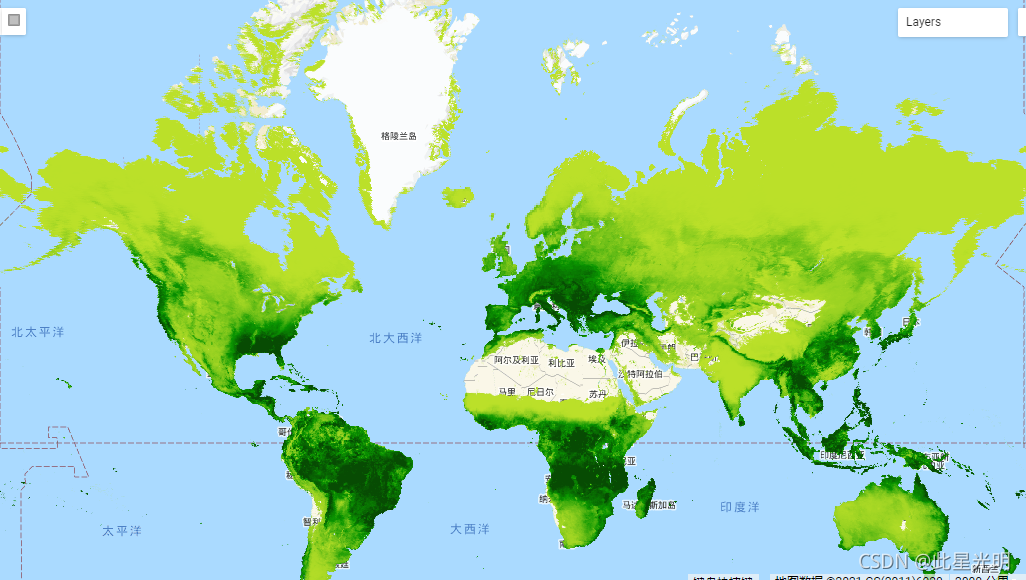

var dataset = ee.ImageCollection('MODIS/006/MOD17A2H')
                  .filter(ee.Filter.date('2018-01-01', '2018-05-01'));
var gpp = dataset.select('Gpp');
var gppVis = {
  min: 0.0,
  max: 600.0,
  palette: ['bbe029', '0a9501', '074b03'],
};
Map.setCenter(6.746, 46.529, 2);
Map.addLayer(gpp, gppVis, 'GPP');
