Google Earth Engine ——LANDSAT 7Collection 1 Tier 1 DN值 RAW数据集

简介: Google Earth Engine ——LANDSAT 7Collection 1 Tier 1 DN值 RAW数据集

Landsat 7 Collection 1 Tier 1 DN values, representing scaled, calibrated at-sensor radiance.



Landsat scenes with the highest available data quality are placed into Tier 1 and are considered suitable for time-series processing analysis. Tier 1 includes Level-1 Precision Terrain (L1TP) processed data that have well-characterized radiometry and are inter-calibrated across the different Landsat sensors. The georegistration of Tier 1 scenes will be consistent and within prescribed tolerances [<=12 m root mean square error (RMSE)]. All Tier 1 Landsat data can be considered consistent and inter-calibrated (regardless of sensor) across the full collection. See more information in the USGS docs.

For more information, see Landsat 7 Handbook

Landsat 7 Collection 1 Tier 1 DN值,代表经过缩放、校准的传感器辐射度。

具有最高可用数据质量的陆地卫星场景被归入第1级,并被认为适合进行时间序列处理分析。第一级包括一级精确地形(L1TP)处理的数据,这些数据具有良好的辐射测量特性,并在不同的Landsat传感器之间进行了相互校准。第1级场景的地理注册将是一致的,并在规定的公差范围内[<=12米均方根误差(RMSE)]。所有第1级Landsat数据都可以被认为是一致的,并且在整个集合中进行了相互校准(不管是哪个传感器)。参见USGS文档中的更多信息。

更多信息,见Landsat 7手册

Dataset Availability

1999-01-01T00:00:00 - 2021-08-26T00:00:00

Dataset Provider

USGS

Collection Snippet

ee.ImageCollection("LANDSAT/LE07/C01/T1")

Bands Table

Name Description Resolution Wavelength
B1 Blue 30 meters 0.45 - 0.52 µm
B2 Green 30 meters 0.52 - 0.60 µm
B3 Red 30 meters 0.63 - 0.69 µm
B4 Near infrared 30 meters 0.77 - 0.90 µm
B5 Shortwave infrared 1 30 meters 1.55 - 1.75 µm
B6_VCID_1 Low-gain Thermal Infrared 1. This band has expanded dynamic range and lower radiometric resolution (sensitivity), with less saturation at high Digital Number (DN) values. Resampled from 60m to 30m. 60 meters 10.40 - 12.50 µm
B6_VCID_2 High-gain Thermal Infrared 1. This band has higher radiometric resolution (sensitivity), although it has a more restricted dynamic range. Resampled from 60m to 30m. 60 meters 10.40 - 12.50 µm
B7 Shortwave infrared 2 30 meters 2.08 - 2.35 µm
B8 Panchromatic 15 meters 0.52 - 0.90 µm
BQA Landsat Collection 1 QA Bitmask ([See Landsat QA page](https://www.usgs.gov/land-resources/nli/landsat/landsat-collection-1-level-1-quality-assessment-band)) 30 meters
BQA Bitmask
  • Bit 0: Designated Fill
    • 0: No
    • 1: Yes
  • Bit 1: Designated Pixel
    • 0: No
    • 1: Yes
  • Bits 2-3: Radiometric Saturation
    • 0: No bands contain saturation
    • 1: 1-2 bands contain saturation
    • 2: 3-4 bands contain saturation
    • 3: 5 or more bands contain saturation
  • Bit 4: Cloud
    • 0: No
    • 1: Yes
  • Bits 5-6: Cloud Confidence
    • 0: Not Determined / Condition does not exist.
    • 1: Low, (0-33 percent confidence)
    • 2: Medium, (34-66 percent confidence)
    • 3: High, (67-100 percent confidence)
  • Bits 7-8: Cloud Shadow Confidence
    • 0: Not Determined / Condition does not exist.
    • 1: Low, (0-33 percent confidence)
    • 2: Medium, (34-66 percent confidence)
    • 3: High, (67-100 percent confidence)
  • Bits 9-10: Snow / Ice Confidence
    • 0: Not Determined / Condition does not exist.
    • 1: Low, (0-33 percent confidence)
    • 2: Medium, (34-66 percent confidence)
    • 3: High, (67-100 percent confidence)

影像属性:

Name Type Description
CLOUD_COVER Double Percentage cloud cover (0-100), -1 = not calculated.
CLOUD_COVER_LAND Double Percentage cloud cover over land (0-100), -1 = not calculated.
COLLECTION_CATEGORY String Tier of scene. (T1 or T2)
COLLECTION_NUMBER Double Number of collection.
CORRECTION_BIAS_BAND_1 String Internal calibration bias method for band 1.
CORRECTION_BIAS_BAND_2 String Internal calibration bias method for band 2.
CORRECTION_BIAS_BAND_3 String Internal calibration bias method for band 3.
CORRECTION_BIAS_BAND_4 String Internal calibration bias method for band 4.
CORRECTION_BIAS_BAND_5 String Internal calibration bias method for band 5.
CORRECTION_BIAS_BAND_6_VCID_1 String Internal calibration bias method for band 6_VICD_1.
CORRECTION_BIAS_BAND_6_VCID_2 String Internal calibration bias method for band 6_VICD_2.
CORRECTION_BIAS_BAND_7 String Internal calibration bias method for band 7.
CORRECTION_BIAS_BAND_8 String Internal calibration bias method for band 8.
CORRECTION_GAIN_BAND_1 String Internal calibration gain method for band 1.
CORRECTION_GAIN_BAND_2 String Internal calibration gain method for band 2.
CORRECTION_GAIN_BAND_3 String Internal calibration gain method for band 3.
CORRECTION_GAIN_BAND_4 String Internal calibration gain method for band 4.
CORRECTION_GAIN_BAND_5 String Internal calibration gain method for band 5.
CORRECTION_GAIN_BAND_6_VCID_1 String Internal calibration gain method for band 6_VCID_1.
CORRECTION_GAIN_BAND_6_VCID_2 String Internal calibration gain method for band 6_VCID_2.
CORRECTION_GAIN_BAND_7 String Internal calibration gain method for band 7.
CORRECTION_GAIN_BAND_8 String Internal calibration gain method for band 8.
CPF_NAME String Calibration parameter file name.
DATA_CATEGORY String Current data category assigned to the data. Possible values: ("NOMINAL", "VALIDATION", "EXCHANGE", "TEST", "ENGINEERING")
DATA_TYPE String Data type identifier. (L1T or L1G)
DATE_ACQUIRED String Image acquisition date. "YYYY-MM-DD"
DATUM String Datum used in image creation.
EARTH_SUN_DISTANCE Double Earth sun distance in astronomical units (AU).
ELEVATION_SOURCE String Elevation model source used for standard terrain corrected (L1T) products.
ELLIPSOID String Ellipsoid used in image creation.
EPHEMERIS_TYPE String Ephemeris data type used to perform geometric correction. (Definitive or Predictive)
FILE_DATE Double File date in milliseconds since epoch.
GAIN_BAND_1 String Gain state for Band 1. (L = Low gain, H = High)
GAIN_BAND_2 String Gain state for Band 2. (L = Low gain, H = High)
GAIN_BAND_3 String Gain state for Band 3. (L = Low gain, H = High)
GAIN_BAND_4 String Gain state for Band 4. (L = Low gain, H = High)
GAIN_BAND_5 String Gain state for Band 5. (L = Low gain, H = High)
GAIN_BAND_6_VCID_1 String Gain state for Band 6 VCID_1. (L = Low gain, H = High)
GAIN_BAND_6_VCID_2 String Gain state for Band 6 VCID_2. (L = Low gain, H = High)
GAIN_BAND_7 String Gain state for Band 7. (L = Low gain, H = High)
GAIN_BAND_8 String Gain state for Band 8. (L = Low gain, H = High)
GAIN_CHANGE_BAND_1 String Presence and direction of gain change for Band 1 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_2 String Presence and direction of gain change for Band 2 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_3 String Presence and direction of gain change for Band 3 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_4 String Presence and direction of gain change for Band 4 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_5 String Presence and direction of gain change for Band 5 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_6_VCID_1 String Presence and direction of gain change for Band 6 VCID_1 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_6_VCID_2 String Presence and direction of gain change for Band 6 VCID_2 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_7 String Presence and direction of gain change for Band 7 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_BAND_8 String Presence and direction of gain change for Band 8 (LL = no change, HH = no change, LH = low to high, HL = high to low, U = Unknown).
GAIN_CHANGE_SCAN_BAND_1 Double Scan line number where the first change in Band 1 gain was detected.
GAIN_CHANGE_SCAN_BAND_2 Double Scan line number where the first change in Band 2 gain was detected.
GAIN_CHANGE_SCAN_BAND_3 Double Scan line number where the first change in Band 3 gain was detected.
GAIN_CHANGE_SCAN_BAND_4 Double Scan line number where the first change in Band 4 gain was detected.
GAIN_CHANGE_SCAN_BAND_5 Double Scan line number where the first change in Band 5 gain was detected.
GAIN_CHANGE_SCAN_BAND_6_VCID_1 Double Scan line number where the first change in Band 6 VCID 1 gain was detected.
GAIN_CHANGE_SCAN_BAND_6_VCID_2 Double Scan line number where the first change in Band 6 VCID 2 gain was detected.
GAIN_CHANGE_SCAN_BAND_7 Double Scan line number where the first change in Band 7 gain was detected.
GAIN_CHANGE_SCAN_BAND_8 Double Scan line number where the first change in Band 8 gain was detected.
GEOMETRIC_RMSE_MODEL Double Combined Root Mean Square Error (RMSE) of the geometric residuals (metres) in both across-track and along-track directions measured on the GCPs used in geometric precision correction. Not present in L1G products.
GEOMETRIC_RMSE_MODEL_X Double RMSE of the X direction geometric residuals (in metres) measured on the GCPs used in geometric precision correction. Not present in L1G products.
GEOMETRIC_RMSE_MODEL_Y Double RMSE of the Y direction geometric residuals (in metres) measured on the GCPs used in geometric precision correction. Not present in L1G products.
GRID_CELL_SIZE_PANCHROMATIC Double Grid cell size used in creating the image for the panchromatic band.
GRID_CELL_SIZE_REFLECTIVE Double Grid cell size used in creating the image for the reflective band.
GRID_CELL_SIZE_THERMAL Double Grid cell size used in creating the image for the thermal band.
GROUND_CONTROL_POINTS_MODEL Double The number of ground control points used. Not used in L1GT products. Values: 0 - 999 (0 is used for L1T products that have used Multi-scene refinement).
GROUND_CONTROL_POINTS_VERIFY Double The number of ground control points used in the verification of the terrain corrected product. Values: -1 to 1615 (-1 = not available)
GROUND_CONTROL_POINTS_VERSION Double The number of ground control points used in the verification of the terrain corrected product. Values: -1 to 1615 (-1 = not available)
IMAGE_QUALITY Double Image quality, 0 = worst, 9 = best, -1 = quality not calculated
K1_CONSTANT_BAND_6_VCID_1 Double Calibration K1 constant for Band 6 VCID 1 radiance to temperature conversion.
K1_CONSTANT_BAND_6_VCID_2 Double Calibration K1 constant for Band 6 VCID 2 radiance to temperature conversion.
K2_CONSTANT_BAND_6_VCID_1 Double Calibration K2 constant for Band 6 VCID 1 radiance to temperature conversion.
K2_CONSTANT_BAND_6_VCID_2 Double Calibration K2 constant for Band 6 VCID 2 radiance to temperature conversion.
LANDSAT_PRODUCT_ID String The naming convention of each Landsat Collection 1 Level-1 image based on acquisition parameters and processing parameters. Format: LXSS_LLLL_PPPRRR_YYYYMMDD_yyyymmdd_CC_TX * L = Landsat * X = Sensor (O = Operational Land Imager, T = Thermal Infrared Sensor, C = Combined OLI/TIRS) * SS = Satellite (08 = Landsat 8) * LLLL = Processing Correction Level (L1TP = precision and terrain, L1GT = systematic terrain, L1GS = systematic) * PPP = WRS Path * RRR = WRS Row * YYYYMMDD = Acquisition Date expressed in Year, Month, Day * yyyymmdd = Processing Date expressed in Year, Month, Day * CC = Collection Number (01) * TX = Collection Category (RT = Real Time, T1 = Tier 1, T2 = Tier 2)
LANDSAT_SCENE_ID String The Pre-Collection naming convention of each image is based on acquisition parameters. This was the naming convention used prior to Collection 1. Format: LXSPPPRRRYYYYDDDGSIVV * L = Landsat * X = Sensor (O = Operational Land Imager, T = Thermal Infrared Sensor, C = Combined OLI/TIRS) * S = Satellite (08 = Landsat 8) * PPP = WRS Path * RRR = WRS Row * YYYY = Year of Acquisition * DDD = Julian Day of Acquisition * GSI = Ground Station Identifier * VV = Version
MAP_PROJECTION String Projection used to represent the 3-dimensional surface of the earth for the Level-1 product.
MAP_PROJECTION_L0RA String L0RA map projection selectively applied to HDTs based on geographic location. Used for processed archive data.
ORIENTATION String Orientation used in creating the image. Values: NOMINAL = Nominal Path, NORTH_UP = North Up, TRUE_NORTH = True North, USER = User
PANCHROMATIC_LINES Double Number of product lines for the panchromatic band.
PANCHROMATIC_SAMPLES Double Number of product samples for the panchromatic bands.
PROCESSING_SOFTWARE_VERSION String Name and version of the processing software used to generate the L1 product.
RADIANCE_ADD_BAND_1 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 1.
RADIANCE_ADD_BAND_2 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 2.
RADIANCE_ADD_BAND_3 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 3.
RADIANCE_ADD_BAND_4 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 4.
RADIANCE_ADD_BAND_5 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 5.
RADIANCE_ADD_BAND_6_VCID_1 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 6 VCID 1.
RADIANCE_ADD_BAND_6_VCID_2 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 6 VCID 2.
RADIANCE_ADD_BAND_7 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 7.
RADIANCE_ADD_BAND_8 Double Additive rescaling factor used to convert calibrated DN to radiance for Band 8.
RADIANCE_MAXIMUM_BAND_1 Double Maximum achievable spectral radiance value for Band 1.
RADIANCE_MAXIMUM_BAND_2 Double Maximum achievable spectral radiance value for Band 2.
RADIANCE_MAXIMUM_BAND_3 Double Maximum achievable spectral radiance value for Band 3.
RADIANCE_MAXIMUM_BAND_4 Double Maximum achievable spectral radiance value for Band 4.
RADIANCE_MAXIMUM_BAND_5 Double Maximum achievable spectral radiance value for Band 5.
RADIANCE_MAXIMUM_BAND_6_VCID_1 Double Maximum achievable spectral radiance value for Band 6 VCID 1.
RADIANCE_MAXIMUM_BAND_6_VCID_2 Double Maximum achievable spectral radiance value for Band 6 VCID 2.
RADIANCE_MAXIMUM_BAND_7 Double Maximum achievable spectral radiance value for Band 7.
RADIANCE_MAXIMUM_BAND_8 Double Maximum achievable spectral radiance value for Band 8.
RADIANCE_MINIMUM_BAND_1 Double Minimum achievable spectral radiance value for Band 1.
RADIANCE_MINIMUM_BAND_2 Double Minimum achievable spectral radiance value for Band 2.
RADIANCE_MINIMUM_BAND_3 Double Minimum achievable spectral radiance value for Band 3.
RADIANCE_MINIMUM_BAND_4 Double Minimum achievable spectral radiance value for Band 4.
RADIANCE_MINIMUM_BAND_5 Double Minimum achievable spectral radiance value for Band 5.
RADIANCE_MINIMUM_BAND_6_VCID_1 Double Minimum achievable spectral radiance value for Band 6 VCID 1.
RADIANCE_MINIMUM_BAND_6_VCID_2 Double Minimum achievable spectral radiance value for Band 6 VCID 2.
RADIANCE_MINIMUM_BAND_7 Double Minimum achievable spectral radiance value for Band 7.
RADIANCE_MINIMUM_BAND_8 Double Minimum achievable spectral radiance value for Band 8.
RADIANCE_MULT_BAND_1 Double Multiplicative rescaling factor used to convert calibrated Band 1 DN to radiance.
RADIANCE_MULT_BAND_2 Double Multiplicative rescaling factor used to convert calibrated Band 2 DN to radiance.
RADIANCE_MULT_BAND_3 Double Multiplicative rescaling factor used to convert calibrated Band 3 DN to radiance.
RADIANCE_MULT_BAND_4 Double Multiplicative rescaling factor used to convert calibrated Band 4 DN to radiance.
RADIANCE_MULT_BAND_5 Double Multiplicative rescaling factor used to convert calibrated Band 5 DN to radiance.
RADIANCE_MULT_BAND_6_VCID_1 Double Multiplicative rescaling factor used to convert calibrated Band 6 VCID 1 DN to radiance.
RADIANCE_MULT_BAND_6_VCID_2 Double Multiplicative rescaling factor used to convert calibrated Band 6 VCID 2 DN to radiance.
RADIANCE_MULT_BAND_7 Double Multiplicative rescaling factor used to convert calibrated Band 7 DN to radiance.
RADIANCE_MULT_BAND_8 Double Multiplicative rescaling factor used to convert calibrated Band 8 DN to radiance.
REFLECTANCE_ADD_BAND_1 Double Additive rescaling factor used to convert calibrated Band 1 DN to reflectance.
REFLECTANCE_ADD_BAND_2 Double Additive rescaling factor used to convert calibrated Band 2 DN to reflectance.
REFLECTANCE_ADD_BAND_3 Double Additive rescaling factor used to convert calibrated Band 3 DN to reflectance.
REFLECTANCE_ADD_BAND_4 Double Additive rescaling factor used to convert calibrated Band 4 DN to reflectance.
REFLECTANCE_ADD_BAND_5 Double Additive rescaling factor used to convert calibrated Band 5 DN to reflectance.
REFLECTANCE_ADD_BAND_7 Double Additive rescaling factor used to convert calibrated Band 7 DN to reflectance.
REFLECTANCE_ADD_BAND_8 Double Additive rescaling factor used to convert calibrated Band 8 DN to reflectance.
REFLECTANCE_MAXIMUM_BAND_1 Double Maximum achievable spectral reflectance value for Band 1.
REFLECTANCE_MAXIMUM_BAND_2 Double Maximum achievable spectral reflectance value for Band 2.
REFLECTANCE_MAXIMUM_BAND_3 Double Maximum achievable spectral reflectance value for Band 3.
REFLECTANCE_MAXIMUM_BAND_4 Double Maximum achievable spectral reflectance value for Band 4.
REFLECTANCE_MAXIMUM_BAND_5 Double Maximum achievable spectral reflectance value for Band 5.
REFLECTANCE_MAXIMUM_BAND_7 Double Maximum achievable spectral reflectance value for Band 7.
REFLECTANCE_MAXIMUM_BAND_8 Double Maximum achievable spectral reflectance value for Band 8.
REFLECTANCE_MINIMUM_BAND_1 Double Minimum achievable spectral reflectance value for Band 1.
REFLECTANCE_MINIMUM_BAND_2 Double Minimum achievable spectral reflectance value for Band 2.
REFLECTANCE_MINIMUM_BAND_3 Double Minimum achievable spectral reflectance value for Band 3.
REFLECTANCE_MINIMUM_BAND_4 Double Minimum achievable spectral reflectance value for Band 4.
REFLECTANCE_MINIMUM_BAND_5 Double Minimum achievable spectral reflectance value for Band 5.
REFLECTANCE_MINIMUM_BAND_7 Double Minimum achievable spectral reflectance value for Band 7.
REFLECTANCE_MINIMUM_BAND_8 Double Minimum achievable spectral reflectance value for Band 8.
REFLECTANCE_MULT_BAND_1 Double Multiplicative factor used to convert calibrated Band 1 DN to reflectance.
REFLECTANCE_MULT_BAND_2 Double Multiplicative factor used to convert calibrated Band 2 DN to reflectance.
REFLECTANCE_MULT_BAND_3 Double Multiplicative factor used to convert calibrated Band 3 DN to reflectance.
REFLECTANCE_MULT_BAND_4 Double Multiplicative factor used to convert calibrated Band 4 DN to reflectance.
REFLECTANCE_MULT_BAND_5 Double Multiplicative factor used to convert calibrated Band 5 DN to reflectance.
REFLECTANCE_MULT_BAND_7 Double Multiplicative factor used to convert calibrated Band 7 DN to reflectance.
REFLECTANCE_MULT_BAND_8 Double Multiplicative factor used to convert calibrated Band 8 DN to reflectance.
REFLECTIVE_LINES Double Number of product lines for the reflective bands.
REFLECTIVE_SAMPLES Double Number of product samples for the reflective bands.
REQUEST_ID String Request id, nnnyymmdd0000_0000 * nnn = node number * yy = year * mm = month * dd = day
RESAMPLING_OPTION String Resampling option used in creating the image.
SATURATION_BAND_1 String Flag indicating saturated pixels for band 1 ('Y'/'N')
SATURATION_BAND_2 String Flag indicating saturated pixels for band 2 ('Y'/'N')
SATURATION_BAND_3 String Flag indicating saturated pixels for band 3 ('Y'/'N')
SATURATION_BAND_4 String Flag indicating saturated pixels for band 4 ('Y'/'N')
SATURATION_BAND_5 String Flag indicating saturated pixels for band 5 ('Y'/'N')
SATURATION_BAND_6_VCID_1 String Flag indicating saturated pixels for band 6 VCID 1 ('Y'/'N')
SATURATION_BAND_6_VCID_2 String Flag indicating saturated pixels for band 6 VCID 2 ('Y'/'N')
SATURATION_BAND_7 String Flag indicating saturated pixels for band 7 ('Y'/'N')
SATURATION_BAND_8 String Flag indicating saturated pixels for band 8 ('Y'/'N')
SCENE_CENTER_TIME String Scene center time of acquired image. HH:MM:SS.SSSSSSSZ * HH = Hour (00-23) * MM = Minutes * SS.SSSSSSS = Fractional seconds * Z = "Zulu" time (same as GMT)
SENSOR_ID String Sensor used to capture data.
SENSOR_MODE String Operational mode. Scan Angle Monitor (SAM) or BUMPER.
SPACECRAFT_ID String Spacecraft identification.
STATION_ID String Ground Station/Organisation that received the data.
SUN_AZIMUTH Double Sun azimuth angle in degrees for the image center location at the image centre acquisition time.
SUN_ELEVATION Double Sun elevation angle in degrees for the image center location at the image centre acquisition time.
THERMAL_LINES Double Number of product lines for the thermal band.
THERMAL_SAMPLES Double Number of product samples for the thermal band.
UTM_ZONE Double UTM zone number used in product map projection.
WRS_PATH Double The WRS orbital path number (001 - 251).
WRS_ROW Double Landsat satellite WRS row (001-248).

使用说明:

Landsat datasets are federally created data and therefore reside in the public domain and may be used, transferred, or reproduced without copyright restriction.

Acknowledgement or credit of the USGS as data source should be provided by including a line of text citation such as the example shown below.

(Product, Image, Photograph, or Dataset Name) courtesy of the U.S. Geological Survey

Example: Landsat-7 image courtesy of the U.S. Geological Survey

See the USGS Visual Identity System Guidance for further details on proper citation and acknowledgement of USGS products.

Landsat数据集是联邦创建的数据,因此属于公共领域,可以在没有版权限制的情况下使用、转让或复制。

对美国地质调查局作为数据来源的确认或信用,应通过包括一行文字引用来提供,如下面的例子。

(产品、图像、照片或数据集名称)由美国地质调查局提供。

例子。Landsat-7图像由美国地质调查局提供

请参阅美国地质调查局视觉识别系统指南,了解有关美国地质调查局产品的正确引用和鸣谢的进一步细节。

代码:

var dataset = ee.ImageCollection('LANDSAT/LE07/C01/T1_ANNUAL_RAW')
                  .filterDate('1999-01-01', '2002-12-31');
var visParams = {
  min: 0,
  max: 255,
  gamma: 1.2,
  bands: ['B3', 'B2', 'B1'],
};

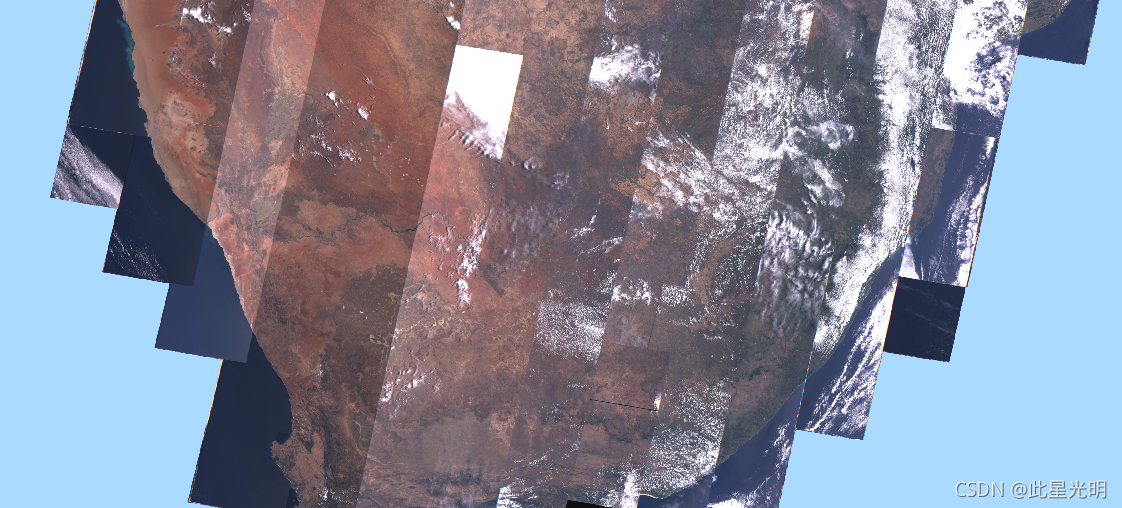

Map.setCenter(24.236, -28.941, 6);
Map.addLayer(dataset, visParams, 'LANDSAT/LE07/C01/T1_ANNUAL_RAW');
var dataset = ee.ImageCollection('LANDSAT/LE07/C01/T1_8DAY_RAW')
                  .filterDate('1999-01-01', '2002-12-31');
var visParams = {
  min: 0,
  max: 255,
  gamma: 1.2,
  bands: ['B3', 'B2', 'B1'],
};
Map.setCenter(24.236, -28.941, 6);
Map.addLayer(dataset, visParams, 'LANDSAT/LE07/C01/T1_8DAY_RAW');
var dataset = ee.ImageCollection('LANDSAT/LE07/C01/T1_32DAY_RAW')
                  .filterDate('1999-01-01', '2002-12-31');
var visParams = {
  min: 0,
  max: 255,
  gamma: 1.2,
  bands: ['B3', 'B2', 'B1'],
};
Map.setCenter(24.236, -28.941, 6);
Map.addLayer(dataset, visParams, 'LANDSAT/LE07/C01/T1_32DAY_RAW');


相关文章
|
6月前
|
数据可视化 定位技术 Sentinel
如何用Google Earth Engine快速、大量下载遥感影像数据?
【2月更文挑战第9天】本文介绍在谷歌地球引擎(Google Earth Engine,GEE)中,批量下载指定时间范围、空间范围的遥感影像数据(包括Landsat、Sentinel等)的方法~
2398 1
如何用Google Earth Engine快速、大量下载遥感影像数据?
|
6月前
|
机器学习/深度学习 算法 数据可视化
基于Google Earth Engine云平台构建的多源遥感数据森林地上生物量AGB估算模型含生物量模型应用APP
基于Google Earth Engine云平台构建的多源遥感数据森林地上生物量AGB估算模型含生物量模型应用APP
219 0
|
6月前
|
存储 编解码 数据可视化
Google Earth Engine获取随机抽样点并均匀分布在栅格的不同数值区中
【2月更文挑战第14天】本文介绍在谷歌地球引擎(Google Earth Engine,GEE)中,按照给定的地表分类数据,对每一种不同的地物类型,分别加以全球范围内随机抽样点自动批量选取的方法~
552 1
Google Earth Engine获取随机抽样点并均匀分布在栅格的不同数值区中
|
6月前
|
数据处理
Google Earth Engine(GEE)——sentinel-1数据处理过程中出现错误Dictionary does not contain key: bucketMeans
Google Earth Engine(GEE)——sentinel-1数据处理过程中出现错误Dictionary does not contain key: bucketMeans
108 0
|
6月前
|
编解码 人工智能 算法
Google Earth Engine——促进森林温室气体报告的全球时间序列数据集
Google Earth Engine——促进森林温室气体报告的全球时间序列数据集
86 0
|
6月前
|
编解码 人工智能 数据库
Google Earth Engine(GEE)——全球道路盘查项目全球道路数据库
Google Earth Engine(GEE)——全球道路盘查项目全球道路数据库
132 0
|
6月前
|
编解码
Open Google Earth Engine(OEEL)——matrixUnit(...)中产生常量影像
Open Google Earth Engine(OEEL)——matrixUnit(...)中产生常量影像
76 0
|
6月前
Google Earth Engine(GEE)——导出指定区域的河流和流域范围
Google Earth Engine(GEE)——导出指定区域的河流和流域范围
256 0
|
6月前
|
传感器 编解码 数据处理
Open Google Earth Engine(OEEL)——哨兵1号数据的黑边去除功能附链接和代码
Open Google Earth Engine(OEEL)——哨兵1号数据的黑边去除功能附链接和代码
121 0
|
6月前
Google Earth Engine(GEE)——当加载图表的时候出现错误No features contain non-null values of “system:time_start“.
Google Earth Engine(GEE)——当加载图表的时候出现错误No features contain non-null values of “system:time_start“.
122 0

热门文章

最新文章
