In my recent project I need to figure out the logic how fields in table CRMD_PRICING are populated.
Take several of them highlighted below for example:
Here is the test data I used to demonstrate the scenario.
I have created a corporate account which is assigned to Sales Organization O 50000732, Distribution Channel 01, Division 02.
And in Pricing->Pricing in the Business Transaction->Determine Pricing Procedures, I maintain a corresponding determination procedure:
The document pricing procedure for my own transaction type ZSRV is maintained as S:
For customer pricing procedure flag, it is maintained in the sales data in my corporate account:
So far all customizing are done.
Now create a new Service order, enter that corporate account as Sold-to Party:
function module CRM_PRICING_PARTNER_CHANGE_EC will be called.

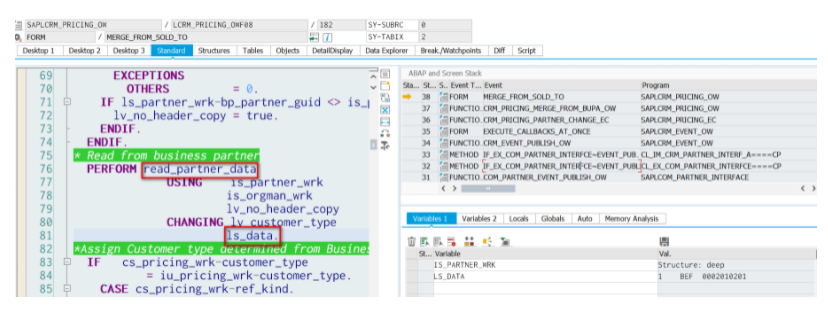

Inside it CRM_PRICING_MERGE_FROM_BUPA_OW will be called to get the pricing data from that corporate account.
Those data are read from account and stored in variable ls_data:
Later they are copied to pricing workarea field by field:
This is how pricing set is created.
Once you saved the service order successfully,
Execute the report below to directly print out the data in CRMD_SHIPPING which belongs to this service order:
REPORT tool_display_order_price_head.
PARAMETERS: objid TYPE crmd_orderadm_h-object_id OBLIGATORY DEFAULT '5700000507',
obtype TYPE crmd_orderadm_h-process_type OBLIGATORY DEFAULT 'SRVO'.
SELECT SINGLE guid INTO @DATA(lv_guid) FROM crmd_orderadm_h
WHERE object_id = @objid AND process_type = @obtype.
IF sy-subrc <> 0.
WRITE:/ ' Service Order does not exist'.
RETURN.
ENDIF.
SELECT SINGLE * INTO @DATA(ls_link) FROM crmd_link
WHERE guid_hi = @lv_guid AND objtype_hi = '05' AND objtype_set = '09'.
IF sy-subrc <> 0.
WRITE:/ 'no price data exists for this order'.
RETURN.
ENDIF.
SELECT SINGLE * INTO @DATA(ls_price) FROM crmd_pricing
WHERE guid = @ls_link-guid_set.
IF sy-subrc <> 0.
WRITE:/ 'no price data exists for this order'.
RETURN.
ENDIF.
cl_crm_1order_set_print_tool=>print_structure( ls_price ).Source code of CL_CRM_1ORDER_SET_PRINT_TOOL:CLASS cl_crm_1order_set_print_tool DEFINITION
PUBLIC
FINAL
CREATE PUBLIC .
PUBLIC SECTION.
CLASS-METHODS print_structure
IMPORTING
!is_data TYPE any .
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS CL_CRM_1ORDER_SET_PRINT_TOOL IMPLEMENTATION.
METHOD print_structure.
DATA(lo_struct_descr) = CAST cl_abap_structdescr( cl_abap_datadescr=>describe_by_data( is_data ) ).
DATA(lt_comp) = lo_struct_descr->components.
DO.
ASSIGN COMPONENT sy-index OF STRUCTURE is_data TO FIELD-SYMBOL(<data>).
IF sy-subrc <> 0.
RETURN.
ENDIF.
READ TABLE lt_comp ASSIGNING FIELD-SYMBOL(<comp>) INDEX sy-index.
IF <data> IS NOT INITIAL.
DATA(lv_color) = sy-index MOD 4.
DATA(lv_print) = |Field: { <comp>-name }, value: { <data> } |.
CASE lv_color.
WHEN 0.
WRITE: / lv_print COLOR COL_NEGATIVE.
WHEN 1.
WRITE: / lv_print COLOR COL_POSITIVE.
WHEN 2.
WRITE: / lv_print COLOR COL_GROUP.
WHEN 3.
WRITE: / lv_print COLOR COL_KEY.
ENDCASE.
ENDIF.
ENDDO.
ENDMETHOD.
ENDCLASS.
