JVM Profiler Reporter介绍

开篇

 JVM Profiler采集完数据后可以通过多种途径上报数据，对接Console，File，redis，kafka等，这篇文章会把源码罗列一下毕竟都很简单。

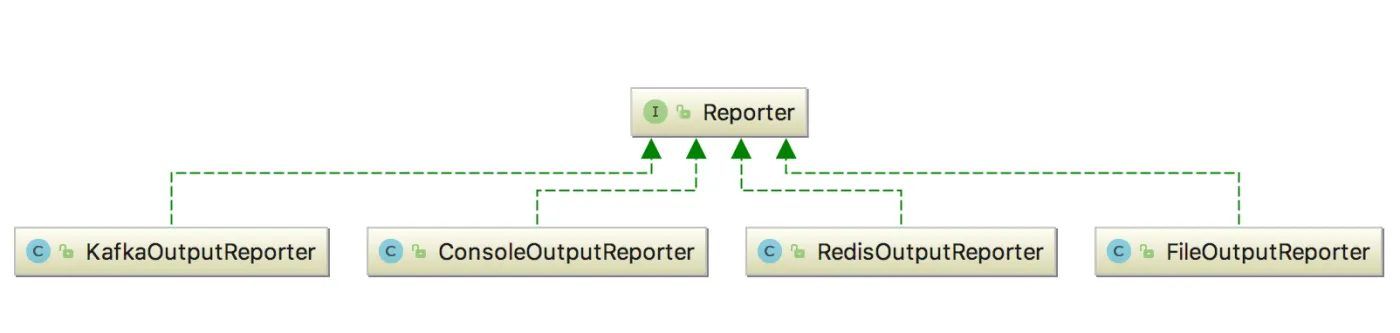

 JVM Profiler提供灵活的框架可以集成更多的Reporter，只要实现Reporter接口即可，看你个人意愿了，反正github上有源码，直接集成编译打包即可。

ConsoleOutputReporter

• 简单明了的通过Sytem.out.println来上报监控数据。

public class ConsoleOutputReporter implements Reporter {
    @Override
    public void report(String profilerName, Map<String, Object> metrics) {
        System.out.println(String.format("ConsoleOutputReporter - %s: %s", profilerName, JsonUtils.serialize(metrics)));
    }

    @Override
    public void close() {
    }
}

FileOutputReporter

• 在指定的目录创建采集数据记录文件。
• 通过FileWriter来往文件写入数据。

public class FileOutputReporter implements Reporter {
    private static final AgentLogger logger = AgentLogger.getLogger(FileOutputReporter.class.getName());

    private String directory;
    private ConcurrentHashMap<String, FileWriter> fileWriters = new ConcurrentHashMap<>();
    private volatile boolean closed = false;

    public FileOutputReporter() {
    }

    public String getDirectory() {
        return directory;
    }

    public void setDirectory(String directory) {
        synchronized (this) {
            if (this.directory == null || this.directory.isEmpty()) {
                this.directory = directory;
            } else {
                throw new RuntimeException(String.format("Cannot set directory to %s because it is already has value %s", directory, this.directory));
            }
        }
    }

    @Override
    public synchronized void report(String profilerName, Map<String, Object> metrics) {
        if (closed) {
            logger.info("Report already closed, do not report metrics");
            return;
        }

        FileWriter writer = ensureFile(profilerName);
        try {
            writer.write(JsonUtils.serialize(metrics));
            writer.write(System.lineSeparator());
            writer.flush();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @Override
    public synchronized void close() {
        closed = true;

        List<FileWriter> copy = new ArrayList<>(fileWriters.values());
        for (FileWriter entry : copy) {
            try {
                entry.flush();
                entry.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    private FileWriter ensureFile(String profilerName) {
        synchronized (this) {
            if (directory == null || directory.isEmpty()) {
                try {
                    directory = Files.createTempDirectory("jvm_profiler_").toString();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }

        return fileWriters.computeIfAbsent(profilerName, t -> createFileWriter(t));
    }

    private FileWriter createFileWriter(String profilerName) {
        String path = Paths.get(directory, profilerName + ".json").toString();
        try {
            return new FileWriter(path, true);
        } catch (IOException e) {
            throw new RuntimeException("Failed to create file writer: " + path, e);
        }
    }
}

KafkaOutputReporter

• 依赖kafka-client的jar包来构建KafkaProducer。
• 通过producer.send来发送采集数据。

public class KafkaOutputReporter implements Reporter {
    private String brokerList = "localhost:9092";
    private boolean syncMode = false;

    private String topicPrefix;

    private ConcurrentHashMap<String, String> profilerTopics = new ConcurrentHashMap<>();

    private Producer<String, byte[]> producer;

    public KafkaOutputReporter() {
    }

    public KafkaOutputReporter(String brokerList, boolean syncMode, String topicPrefix) {
        this.brokerList = brokerList;
        this.syncMode = syncMode;
        this.topicPrefix = topicPrefix;
    }

    @Override
    public void report(String profilerName, Map<String, Object> metrics) {
        ensureProducer();

        String topicName = getTopic(profilerName);

        String str = JsonUtils.serialize(metrics);
        byte[] message = str.getBytes(StandardCharsets.UTF_8);

        Future<RecordMetadata> future = producer.send(
                new ProducerRecord<String, byte[]>(topicName, message));

        if (syncMode) {
            producer.flush();
            try {
                future.get();
            } catch (InterruptedException | ExecutionException e) {
                throw new RuntimeException(e);
            }
        }
    }

   // 省略一些非核心的代码
    private void ensureProducer() {
        synchronized (this) {
            if (producer != null) {
                return;
            }

            Properties props = new Properties();
            props.put("bootstrap.servers", brokerList);
            props.put("retries", 10);
            props.put("batch.size", 16384);
            props.put("linger.ms", 0);
            props.put("buffer.memory", 16384000);
            props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
            props.put("value.serializer", org.apache.kafka.common.serialization.ByteArraySerializer.class.getName());

            if (syncMode) {
                props.put("acks", "all");
            }

            producer = new KafkaProducer<>(props);
        }
    }
}

RedisOutputReporter

• 依赖jedis包来实现redis的读写。
• redis当中存储的采集数据的key是机器ip和时间戳的组合，value是采集的数据。

public class RedisOutputReporter implements Reporter {

    private static final AgentLogger logger = AgentLogger.getLogger(RedisOutputReporter.class.getName());
    private JedisPool redisConn = null;

    //JedisPool should always be used as it is thread safe.
    public void report(String profilerName, Map<String, Object> metrics) {
        ensureJedisConn();
        try {
            Jedis jedisClient = redisConn.getResource();
            jedisClient.set(createOriginStamp(profilerName), JsonUtils.serialize(metrics));
            redisConn.returnResource(jedisClient);
        } catch (Exception err) {
            logger.warn(err.toString());
        }
    }

    public String createOriginStamp(String profilerName) {
        try {
            return (profilerName + "-" + InetAddress.getLocalHost().getHostAddress() + "-" + System.currentTimeMillis());
        } catch (UnknownHostException err) {
            logger.warn("Address could not be determined and will be omitted!");
            return (profilerName + "-" + System.currentTimeMillis());
        }
    }

    public void close() {
        synchronized (this) {
            redisConn.close();
            redisConn = null;
        }
    }

    private void ensureJedisConn() {
        synchronized (this) {
            if (redisConn == null || redisConn.isClosed()) {
                redisConn = new JedisPool(System.getenv("JEDIS_PROFILER_CONNECTION"));
                return;
            }
        }
    }
}
