什么是LNMP？
LNMP(别名LEMP)是指由Linux, Nginx, MySQL/MariaDB, PHP/Perl/Python组合成的动态Web应用程序和服务器，它是一组Web应用程序的基础软件包，在这个基础环境上我们可以搭建任何使用PHP/Perl/Python等语言的动态网站，如商务网站、博客、论坛和开源Web应用程序软件等，它是互联网上被广泛使用的Web网站架构之一。
部署方式
从网站规模大小(访问流量、注册用户等)角度来看，LNMP架构可以使用单机部署方式和集群部署方式。单机部署方式即所有的软件都部署在一台Linux服务器上；集群部署方式可以将Nginx网络服务器，MySQL/MariaDB数据库，PHP软件分开安装到不同的服务器上，它们彼此之间通过TCP网络协议相互通信协助工作，以及对外提供Web应用访问服务。因此，当单台服务器不能满足性能要求时，可以使用集群方式部署。
本教程将指导您如何在RHEL 7/CentOS 7以及Fedora 23/24/25等衍生版本中使用Nginx 1.10, MariaDB 10和PHP 6安装LNMP应用服务器环境。(在其他系统如SUSE、Ubuntu中源码编译安装LNMP同样可以参考本教程。)
前提要求
准备2台RHEL 7或CentOS 7服务器，一台用于安装MariaDB，另一台用于安装Nginx和PHP。当然你也可以仅仅使用1台服务器部署LNMP以通过实验来验证LNMP。
| HOSTNAME | IP | OS | NODE |
| hming-server217-mdb |
10.0.6.217 | CentOS 7.2 x86_64 | MariaDB |
| hming-server218-web | 10.0.6.218 | CentOS 7.2 x86_64 | MariaDB,Nginx,PHP |
主软件包(源码包)
DB mariadb-10.1.20.tar.gz
PHP php-5.6.30.tar.bz2
Nginx nginx-1.10.2.tar.gz
注意：主软件包在这之前我已经提前下载好了，可能并不是最新和稳定版，你也可以根据你的需求选择其他版本。
依赖软件
源码编译安装LNMP有许多依赖软件（如gcc、make）是必要的，一般可以通过YUM软件管理程序来安装，另外小部分需要源码编译安装。
通过yum安装gcc、gcc-c++、make等必需软件包
|
1
|
# yum install -y gcc gcc-c++ make automake
|
安装MariaDB
1. 使用yum安装gcc、make、bison、ncurses-devel等依赖软件包
|
1
|
# yum install zlib-devel ncurses ncurses-devel bison
|
2. 安装cmake，cmake是编译MySQL/MariaDB的必要工具(MySQL5.6/MariaDB 10及以后的版本) 你可以在网站https://cmake.org/中下载cmake软件包
将软件包上传到/usr/local/src目录下，然后解压cmake包，cd到cmake目录执行./bootstrap脚本进行安装，同时可以使用--prefix=<install dir>选项指定安装的目录。
|
1
2
3
4
|
# tar -zxf cmake-3.7.2.tar.gz
# cd cmake-3.7.2/
# ./bootstrap --prefix=/usr/local/cmake
# make && make install
|
当安装完之后，你可以使用执行/usr/local/cmake/bin/cmake --version查看安装的cmake版本
|
1
2
3
4
|
[root@hming-server217-mdb ~ ]
# /usr/local/cmake/bin/cmake --version
cmake version 3.7.2
CMake suite maintained and supported by Kitware (kitware.com
/cmake
).
|
3. 安装完cmake编译工具之后，接下来我们安装MariaDB(你可以访问https://mariadb.org/下载MariaDB), 首先创建MariaDB安装目录/usr/local/mysql和数据库服务器的数据目录/data/mysql/webdata，并创建MySQL用户，并将/data/mysql/webdata目录的所属主权限修改为mysql用户
创建安装目录和数据目录
|
1
2
|
# mkdir /usr/local/mysql
# mkdir /data/mysql/webdata -p
|
创建mysql用户，并修改数据目录的权限
|
1
2
3
|
# groupadd mysql
# useradd -r -g mysql -s /sbin/nologin mysql -M
# chown -R mysql:mysql /data/mysql/
|
4. 编译安装MariaDB，将MariaDB软件包解压后使用cmake进行编译，根据需求选择相应的编译参数进行编译(查看编译选项/usr/local/cmake/bin/cmake . -LH). (或者访问MariaDB编译安装帮助文档https://mariadb.com/kb/en/mariadb/compiling-mariadb-from-source/)
|
1
2
3
4
|
[root@hming-server217-mdb
/usr/local/src
]
# tar -zxf mariadb-10.1.20.tar.gz
[root@hming-server217-mdb
/usr/local/src
]
# cd mariadb-10.1.20/
[root@hming-server217-mdb
/usr/local/src/mariadb-10
.1.20 ]
# /usr/local/cmake/bin/cmake . -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DMYSQL_DATADIR=/data/mysql/webdata -DSYSCONFDIR=/etc -DMYSQL_TCP_PORT=3306 -DMYSQL_USER=mysql -DDEFAULT_CHARSET=utf8 -DEXTRA_CHARSETS=all -DDEFAULT_COLLATION=utf8_general_ci -DMYSQL_UNIX_ADDR=/data/mysql/webdata/mysql.sock -DWITH_INNOBASE_STORAGE_ENGINE=1 -DWITH_MYISAM_STORAGE_ENGINE=1 -DWITH_MEMORY_STORAGE_ENGINE=1 -DWITH_PARTITION_STORAGE_ENGINE=1 -DWITH_ARCHIVE_STORAGE_ENGINE=1 -DENABLED_LOCAL_INFILE=1 -DWITH_EMBEDDED_SERVER=1 -DWITH_READLINE=1 -DWITH_DEBUG=0
|
执行gmake 和 gmake install进行最后的安装
|
1
2
|
[root@hming-server217-mdb
/usr/local/src/mariadb-10
.1.20 ]
# gmake
[root@hming-server217-mdb
/usr/local/src/mariadb-10
.1.20 ]
# gmake install
|
5. 配置mysql环境变量，如果不配置默认系统找不到mysql的可执行程序和命令，否则你必须使用全路径执行与mysql相关的任何命令，查看系统默认的环境变量
使用export命令添加mysql环境变量
|
1
2
3
|
[root@hming-server217-mdb ~ ]
# export PATH=$PATH:/usr/local/mysql/bin
[root@hming-server217-mdb ~ ]
# echo $PATH
/usr/local/sbin
:
/usr/local/bin
:
/usr/sbin
:
/usr/bin
:
/root/bin
:
/usr/local/mysql/bin
|
最后将mysql环境配置添加到/etc/profile或者/etc/profile.d/的自定义文件中
|
1
2
|
[root@hming-server217-mdb ~ ]
# echo "export PATH=$PATH:/usr/local/mysql/bin" > /etc/profile.d/mysql.sh
[root@hming-server217-mdb ~ ]
# source /etc/profile.d/mysql.sh
|
配置了环境变量，我们就可以直接在shell终端下执行mysql命令，使用mysql -V查看mysql版本
|
1
2
|
[root@hming-server217-mdb ~ ]
# mysql -V
mysql Ver 15.1 Distrib 10.1.20-MariaDB,
for
Linux (x86_64) using readline 5.1
|
6. 添加MariaDB库文件
|
1
|
[root@hming-server217-mdb ~ ]
# echo "/usr/local/mysql/lib" >> /etc/ld.so.conf.d/mariadb-x86_64.conf
|
7. 拷贝MariaDB服务启动脚本到/etc/init.d/目录中
|
1
2
3
4
5
|
[root@hming-server217-mdb ~ ]
# cp /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
[root@hming-server217-mdb ~ ]
# chmod 755 /etc/init.d/mysqld
[root@hming-server217-mdb ~ ]
# chkconfig --add mysqld
[root@hming-server217-mdb ~ ]
# chkconfig mysqld on
[root@hming-server217-mdb ~ ]
# systemctl daemon-reload
|
8. 执行初始化数据库脚本，安装MariaDB基础数据库(执行./mysql_install_db --basedir=/usr/local/mysql --datadir=/data/mysql/webdata --user=mysql --no-defaults)
|
1
2
3
4
5
|
[root@hming-server217-mdb ~ ]
# cd /usr/local/mysql/scripts/
[root@hming-server217-mdb
/usr/local/mysql/scripts
]
# ./mysql_install_db --basedir=/usr/local/mysql --datadir=/data/mysql/webdata --user=mysql --no-defaults
[root@hming-server217-mdb
/usr/local/mysql/scripts
]
# ls /data/mysql/webdata/
aria_log.00000001 ibdata1 ib_logfile1 performance_schema
aria_log_control ib_logfile0 mysql
test
|
9. 配置/etc/my.cnf，该文件是mysql服务的主要配置文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
[root@hming-server217-mdb ~ ]
# cp /etc/my.cnf /etc/my.cnf.save
[root@hming-server217-mdb ~ ]
# cat /etc/my.cnf
[client]
port=3306
socket=
/data/mysql/webdata/mysql
.sock
default-character-
set
=utf8
[mysqld]
port=3306
user=mysql
basedir=
/usr/local/mysql
datadir=
/data/mysql/webdata
socket=
/data/mysql/webdata/mysql
.sock
character-
set
-server=utf8
external-locking=FALSE
skip-name-resolv
default-storage-engine=InnoDB
back_log=1024
transaction_isolation=REPEATABLE-READ
max_connections=5000
max_connect_errors=6000
open_files_limit=65535
table_open_cache=512
[mysqldump]
quick
max_allowed_packet=32M
[mysql]
no-auto-rehash
default-character-
set
=utf8
[mysqld_safe]
open
-files-limit=8192
log-error=
/var/log/mariadb/mariadb
.log
pid-
file
=
/var/run/mariadb/mariadb
.pid
|
创建/var/log/mariadb和/var/run/mariadb目录
|
1
2
3
4
|
[root@hming-server217-mdb ~ ]
# mkdir /var/log/mariadb
[root@hming-server217-mdb ~ ]
# mkdir /var/run/mariadb
[root@hming-server217-mdb ~ ]
# chown mysql:mysql /var/log/mariadb
[root@hming-server217-mdb ~ ]
# chown mysql:mysql /var/run/mariadb
|
10. 启动MariaDB服务
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
[root@hming-server217-mdb ~ ]
# systemctl start mysqld
[root@hming-server217-mdb ~ ]
# systemctl status mysqld
[root@hming-server217-mdb ~ ]
# systemctl status mysqld
● mysqld.service - LSB: start and stop MySQL
Loaded: loaded (
/etc/rc
.d
/init
.d
/mysqld
)
Active: active (running) since Fri 2017-06-02 23:53:09 CST; 3 days ago
Docs:
man
:systemd-sysv-generator(8)
Process: 27419 ExecStop=
/etc/rc
.d
/init
.d
/mysqld
stop (code=exited, status=0
/SUCCESS
)
Process: 27449 ExecStart=
/etc/rc
.d
/init
.d
/mysqld
start (code=exited, status=0
/SUCCESS
)
CGroup:
/system
.slice
/mysqld
.service
├─27460
/bin/sh
/usr/local/mysql/bin/mysqld_safe
--datadir=
/data/mysql/webdata
--pid-
file
=
/data/mysq
...
└─27595
/usr/local/mysql/bin/mysqld
--basedir=
/usr/local/mysql
--datadir=
/data/mysql/webdata
--plugi...
Jun 02 23:53:08 hming-server217-mdb systemd[1]: Starting LSB: start and stop MySQL...
Jun 02 23:53:08 hming-server217-mdb mysqld[27449]: Starting MySQL.170602 23:53:08 mysqld_safe Logging to
'/...og'
.
Jun 02 23:53:09 hming-server217-mdb mysqld[27449]: SUCCESS!
Jun 02 23:53:09 hming-server217-mdb systemd[1]: Started LSB: start and stop MySQL.
Hint: Some lines were ellipsized, use -l to show
in
full.
|
查看MariaDB服务进程
|
1
2
3
4
|
[root@hming-server217-mdb ~ ]
# ps aux | grep mysql
root 27460 0.0 0.0 115380 1744 ? S 23:53 0:00
/bin/sh
/usr/local/mysql/bin/mysqld_safe
--datadir=
/data/mysql/webdata
--pid-
file
=
/data/mysql/webdata/hming-server217-mdb
.pid
mysql 27595 1.0 5.2 1209380 99428 ? Sl 23:53 0:00
/usr/local/mysql/bin/mysqld
--basedir=
/usr/local/mysql
--datadir=
/data/mysql/webdata
--plugin-
dir
=
/usr/local/mysql/lib/plugin
--user=mysql --log-error=
/var/log/mariadb/mariadb
.log --
open
-files-limit=8192 --pid-
file
=
/data/mysql/webdata/hming-server217-mdb
.pid --socket=
/data/mysql/webdata/mysql
.sock --port=3306
root 27627 0.0 0.0 112644 952 pts
/2
S+ 23:53 0:00
grep
--color=auto mysql
|
11. 执行mysql_secure_installation初始化数据库，设mysql用户root密码
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
[root@hming-server217-mdb ~ ]
# mysql_secure_installation
NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
SERVERS IN PRODUCTION USE! PLEASE READ EACH STEP CAREFULLY!
In order to log into MariaDB to secure it, we'll need the current
password
for
the root user. If you've just installed MariaDB, and
you haven't
set
the root password yet, the password will be blank,
so you should just press enter here.
Enter current password
for
root (enter
for
none):
OK, successfully used password, moving on...
Setting the root password ensures that nobody can log into the MariaDB
root user without the proper authorisation.
Set root password? [Y
/n
] y
New password:
Re-enter new password:
Password updated successfully!
Reloading privilege tables..
... Success!
By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created
for
them. This is intended only
for
testing, and to
make
the installation
go a bit smoother. You should remove them before moving into a
production environment.
Remove anonymous
users
? [Y
/n
] y
... Success!
Normally, root should only be allowed to connect from
'localhost'
. This
ensures that someone cannot guess at the root password from the network.
Disallow root login remotely? [Y
/n
] y
... Success!
By default, MariaDB comes with a database named
'test'
that anyone can
access. This is also intended only
for
testing, and should be removed
before moving into a production environment.
Remove
test
database and access to it? [Y
/n
] y
- Dropping
test
database...
... Success!
- Removing privileges on
test
database...
... Success!
Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.
Reload privilege tables now? [Y
/n
] y
... Success!
Cleaning up...
All
done
! If you've completed all of the above steps, your MariaDB
installation should now be secure.
Thanks
for
using MariaDB!
|
12. 登录MariaDB数据库
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
[root@hming-server217-mdb ~ ]
# mysql -uroot -p
Enter password:
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection
id
is 353
Server version: 10.1.20-MariaDB Source distribution
Copyright (c) 2000, 2016, Oracle, MariaDB Corporation Ab and others.
Type
'help;'
or
'\h'
for
help. Type
'\c'
to
clear
the current input statement.
MariaDB [(none)]>
select
version();
+-----------------+
| version() |
+-----------------+
| 10.1.20-MariaDB |
+-----------------+
1 row
in
set
(0.00 sec)
MariaDB [(none)]>
|
安装Nginx
1. 安装依赖软件包
|
1
|
[root@hming-server218-web ~ ]
# yum install gcc gcc-c++ zlib zlib-devel pcre pcre-devel openssl-devel gd gd-devel perl-devel perl-ExtUtils-Embed
|
2. 创建nginx用户
|
1
2
|
[root@hming-server218-web ~ ]
# groupadd nginx
[root@hming-server218-web ~ ]
# useradd -g nginx -s /sbin/nologin nginx -M
|
3. 编译安装Nginx
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
[root@hming-server218-web
/usr/local/src
]
# tar -zxf nginx-1.10.2.tar.gz
[root@hming-server218-web
/usr/local/src
]
# cd nginx-1.10.2/
[root@hming-server218-web
/usr/local/src/nginx-1
.10.2 ]
# ./configure \
--user=nginx \
--group=nginx \
--prefix=
/usr/local/nginx
\
--pid-path=
/var/run/nginx/nginx
.pid \
--lock-path=
/var/lock/subsys/nginx
\
--with-http_stub_status_module \
--with-pcre \
--with-http_ssl_module \
--with-mail_ssl_module \
--with-http_gzip_static_module \
--http-log-path=
/var/log/nginx/access
.log \
--error-log-path=
/var/log/nginx/error
.log \
--http-client-body-temp-path=
/tmp/nginx/client_body
\
--http-proxy-temp-path=
/tmp/nginx/proxy
\
--http-fastcgi-temp-path=
/tmp/nginx/fastcgi
\
--http-uwsgi-temp-path=
/tmp/nginx/uwsgi
\
--with-http_degradation_module \
--with-http_realip_module \
--with-http_addition_module \
--with-http_sub_module \
--with-http_perl_module \
--with-http_image_filter_module=dynamic \
--with-http_flv_module
[root@hming-server218-web
/usr/local/src/nginx-1
.10.2 ]
# make && make install
|
4. 启动Nginx服务
|
1
2
3
4
5
6
7
|
[root@hming-server218-web ~ ]
# ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/
[root@hming-server218-web ~ ]
# mkdir /tmp/nginx
[root@hming-server218-web ~ ]
# nginx
[root@hming-server218-web ~ ]
# ps -ef | grep nginx
root 27913 1 0 00:49 ? 00:00:00 nginx: master process nginx
nginx 27914 27913 0 00:49 ? 00:00:00 nginx: worker process
root 27923 22381 0 00:49 pts
/1
00:00:00
grep
--color=auto nginx
|
5. 添加防火墙
|
1
2
3
4
|
[root@hming-server218-web ~ ]
# firewall-cmd --permanent --add-port=80/tcp
success
[root@hming-server218-web ~ ]
# firewall-cmd --reload
success
|

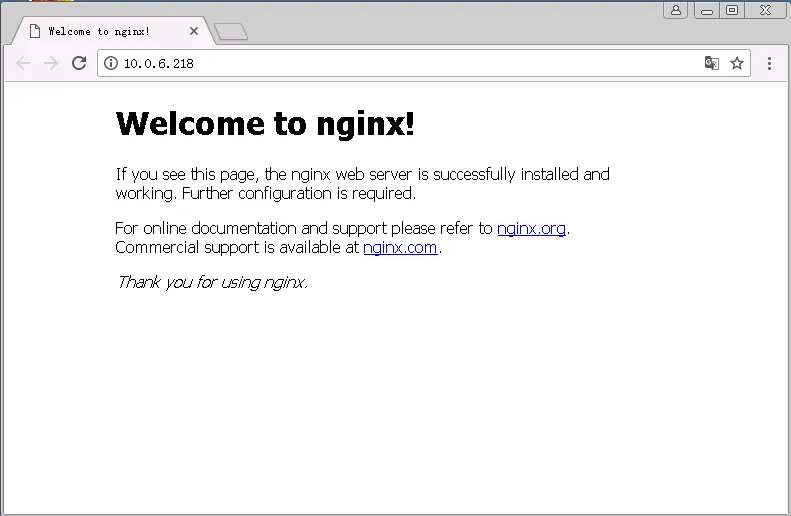

6. 通过客户端访问http://10.0.6.218
本文转自 HMLinux 51CTO博客，原文链接:
