一、规划
|
1
2
3
4
5
6
7
8
|
对外VIP:10.10.10.10
对内VIP:192.168.10.10
LVS_MASTER:10.10.10.28(eth0)
192.168.10.128(eth1)
LVS_BACKUP:10.10.10.29(eth0)
192.168.10.129(eth1)
WEB1:192.168.10.130
WEB2:192.168.10.131
|
二、释义
LVS是Linux Virtual Server的简写，意即Linux虚拟服务器，是一个虚拟的服务器集群系统。
三、安装
①安装
|
1
2
3
4
5
6
7
8
|
# yum install ipvsadm
# yum install -y gcc openssl openssl-devel
# wget http://www.keepalived.org/software/keepalived-1.2.19.tar.gz
# tar -zxvf keepalived-1.2.19.tar.gz
# cd keepalived-1.2.19
# ./configure --sysconf=/etc --prefix=/usr/local/keepalived
# make
# make install
|
②开启路由转发
|
1
2
|
# cat /proc/sys/net/ipv4/ip_forward
# echo 1 > /proc/sys/net/ipv4/ip_forward
|
四、配置
①配置keepalived
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
# vi /etc/keepalived/keepalived.conf
! Configuration File
for
keepalived
global_defs {
notification_email {
root@localhost
abc@163.com
##设置邮件报警地址
}
notification_email_from zhi@zhi.com
smtp_server 127.0.0.1
smtp_connect_timeout 3
router_id LVS_DEVEL
}
vrrp_instance VI_1 {
##配置vrrp实例1
state MASTER
##BACKUP修改为BACKUP
interface eth0
virtual_router_id 51
priority 101
##BACKUP修改为100或更小
advert_int 1
garp_master_delay 5
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.10.10.10
}
}
vrrp_instance VI_2 {
##配置vrrp实例2
state MASTER
##BACKUP修改为BACKUP
interface eth1
virtual_router_id 52
priority 101
##BACKUP修改为100或更小
advert_int 1
garp_master_delay 5
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.10.10
}
virtual_server 10.10.10.10 80 {
delay_loop 6
lb_algo rr
lb_kind NAT
nat_mask 255.255.255.0
persistence_timeout 5
protocol TCP
real_server 192.168.10.130 80 {
weight 1
HTTP_GET {
url {
path /
status_code 200
}
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
real_server 192.168.10.131 80 {
weight 1
HTTP_GET {
url {
path /
status_code 200
}
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
}
|
②配置real_server，即后端WEB服务器
安装参见http://wangzhijian.blog.51cto.com/6427016/1697418下的编译安装Nginx,或者直接yum安装Nginx、Apache。
|
1
2
3
|
# vi /usr/html/index.html
<h1>Success!<
/h1
>
<p>Welcome to LINUX WEB System 10.130!<
/p
>
##在两台web服务器上加个简单网页
|
五、测试
|
1
2
3
4
5
|
# lsmod |grep ip_vs ##查看内核中是否已加载ip_vs模块
ip_vs 136798 0
nf_conntrack 105702 7 ip_vs,nf_nat,nf_nat_ipv4,nf_nat_ipv6,xt_conntrack,nf_conntrack_ipv4,nf_conntrack_ipv6
libcrc32c 12644 2 xfs,ip_vs

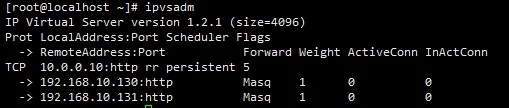

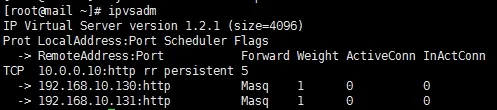

# systemctl start keepalived
|

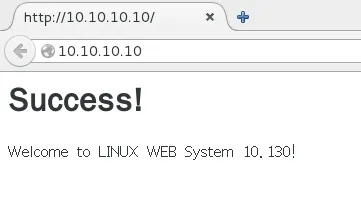

浏览器输入10.10.10.10访问

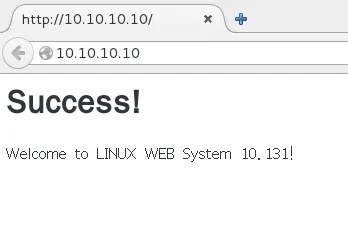

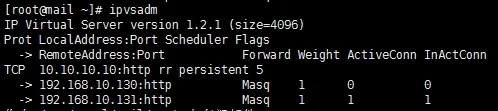

默认访问的是192.168.10.130，我们将10.130的web服务断掉，看看会不会切换
10.130:
|
1
|
# nginx -s stop
|
10.130:
# nginx
节点恢复，已添加至系统中了。
