手把手教你接口自动化测试 – SoapUI & Groovy

简介: 原文:手把手教你接口自动化测试 – SoapUI & Groovy 手把手教你接口自动化测试 – SoapUI & Groovy   关键词:SoapUI接口测试,接口自动化测试,数据驱动测试,SoapUI进阶使用, Groovy in SoapUI, SoapUI中Groovy的使用,数据分离。
原文:手把手教你接口自动化测试 – SoapUI & Groovy

手把手教你接口自动化测试 – SoapUI & Groovy



关键词:SoapUI接口测试,接口自动化测试,数据驱动测试,SoapUI进阶使用, Groovy in SoapUI, SoapUI中Groovy的使用,数据分离。



阅读这篇文章需要一定的SoapUI基础,至少入过门,另外还需要一些Groovy的知识,当然如果你会java 也可以,这里用到的Groovy知识和Java很类似。

另外,本文的思路和我上一篇文章<零成本实现接口自动化测试 – Java+TestNG 测试Restful service>很相似,只不过把Java+TestNG的组合换成了SoapUI+Groovy, 另外测试对象也换成了基于Soap的web service, 依旧用Excel来管理数据,做到数据分离。

由于我用到的SoapUI是免费版本,相比Pro版,少很多的功能,像DataLoop之类的,所以只能通过Groovy写一些脚本来做数据驱动的测试。

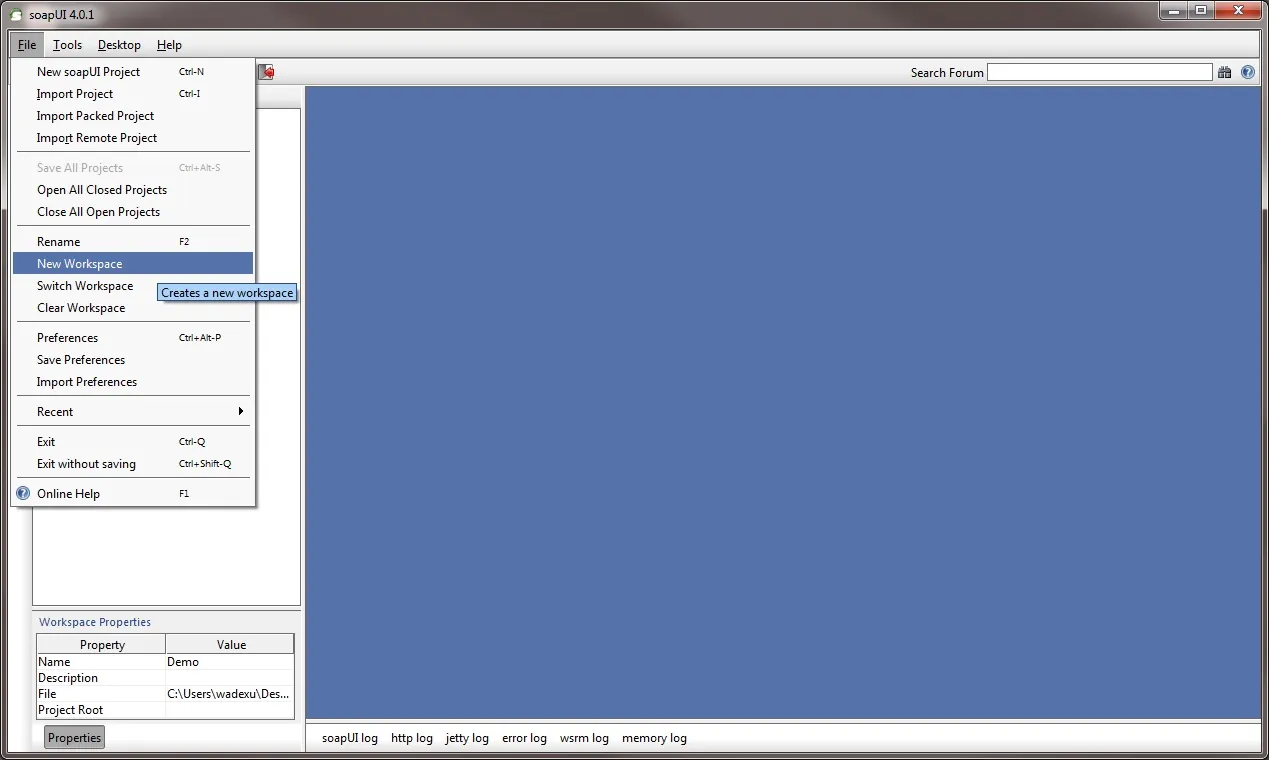

首先打开SoapUI, 新建一个Workspace 名为Demo





然后点击File->New soapUI Project



然后输入你的Project Name, WSDL 地址 点击OK





输入服务的用户名密码 点击OK



项目工程建好了



右击ServicePort 建立TestSuite



以其中一个接口为例 来生成用例



输入TestSuite name 然后确认

工程结构如下

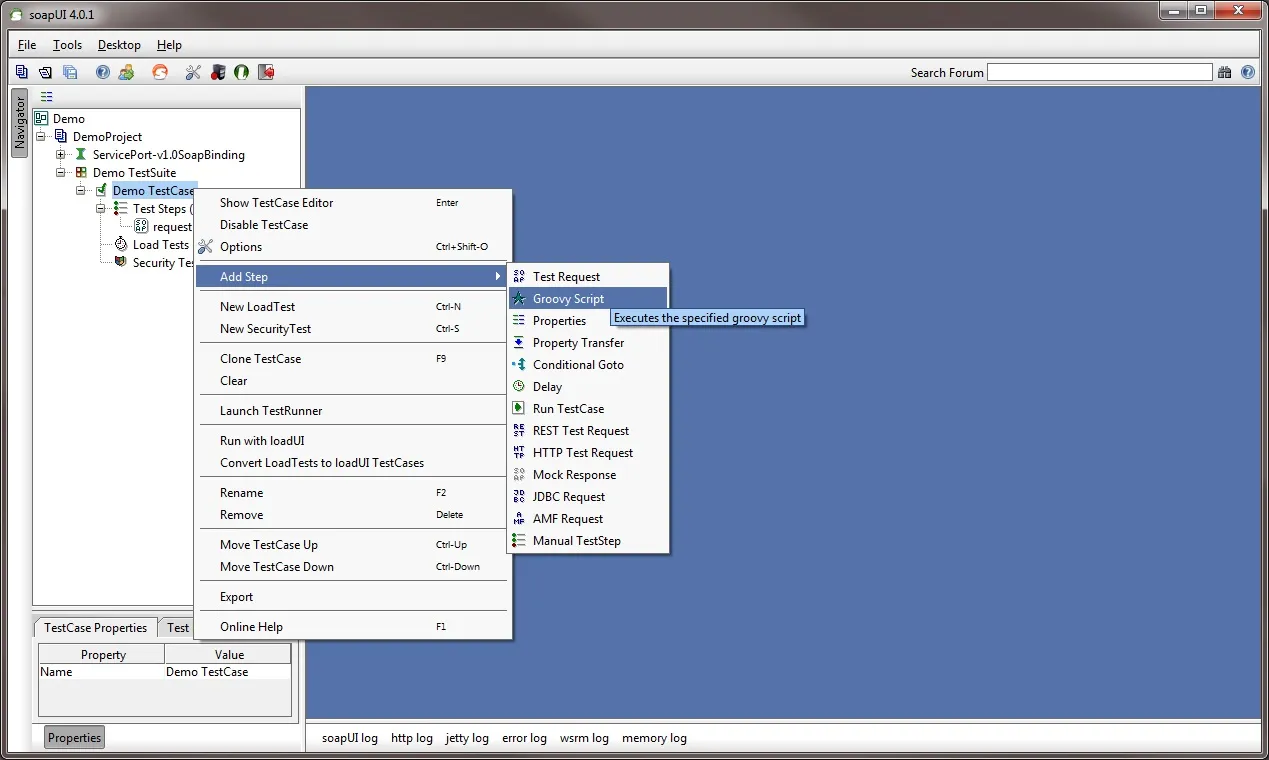

通过右击TestCase -> Add Step  增加 Groovy Script 和 Properties



增加四个Groovy Script, 并且命名成 Start, Process, Check Response, End

增加5个 Properties, 并且命名成Input, Baseline, Output, Result, fieldResult

调整它们的顺序,最后形成下图的工程目录结构





Start脚本主要创建log文件

/*Check the log file, create folder and file if necessary*/
import java.io.*;

def cal = Calendar.instance;
def sysdate = cal.getTime();
def Y = cal.get(Calendar.YEAR);
def M = cal.get(Calendar.MONTH)+1;
def D = cal.get(Calendar.DATE);
if (D<10) D = "0"+D;
if (M<10) M = "0"+M;
date = Y+"-"+M+"-"+D;
time=sysdate.toString().replaceAll(':','-')

def testSuites=testRunner.testCase.getTestSuite();
def testcase = testRunner.testCase;

def logFolder = new File(context.expand('${#Project#LogFolder}'));
def responseLogName = (context.expand('${#Project#LogFolder}')+date+'\\'+testSuites.name+' - '+ testcase.name +' - ' + time+".log");
def responseDetailLogName = (context.expand('${#Project#LogFolder}')+date+'\\'+testSuites.name+' - ' + testcase.name +' - ' + time + " Response Detail.log");
def responseLogFile = new File(responseLogName);
def responseDetailLogFile = new File(responseDetailLogName);
def subFolder= new File (context.expand('${#Project#LogFolder}')+date+'\\')

/*Set date and Log Name to Project - Testcase Properties*/
testcase.setPropertyValue('date', date);
testcase.setPropertyValue('LogFile - Check Response', responseLogName);
testcase.setPropertyValue('LogFile - Response Detail', responseDetailLogName);

if(!logFolder.exists()){
    logFolder.mkdirs();
    }

if(!subFolder.exists()){
    subFolder.mkdirs();
    }

/*Check the file, create a new one if not found*/
if(!responseLogFile.exists()){
    responseLogFile.createNewFile();
    }
responseLogFile.append("---------------Test Start on "+sysdate+" ------------------------"+'\n');

if(!responseDetailLogFile.exists()){
    responseDetailLogFile.createNewFile();
    }
responseDetailLogFile.append("---------------Test Start on "+sysdate+" ------------------------"+'\n');
View Script - Start



Process脚本是整个工程的核心,读取Excel数据文件的Input, Baseline 放入二维数组,然后循环读入Input和Baseline这两个Properties, 调用request, 取到Ouput和Result Properties的值放入Output, Result数组,最后更新Excel的Output, Result, Comparison sheet。

import java.io.*;
import jxl.*;
import java.text.DecimalFormat;

def readInput(workbook,inputSheetName)
{
    Sheet sheet=workbook.getSheet(inputSheetName);

    rows = sheet.getRows();
    columns = sheet.getColumns();

/*Get content into array*/
    input = new Object [columns][rows]
    for (a=0;a<columns;a++)
        {
        for (b=0;b<rows;b++)
            {
                input[a][b]= sheet.getCell(a,b).getContents();
            }
        }
}

def readBaseline(workbook,sheetName)
{
    Sheet sheet=workbook.getSheet(sheetName);

    Rows = sheet.getRows();
    Columns = sheet.getColumns();

/*Get content into array*/
    baseline = new Object [Columns][Rows]
    for (a=0;a<Columns;a++)
        {
        for (b=0;b<Rows;b++)
            {
                baseline[a][b]= sheet.getCell(a,b).getContents();
            }
        }
}

def updateOutput(writableWorkbook,sheetName,start_row,rows,columnNo,result,resultTag){

        Sheet[] sheet= writableWorkbook.getSheets();
        ws = writableWorkbook.getSheet(sheetName);
        if(ws==null){
        ws = writableWorkbook.createSheet(sheetName,sheet.length)
        }
        for (a=0;a<columnNo;a++)
        {
            ws.addCell(new jxl.write.Label(a,0,result[a][0]));
            for (b=start_row;b<rows;b++)
            {
                wc = new jxl.write.WritableCellFormat();
                if (resultTag[a][b]=='PASS')
                {
                    wc.setBackground(jxl.format.Colour.WHITE);
                    ws.addCell(new jxl.write.Label(a,b,result[a][b],wc));
                }
                else if(resultTag[a][b]=='FAIL'){
                    wc.setBackground(jxl.format.Colour.RED);
                    ws.addCell(new jxl.write.Label(a,b,result[a][b],wc));
                }
            }
        }
}

def updateResult(writableWorkbook,sheetName,start_row,rows,columnNo,result){

        Sheet[] sheet= writableWorkbook.getSheets();
        ws = writableWorkbook.getSheet(sheetName);
        if(ws==null){
        ws = writableWorkbook.createSheet(sheetName,sheet.length)
        }
        for (a=0;a<columnNo;a++)
        {
            ws.addCell(new jxl.write.Label(a,0,result[a][0]));
            for (b=start_row;b<rows;b++)
            {
               wcf = new jxl.write.WritableCellFormat();
               wcf.setBackground(jxl.format.Colour.RED);

                  if(result[a][b] == 'FAIL'){
                       ws.addCell(new jxl.write.Label(a,b,result[a][b],wcf));
                  }    else
                    ws.addCell(new jxl.write.Label(a,b,result[a][b]));
            }
        }

        wc = new jxl.write.WritableCellFormat();
          wcc = new jxl.write.WritableCellFormat();
          wc.setBackground(jxl.format.Colour.GRAY_25);
          wcc.setBackground(jxl.format.Colour.LIGHT_TURQUOISE);
          ws.addCell(new jxl.write.Label(0,rows-3,result[0][rows-3],wcc));
          ws.addCell(new jxl.write.Label(0,rows-2,result[0][rows-2],wc));
        ws.addCell(new jxl.write.Label(0,rows-1,result[0][rows-1],wc));

}

def updateComparison(writableWorkbook,sheetName,start_row,rows,columnNo,output,outputTag,result,baseline){

        Sheet[] sheet= writableWorkbook.getSheets();
        ws = writableWorkbook.getSheet(sheetName);
        if(ws==null){
        ws = writableWorkbook.createSheet(sheetName,sheet.length)
        }
        for (a=0;a<columnNo;a++)
        {
            ws.addCell(new jxl.write.Label(a,0,output[a][0]));

            x= 1;
            for (b=start_row;b<rows;b++)
            {
                if(result[1][b] == 'FAIL'){
                  wc = new jxl.write.WritableCellFormat();
                  if (outputTag[a][b]=='PASS')
                  {
                        wc.setBackground(jxl.format.Colour.WHITE);
                     ws.addCell(new jxl.write.Label(a,x,output[a][b],wc));
                  }
                  else {
                     wc.setBackground(jxl.format.Colour.RED);
                     ws.addCell(new jxl.write.Label(a,x,output[a][b],wc));
                  }
                wbc = new jxl.write.WritableCellFormat();
                 wbc.setBackground(jxl.format.Colour.ICE_BLUE);
                ws.addCell(new jxl.write.Label(a,x+1,baseline[a][b],wbc));
                x+=2;
              }
            }
        }
}

def removeSheetByName(writableWorkbook, name){

        Sheet[] sheet= writableWorkbook.getSheets();
        ws = writableWorkbook.getSheet(name);
        if(ws != null){
            for (i = 0; i < sheet.length; i++) {
                sheetName = writableWorkbook.getSheet(i).getName();
                if (sheetName.equalsIgnoreCase(name)) {
                    writableWorkbook.removeSheet(i);
                }
            }
        }
}

def setProperties(Name,Value,Place)
{
    name = Name;
    target = testRunner.testCase.getTestStepByName(Place);
    target.setPropertyValue(name,Value);
    }

def cleanProperty(PropertyListName)
{
         PropertyList = testRunner.testCase.getTestStepByName(PropertyListName);
         size=PropertyList.getPropertyCount();
         if (size!=0)
         {
                   for (i=0;i<size;i++)
                   {
                            PropertyList.removeProperty(PropertyList.getPropertyAt(0).name);
                   }
         }
}

def logFile = new File(context.expand('${#TestCase#LogFile - Check Response}'));
def xlsName = context.expand('${#TestCase#Workbook}');

def project = testRunner.testCase.getTestSuite().getProject();
def testSuite = testRunner.testCase.getTestSuite();
def testcase = testRunner.testCase
def requests = testcase.getTestStepsOfType( com.eviware.soapui.impl.wsdl.teststeps.WsdlTestRequestStep.class )
def request = requests[0];

inputSheetName = "Input";
baselineSheet = "Baseline";
outputSheet = "Output";
resultSheet = "Result";
fieldResult = testcase.getTestStepByName('fieldResult');
ComparisonSheet = "Comparison";

Baseline = testcase.getTestStepByName(baselineSheet);
baselineSize = Baseline.getPropertyCount();
Output = testcase.getTestStepByName(outputSheet);

def cal = Calendar.instance;
def sysdate = cal.getTime();
sleepTime=context.expand('${#Project#sleepTime}').toInteger()

try{
       Workbook workbook=Workbook.getWorkbook(new File(xlsName));
       cleanProperty(inputSheetName);
       readInput(workbook,inputSheetName);

    for (i=0;i<columns;i++)
    {
      setProperties(input[i][0],'',inputSheetName)
    }

      cleanProperty(baselineSheet);
      readBaseline(workbook,baselineSheet);
    for (i=0;i<Columns;i++)
    {
      setProperties(baseline[i][0],'',baselineSheet)
    }
       workbook.close();

}catch(Exception e){
      e.printStackTrace();
}

/*-----------Set runSelect as 'true' in Project property to run selected test cases from startTag till endTag-------*/
def runSelected = context.expand('${#Project#runSelected}')
start_Test=1;
end_Test=rows-1;

def passNumbers = 0;
def decFormat = new DecimalFormat("##.00%");


if ('true'.equalsIgnoreCase(runSelected))
{
    startTag=context.expand('${#Project#startTag}').toInteger();
     endTag=context.expand('${#Project#endTag}').toInteger();

    if((0<startTag)&&(startTag<rows)&&(endTag>=startTag)&&(rows>endTag)){
    start_Test=startTag;
    end_Test=endTag;
    }
}

    result = new Object [2][rows+3]
    result[0][0]='Case Description';
    result[1][0]='Result'
    result[0][rows+1]='Start Time:';
    result[1][rows+1]=sysdate.toString();

/*--New object and put the output name and value into this list--*/
    output = new Object [baselineSize][rows]
    outputTag = new Object [baselineSize][rows]
    for (i=0;i<baselineSize;i++)
    {
        output[i][0]= Baseline.getPropertyAt(i).name;
        outputTag[i][0]= 'PASS';
        }

    for (m=start_Test;m<=end_Test;m++)
    {
         logFile.append('\n'+ testcase.name + ": "+m+" "+ ". "+sysdate+'\n');
        for (i=0;i<columns;i++)
        {
            setProperties(input[i][0],input[i][m],inputSheetName)
        }
        for (j=0;j<Columns;j++)
        {
             setProperties(baseline[j][0],baseline[j][m],baselineSheet)
        }

        testRunner.runTestStepByName(request.name);
        Thread.sleep(sleepTime);
        testRunner.runTestStepByName("Check Response");

        result[0][m]=context.expand('${'+inputSheetName+'#Case Description}')
        result[1][m]=context.expand('${'+resultSheet+'#result}')

        if(result[1][m] == 'PASS'){
                 passNumbers++;
        }

        for (i=0;i<baselineSize;i++)
        {
            output[i][m]= Output.getPropertyAt(i).value;
            outputTag[i][m]= fieldResult.getPropertyAt(i).value;
        }
}
          result[0][rows+2]='End Time:';
          result[1][rows+2]=sysdate.toString();
          result[0][rows]='Pass Percentage:';

          passPercentage = decFormat.format(passNumbers/(end_Test-start_Test+1));
          result[1][rows] = passPercentage

/*--------------Update Output, Result, Comparison sheet---------*/
    try{
        workbook = Workbook.getWorkbook(new File(xlsName));
        writableWorkbook =  Workbook.createWorkbook(new File(xlsName), workbook);

        updateOutput(writableWorkbook,outputSheet,start_Test,end_Test+1,baselineSize,output,outputTag);
        updateResult(writableWorkbook,resultSheet,start_Test,rows+3,2,result);

        removeSheetByName(writableWorkbook,ComparisonSheet);

        if(passPercentage != '100.00%'){
               updateComparison(writableWorkbook,ComparisonSheet,start_Test,end_Test+1,baselineSize,output,outputTag,result,baseline);
          }

          writableWorkbook.write();
        writableWorkbook.close();
        workbook.close();

        }catch(Exception e){
            e.printStackTrace();
        }

          setProperties('passPercentage', passPercentage ,'Result');

        testRunner.gotoStepByName('End');

View Script - Process



Check Response 顾名思义,用来检查返回结果, 通过XmlHolder getNodeValue 来取response各节点的值,并且填入Output Properties已作对比之用。

import java.lang.*;
import java.util.*;
import groovy.lang.*;
import groovy.util.*;
import com.eviware.soapui.support.XmlHolder

baselineSheet = "Baseline";
outputSheet = "Output";
resultSheet = "Result";

def testcase = testRunner.testCase;
Baseline = testcase.getTestStepByName(baselineSheet)
baselineSize = Baseline.getPropertyCount();
Output = testcase.getTestStepByName(outputSheet);

def requests = testcase.getTestStepsOfType( com.eviware.soapui.impl.wsdl.teststeps.WsdlTestRequestStep.class )
def request = requests[0];
def response = request.testRequest.response;

respXmlHolder = new XmlHolder(response.contentAsXml)

//declare namespace in xml response
respXmlHolder.declareNamespace("ns1", "http://schemas.xxx.com/v201203/yourservice")

def statusCode = request.testRequest.response.responseHeaders["#status#"].toString();

def setProperties(Name,Value,Place){
       name = Name;
       target = testRunner.testCase.getTestStepByName(Place);
       target.setPropertyValue(name,Value);
}

def getspecifiedValue(field){
      prefix = "//ns1:";
       nodePath = "${prefix}${field}"
       specifiedValue = respXmlHolder.getNodeValue("${nodePath}")
}

testRunner.testCase.getTestStepByName(outputSheet).clearPropertyValues();

//normal output, status = '200 OK'
if(statusCode.contains('200 OK')){
       for (i=1;i<baselineSize;i++)
       {
               specifiedName = Baseline.getPropertyAt(i).name;
               specifiedValue = getspecifiedValue(specifiedName);
               if(specifiedValue != null){
               setProperties(specifiedName,specifiedValue,outputSheet)
               } else  {
                   setProperties(specifiedName,'',outputSheet)
               }
       }

} else
       {
           setProperties(Baseline.getPropertyAt(0).name,Baseline.getPropertyAt(0).value,outputSheet);
         setProperties(Baseline.getPropertyAt(1).name,statusCode,outputSheet);

          for(t=2; t<baselineSize; t++){
            setProperties(Baseline.getPropertyAt(t).name, '' ,outputSheet);
       }
}

setProperties(Baseline.getPropertyAt(0).name,Baseline.getPropertyAt(0).value,outputSheet);
setProperties('result','PASS', resultSheet);


logFile = new File(context.expand('${#TestCase#LogFile - Check Response}'));
responseDetailLogFile= new File(context.expand('${#TestCase#LogFile - Response Detail}'));

logFile.append(" ------                   Start Response Check "+ " @ "+Calendar.instance.getTime()+"\n");
responseDetailLogFile.append("\n"+ testcase.name + " -- " + Baseline.getPropertyAt(0).value+ "\n" + response+"\n");


/*--------Compare the result with Baseline and update the result accordingly---------*/

for (i=0;i<baselineSize;i++)
{
         if (Baseline.getPropertyAt(i).value==Output.getPropertyAt(i).value)
                {
                      setProperties(Baseline.getPropertyAt(i).name,'PASS','fieldResult');
       }
               else
                {
                       setProperties(Baseline.getPropertyAt(i).name,'FAIL','fieldResult');
                       setProperties('result','FAIL','Result');
         }
 }
View Script - Check Response



End脚本 在log上打时间戳

def cal = Calendar.instance;
def sysdate = cal.getTime();

responseLogFile = new File(context.expand('${#TestCase#LogFile - Check Response}'));
responseDetailLogFile= new File(context.expand('${#TestCase#LogFile - Response Detail}'));

responseLogFile.append('\n'+ "---------------Test End on " + sysdate.toString() + " ------------------------"+'\n');
responseDetailLogFile.append('\n'+ "---------------Test End on " + sysdate.toString() + " ------------------------"+'\n');
View Script - End



配置

双击DemoProject, 点击下方的Properties tab

然后 Add property

Add 如下图所示的5个Property



双击项目工程列表里的'Demo TestCase'

点击Properties tab

Add Property 如图



Value 填Excel 的路径



Excel数据工作簿里的Input sheet 如图



接下来需要把Input里的column name 与 Soap request里的input 字段映射起来

双击Test Steps 里的request

将xml文件里的?用参数来代替

左下角的TestRequest Properties  要填上用户名 密码



Baseline sheet里要把输出结果的字段名都定义好, 因为是根据字段名去response里取结果的

每条用例期望结果都写好,用作和实际结果对比



另外Check Response里的脚本需要设置一下

假设你的response xml文件结构如下

如果你需要检查Soap body标签下的内容, 则你需要配置一下Check Response的脚本

将xml namespace的路径配置一下



右击Project  Save一下Project

最后可以运行了 双击Demo TestSuite  点击Run



打开Workbook 数据工作簿查看结果

Output

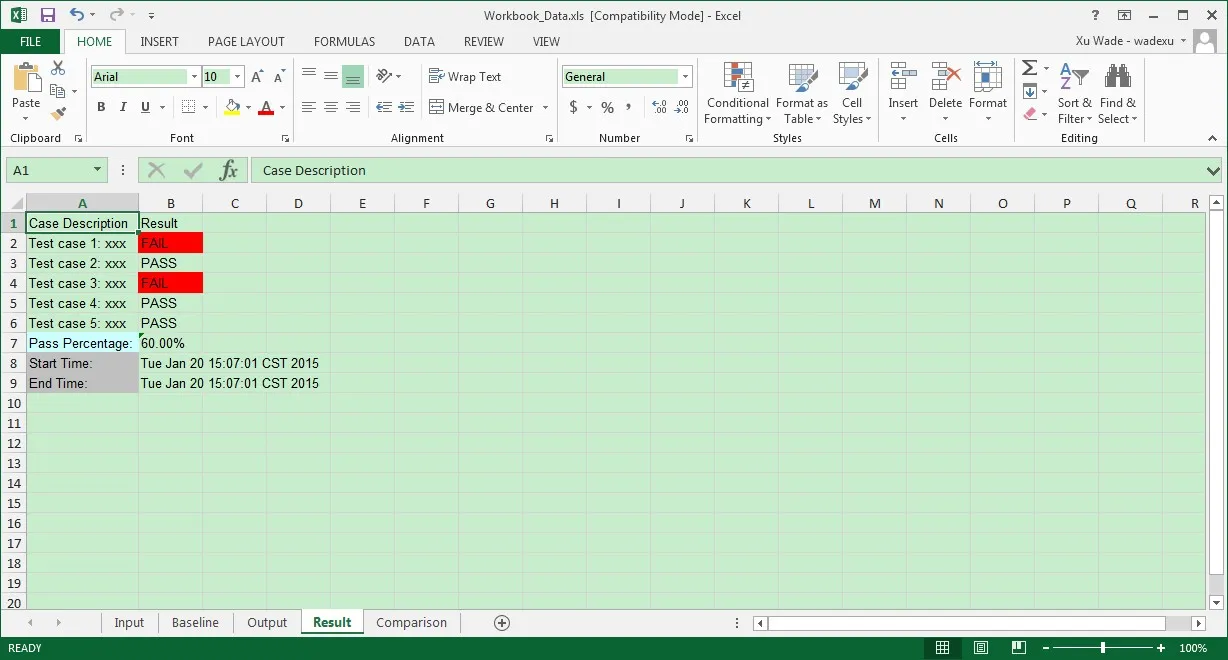

Result

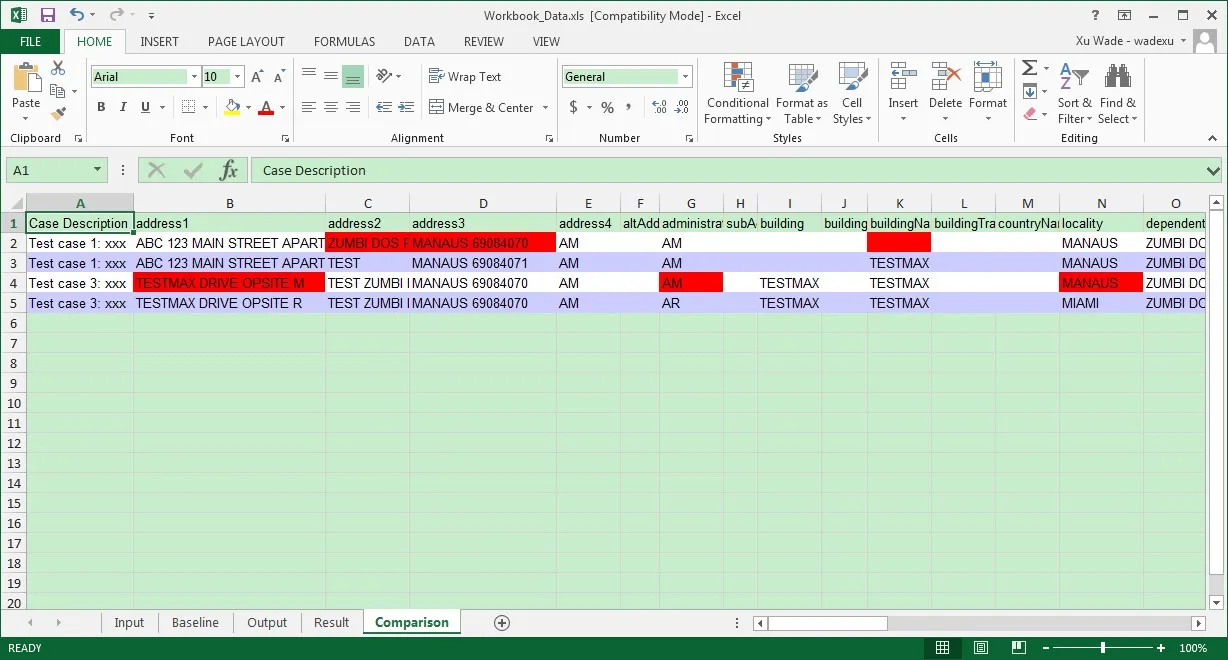

Comparison



是不是跟我上一篇文章异曲同工?





注:转载需注明出处及作者名,严禁恶意转载,尊重原作者的劳动成果。



版权声明:本文内容由阿里云实名注册用户自发贡献,版权归原作者所有,阿里云开发者社区不拥有其著作权,亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容,填写侵权投诉表单进行举报,一经查实,本社区将立刻删除涉嫌侵权内容。

分享:
开发与运维
使用钉钉扫一扫加入圈子
+ 订阅

集结各类场景实战经验,助你开发运维畅行无忧

其他文章
最新文章
相关文章
