一、导入依赖
在实现图形验证码之前,首先要导入依赖,比如 SpringBoot 依赖:
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency>
awt 包属于 Java 原生包,无需导入三方 maven 依赖,只需引入 JDK 即可。
二、编写工具类
接下来,就开始开发验证码的工具类,包括验证码配置、生成随机数、生成随机颜色、编写创建图片方法、编写构建函数,下面将逐一介绍。
2.1 验证码配置
首先是验证码的配置,创建 CreateVerifyCode
类,创建相应字段,包括字符个数、图片高度、图片宽度、干扰个数等参数,定义如下。
@ApiModelProperty(value = "验证码字符个数") private int charactersNumber = 4; @ApiModelProperty(value = "图片高度") private int imagePeripheralHeight = 40; @ApiModelProperty(value = "图片宽度") private int imagePeripheralWidth = 160; @ApiModelProperty(value = "干扰线数") private int lineCount = 20;
2.2 生成随机数
新建一个方法 randomStr
,用于实现生成随机数的功能,代码如下。
@ApiOperation(value = "随机生成验证码") public String randomStr(int size) { String str1 = "0123456789"; String str2 = ""; for (int i = 0; i < size; i++) { double randomIndex = Math.random(); double randomNumber = randomIndex * (str1.length() - 1); str2 += str1.charAt((int) randomNumber); } return str2; }
2.3 生成随机颜色
新建一个方法 getRandColor
,用于实现生成随机颜色的功能,代码如下。
@ApiOperation(value = "随机生成验证码颜色") private Color getRandColor(int color1, int color2) { color1 = color1 > 255 ? 255 : color1; color2 = color2 > 255 ? 255 : color2; return new Color(color1 + random.nextInt(color2 - color1), color1 + random.nextInt(color2 - color1), color1 + random.nextInt(color2 - color1)); }
2.4 编写创建图片方法
有了验证码配置之后,新建一个方法 creatImage
,用于实现图形验证码图片创建的逻辑,代码如下。
@ApiOperation(value = "图片生成工具类") private void creatImage(String code) { if(ZwzNullUtils.isNull(code)){ throw new ZwzException("图形验证码过期了,再生成个新的哦!"); } this.code = code; buffImg = new BufferedImage(imagePeripheralWidth, imagePeripheralHeight, BufferedImage.TYPE_INT_RGB); Graphics g = buffImg.getGraphics(); g.setColor(getRandColor(200, 250)); g.fillRect(0, 0, imagePeripheralWidth, imagePeripheralHeight); Font font = new Font("Fixedsys", Font.BOLD, imagePeripheralHeight - 5); g.setFont(font); float yawpRate = 0.01f; int area = (int) (yawpRate * imagePeripheralWidth * imagePeripheralHeight); for (int i = 0; i < area; i++) { buffImg.setRGB(random.nextInt(imagePeripheralWidth), random.nextInt(imagePeripheralHeight), random.nextInt(255)); } for (int i = 0; i < lineCount; i++) { int xs = random.nextInt(imagePeripheralWidth); int ys = random.nextInt(imagePeripheralHeight); int xe = xs + random.nextInt(imagePeripheralWidth); int ye = ys + random.nextInt(imagePeripheralHeight); g.setColor(getRandColor(2, 254)); g.drawLine(xs, ys, xe, ye); } for (int i = 0; i < code.length(); i++) { String strRand = code.substring(i, i + 1); g.setColor(getRandColor(2, 254)); g.drawString(strRand, i * (imagePeripheralWidth / charactersNumber) + 3, imagePeripheralHeight - 8); } }
2.5 编写构建函数
为了用尽可能精简的代码实现图形验证码,构造函数是比不可少的,开发者可以在构建对象时直接传入参数,实现图形验证码的设计,代码如下。
public CreateVerifyCode(int imageWidth, int imageHeight, int codeCount, int lineCount, String code) { this.imagePeripheralWidth = imageWidth; this.imagePeripheralHeight = imageHeight; this.charactersNumber = codeCount; this.lineCount = lineCount; creatImage(code); }
三、编写接口
工具类编写完成后,就开始设计 API 接口了,可以分为验证码初始化和图片返回。
3.1 验证码初始化
首先定义一个 init 接口,用户请求该接口时,系统利用 Java 的 UUID,生成一个随机字符串,并随机生成一个四位数字,放入缓存,返回该随机字符串,代码如下。
@RequestMapping(value = "/init", method = RequestMethod.GET) @ApiOperation(value = "初始化验证码") public Result<Object> init() { String codeId = UUID.randomUUID().toString().replace("-",""); redisTemplate.opsForValue().set(codeId, new CreateVerifyCode().randomStr(4),2L, TimeUnit.MINUTES); return ResultUtil.data(codeId); }

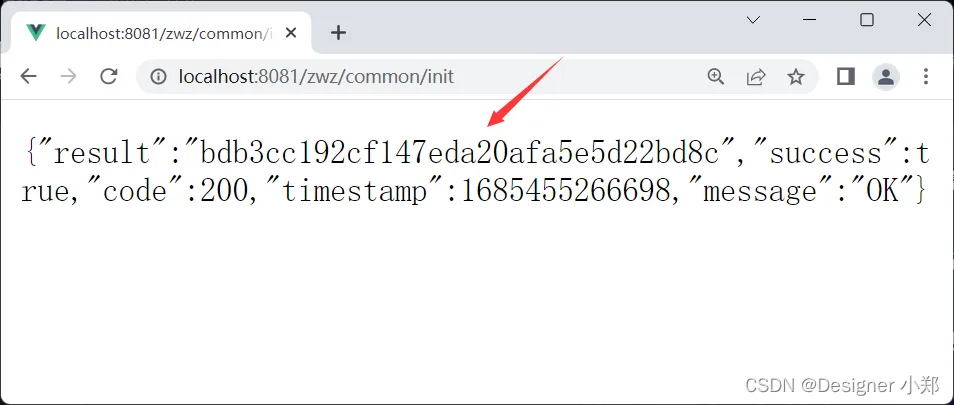

接口测试结果如下,接口返回了一个随机字符串:bdb3cc192cf147eda20afa5e5d22bd8c
。
3.2 图片返回
前端收到随机字符串 bdb3cc192cf147eda20afa5e5d22bd8c
后,再次请求,拿走验证码图片,核心代码如下。
@RequestMapping(value = "/draw/{captchaId}", method = RequestMethod.GET) @ApiOperation(value = "根据验证码ID获取图片") public void draw(@PathVariable("captchaId") String captchaId, HttpServletResponse response) throws IOException { String codeStr = redisTemplate.opsForValue().get(captchaId); CreateVerifyCode createVerifyCode = new CreateVerifyCode(116,36,4,10, codeStr); response.setContentType("image/png"); createVerifyCode.write(response.getOutputStream()); }
首先根据随机字符串,在 redis 中拿到验证码的值,在调用验证码工具类生成图片,返回前端。
3.3 验证码过滤
系统集成了 Spring Security,需要引入并重写 WebSecurityConfig 类,重写 securityFilterChain 方法。
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-security</artifactId> </dependency>
@Bean public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception { http.authorizeHttpRequests().requestMatchers("/zwz/dictData/getByType/**","/zwz/file/view/**","/zwz/user/regist","/zwz/common/**","/*/*.js","/*/*.css","/*/*.png","/*/*.ico", "/swagger-ui.html").permitAll() .and().formLogin().loginPage("/zwz/common/needLogin").loginProcessingUrl("/zwz/login").permitAll() .successHandler(authenticationSuccessHandler).failureHandler(authenticationFailHandler).and() .headers().frameOptions().disable().and() .logout() .permitAll() .and() .authorizeHttpRequests() .anyRequest() .authenticated() .and() .cors().and() .csrf().disable() .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS) .and() .exceptionHandling().accessDeniedHandler(zwzAccessDeniedHandler) .and() .authenticationProvider(authenticationProvider()) .addFilterBefore(authenticationJwtTokenFilter(), UsernamePasswordAuthenticationFilter.class) .addFilterBefore(imageValidateFilter, UsernamePasswordAuthenticationFilter.class); return http.build(); }
对于通过验证码的请求,给与放行,核心代码如下:
@Override @ApiOperation(value = "验证码过滤") protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException { Boolean filterFlag = false; for(String requestURI : captchaProperties.getVerification()){ if(pathMatcher.match(requestURI, request.getRequestURI())){ filterFlag = true; break; } } if(!filterFlag) { filterChain.doFilter(request, response); return; } String verificationCodeId = request.getParameter("captchaId"); String userInputCode = request.getParameter("code"); if(ZwzNullUtils.isNull(userInputCode) || ZwzNullUtils.isNull(verificationCodeId)){ ResponseUtil.out(response, ResponseUtil.resultMap(RESPONSE_FAIL_FLAG,RESPONSE_CODE_FAIL_CODE,"验证码为空")); return; } String codeAnsInRedis = redisTemplate.opsForValue().get(verificationCodeId); if(ZwzNullUtils.isNull(codeAnsInRedis)){ ResponseUtil.out(response, ResponseUtil.resultMap(RESPONSE_FAIL_FLAG,RESPONSE_CODE_FAIL_CODE,"已过期的验证码,需要重新填写")); return; } if(!Objects.equals(codeAnsInRedis.toLowerCase(),userInputCode.toLowerCase())) { ResponseUtil.out(response, ResponseUtil.resultMap(RESPONSE_FAIL_FLAG,RESPONSE_CODE_FAIL_CODE,"验证码不正确")); return; } redisTemplate.delete(verificationCodeId); filterChain.doFilter(request, response); }

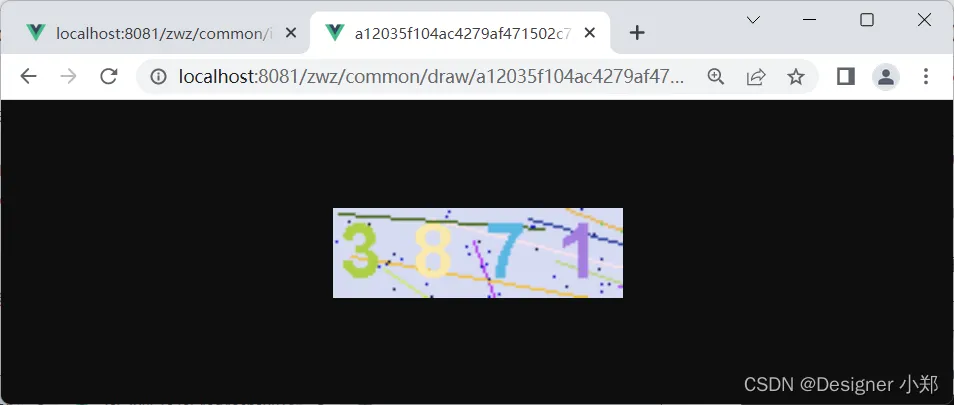

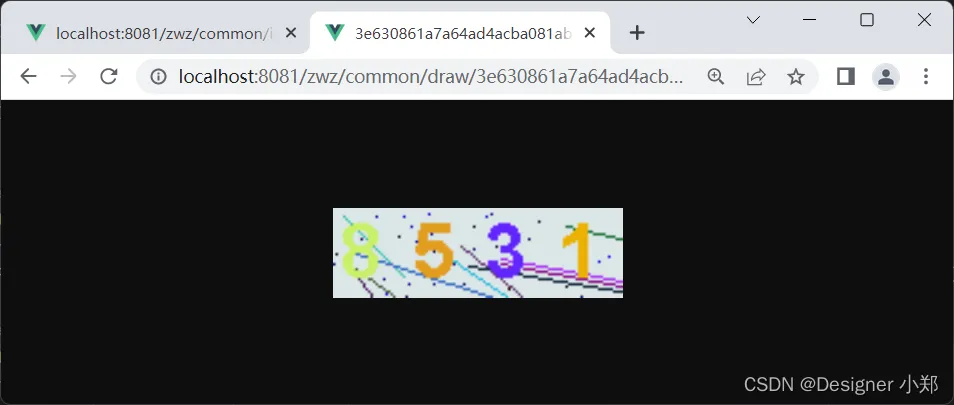

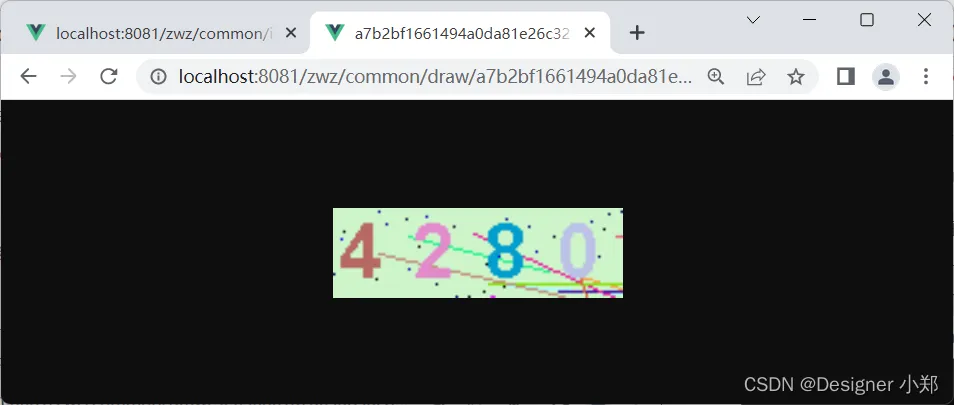

最终,基于 SpringBoot+原生 awt,实现花花绿绿的图形验证码。
