关于线程池

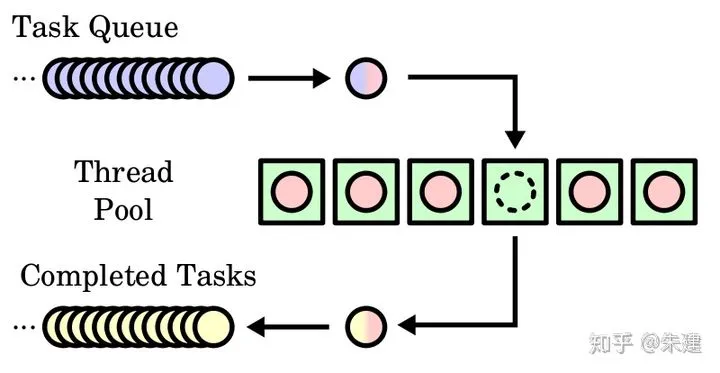

简单来说就是有一堆已经创建好的线程(最大数目一定),初始时他们都处于空闲状态。当有新的任务进来,从线程池中取出一个空闲的线程处理任务然后当任务处理完成之后,该线程被重新放回到线程池中,供其他的任务使用。当线程池中的线程都在处理任务时,就没有空闲线程供使用,此时,若有新的任务产生,只能等待线程池中有线程结束任务空闲才能执行。
线程池优点
线程本来就是可重用的资源,不需要每次使用时都进行初始化。因此可以采用有限的线程个数处理无限的任务。既可以提高速度和效率,又降低线程频繁创建的开销。比如要异步干的活,就没必要等待。丢到线程池里处理,结果在回调中处理。频繁执行的异步任务,若每次都创建线程势必造成不小的开销。像java中频繁执行的异步任务,就new Therad{}.start(),然后就不管了不是个好的办法,频繁调用可能会触发GC,带来严重的性能问题,类似这种就该使用线程池。
还比如把计算任务都放在主线程进行,那么势必会阻塞主线程的处理流程,无法做到实时处理。使用多线程技术是大家自然而然想到的方案。在上述的场景中必然会频繁的创建和销毁线程,这样的开销相信是不能接受的,此时线程池技术便是很好的选择。
另外在一些高并发的网络应用中,线程池也是常用的技术。陈硕大神推荐的C++多线程服务端编程模式为:one loop per thread + thread pool,通常会有单独的线程负责接受来自客户端的请求,对请求稍作解析后将数据处理的任务提交到专门的计算线程池。
实现原理及思路
大致原理是创建一个类,管理一个任务队列,一个线程队列。然后每次取一个任务分配给一个线程去做,循环往复。任务队列负责存放主线程需要处理的任务,工作线程队列其实是一个死循环,负责从任务队列中取出和运行任务,可以看成是一个生产者和多个消费者的模型。
c++11虽然加入了线程库thread,然而 c++ 对于多线程的支持还是比较低级,稍微高级一点的用法都需要自己去实现,还有备受期待的网络库,至今标准库里还没有支持,常用asio替代。感谢网上大神的奉献,这里贴上源码并完善下使用方法,主要是增加了使用示例及回调函数的使用。
使用举例
#include <iostream> #include <chrono> #include <thread> #include <future> #include "threadpool.h" using namespace std; using namespace std::chrono; //仿函数示例 struct gfun { int operator()(int n) { printf("%d hello, gfun ! %d\n" ,n, std::this_thread::get_id() ); return 42; } }; class A { public: static std::string Bfun(int n, std::string str, char c) { std::cout << n << " hello, Bfun ! "<< str.c_str() <<" " << (int)c <<" " << std::this_thread::get_id() << std::endl; return str; } }; int main() { cout << "hello,this is a test using threadpool" <<endl; me::ThreadPool pool(4); std::vector< std::future<int> > results; //lambada表达式 匿名函数线程中执行 pool.commit([] { std::cout << "this is running in pool therad " << std::endl; std::this_thread::sleep_for(std::chrono::seconds(1)); }); //仿函数放到线程池中执行 std::future<int> fg = pool.commit(gfun{},0); std::future<std::string> gh = pool.commit(A::Bfun, 999,"mult args", 123); //回调函数示例,模拟耗时操作,结果回调输出 auto fetchDataFromDB = [](std::string recvdData,std::function<int(std::string &)> cback) { // Make sure that function takes 5 seconds to complete std::this_thread::sleep_for(seconds(5)); //Do stuff like creating DB Connection and fetching Data if(cback != nullptr){ std::string out = "this is from callback "; cback(out); } return "DB_" + recvdData; }; //模拟,回调 fetchDataFromDB("aaa",[&](std::string &result){ std::cout << "callback result:" << result << std::endl; return 0; } ); //把fetchDataFromDB这一IO耗时任务放到线程里异步执行 // std::future<std::string> resultFromDB = std::async(std::launch::async, fetchDataFromDB, "Data0", [&](std::string &result){ std::cout << "callback result from thread:" << result << std::endl; return 0; }); //把fetchDataFromDB这一IO耗时操作放到pool中的效果 pool.commit(fetchDataFromDB,"Data1",[&](std::string &result){ std::cout << "callback result from pool thread:" << result << std::endl; return 0; }); for(int i = 0; i < 8; ++i) { results.emplace_back( pool.commit([i] { std::cout << "hello " << i << std::endl; std::this_thread::sleep_for(std::chrono::seconds(1)); std::cout << "world " << i << std::endl; return i*i; }) ); } for(auto && result: results){ std::cout << result.get() << ' '; } std::cout << std::endl; }
以下是具体实现过程:
#pragma once #ifndef THREAD_POOL_H #define THREAD_POOL_H #include <vector> #include <queue> #include <atomic> #include <future> //#include <condition_variable> //#include <thread> #include <functional> #include <stdexcept> namespace me { using namespace std; //线程池最大容量,应尽量设小一点 #define THREADPOOL_MAX_NUM 16 //#define THREADPOOL_AUTO_GROW //线程池,可以提交变参函数或拉姆达表达式的匿名函数执行,可以获取执行返回值 //不直接支持类成员函数, 支持类静态成员函数或全局函数,Opteron()函数等 class ThreadPool { using Task = function<void()>; //定义类型 vector<thread> _pool; //线程池 queue<Task> _tasks; //任务队列 mutex _lock; //同步 condition_variable _task_cv; //条件阻塞 atomic<bool> _run{ true }; //线程池是否执行 atomic<int> _idlThrNum{ 0 }; //空闲线程数量 public: inline ThreadPool(unsigned short size = 4) { addThread(size); } inline ~ThreadPool() { _run=false; _task_cv.notify_all(); // 唤醒所有线程执行 for (thread& thread : _pool) { //thread.detach(); // 让线程“自生自灭” if(thread.joinable()) thread.join(); // 等待任务结束, 前提:线程一定会执行完 } } public: // 提交一个任务 // 调用.get()获取返回值会等待任务执行完,获取返回值 // 有两种方法可以实现调用类成员, // 一种是使用 bind: .commit(std::bind(&Dog::sayHello, &dog)); // 一种是用 mem_fn: .commit(std::mem_fn(&Dog::sayHello), this) template<class F, class... Args> auto commit(F&& f, Args&&... args) ->future<decltype(f(args...))> { if (!_run) // stoped ?? throw runtime_error("commit on ThreadPool is stopped."); using RetType = decltype(f(args...)); // typename std::result_of<F(Args...)>::type, 函数 f 的返回值类型 auto task = make_shared<packaged_task<RetType()>>( bind(forward<F>(f), forward<Args>(args)...) ); // 把函数入口及参数,打包(绑定) future<RetType> future = task->get_future(); { // 添加任务到队列 lock_guard<mutex> lock{ _lock };//对当前块的语句加锁 lock_guard 是 mutex 的 stack 封装类,构造的时候 lock(),析构的时候 unlock() _tasks.emplace([task](){ // push(Task{...}) 放到队列后面 (*task)(); }); } #ifdef THREADPOOL_AUTO_GROW if (_idlThrNum < 1 && _pool.size() < THREADPOOL_MAX_NUM) addThread(1); #endif // !THREADPOOL_AUTO_GROW _task_cv.notify_one(); // 唤醒一个线程执行 return future; } //空闲线程数量 int idlCount() { return _idlThrNum; } //线程数量 int thrCount() { return _pool.size(); } #ifndef THREADPOOL_AUTO_GROW private: #endif // !THREADPOOL_AUTO_GROW //添加指定数量的线程 void addThread(unsigned short size) { for (; _pool.size() < THREADPOOL_MAX_NUM && size > 0; --size) { //增加线程数量,但不超过 预定义数量 THREADPOOL_MAX_NUM _pool.emplace_back( [this]{ //工作线程函数 while (_run) { Task task; // 获取一个待执行的 task { // unique_lock 相比 lock_guard 的好处是:可以随时 unlock() 和 lock() unique_lock<mutex> lock{ _lock }; _task_cv.wait(lock, [this]{ return !_run || !_tasks.empty(); }); // wait 直到有 task if (!_run && _tasks.empty()) return; task = move(_tasks.front()); // 按先进先出从队列取一个 task _tasks.pop(); } _idlThrNum--; task();//执行任务 _idlThrNum++; } }); _idlThrNum++; } } }; } #endif //https://github.com/lzpong/
另一种实现
// A simple thread pool class. // Usage examples: // // { // ThreadPool pool(16); // 16 worker threads. // for (int i = 0; i < 100; ++i) { // pool.Schedule([i]() { // DoSlowExpensiveOperation(i); // }); // } // // // `pool` goes out of scope here - the code will block in the ~ThreadPool // // destructor until all work is complete. // } // // // TODO(cbraley): Add examples with std::future. #include <cassert> #include <condition_variable> #include <functional> #include <future> #include <mutex> #include <queue> #include <thread> #include <vector> // This file contains macros that we use to workaround some features that aren't // available in C++11. // We want to use std::invoke if C++17 is available, and fallback to "hand // crafted" code if std::invoke isn't available. //#if __cplusplus >= 201703L //#define INVOKE_MACRO(CALLABLE, ARGS_TYPE, ARGS) std::invoke(CALLABLE, std::forward<ARGS_TYPE>(ARGS)...) //#elif __cplusplus >= 201103L // Update this with http://www.open-std.org/jtc1/sc22/wg21/docs/papers/2014/n4169.html. #define INVOKE_MACRO(CALLABLE, ARGS_TYPE, ARGS) CALLABLE(std::forward<ARGS_TYPE>(ARGS)...) //#else //#error ("C++ version is too old! C++98 is not supported.") //#endif namespace cb { namespace impl { // This helper class simply returns a std::function that executes: // ReturnT x = func(); // promise->set_value(x); // However, this is tricky in the case where T == void. The code above won't // compile if ReturnT == void, and neither will // promise->set_value(func()); // To workaround this, we use a template specialization for the case where // ReturnT is void. If the "regular void" proposal is accepted, this could be // simpler: // http://www.open-std.org/jtc1/sc22/wg21/docs/papers/2016/p0146r1.html. // The non-specialized `FuncWrapper` implementation handles callables that // return a non-void value. template <typename ReturnT> struct FuncWrapper { template <typename FuncT, typename... ArgsT> std::function<void()> GetWrapped(FuncT&& func, std::shared_ptr<std::promise<ReturnT>> promise, ArgsT&&... args) { // TODO(cbraley): Capturing by value is inefficient. It would be more // efficient to move-capture everything, but we can't do this until C++14 // generalized lambda capture is available. Can we use std::bind instead to // make this more efficient and still use C++11? return [promise, func, args...]() mutable { promise->set_value(INVOKE_MACRO(func, ArgsT, args)); }; } }; template <typename FuncT, typename... ArgsT> void InvokeVoidRet(FuncT&& func, std::shared_ptr<std::promise<void>> promise, ArgsT&&... args) { INVOKE_MACRO(func, ArgsT, args); promise->set_value(); } // This `FuncWrapper` specialization handles callables that return void. template <> struct FuncWrapper<void> { template <typename FuncT, typename... ArgsT> std::function<void()> GetWrapped(FuncT&& func, std::shared_ptr<std::promise<void>> promise, ArgsT&&... args) { return [promise, func, args...]() mutable { INVOKE_MACRO(func, ArgsT, args); promise->set_value(); }; } }; } // namespace impl class ThreadPool { public: // Create a thread pool with `num_workers` dedicated worker threads. explicit ThreadPool(int num_workers) : num_workers_(num_workers) { assert(num_workers_ > 0); // TODO(cbraley): Handle thread construction exceptions. workers_.reserve(num_workers); for (int i = 0; i < num_workers; ++i) { workers_.emplace_back(&ThreadPool::ThreadLoop, this); } } // Default construction is disallowed. ThreadPool() = delete; // Get the number of logical cores on the CPU. This is implemented using // std::thread::hardware_concurrency(). // https://en.cppreference.com/w/cpp/thread/thread/hardware_concurrency static unsigned int GetNumLogicalCores() { // TODO(cbraley): Apparently this is broken in some older stdlib // implementations? const unsigned int dflt = std::thread::hardware_concurrency(); if (dflt == 0) { // TODO(cbraley): Return some error code instead. return 16; } else { return dflt; } } // The `ThreadPool` destructor blocks until all outstanding work is complete. ~ThreadPool() { // TODO(cbraley): The current thread could help out to drain the work_ queue // faster - for example, if there is work that hasn't yet been scheduled this // thread could "pitch in" to help finish faster. { std::lock_guard<std::mutex> scoped_lock(mu_); exit_ = true; } condvar_.notify_all(); // Tell *all* workers we are ready. for (std::thread& thread : workers_) { thread.join(); } } // No copying, assigning, or std::move-ing. ThreadPool& operator=(const ThreadPool&) = delete; ThreadPool(const ThreadPool&) = delete; ThreadPool(ThreadPool&&) = delete; ThreadPool& operator=(ThreadPool&&) = delete; // Add the function `func` to the thread pool. `func` will be executed at some // point in the future on an arbitrary thread. void Schedule(std::function<void(void)> func) { ScheduleAndGetFuture(std::move(func)); // We ignore the returned std::future. } // Add `func` to the thread pool, and return a std::future that can be used to // access the function's return value. // // *** Usage example *** // Don't be alarmed by this function's tricky looking signature - this is // very easy to use. Here's an example: // // int ComputeSum(std::vector<int>& values) { // int sum = 0; // for (const int& v : values) { // sum += v; // } // return sum; // } // // ThreadPool pool = ...; // std::vector<int> numbers = ...; // // std::future<int> sum_future = ScheduleAndGetFuture( // []() { // return ComputeSum(numbers); // }); // // // Do other work... // // std::cout << "The sum is " << sum_future.get() << std::endl; // // *** Details *** // Given a callable `func` that returns a value of type `RetT`, this // function returns a std::future<RetT> that can be used to access // `func`'s results. template <typename FuncT, typename... ArgsT> auto ScheduleAndGetFuture(FuncT&& func, ArgsT&&... args) -> std::future<decltype(INVOKE_MACRO(func, ArgsT, args))> { using ReturnT = decltype(INVOKE_MACRO(func, ArgsT, args)); // We are only allocating this std::promise in a shared_ptr because // std::promise is non-copyable. std::shared_ptr<std::promise<ReturnT>> promise = std::make_shared<std::promise<ReturnT>>(); std::future<ReturnT> ret_future = promise->get_future(); impl::FuncWrapper<ReturnT> func_wrapper; std::function<void()> wrapped_func = func_wrapper.GetWrapped(std::forward<FuncT>(func), std::move(promise), std::forward<ArgsT>(args)...); // Acquire the lock, and then push the WorkItem onto the queue. { std::lock_guard<std::mutex> scoped_lock(mu_); WorkItem work; work.func = std::move(wrapped_func); work_.emplace(std::move(work)); } condvar_.notify_one(); // Tell one worker we are ready. return ret_future; } // Wait for all outstanding work to be completed. void Wait() { std::unique_lock<std::mutex> lock(mu_); if (!work_.empty()) { work_done_condvar_.wait(lock, [this] { return work_.empty(); }); } } // Return the number of outstanding functions to be executed. int OutstandingWorkSize() const { std::lock_guard<std::mutex> scoped_lock(mu_); return work_.size(); } // Return the number of threads in the pool. int NumWorkers() const { return num_workers_; } void SetWorkDoneCallback(std::function<void(int)> func) { work_done_callback_ = std::move(func); } private: void ThreadLoop() { // Wait until the ThreadPool sends us work. while (true) { WorkItem work_item; int prev_work_size = -1; { std::unique_lock<std::mutex> lock(mu_); condvar_.wait(lock, [this] { return exit_ || (!work_.empty()); }); // ...after the wait(), we hold the lock. // If all the work is done and exit_ is true, break out of the loop. if (exit_ && work_.empty()) { break; } // Pop the work off of the queue - we are careful to execute the // work_item.func callback only after we have released the lock. prev_work_size = work_.size(); work_item = std::move(work_.front()); work_.pop(); } // We are careful to do the work without the lock held! // TODO(cbraley): Handle exceptions properly. work_item.func(); // Do work. if (work_done_callback_) { work_done_callback_(prev_work_size - 1); } // Notify a condvar is all work is done. { std::unique_lock<std::mutex> lock(mu_); if (work_.empty() && prev_work_size == 1) { work_done_condvar_.notify_all(); } } } } // Number of worker threads - fixed at construction time. int num_workers_; // The destructor sets `exit_` to true and then notifies all workers. `exit_` // causes each thread to break out of their work loop. bool exit_ = false; mutable std::mutex mu_; // Work queue. Guarded by `mu_`. struct WorkItem { std::function<void(void)> func; }; std::queue<WorkItem> work_; // Condition variable used to notify worker threads that new work is // available. std::condition_variable condvar_; // Worker threads. std::vector<std::thread> workers_; // Condition variable used to notify that all work is complete - the work // queue has "run dry". std::condition_variable work_done_condvar_; // Whenever a work item is complete, we call this callback. If this is empty, // nothing is done. std::function<void(int)> work_done_callback_; }; } // namespace cb
引用:
基于C++11的线程池(threadpool),简洁且可以带任意多的参数 - _Ong - 博客园
C++实现线程池_折线式成长的博客-CSDN博客_c++ 线程池
基于C++11实现线程池的工作原理 - 靑い空゛ - 博客园
