HDLBits练习汇总-10-时序逻辑设计测试--锁存器和触发器(一)

简介: HDLBits练习汇总-10-时序逻辑设计测试--锁存器和触发器

D触发器

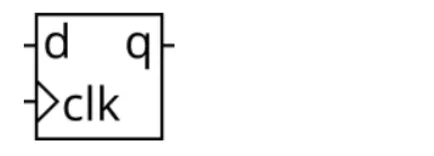

创建单个 D 触发器。


D触发器是一种存储位并在时钟信号(通常)正沿处定期更新的电路。D 触发器在使用时钟始终块时由逻辑合成器创建。AD触发器是“组合逻辑块后跟触发器”的最简单形式,其中组合逻辑部分只是一条线。

Module Declaration

module top_module (
    input clk,    // Clocks are used in sequential circuits
    input d,
    output reg q );

答案:

module top_module (
    input clk,    // Clocks are used in sequential circuits
    input d,
    output reg q );//
    always @(posedge clk)begin
        q <= d ;
    end
endmodule

8个 D触发器


创建 8 个 D 触发器。所有 DFF 都应由clk 的上升沿触发。

Module Declaration

module top_module (
    input clk,
    input [7:0] d,
    output [7:0] q
);

答案:

module top_module (
    input clk,
    input [7:0] d,
    output [7:0] q
);
  always @(posedge clk)begin
        q <= d ;
    end
endmodule

8个带同步复位的D触发器


创建具有高电平有效同步复位的 8 个 D 触发器。所有 DFF 都应由clk 的上升沿触发。

Module Declaration

module top_module (
    input clk,
    input reset,            // Synchronous reset
    input [7:0] d,
    output [7:0] q
);

答案:

module top_module (
    input clk,
    input reset,            // Synchronous reset
    input [7:0] d,
    output [7:0] q
);
  always @(posedge clk)begin
        if(reset == 1)
            q <= 0 ;
        else
          q <= d ;
    end
endmodule

8个带复位值的D触发器


创建具有高电平有效同步复位的 8 个 D 触发器。触发器必须重置为 0x34 而不是零。所有的DFF应由被触发负的边缘CLK。

Module Declaration

module top_module (
    input clk,
    input reset,            // Synchronous reset
    input [7:0] d,
    output [7:0] q
);

答案:

module top_module (
    input clk,
    input reset,
    input [7:0] d,
    output [7:0] q
);
    always @(negedge clk)begin
        if(reset == 1)
            q <= 8'h34;
        else
          q <= d ;
    end
endmodule

8个带异步复位的D触发器


创建具有高电平有效异步复位的 8 个 D 触发器。所有 DFF 都应由clk 的上升沿触发。

Module Declaration

module top_module (
    input clk,
    input areset,   // active high asynchronous reset
    input [7:0] d,
    output [7:0] q
);

答案:

module top_module (
    input clk,
    input areset,   // active high asynchronous reset
    input [7:0] d,
    output [7:0] q
);
    always @(posedge clk or posedge areset)begin
        if(areset == 1)
            q <= 8'h00;
        else
          q <= d ;
    end
endmodule

16 个 D 触发器


创建 16 个 D 触发器。有时只修改一组触发器的一部分很有用。字节使能输入控制是否应在该周期写入 16 个寄存器的每个字节。byteena[1]控制高字节d[15:8],而byteena[0]控制低字节d[7:0]。

resetn是一个同步的、低电平有效的复位。

所有 DFF 都应由clk 的上升沿触发。

Module Declaration

module top_module (
    input clk,
    input resetn,
    input [1:0] byteena,
    input [15:0] d,
    output [15:0] q
);

答案:

module top_module (
    input clk,
    input resetn,
    input [1:0] byteena,
    input [15:0] d,
    output [15:0] q
);
    always @(posedge clk)begin
        if(resetn == 0)
            q <= 8'h00;
        else if(byteena [1] ==1 && byteena [0] ==1)
            q <= d;
        else if(byteena [1] ==1)
            q[15:8]<= d[15:8];
        else if(byteena [0] ==1)
            q[7:0]<= d[7:0];
        else
            q <= q;
    end
endmodule

D 锁存器

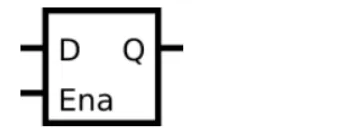

实现以下电路:


请注意,这是一个闩锁,因此预计会出现有关推断闩锁的 Quartus 警告。

Module Declaration

module top_module (
    input d,
    input ena,
    output q);

答案:

module top_module (
    input d,
    input ena,
    output q);
  always @(ena)begin
        if(ena == 1)
          q = d ;
    end
endmodule

DFF

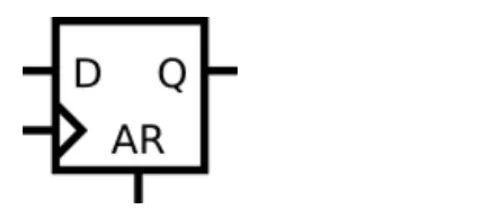

实现以下电路:


Module Declaration

module top_module (
    input clk,
    input d,
    input ar,   // asynchronous reset
    output q);

答案:

module top_module (
    input clk,
    input d,
    input ar,   // asynchronous reset
    output q);
    always @(posedge clk or posedge ar)begin
        if(ar == 1)begin
           q<=0;
        end
        else begin
           q<=d;
        end
    end
endmodule

DFF1

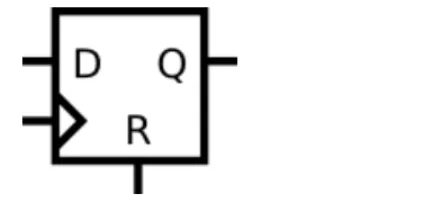

实现以下电路:


Module Declaration

module top_module (
    input clk,
    input d,
    input r,   // synchronous reset
    output q);

答案:

module top_module (
    input clk,
    input d,
    input r,   // synchronous reset
    output q);
  always @(posedge clk)begin
        if(r == 1)begin
           q<=0;
        end
        else begin
           q<=d;
        end
    end
endmodule

DFF+gate


Module Declaration

module top_module (
    input clk,
    input in,
    output out);

答案:

module top_module (
    input clk,
    input in,
    output out);
  always @(posedge clk)begin
      out<=in^out;
    end
endmodule

MAX and DFF

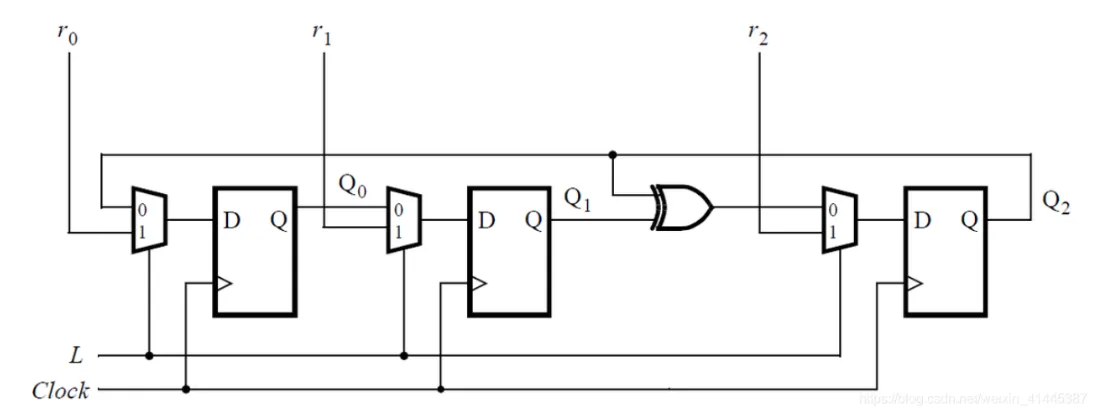

考虑下面的时序电路:


假设您要为该电路实现分层 Verilog 代码,使用其中包含触发器和多路复用器的子模块的三个实例。为此子模块编写一个名为top_module的 Verilog 模块(包含一个触发器和多路复用器)。

Module Declaration

module top_module (
  input clk,
  input L,
  input r_in,
  input q_in,
  output reg Q);

答案:

module top_module (
  input clk,
  input L,
  input r_in,
  input q_in,
  output reg Q);
    always @(posedge clk)begin
        if(L==0)begin
            Q <= q_in;
        end
        else begin
           Q <= r_in;
        end
    end
endmodule

MAX and DFF1

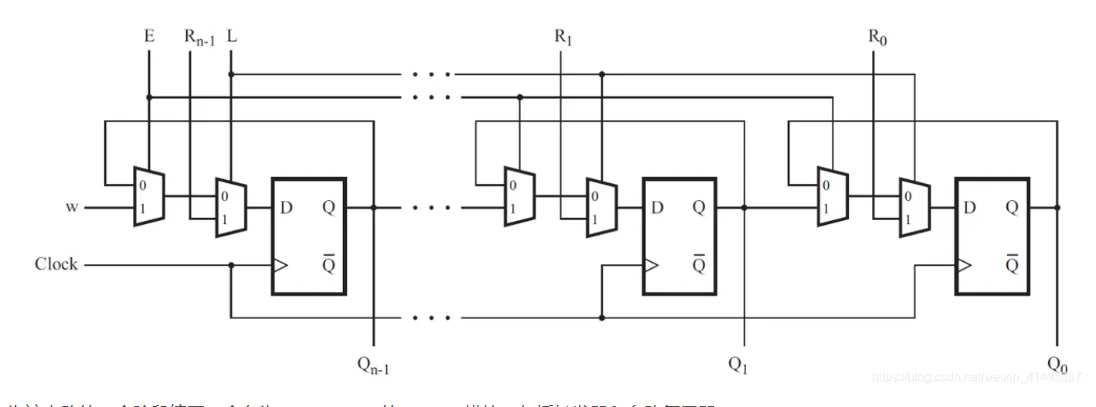

考虑如下所示的n位移位寄存器电路:


为该电路的一个阶段编写一个名为 top_module 的 Verilog 模块,包括触发器和多路复用器。

Module Declaration

module top_module (
    input clk,
    input w, R, E, L,
    output Q
);

答案:

module top_module (
    input clk,
    input w, R, E, L,
    output Q
);
    wire E_in = (E==1)?w:Q;
    always @(posedge clk)begin
        if(L==1)begin
            Q <= R;
        end
        else begin
            Q <= E_in;
        end
    end
endmodule

DFF and gates

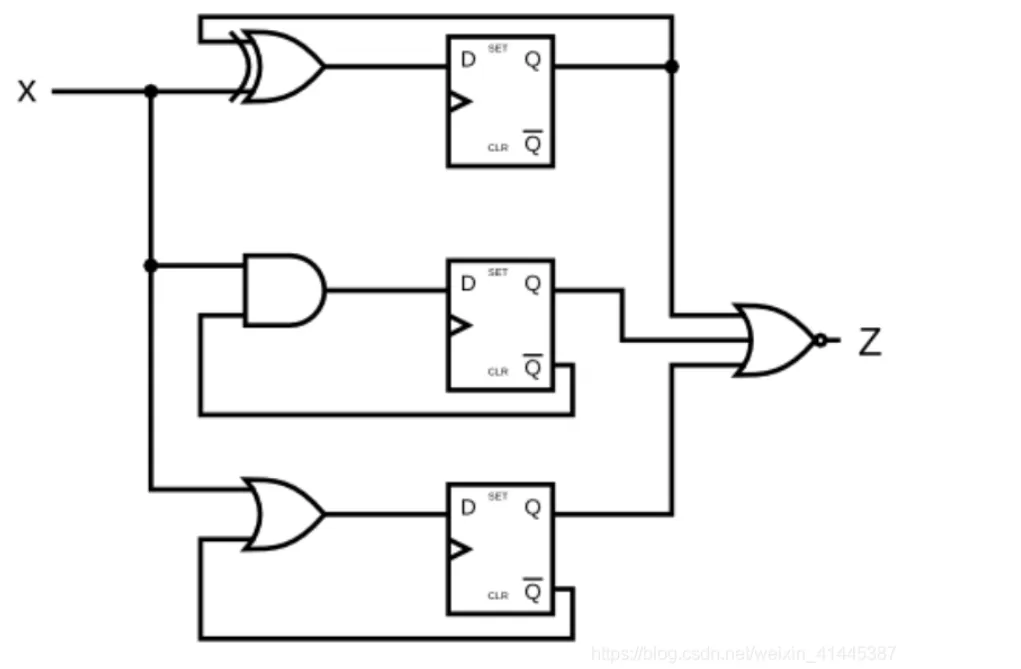

给定如图所示的有限状态机电路,假设 D 触发器在机器启动之前初始复位为零。

建立这个电路。


Module Declaration

module top_module (
    input clk,
    input x,
    output z
);

答案:

module top_module (
    input clk,
    input x,
    output z
);
    assign z = !(Q0|Q1|Q2);
    reg Q0;
    always @(posedge clk)begin
      Q0 <= x^Q0;
    end
    reg Q1;
    always @(posedge clk)begin
      Q1 <= x&!Q1;
    end
    reg Q2;
    always @(posedge clk)begin
      Q2 <= x|!Q2;
    end
endmodule
