Spring Cloud - 使用熔断器防止服务雪崩

简介: Spring Cloud - 使用熔断器防止服务雪崩

概述

在微服务架构中,根据业务来拆分成一个个的服务,服务与服务之间可以通过 RPC 相互调用,在 Spring Cloud 中可以用 RestTemplate + RibbonFeign 来调用。为了保证其高可用,单个服务通常会集群部署。由于网络原因或自身的原因,服务并不能保证 100% 可用,如果单个服务出现问题,调用这个服务就会出现线程阻塞,此时若有大量的请求涌入,Servlet 容器的线程资源会被消耗完毕,导致服务瘫痪。服务与服务之间的依赖性,故障会传播,会对整个微服务系统造成灾难性的严重后果,这就是服务故障的 "雪崩" 效应。

为了解决这个问题,业界提出了熔断器模型。

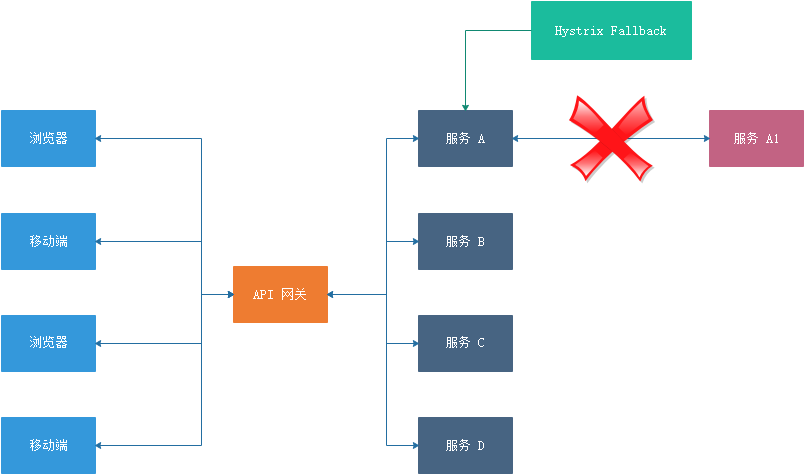

Netflix 开源了 Hystrix 组件,实现了熔断器模式,Spring Cloud 对这一组件进行了整合。在微服务架构中,一个请求需要调用多个服务是非常常见的,如下如:


较低层的服务如果出现故障,会导致连锁故障。当对特定的服务的调用的不可用达到一个阀值(Hystrix 是 5 秒 20 次)熔断器将会被打开。


熔断器打开后,为了避免连锁故障,通过 fallback 方法可以直接返回一个固定值。

Ribbon 中使用熔断器

pom.xml 中增加依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>

Application 中增加 @EnableHystrix 注解

package com.ycq.hello.spring.cloud.web.admin.ribbon;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.hystrix.EnableHystrix;
@SpringBootApplication
@EnableDiscoveryClient
@EnableHystrix
public class WebAdminRibbonApplication {
    public static void main(String[] args) {
        SpringApplication.run(WebAdminRibbonApplication.class, args);
    }
}

在 Service 中增加 @HystrixCommand 注解

在 Ribbon 调用方法上增加 @HystrixCommand 注解并指定 fallbackMethod 熔断方法

package com.ycq.hello.spring.cloud.web.admin.ribbon.service;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;
@Service
public class AdminService {
    @Autowired
    private RestTemplate restTemplate;
    @HystrixCommand(fallbackMethod = "hiError")
    public String sayHi(String message){
        return restTemplate.getForObject("http://hello-spring-cloud-service-admin/hi?message=" + message, String.class);
    }
    public String hiError(String message){
        return String.format("Your message is %s , but request bad", message);
    }
}

测试熔断器

此时我们关闭服务提供者,再次请求 http://localhost:8764/hi?message=HelloRibbon 浏览器会显示:

Your message is HelloRibbon , but request bad", message

Feign 中使用熔断器

Feign 是自带熔断器的,但默认是关闭的。需要在配置文件中配置打开它,在配置文件增加以下代码:

feign:
  hystrix:
    enabled: true

在 Service 中增加 fallback 指定类

package com.ycq.hello.spring.cloud.web.admin.feign.service;
import com.ycq.hello.spring.cloud.web.admin.feign.service.hystrix.AdminServiceHystrix;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
@FeignClient(value = "hello-spring-cloud-service-admin", fallback = AdminServiceHystrix.class)
public interface AdminService {
    @RequestMapping(value = "hi", method = RequestMethod.GET)
    public String sayHi(@RequestParam(value = "message") String message);
}

创建熔断器并实现对应的 Feign 接口

package com.ycq.hello.spring.cloud.web.admin.feign.service.hystrix;
import com.ycq.hello.spring.cloud.web.admin.feign.service.AdminService;
import org.springframework.stereotype.Component;
@Component
public class AdminServiceHystrix implements AdminService {
    @Override
    public String sayHi(String message) {
        return String.format("Your message is %s , but request is bad", message);
    }
}

测试熔断器

此时我们关闭服务提供者,再次请求 http://localhost:8765/hi?message=HelloFeign 浏览器会显示:

Your message is HelloFeign , but request is bad
