Google Earth Engine(GEE)——特征和特征集合可视化FeatureCollection

简介: Google Earth Engine(GEE)——特征和特征集合可视化FeatureCollection

与图像、几何图形和特征一样,特征集合可以直接添加到地图中Map.addLayer()。默认的可视化将显示带有黑色实线和半透明黑色填充的矢量。要以颜色呈现矢量,请指定color参数。下面以红色显示“RESOLVE”生态区(Dinerstein et al. 2017)作为默认可视化:

// 加载一个矢量几何从一个数据库中
var ecoregions = ee.FeatureCollection('RESOLVE/ECOREGIONS/2017');
//加载影像并使用默认颜色和红色进行填充

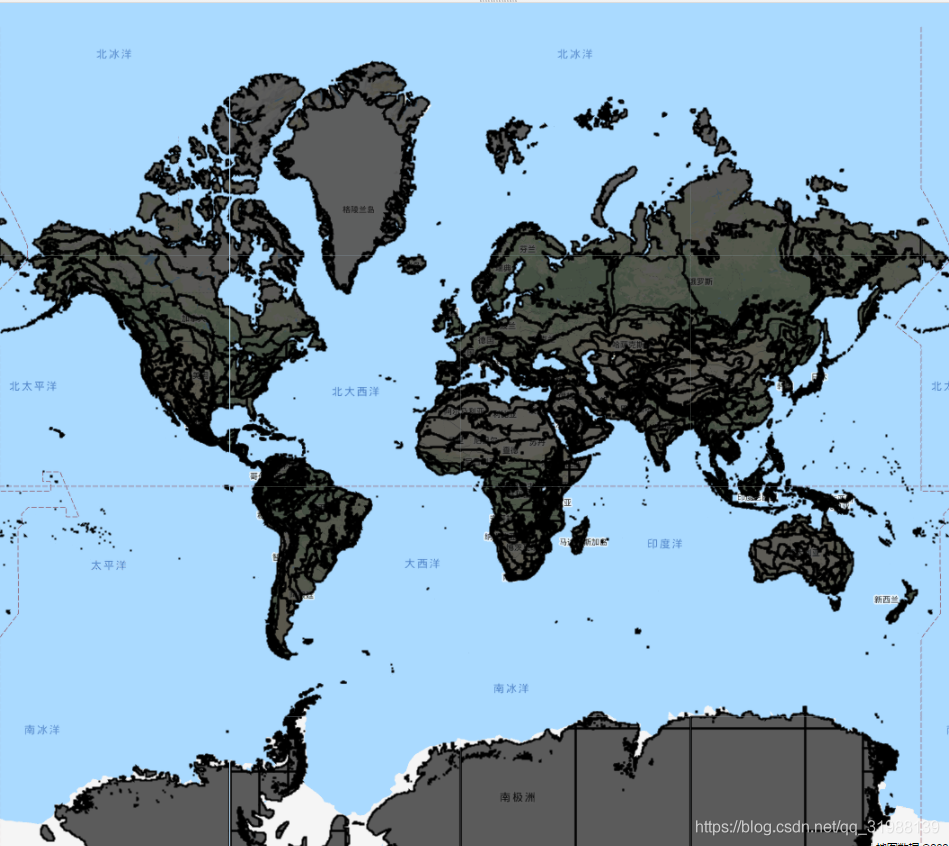

Map.addLayer(ecoregions, {}, 'default display');
//这里的color就是相当于这个{}中的一个字典中的键值,还可以设定min,max等

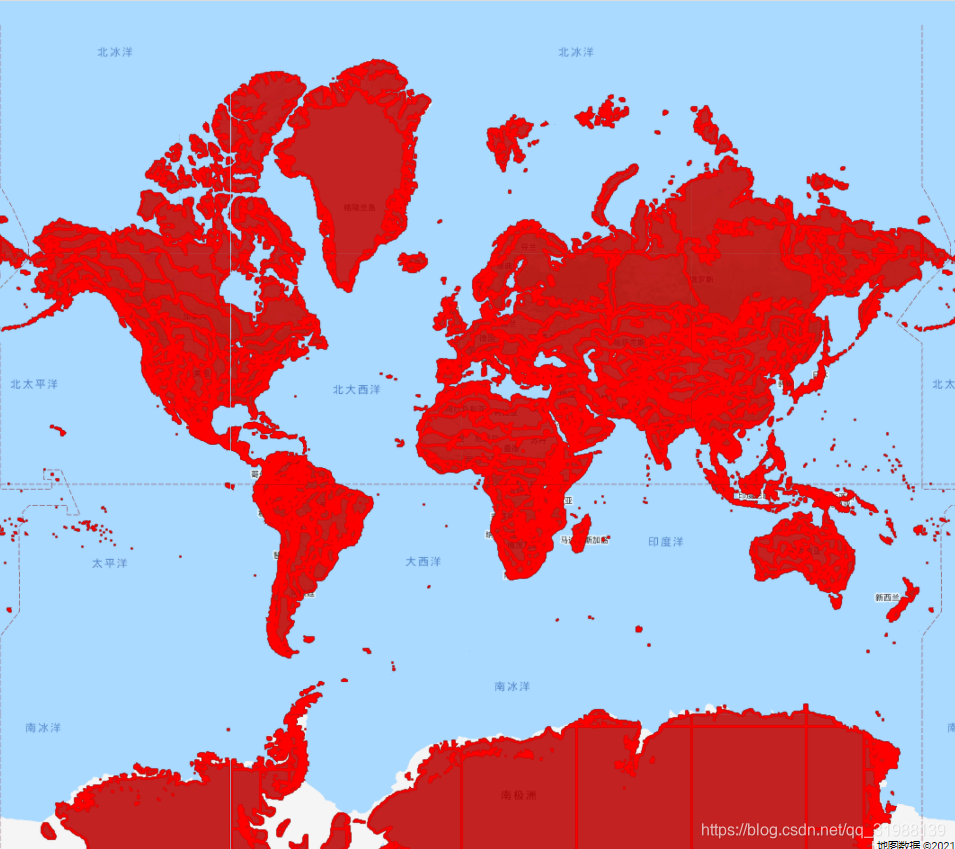

Map.addLayer(ecoregions, {color: 'FF0000'}, 'colored');
//如需其他显示选项,请使用featureCollection.draw().
Map.addLayer(ecoregions.draw({color: '006600', strokeWidth: 5}), {}, 'drawn');

这里用到的函数:


Map.addLayer(eeObject, visParams, name, shown, opacity)

这里的参数主要是前三个,要加载在地图上的对象;颜色参数,图层名称

Adds a given EE object to the map as a layer.

Returns the new map layer.


Arguments:

eeObject (Collection|Feature|Image|RawMapId):

The object to add to the map.

visParams (FeatureVisualizationParameters|ImageVisualizationParameters, optional):

The visualization parameters. For Images and ImageCollection, see ee.data.getMapId for valid parameters. For Features and FeatureCollections, the only supported key is "color", as a CSS 3.0 color string or a hex string in "RRGGBB" format. Ignored when eeObject is a map ID.

name (String, optional):

The name of the layer. Defaults to "Layer N".

shown (Boolean, optional):

A flag indicating whether the layer should be on by default.

一个标志,指示默认情况下是否应打开图层。一般默认都会打开的

opacity (Number, optional):这里设置值图层的透明程度

The layer's opacity represented as a number between 0 and 1. Defaults to 1.


Returns: ui.Map.Layer

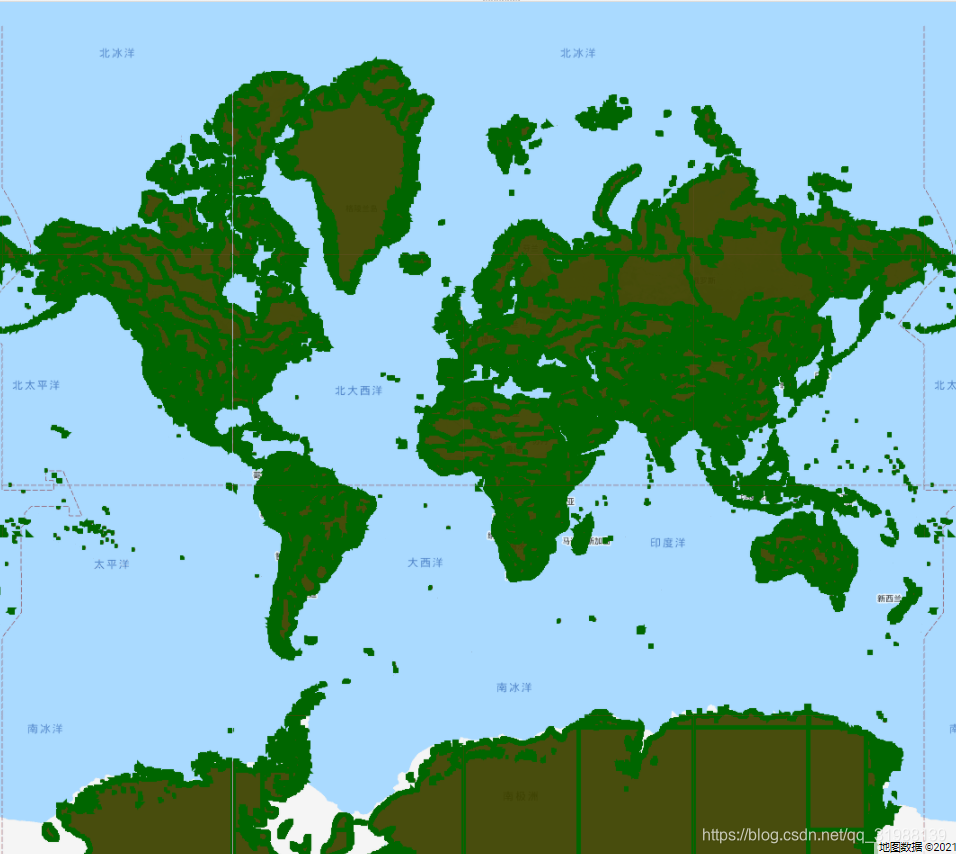

最后这个绿色的线条看起来比加粗,主要是设置了宽度:strokeWidth: 5


注:Map.addLayer(ecoregions, {color: ecoregions.randomVisualizer}, 'default display');在这里你可以尝试使用随机颜色作为属性值,我这里就不再尝试了
