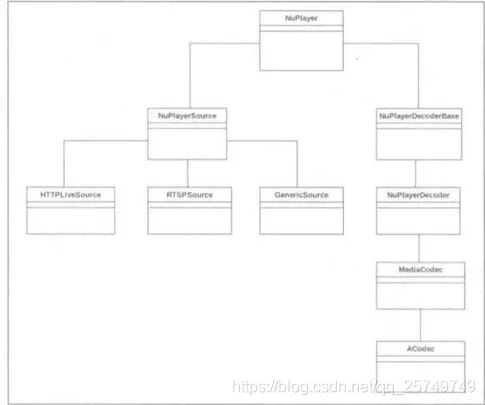

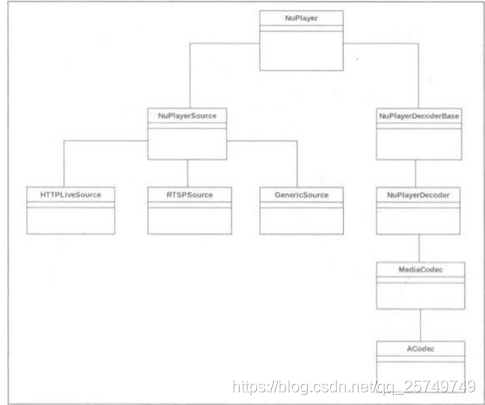

从上文 Android音视频——NuPlayer框架的图来看
可以看到 NuPlayer 的解析模块主要是 NuPlayerSource和继承自它的HTTPLiveSource、RTSPSource、GenericSource等几个类。
在 NuPlaye r中调用 setDataSourceAsync ：
void NuPlayer::setDataSourceAsync(
const sp<IMediaHTTPService> &httpService,
const char *url,
const KeyedVector<String8, String8> *headers) {
sp<AMessage> msg = new AMessage(kWhatSetDataSource, this);
size_t len = strlen(url);
sp<AMessage> notify = new AMessage(kWhatSourceNotify, this);
sp<Source> source;
if (IsHTTPLiveURL(url)) {
source = new HTTPLiveSource(notify, httpService, url, headers);
} else if (!strncasecmp(url, "rtsp://", 7)) {
source = new RTSPSource(
notify, httpService, url, headers, mUIDValid, mUID);
} else if ((!strncasecmp(url, "http://", 7)
|| !strncasecmp(url, "https://", 8))
&& ((len >= 4 && !strcasecmp(".sdp", &url[len - 4]))
|| strstr(url, ".sdp?"))) {
source = new RTSPSource(
notify, httpService, url, headers, mUIDValid, mUID, true);
} else {
sp<GenericSource> genericSource =
new GenericSource(notify, mUIDValid, mUID);
// Don't set FLAG_SECURE on mSourceFlags here for widevine.
// The correct flags will be updated in Source::kWhatFlagsChanged
// handler when GenericSource is prepared.
status_t err = genericSource->setDataSource(httpService, url, headers);
if (err == OK) {
source = genericSource;
} else {
ALOGE("Failed to set data source!");
}
}
msg->setObject("source", source);
msg->post();
}这里会根据不同协议选择不同的Source（视频源）对象，有了这个Source（视频源）对象
后，发送kWhatSetDataSource消息，代码如下：
case kWhatSetDataSource:
{
ALOGV("kWhatSetDataSource");
CHECK(mSource == NULL);
status_t err = OK;
sp<RefBase> obj;
CHECK(msg->findObject("source", &obj));
if (obj != NULL) {
mSource = static_cast<Source *>(obj.get());
} else {
err = UNKNOWN_ERROR;
}
CHECK(mDriver != NULL);
sp<NuPlayerDriver> driver = mDriver.promote();
if (driver != NULL) {
driver->notifySetDataSourceCompleted(err);
}
break;
}也就是通过具体的 Source 解析完数据，再把 Source 强制转换成 mSource 给 Decoder 使用，这时里面就包含了数据相关信息，如几个 Track、是什么格式的等。其中的一个HTTPLiveSource，主要用于解析HLS协议。

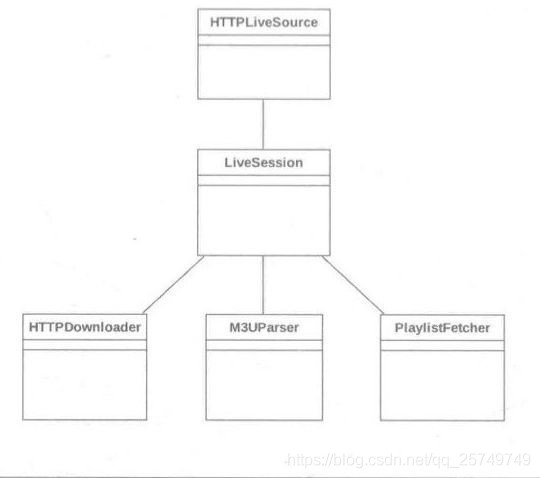

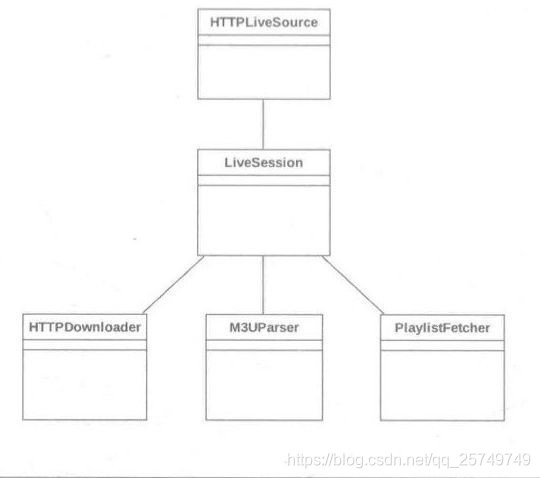

从图中可以看出HTTPLiveSource主要封装了LiveSession。 LiveSession有 HTTPDownloader 模块、M3UParser 模块，以及取播放列表的 PlaylistFetcher 模块。
当调用 HTTPLiveSource 的 prepareAsync 函数时，代码如下：
void NuPlayer::HTTPLiveSource::prepareAsync() {
if (mLiveLooper == NULL) {
mLiveLooper = new ALooper;
mLiveLooper->setName("http live");
mLiveLooper->start();
mLiveLooper->registerHandler(this);
}
sp<AMessage> notify = new AMessage(kWhatSessionNotify, this);
mLiveSession = new LiveSession(
notify,
(mFlags & kFlagIncognito) ? LiveSession::kFlagIncognito : 0,
mHTTPService);
mLiveLooper->registerHandler(mLiveSession);
mLiveSession->connectAsync(
mURL.c_str(), mExtraHeaders.isEmpty() ? NULL : &mExtraHeaders);
}内部主要构建了一个LiveSession对象。通过LiveSession内部的 connectAsync函数，创建
一个会话：
void LiveSession::connectAsync(
const char *url, const KeyedVector<String8, String8> *headers) {
sp<AMessage> msg = new AMessage(kWhatConnect, this);
msg->setString("url", url);
if (headers != NULL) {
msg->setPointer(
"headers",
new KeyedVector<String8, String8>(*headers));
}
msg->post();
}接下来是onConnect
void LiveSession::onConnect(const sp<AMessage> &msg) {
CHECK(msg->findString("url", &mMasterURL));
// TODO currently we don't know if we are coming here from incognito mode
ALOGI("onConnect %s", uriDebugString(mMasterURL).c_str());
KeyedVector<String8, String8> *headers = NULL;
if (!msg->findPointer("headers", (void **)&headers)) {
mExtraHeaders.clear();
} else {
mExtraHeaders = *headers;
delete headers;
headers = NULL;
}
// create looper for fetchers
if (mFetcherLooper == NULL) {
mFetcherLooper = new ALooper();
mFetcherLooper->setName("Fetcher");
mFetcherLooper->start(false, false);
}
// create fetcher to fetch the master playlist
addFetcher(mMasterURL.c_str())->fetchPlaylistAsync();
}网络请求，开始取播放列表。在取到播放列表后，会进行回调：
void LiveSession::onMasterPlaylistFetched(const sp<AMessage> &msg) {
AString uri;
CHECK(msg->findString("uri", &uri));
ssize_t index = mFetcherInfos.indexOfKey(uri);
if (index < 0) {
ALOGW("fetcher for master playlist is gone.");
return;
}
// no longer useful, remove
mFetcherLooper->unregisterHandler(mFetcherInfos[index].mFetcher->id());
mFetcherInfos.removeItemsAt(index);
CHECK(msg->findObject("playlist", (sp<RefBase> *)&mPlaylist));
if (mPlaylist == NULL) {
ALOGE("unable to fetch master playlist %s.",
uriDebugString(mMasterURL).c_str());
postPrepared(ERROR_IO);
return;
}
// We trust the content provider to make a reasonable choice of preferred
// initial bandwidth by listing it first in the variant playlist.
// At startup we really don't have a good estimate on the available
// network bandwidth since we haven't tranferred any data yet. Once
// we have we can make a better informed choice.
size_t initialBandwidth = 0;
size_t initialBandwidthIndex = 0;
int32_t maxWidth = 0;
int32_t maxHeight = 0;
if (mPlaylist->isVariantPlaylist()) {
Vector<BandwidthItem> itemsWithVideo;
for (size_t i = 0; i < mPlaylist->size(); ++i) {
BandwidthItem item;
item.mPlaylistIndex = i;
item.mLastFailureUs = -1ll;
sp<AMessage> meta;
AString uri;
mPlaylist->itemAt(i, &uri, &meta);
CHECK(meta->findInt32("bandwidth", (int32_t *)&item.mBandwidth));
int32_t width, height;
if (meta->findInt32("width", &width)) {
maxWidth = max(maxWidth, width);
}
if (meta->findInt32("height", &height)) {
maxHeight = max(maxHeight, height);
}
mBandwidthItems.push(item);
if (mPlaylist->hasType(i, "video")) {
itemsWithVideo.push(item);
}
}
// remove the audio-only variants if we have at least one with video
if (!itemsWithVideo.empty()
&& itemsWithVideo.size() < mBandwidthItems.size()) {
mBandwidthItems.clear();
for (size_t i = 0; i < itemsWithVideo.size(); ++i) {
mBandwidthItems.push(itemsWithVideo[i]);
}
}
CHECK_GT(mBandwidthItems.size(), 0u);
initialBandwidth = mBandwidthItems[0].mBandwidth;
mBandwidthItems.sort(SortByBandwidth);
for (size_t i = 0; i < mBandwidthItems.size(); ++i) {
if (mBandwidthItems.itemAt(i).mBandwidth == initialBandwidth) {
initialBandwidthIndex = i;
break;
}
}
} else {
// dummy item.
BandwidthItem item;
item.mPlaylistIndex = 0;
item.mBandwidth = 0;
mBandwidthItems.push(item);
}
mMaxWidth = maxWidth > 0 ? maxWidth : mMaxWidth;
mMaxHeight = maxHeight > 0 ? maxHeight : mMaxHeight;
mPlaylist->pickRandomMediaItems();
changeConfiguration(
0ll /* timeUs */, initialBandwidthIndex, false /* pickTrack */);
}上面的代码主要是根据 URL返回的 M3U文件，获取对应的 Bandwidthltem，如果熟悉M3U文件，可以知道M3U文件有一级索引和二级索引，M3U一级索引内容举例如下
#EXTM3U
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=200000
gear1/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=311111
gear2/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=484444
gear3/prog_index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=737777
gear4/prog_index.m3u8其主要作用是动态码率适应，BANDWIDTH 越大，分辨率越高。BANDWIDTH 实际上就是带宽。
例如，想要获得某个 Track的信息，得到视频、音频、字幕相关信息，可以通过LiveSession 的 getTrackInfo 函数：
sp<AMessage> LiveSession::getTrackInfo(size_t trackIndex) const {
if (mPlaylist == NULL) {
return NULL;
} else {
if (trackIndex == mPlaylist->getTrackCount() && mHasMetadata) {
sp<AMessage> format = new AMessage();
format->setInt32("type", MEDIA_TRACK_TYPE_METADATA);
format->setString("language", "und");
format->setString("mime", MEDIA_MIMETYPE_DATA_TIMED_ID3);
return format;
}
return mPlaylist->getTrackInfo(trackIndex);
}
}
