一张图搞定MySQL七种 JOIN 关系

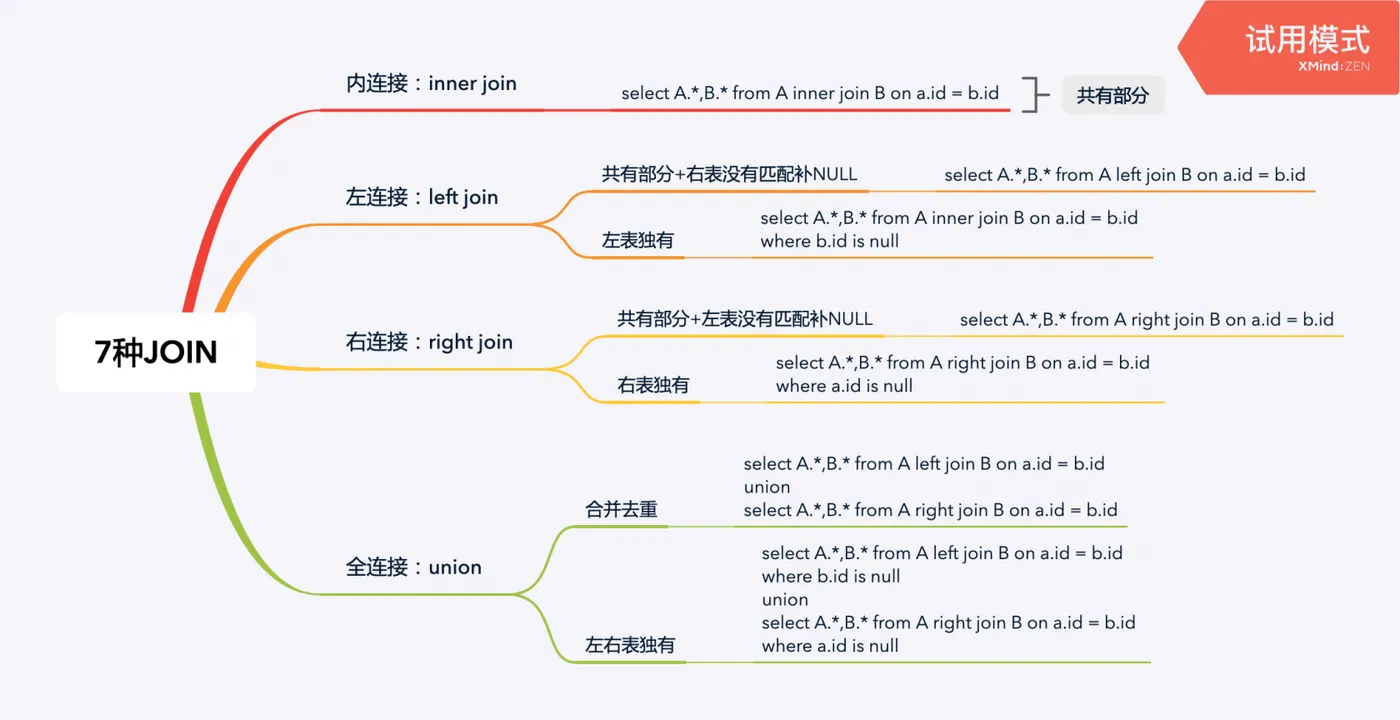

图片精华版

文字解释版

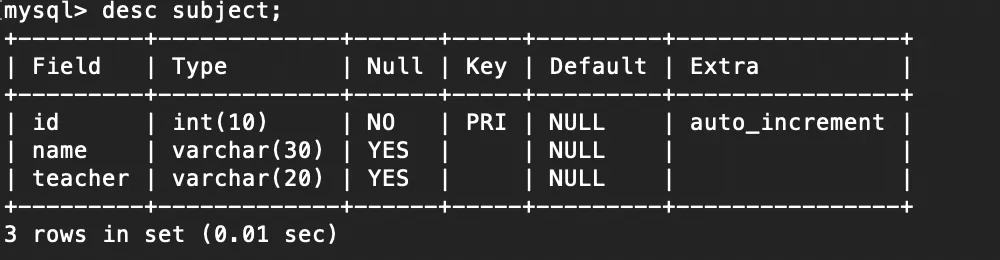

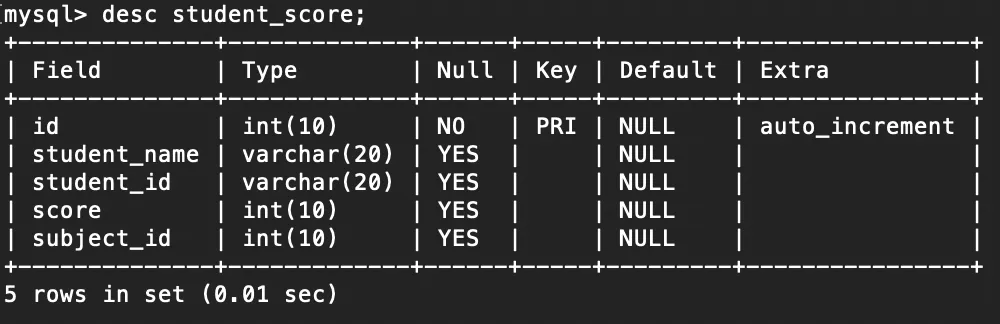

1. 需要准备好两个table：subject（学科表）和 student_score（学生成绩表）
通过学生成绩表的subject_id字段（学科ID）和学科表的id字段（主键ID）进行关联

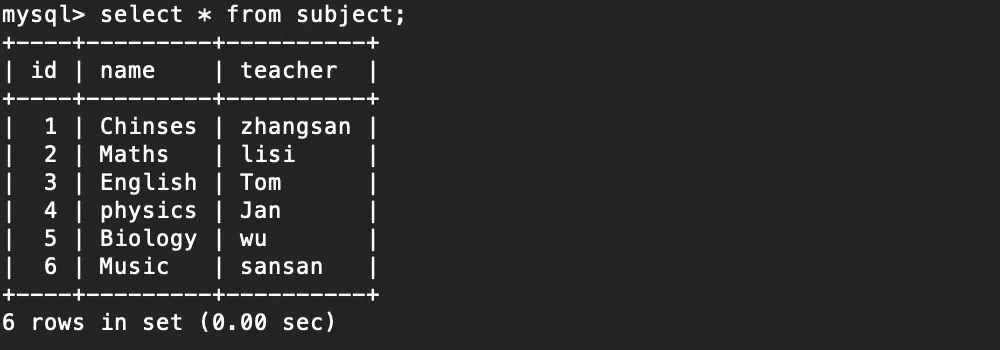

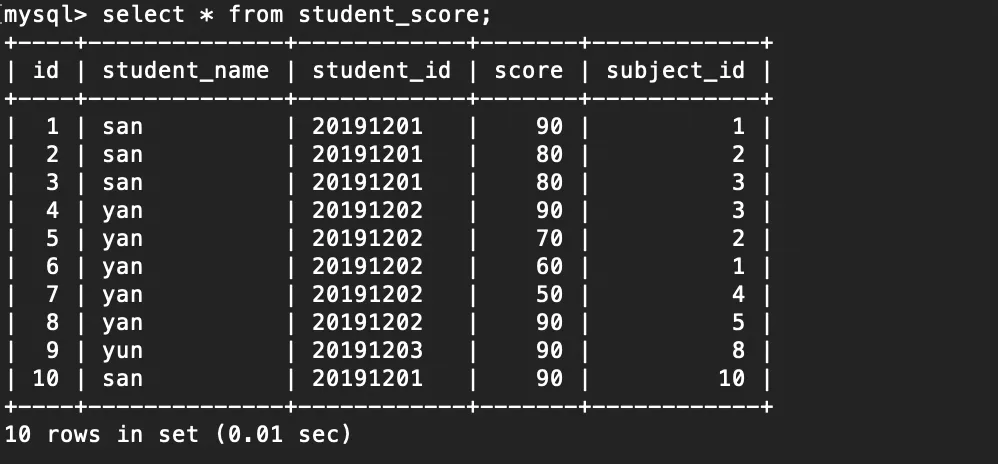

2. 分别填充数据

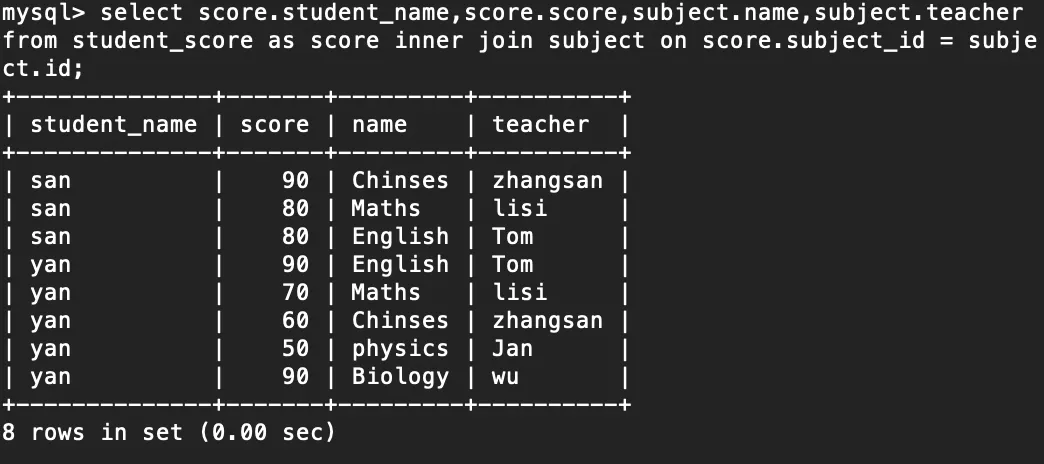

3. inner join
语句：select score.student_name,score.score,subject.name,subject.teacher from student_score as score inner join subject on score.subject_id = subject.id;

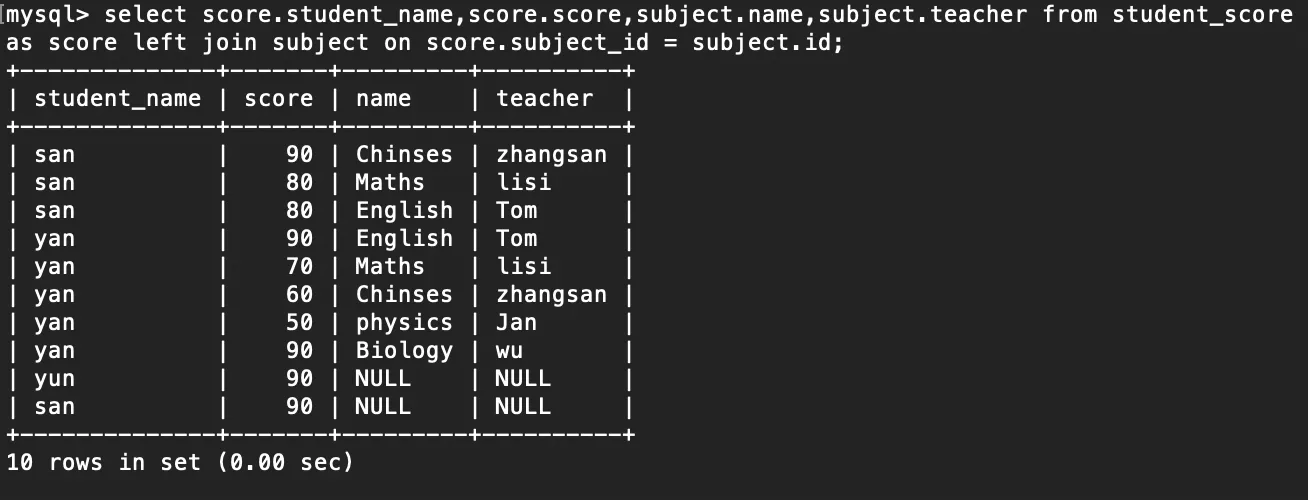

4. left join （共有+右表不匹配补NULL）
语句：select score.student_name,score.score,subject.name,subject.teacher from student_score as score left join subject on score.subject_id = subject.id;

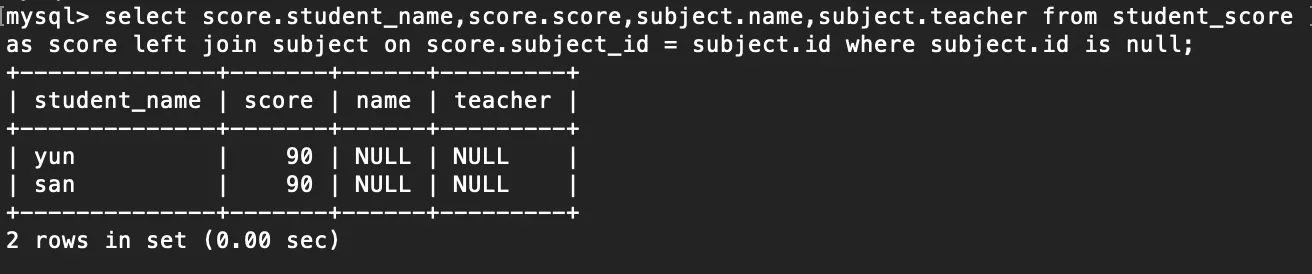

5. left join （左表独有）
语句：select score.student_name,score.score,subject.name,subject.teacher from student_score as score left join subject on score.subject_id = subject.id where subject.id is null;

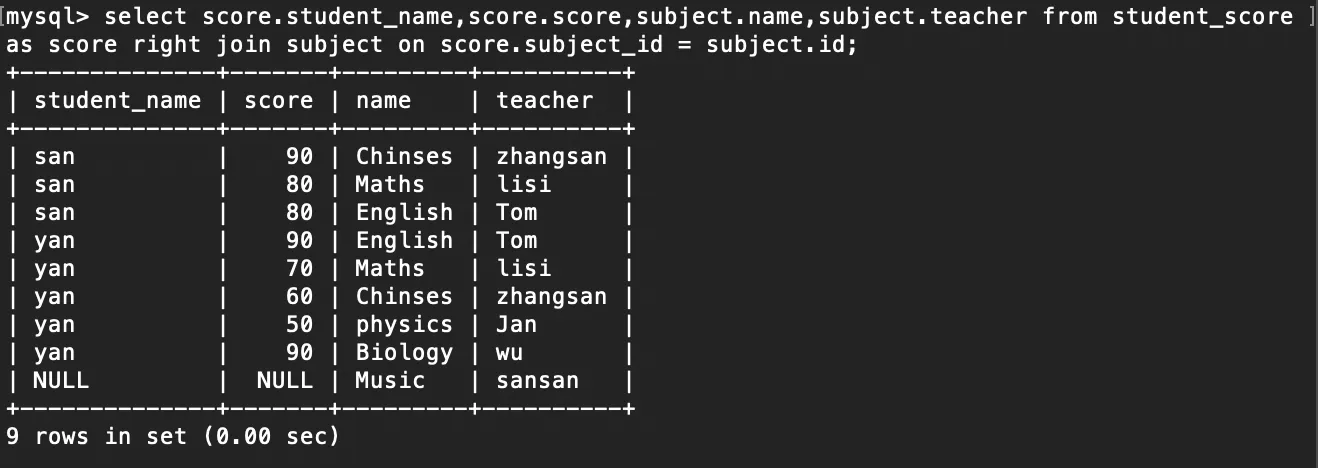

6. right join （共有+左表不匹配补NULL）
语句：select score.student_name,score.score,subject.name,subject.teacher from student_score as score right join subject on score.subject_id = subject.id;

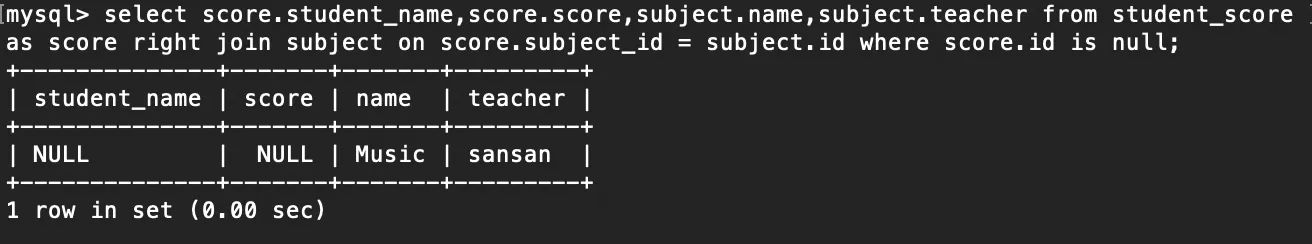

7. right join （右表独有）
语句：select score.student_name,score.score,subject.name,subject.teacher from student_score as score right join subject on score.subject_id = subject.id where score.id is null;

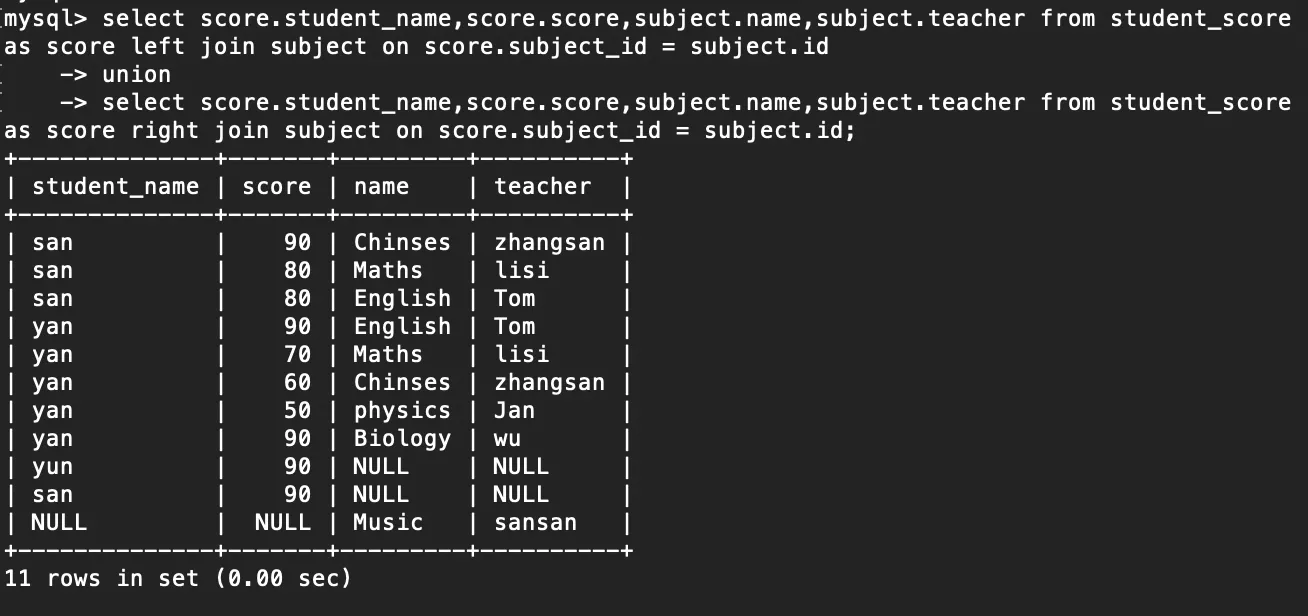

8. union （左右表合并并去重）
语句：
select score.student_name,score.score,subject.name,subject.teacher from student_score as score left join subject on score.subject_id = subject.id
union
select score.student_name,score.score,subject.name,subject.teacher from student_score as score right join subject on score.subject_id = subject.id;

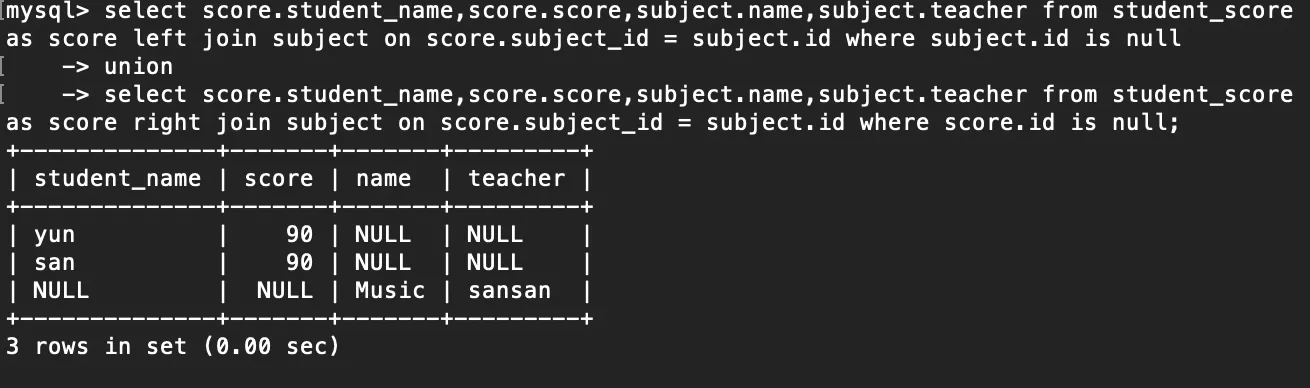

9. union （左右表独有）
语句：
select score.student_name,score.score,subject.name,subject.teacher from student_score as score left join subject on score.subject_id = subject.id where subject.id is null
union
select score.student_name,score.score,subject.name,subject.teacher from student_score as score right join subject on score.subject_id = subject.id where score.id is null;
