Spring 框架的一个关键组件是面向方面的编程(AOP)框架。面向方面的编程需要把程序逻辑分解成不同的部分称为所谓的关注点。跨一个应用程序的多个点的功能被称为横切关注点，这些横切关注点在概念上独立于应用程序的业务逻辑。有各种各样的常见的很好的方面的例子，如日志记录、审计、声明式事务、安全性和缓存等。
在 OOP 中，关键单元模块度是类，而在 AOP 中单元模块度是方面。依赖注入帮助你对应用程序对象相互解耦和 AOP 可以帮助你从它们所影响的对象中对横切关注点解耦。AOP 是像编程语言的触发物，如 Perl，.NET，Java 或者其他。
Spring AOP 模块提供拦截器来拦截一个应用程序，例如，当执行一个方法时，你可以在方法执行之前或之后添加额外的功能。
Spring中基于AOP的XML架构
示例:
(1)编写Logging .java
package com.tutorialspoint; public class Logging { /** * This is the method which I would like to execute * before a selected method execution. */ public void beforeAdvice(){ System.out.println("Going to setup student profile."); } /** * This is the method which I would like to execute * after a selected method execution. */ public void afterAdvice(){ System.out.println("Student profile has been setup."); } /** * This is the method which I would like to execute * when any method returns. */ public void afterReturningAdvice(Object retVal){ System.out.println("Returning:" + retVal.toString() ); } /** * This is the method which I would like to execute * if there is an exception raised. */ public void AfterThrowingAdvice(IllegalArgumentException ex){ System.out.println("There has been an exception: " + ex.toString()); } }
(2)编写Student.java
package com.tutorialspoint; public class Student { private Integer age; private String name; public void setAge(Integer age) { this.age = age; } public Integer getAge() { System.out.println("Age : " + age ); return age; } public void setName(String name) { this.name = name; } public String getName() { System.out.println("Name : " + name ); return name; } public void printThrowException(){ System.out.println("Exception raised"); throw new IllegalArgumentException(); } }
(3)编写MainApp.java
package com.tutorialspoint; import org.springframework.context.ApplicationContext; import org.springframework.context.support.ClassPathXmlApplicationContext; public class MainApp { public static void main(String[] args) { ApplicationContext context = new ClassPathXmlApplicationContext("Beans.xml"); Student student = (Student) context.getBean("student"); student.getName(); student.getAge(); student.printThrowException(); } }
(4)编写Beans.xml
<?xml version = "1.0" encoding = "UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd "> <aop:config> <aop:aspect id="log" ref="logging"> <aop:pointcut id="selectAll" expression="execution(* com.tutorialspoint.*.*(..))"/> <aop:before pointcut-ref="selectAll" method="beforeAdvice"/> <aop:after pointcut-ref="selectAll" method="afterAdvice"/> <aop:after-returning pointcut-ref="selectAll" returning="retVal" method="afterReturningAdvice"/> <aop:after-throwing pointcut-ref="selectAll" throwing="ex" method="AfterThrowingAdvice"/> </aop:aspect> </aop:config> <!-- Definition for student bean --> <bean id="student" class="com.tutorialspoint.Student"> <property name="name" value="Zara" /> <property name="age" value="11"/> </bean> <!-- Definition for logging aspect --> <bean id="logging" class="com.tutorialspoint.Logging"/> </beans>

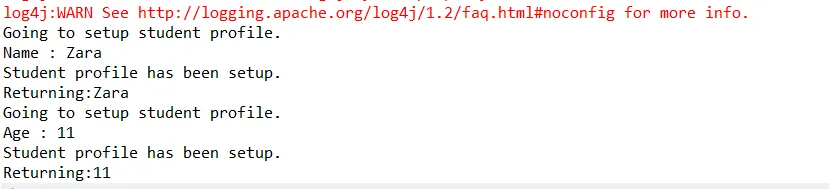

(5)运行MainApp.java中的main方法
