《Scalable IO in Java》笔记

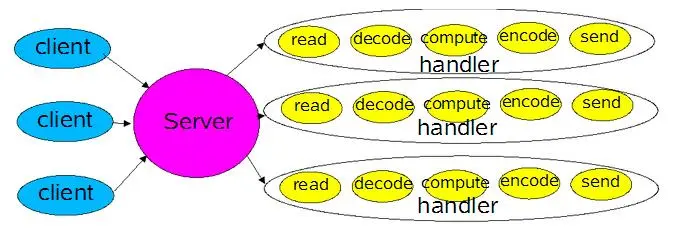

class Server implements Runnable {
    public void run() {
        try {
            ServerSocket ss = new ServerSocket(PORT);
            while (!Thread.interrupted())
            new Thread(new Handler(ss.accept())).start(); //创建新线程来handle
            // or, single-threaded, or a thread pool
        } catch (IOException ex) { /* ... */ }
    }

    static class Handler implements Runnable {
        final Socket socket;
        Handler(Socket s) { socket = s; }
        public void run() {
            try {
                byte[] input = new byte[MAX_INPUT];
                socket.getInputStream().read(input);
                byte[] output = process(input);
                socket.getOutputStream().write(output);
            } catch (IOException ex) { /* ... */ }
        }
        private byte[] process(byte[] cmd) { /* ... */ }
    }
}

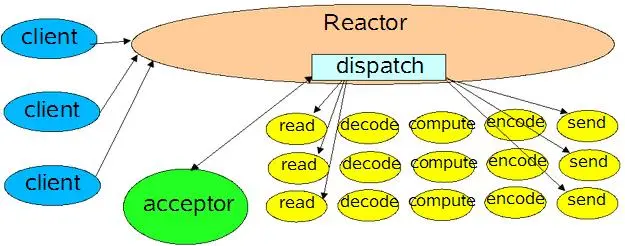

class Reactor implements Runnable {
    final Selector selector;
    final ServerSocketChannel serverSocket;
    Reactor(int port) throws IOException { //Reactor初始化
        selector = Selector.open();
        serverSocket = ServerSocketChannel.open();
        serverSocket.socket().bind(new InetSocketAddress(port));
        serverSocket.configureBlocking(false); //非阻塞
        SelectionKey sk = serverSocket.register(selector, SelectionKey.OP_ACCEPT); //分步处理,第一步,接收accept事件
        sk.attach(new Acceptor()); //attach callback object, Acceptor
    }

    public void run() {
        try {
            while (!Thread.interrupted()) {
                selector.select();
                Set selected = selector.selectedKeys();
                Iterator it = selected.iterator();
                while (it.hasNext())
                    dispatch((SelectionKey)(it.next()); //Reactor负责dispatch收到的事件
                selected.clear();
            }
        } catch (IOException ex) { /* ... */ }
    }

    void dispatch(SelectionKey k) {
        Runnable r = (Runnable)(k.attachment()); //调用之前注册的callback对象
        if (r != null)
            r.run();
    }

    class Acceptor implements Runnable { // inner
        public void run() {
            try {
                SocketChannel c = serverSocket.accept();
                if (c != null)
                new Handler(selector, c);
            }
            catch(IOException ex) { /* ... */ }
        }
    }
}

final class Handler implements Runnable {
    final SocketChannel socket;
    final SelectionKey sk;
    ByteBuffer input = ByteBuffer.allocate(MAXIN);
    ByteBuffer output = ByteBuffer.allocate(MAXOUT);
    static final int READING = 0, SENDING = 1;
    int state = READING;

    Handler(Selector sel, SocketChannel c) throws IOException {
        socket = c; c.configureBlocking(false);
        // Optionally try first read now
        sk = socket.register(sel, 0);
        sk.attach(this); //将Handler作为callback对象
        sk.interestOps(SelectionKey.OP_READ); //第二步,接收Read事件
        sel.wakeup();
    }
    boolean inputIsComplete() { /* ... */ }
    boolean outputIsComplete() { /* ... */ }
    void process() { /* ... */ }

    public void run() {
        try {
            if (state == READING) read();
            else if (state == SENDING) send();
        } catch (IOException ex) { /* ... */ }
    }

    void read() throws IOException {
        socket.read(input);
        if (inputIsComplete()) {
            process();
            state = SENDING;
            // Normally also do first write now
            sk.interestOps(SelectionKey.OP_WRITE); //第三步,接收write事件
        }
    }
    void send() throws IOException {
        socket.write(output);
        if (outputIsComplete()) sk.cancel(); //write完就结束了, 关闭select key
    }
}

//上面 的实现用Handler来同时处理Read和Write事件, 所以里面出现状态判断
//我们可以用State-Object pattern来更优雅的实现
class Handler { // ...
    public void run() { // initial state is reader
        socket.read(input);
        if (inputIsComplete()) {
            process();
            sk.attach(new Sender());  //状态迁移, Read后变成write, 用Sender作为新的callback对象
            sk.interest(SelectionKey.OP_WRITE);
            sk.selector().wakeup();
        }
    }
    class Sender implements Runnable {
        public void run(){ // ...
            socket.write(output);
            if (outputIsComplete()) sk.cancel();
        }
    }
}

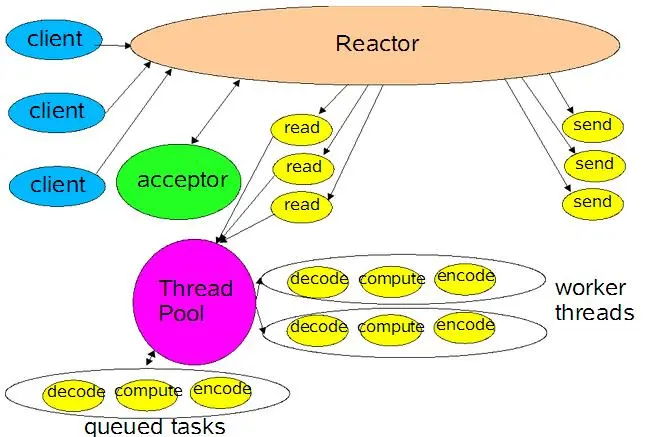

class Handler implements Runnable {
    // uses util.concurrent thread pool
    static PooledExecutor pool = new PooledExecutor(...);
    static final int PROCESSING = 3;
    // ...
    synchronized void read() { // ...
        socket.read(input);
        if (inputIsComplete()) {
            state = PROCESSING;
            pool.execute(new Processer()); //使用线程pool异步执行
        }
    }

    synchronized void processAndHandOff() {
        process();
        state = SENDING; // or rebind attachment
        sk.interest(SelectionKey.OP_WRITE); //process完,开始等待write事件
    }

    class Processer implements Runnable {
        public void run() { processAndHandOff(); }
    }
}

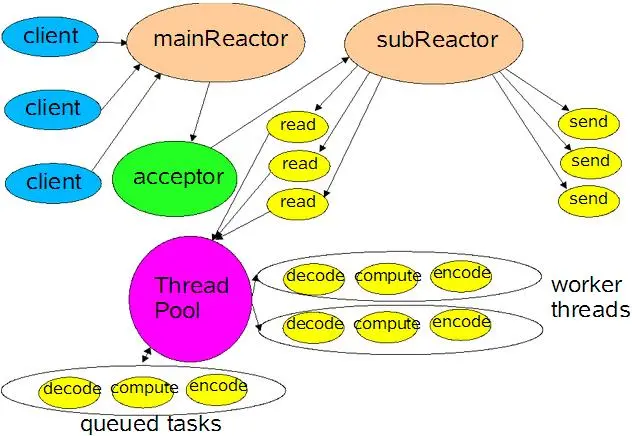

Selector[] selectors; //subReactors集合, 一个selector代表一个subReactor
int next = 0;
class Acceptor { // ...
    public synchronized void run() { ...
        Socket connection = serverSocket.accept(); //主selector负责accept
        if (connection != null)
            new Handler(selectors[next], connection); //选个subReactor去负责接收到的connection
        if (++next == selectors.length) next = 0;
    }
}
