Android第三十八期 - 评价标签FlowLayout

简介:
+关注继续查看

    代码已经整理好,这里要说一下,因为手动和Json获取写法不一样。

    手动直接xml设置:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="#E1E6F6"
    android:orientation="vertical" >

    <com.zhy.zhy_flowlayout02.FlowLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content" >

        <TextView
            style="@style/text_flag_01"
            android:text="Welcome" />

        <TextView
            style="@style/text_flag_01"
            android:text="IT工程师" />

        <TextView
            style="@style/text_flag_01"
            android:text="学习ing" />

        <TextView
            style="@style/text_flag_01"
            android:text="恋爱ing" />

        <TextView
            style="@style/text_flag_01"
            android:text="挣钱ing" />

        <TextView
            style="@style/text_flag_01"
            android:text="努力ing" />

        <TextView
            style="@style/text_flag_01"
            android:text="I thick i can" />
    </com.zhy.zhy_flowlayout02.FlowLayout>


    <com.zhy.zhy_flowlayout02.FlowLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp" >

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="Welcome"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="IT工程师"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="学习ing"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="恋爱ing"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="挣钱ing"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="努力ing"
            android:textColor="#888888" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_02"
            android:text="I thick i can"
            android:textColor="#888888" />
    </com.zhy.zhy_flowlayout02.FlowLayout>

    <com.zhy.zhy_flowlayout02.FlowLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp" >

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="Welcome"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="IT工程师"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="学习ing"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="恋爱ing"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="挣钱ing"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="努力ing"
            android:textColor="#43BBE7" />

        <TextView
            style="@style/text_flag_01"
            android:background="@drawable/flag_03"
            android:text="I thick i can"
            android:textColor="#43BBE7" />
    </com.zhy.zhy_flowlayout02.FlowLayout>

</LinearLayout>

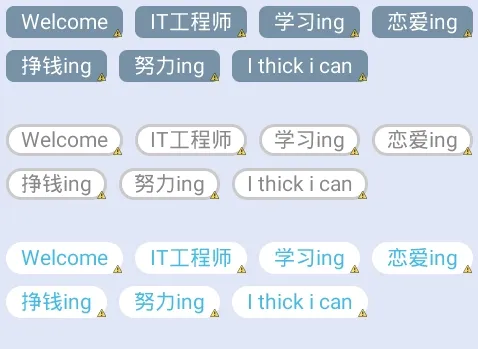

    效果如下:


    Json获取:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
    if(message.what == 1) {
        // 处理操作
        pingjia = newArrayList<Pingjia>();
        pingjia.addAll(JsonUtils.getBeanList(message.result,"Items",
        Pingjia.class));
        FlowLayout layout = (FlowLayout)findViewById(R.id.layou23);
        LinearLayout.LayoutParams params = newLinearLayout.LayoutParams(
        LinearLayout.LayoutParams.WRAP_CONTENT,
        LinearLayout.LayoutParams.WRAP_CONTENT);
        params.gravity =Gravity.CENTER_VERTICAL;

        // 加载TextView
        for (int i = 0; i < pingjia.size();i++) {
        Pingjia ping = pingjia.get(i);
        tvNav = new TextView(this);
        tvNav.setTextSize(13.f);
        // tvNav.setWidth((int)Math.floor(Double.valueOf(a)));
        // tvNav.setHeight((int)Math.floor(Double.valueOf(b)));
        tvNav.setText(ping.getContent());
        tvNav.setId(ping.getId());
        tvNav.setBackgroundResource(R.anim.flag_022);
        tvNav.setTag(false);
        tvNav.setTextColor(getResources().getColor(R.color.gray));
        // tvNav.setPadding(30, 10, 30, 10);
        // tvNav.setGravity(Gravity.CENTER_HORIZONTAL);
        tvNav.setOnClickListener(newTvClickListener(tvNav));
        layout.addView(tvNav, params);
    }


    private TextView tvNav;
    private String str = "";
    private String strId = "";

    /**
     * 标题栏textview 点击事件

     * @author fei

     */
    private final class TvClickListener implements View.OnClickListener {
        // private int index;
        private TextView tvNav;

        public TvClickListener(TextView tvNav) {
            super();
            // this.index = index;
            this.tvNav = tvNav;
        }

        @Override
        public void onClick(View v) {
            Boolean isclick = (Boolean) tvNav.getTag();
            if (!isclick) {
                tvNav.setBackgroundResource(R.anim.flag_0444);
                tvNav.setTextColor(getResources().getColor(R.color.red));
                tvNav.setTag(true);
                // 显示到上面
                str = str + tvNav.getText().toString() + ",";
                ed_en.setText(str);
                // 记录Id
                strId = strId + tvNav.getId() + ",";
                // strId = strId.substring(0, strId.length() - 1);
                // MyLogUtil.v("传->strId", strId);
            else {
                tvNav.setBackgroundResource(R.anim.flag_022);
                tvNav.setTextColor(getResources().getColor(R.color.gray));
                tvNav.setTag(false);
                // 显示到上面
                str = str.replace(tvNav.getText().toString() + ",""");
                ed_en.setText(str);
                // 记录Id
                strId = strId.replace(tvNav.getId() + ",""");
                // strId = strId.substring(0, strId.length() - 1);
                // MyLogUtil.v("Delete->strId", strId);
            }
            // ToastUtil.showToastLong(tvNav.getId() + ","
            // + tvNav.getText().toString());
        }
    }

    xml设置:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
     <LinearLayout
                    android:layout_width="fill_parent"
                    android:layout_height="wrap_content"
                    android:layout_marginBottom="@dimen/dimens_10"
                    android:layout_marginLeft="@dimen/x10"
                    android:layout_marginRight="@dimen/x10"
                    android:layout_marginTop="@dimen/y20"
                    android:orientation="vertical" >

                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="wrap_content"
                        android:drawableLeft="@drawable/biaoqian1"
                        android:drawablePadding="@dimen/dimens_10"
                        android:text="@string/bq3"
                        android:textColor="@color/black"
                        android:textSize="15sp" />

                    <com.kangxin.patient.utils.FlowLayout
                        android:id="@+id/layou23"
                        android:layout_width="fill_parent"
                        android:layout_height="wrap_content"
                        android:layout_marginTop="@dimen/y10"
                        android:orientation="vertical" >
                    </com.kangxin.patient.utils.FlowLayout>
                </LinearLayout>

    效果如下:


    最后是自定义layout类FlowLayout:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
package com.zhy.zhy_flowlayout02;

import java.util.ArrayList;
import java.util.List;

import android.content.Context;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;
import android.view.ViewGroup;

public class FlowLayout extends ViewGroup
{

    private static final String TAG = "FlowLayout";


    public FlowLayout(Context context, AttributeSet attrs)
    {
        super(context, attrs);
    }

    @Override
    protected ViewGroup.LayoutParams generateLayoutParams(
            ViewGroup.LayoutParams p)
    {
        return new MarginLayoutParams(p);
    }

    @Override
    public ViewGroup.LayoutParams generateLayoutParams(AttributeSet attrs)
    {
        return new MarginLayoutParams(getContext(), attrs);
    }

    @Override
    protected ViewGroup.LayoutParams generateDefaultLayoutParams()
    {
        return new MarginLayoutParams(LayoutParams.MATCH_PARENT,
                LayoutParams.MATCH_PARENT);
    }

    /**
     * 负责设置子控件的测量模式和大小 根据所有子控件设置自己的宽和高
     */
    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec)
    {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        // 获得它的父容器为它设置的测量模式和大小
        int sizeWidth = MeasureSpec.getSize(widthMeasureSpec);
        int sizeHeight = MeasureSpec.getSize(heightMeasureSpec);
        int modeWidth = MeasureSpec.getMode(widthMeasureSpec);
        int modeHeight = MeasureSpec.getMode(heightMeasureSpec);

        Log.e(TAG, sizeWidth + "," + sizeHeight);

        // 如果是warp_content情况下,记录宽和高
        int width = 0;
        int height = 0;
        /**
         * 记录每一行的宽度,width不断取最大宽度
         */
        int lineWidth = 0;
        /**
         * 每一行的高度,累加至height
         */
        int lineHeight = 0;

        int cCount = getChildCount();

        // 遍历每个子元素
        for (int i = 0; i < cCount; i++)
        {
            View child = getChildAt(i);
            // 测量每一个child的宽和高
            measureChild(child, widthMeasureSpec, heightMeasureSpec);
            // 得到child的lp
            MarginLayoutParams lp = (MarginLayoutParams) child
                    .getLayoutParams();
            // 当前子空间实际占据的宽度
            int childWidth = child.getMeasuredWidth() + lp.leftMargin
                    + lp.rightMargin;
            // 当前子空间实际占据的高度
            int childHeight = child.getMeasuredHeight() + lp.topMargin
                    + lp.bottomMargin;
            /**
             * 如果加入当前child,则超出最大宽度,则的到目前最大宽度给width,类加height 然后开启新行
             */
            if (lineWidth + childWidth > sizeWidth)
            {
                width = Math.max(lineWidth, childWidth);// 取最大的
                lineWidth = childWidth; // 重新开启新行,开始记录
                // 叠加当前高度,
                height += lineHeight;
                // 开启记录下一行的高度
                lineHeight = childHeight;
            else
            // 否则累加值lineWidth,lineHeight取最大高度
            {
                lineWidth += childWidth;
                lineHeight = Math.max(lineHeight, childHeight);
            }
            // 如果是最后一个,则将当前记录的最大宽度和当前lineWidth做比较
            if (i == cCount - 1)
            {
                width = Math.max(width, lineWidth);
                height += lineHeight;
            }

        }
        setMeasuredDimension((modeWidth == MeasureSpec.EXACTLY) ? sizeWidth
                : width, (modeHeight == MeasureSpec.EXACTLY) ? sizeHeight
                : height);

    }
    /**
     * 存储所有的View,按行记录
     */
    private List<List<View>> mAllViews = new ArrayList<List<View>>();
    /**
     * 记录每一行的最大高度
     */
    private List<Integer> mLineHeight = new ArrayList<Integer>();
    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b)
    {
        mAllViews.clear();
        mLineHeight.clear();

        int width = getWidth();

        int lineWidth = 0;
        int lineHeight = 0;
        // 存储每一行所有的childView
        List<View> lineViews = new ArrayList<View>();
        int cCount = getChildCount();
        // 遍历所有的孩子
        for (int i = 0; i < cCount; i++)
        {
            View child = getChildAt(i);
            MarginLayoutParams lp = (MarginLayoutParams) child
                    .getLayoutParams();
            int childWidth = child.getMeasuredWidth();
            int childHeight = child.getMeasuredHeight();

            // 如果已经需要换行
            if (childWidth + lp.leftMargin + lp.rightMargin + lineWidth > width)
            {
                // 记录这一行所有的View以及最大高度
                mLineHeight.add(lineHeight);
                // 将当前行的childView保存,然后开启新的ArrayList保存下一行的childView
                mAllViews.add(lineViews);
                lineWidth = 0;// 重置行宽
                lineViews = new ArrayList<View>();
            }
            /**
             * 如果不需要换行,则累加
             */
            lineWidth += childWidth + lp.leftMargin + lp.rightMargin;
            lineHeight = Math.max(lineHeight, childHeight + lp.topMargin
                    + lp.bottomMargin);
            lineViews.add(child);
        }
        // 记录最后一行
        mLineHeight.add(lineHeight);
        mAllViews.add(lineViews);

        int left = 0;
        int top = 0;
        // 得到总行数
        int lineNums = mAllViews.size();
        for (int i = 0; i < lineNums; i++)
        {
            // 每一行的所有的views
            lineViews = mAllViews.get(i);
            // 当前行的最大高度
            lineHeight = mLineHeight.get(i);

            Log.e(TAG, "第" + i + "行 :" + lineViews.size() + " , " + lineViews);
            Log.e(TAG, "第" + i + "行, :" + lineHeight);

            // 遍历当前行所有的View
            for (int j = 0; j < lineViews.size(); j++)
            {
                View child = lineViews.get(j);
                if (child.getVisibility() == View.GONE)
                {
                    continue;
                }
                MarginLayoutParams lp = (MarginLayoutParams) child
                        .getLayoutParams();

                //计算childView的left,top,right,bottom
                int lc = left + lp.leftMargin;
                int tc = top + lp.topMargin;
                int rc =lc + child.getMeasuredWidth();
                int bc = tc + child.getMeasuredHeight();

                Log.e(TAG, child + " , l = " + lc + " , t = " + t + " , r ="
                        + rc + " , b = " + bc);

                child.layout(lc, tc, rc, bc);

                left += child.getMeasuredWidth() + lp.rightMargin
                        + lp.leftMargin;
            }
            left = 0;
            top += lineHeight;
        }

    }
}

    最后感谢 hongyang大神~Loader大神~










本文转自 吴雨声 51CTO博客,原文链接:http://blog.51cto.com/liangxiao/1663535,如需转载请自行联系原作者

版权声明:本文内容由阿里云实名注册用户自发贡献,版权归原作者所有,阿里云开发者社区不拥有其著作权,亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容,填写侵权投诉表单进行举报,一经查实,本社区将立刻删除涉嫌侵权内容。

相关文章
Android layout布局中所有控件的属性
终于建了一个自己个人小站:https://huangtianyu.gitee.io,以后优先更新小站博客,欢迎进站,O(∩_∩)O~~ 第一类:属性值 true或者 false android:layout_centerHrizontal 水平居中    android:layout_cent...
1253 0
Android ViewDragHelper:控制子View垂直方向拖曳不能越界(3)
 Android ViewDragHelper:控制子View垂直方向拖曳不能越界(3) 附录文章1简单介绍了Android ViewDragHelper的使用,附录文章2介绍了如何控制ViewDragHelper在水平方向上拖曳不会被拖曳出边界,以及那些子view可以被拖曳,那些子view不能被拖曳。
897 0
android ScrollView--Linearlayout可以上下拖动
动态添加: [java] view plaincopy                                  动态代码上: scrollView=new ScrollView(getApplicationContext());scrollView.
997 0
Android Layout各种布局
Android Layout各种布局 LinearLayout(线性布局) 提供了控件水平垂直排列的模型,同时可以通过设置子控件的weight布局参数控制各个控件在布局中的相对大小。 水平(vertical)垂直(horizontal) fill-parent:占满整个屏幕, wr...
759 0
+关注
20376
文章
0
问答
文章排行榜
最热
最新
相关电子书
更多
低代码开发师(初级)实战教程
立即下载
阿里巴巴DevOps 最佳实践手册
立即下载
冬季实战营第三期:MySQL数据库进阶实战
立即下载
