用试探回溯法解决N皇后问题

简介: 学校数据结构的课程实验之一。 数据结构:(其实只用了一个二维数组) 算法:深度优先搜索,试探回溯 需求分析:   设计一个在控制台窗口运行的“n皇后问题”解决方案生成器,要求实现以下功能:   由n*n个方块排成n行n列的正方形称为n元棋盘。

学校数据结构的课程实验之一。

数据结构:(其实只用了一个二维数组)

算法:深度优先搜索,试探回溯

需求分析:

  设计一个在控制台窗口运行的“n皇后问题”解决方案生成器,要求实现以下功能:

  由n*n个方块排成nn列的正方形称为n元棋盘。如果两个皇后位于n元棋盘上的同一行、同一列或同一对角线上,则称它们在互相攻击。现要找出使棋盘上n个皇后互不攻击的布局。

  编制程序解决上述问题,以n=6运行程序,输出结果。

算法解释:

  首先试探当前行第一个可用的位置(列、对角线没有被占领),摆放皇后之后,试探下一行的第一个可用位置;如果遇到此行没有可用位置,则返回上一行,移除上一行的皇后,试探此行的下一个可用位置,直至n个皇后全部摆放好,生成一种方案。

主函数:

 1 int main()
 2 /*Pre: The user enters a valid board size.
 3 Post: All solutions to the n-queens puzzle for the selected board size
 4 are printed.
 5 Uses: The class Queens and the recursive functionsolve from. */
 6 {
 7     int board_size;
 8     char choice = 'y';
 9     char enter;
10     while (choice == 'y')//由用户决定是否继续
11     {
12         sum = 0;
13         cout << "What is the size of the board?"<<flush;
14         cin >> board_size;
15         if(board_size < 0||board_size > max_board)
16             cout<<"The number must between 0 and "<<max_board<<endl;
17         else
18         {
19             Queens configuration(board_size);//创建size*size的对象
20
21             cout << "there is total " << solve_from(configuration) << " configurations." << endl;//打印所有解决方案和方案个数
22         }
23         cout << endl << "Would you like to continue? [y/n]" << endl;
24         //回车符的消去
25         fflush(stdin);
26         while ((enter = cin.get()) == '\n')
27         {
28             enter = cin.get();
29         }
30         cin.putback(enter);
31         cin >> choice;//移植了计算器的代码
32     }
33     return 0;
34 }

辅助函数(计算出所有解决方案)(参考了经典教材"Data Structures and Program Design in C++" Robert L. Kruse, Alexander J. Ryba 高等教育出版社-影印版)

 1 int sum = 0;//记录解决方案个数
 2
 3 int solve_from(Queens &configuration)//通过递归、回溯找到所有解决方案并打印
 4 /*Pre: the queens configuration represents a partially completed
 5 arrangement of nonattacking queens on a chessboard.
 6 Post: all n-queens solutions that extend the given configuration are
 7 printed. The configuration is restored to its initial state.
 8 Uses: the class Queens and the function solve_from, recursively.*/
 9 {
10     if (configuration.is_solved())//当生成一种解决方案时打印,sum自增一
11     {
12         sum++;
13         configuration.print();
14         cout <<"================" <<endl;
15     }
16     else
17         for(int col=0; col<configuration.board_size; col++)
18             if(configuration.unguarded(col))
19             {
20                 configuration.insert(col);
21                 solve_from(configuration);//recursively continue to add queens当生成一种解决方案时打印
22                 configuration.remove(col);//return the last row and the last col.试探上一层的下一种方案(无论上一次试探是成功还是失败)
23             }
24     return sum;
25 }

注:

  每次回溯其实有两种可能:“摆放满了n个皇后”或者“此行没有可放的位置”,二者都会返回上一行去试探下一种可能,只不过摆满n个皇后的情况会生成一种方案(被if截获,回到上一层循环),生成后还是回到倒数第二行再进行试探。因此一次深度优先搜索(调用一次solve_from函数)可以将所有方案全部输出。

“皇后”类的定义

 1 const int max_board = 15;//最大棋盘阶数
 2 using namespace std;
 3
 4 class Queens
 5 {
 6 public:
 7     Queens(int size);
 8     bool is_solved() const;//判断是否完成一种方案
 9     void print() const;//打印当前方案
10     bool unguarded(int col) const;//判断某格是否可放皇后
11     void insert(int col);//摆放皇后
12     void remove(int col);//移除
13     int board_size;//dimension of board = maximum number of queens
14 private:
15     int count;//current number of queens = first unoccupied row
16     bool queen_square[max_board][max_board];//存放棋盘状态的二维数组
17 };

“皇后”类的实现(同样参考了经典教材"Data Structures and Program Design in C++" Robert L. Kruse, Alexander J. Ryba 高等教育出版社-影印版)

 1 #include <iostream>
 2 #include "Queens.h"
 3
 4 Queens::Queens(int size)
 5 {
 6     board_size = size;
 7     count = 0;//从第一行开始计数
 8     for(int row=0; row<board_size; row++)
 9         for(int col=0; col<board_size; col++)
10             queen_square[row][col] = false;//生成size*size的空棋盘
11 }
12
13 bool Queens::is_solved() const
14 /*whether the number of queens already placed
15 equals board_size*/
16 {
17     bool solved = false;
18     if(count == board_size)//当board_size个皇后都摆放完毕时,生成一种方案
19         solved = true;
20     return solved;
21 }
22
23 void Queens::print() const
24 {
25     for (int row = 0; row < board_size; row++)
26     {
27         for (int col = 0; col < board_size; col++)
28             if (queen_square[row][col] == true)
29                 cout << "* ";
30             else
31                 cout << "_ ";//逐个打印棋盘元素,有皇后打印'*',无皇后打印'_'
32         cout << endl;
33     }
34 }
35
36 bool Queens::unguarded(int col) const
37 /*Post: Return true or false according as the square in the first
38 unoccupied row(row count) and colum col is not guarded by andy queen*/
39 {
40     int i;
41     bool ok = true;//turn false if we find a queen in column or diagonal
42     for(i=0; ok && i < count; i++)
43         ok = !queen_square[i][col];//check upper part of column同列
44     for(i=1; ok && count-i >= 0 && col-i >=0; i++)
45         ok = !queen_square[count-i][col-i];//check upper-left diagonal
46     for(i=1; ok && count-i >= 0 && col+i < board_size; i++)
47         ok = !queen_square[count-i][col+i];//chekck upper-right diagonal
48     return ok;
49 }
50
51 void Queens::insert(int col)
52 /*Pre: The square in the first unoccupied row(row count) and column is not
53 guarded by any queen.
54 Post: A queen has been inserted into the square at row count and column col;
55 count has been incremented by 1*/
56 {
57     queen_square[count++][col] = true;//放入皇后,计数器自增一(到下一行)
58 }
59
60 void Queens::remove(int col)
61 /*Pre: there is a queen in the square in row count-1 and column col.
62 Post: the above queen has been removed; count has been decremented by 1.*/
63 {
64     queen_square[count-1][col] = false;//移出皇后,计数器自减一(回上一行)
65     count--;
66 }
Queen.cpp

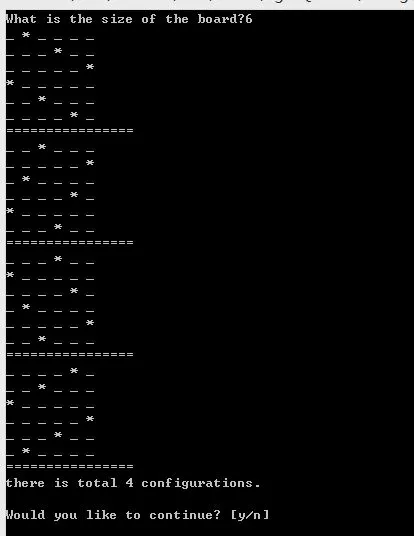

运行截图:

注:

  当输入的棋盘阶数比较大(如:8)时,命令行窗口的缓冲区默认300行可能会不够显示,所以要在属性修改“高度”,使所有结果都显示出来。
