Python中ArcPy实现Excel时序数据读取、反距离加权IDW插值与批量掩膜

# -*- coding: utf-8 -*-
# @author: ChuTianjia
import copy
import arcpy
import pandas as pd
from arcpy.sa import *
arcpy.env.workspace=arcpy.GetParameterAsText(0)
csv_path=arcpy.GetParameterAsText(1)
shape_file_path=arcpy.GetParameterAsText(2)
idw_result_dir=arcpy.GetParameterAsText(8)
boundary_file_path=arcpy.GetParameterAsText(3)
mask_result_dir=arcpy.GetParameterAsText(9)
spatial_resolution=arcpy.GetParameterAsText(4)
power=arcpy.GetParameterAsText(5)
look_point=arcpy.GetParameterAsText(6)
max_distance=arcpy.GetParameterAsText(7)

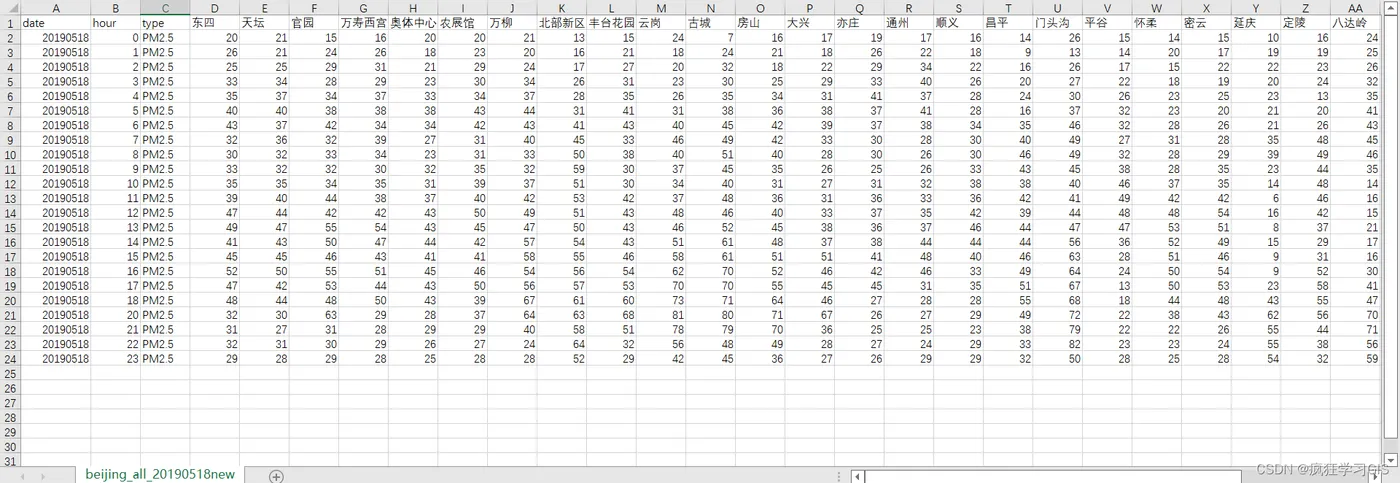

csv_data=pd.read_csv(csv_path,header=0,encoding="gbk")
column_name_list=list(csv_data)
hour_column=csv_data["hour"]
pm_25_list=[[0]*len(csv_data) for i in range(csv_data.shape[1]-3)]
for i in range(3,csv_data.shape[1]):
    for index,data in csv_data.iterrows():
        pm_25_list[i-3][index]=data[i]
field_list=["hour_00","hour_01","hour_02","hour_03","hour_04","hour_05",\
            "hour_06","hour_07","hour_08","hour_09","hour_10",\
            "hour_11","hour_12","hour_13","hour_14","hour_15",\
            "hour_16","hour_17","hour_18","hour_20",\
            "hour_21","hour_22","hour_23"]
field_list_use=copy.deepcopy(field_list)
field_list_use.insert(0,"Name")
# Update the columns in the attribute table
for i in range(len(field_list)):
    arcpy.AddField_management(shape_file_path,field_list[i],"SHORT")
delete_num=0
delete_name=[]
with arcpy.da.UpdateCursor(shape_file_path,field_list_use) as cursor:
    for row in cursor:
        for column_name in column_name_list:
            if column_name==row[0]:
                for i in range(len(csv_data[column_name])):
                    row[i+1]=csv_data[column_name][i]
                    cursor.updateRow(row)
        # Find stations that without any data
        if row[0] not in column_name_list:
            cursor.deleteRow()
            delete_num+=1
            delete_name.append(row[0])

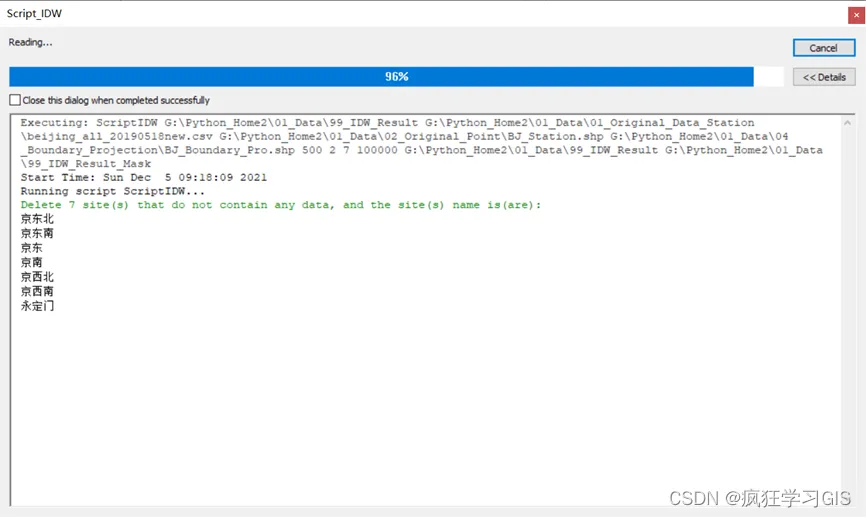

arcpy.AddWarning("Delete {0} site(s) that do not contain any data, and the site(s) name is(are):".format(delete_num))
for i in delete_name:
    arcpy.AddMessage(i)
arcpy.AddMessage("\n")

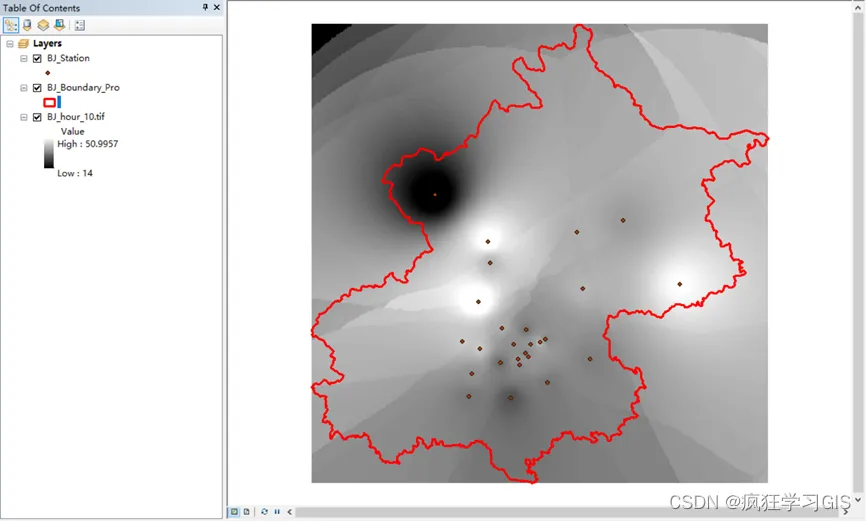

# Perform IDW interpolation
arcpy.env.extent=boundary_file_path
for i in range(len(field_list)):
    idw_result=Idw(shape_file_path,field_list[i],spatial_resolution,power,RadiusVariable(look_point,max_distance))

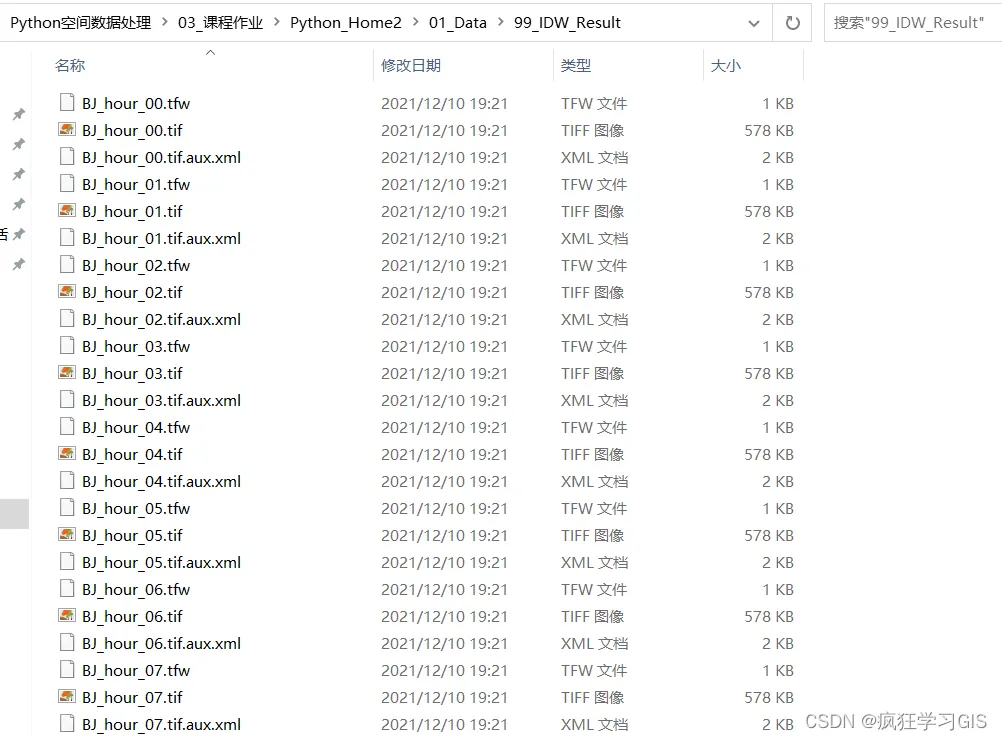

    idw_result_path=idw_result_dir+"\\"+"BJ_"+field_list[i]+".tif"
    idw_result.save(idw_result_path)

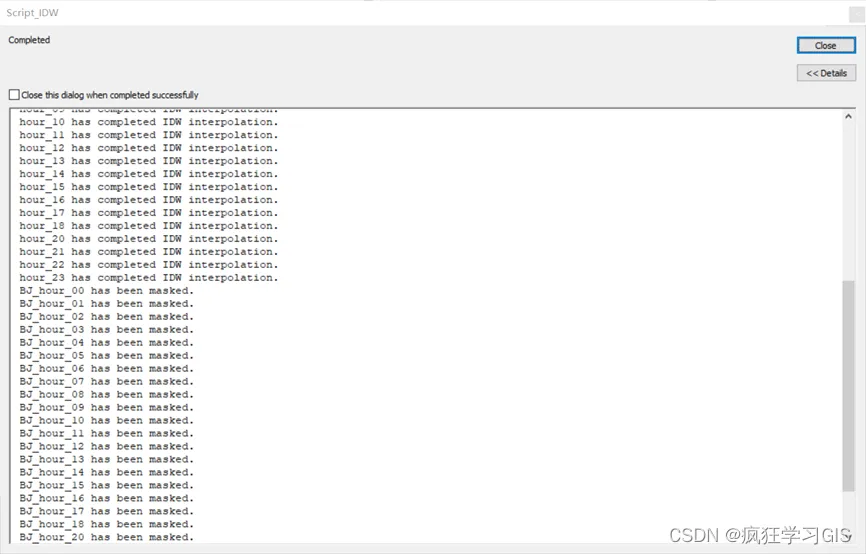

    arcpy.AddMessage("{0} has completed IDW interpolation.".format(field_list[i]))

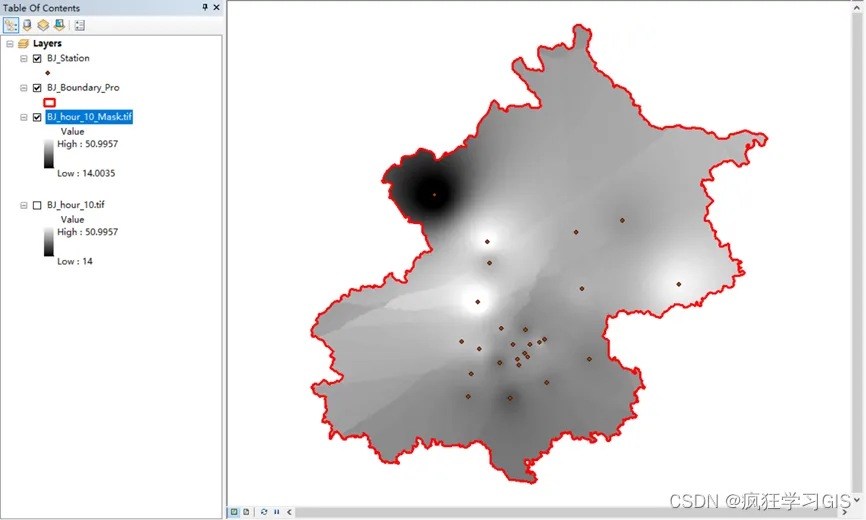

# Perform mask
tif_file_list=arcpy.ListRasters("BJ_hour_*","TIF")
for raster in tif_file_list:
    mask_result=ExtractByMask(raster,boundary_file_path)
    mask_result_path=mask_result_dir+"\\"+raster.strip(".tif")+"_Mask.tif"
    mask_result.save(mask_result_path)
    arcpy.AddMessage("{0} has been masked.".format(raster.strip(".tif")))
