利用资源文件配置字符串
利用Bundle固然能在页面跳转得时候传送数据,但这仅限于在代码中传递参数,如果要求临时修改某个参数的数值,就得去该Java代码,然而直接修改Java代码有两个弊端
1:代码文件太多 不好找到修改的地方
2:每次改动代码都得重新编译 浪费时间

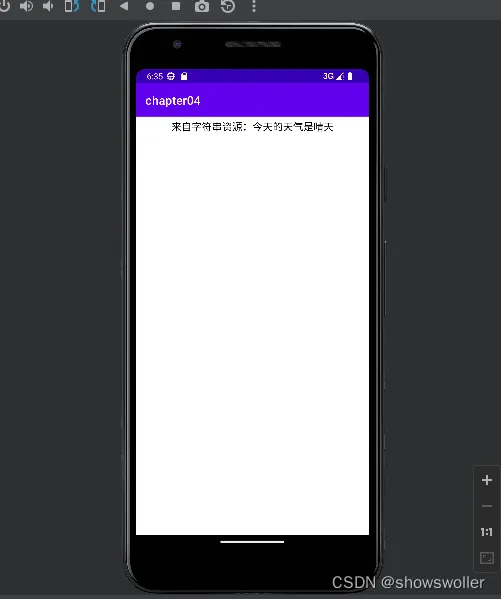

因此我们可以通过res/value目录下的strings.xml是用来配置字符串形式的参数。可以通过它来配置字符串 效果如下
ReadStringActivity类代码如下
package com.example.chapter04; import androidx.appcompat.app.AppCompatActivity; import android.os.Bundle; import android.widget.TextView; public class ReadStringActivity extends AppCompatActivity { private TextView tv_resource; // 声明一个文本视图对象 @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_read_string); // 从布局文件中获取名叫tv_resource的文本视图 tv_resource = findViewById(R.id.tv_resource); showStringResource(); // 显示字符串资源 } // 显示字符串资源 private void showStringResource() { String value = getString(R.string.weather_str); // 从strings.xml获取名叫weather_str的字符串值 tv_resource.setText("来自字符串资源:今天的天气是"+value); // 在文本视图上显示文字 } }
activity_read_stringXML文件代码如下
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <TextView android:id="@+id/tv_resource" android:layout_width="match_parent" android:layout_height="wrap_content" android:padding="5dp" android:gravity="center" android:textColor="#000000" android:textSize="17sp" /> </LinearLayout>
利用元数据传递配置信息

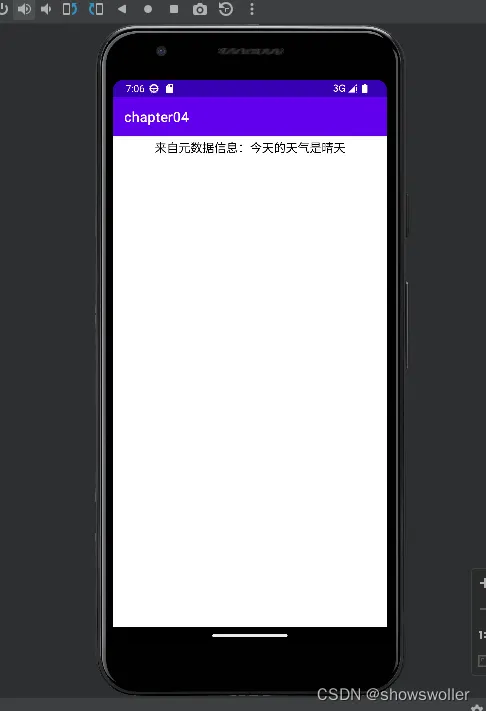

尽管资源文件能够配置字符串参数,然而有时候为了安全起见,某个参数要给某个活动专用,并不希望其他活动也能获取该参数,此时就不方便用getString方法了,因此Activity提供了元数据的概念,它是一种描述其他数据的数据,它相当于描述固定活动的参数信息 效果如下
MetaDataActivity类代码如下
package com.example.chapter04; import android.content.pm.ActivityInfo; import android.content.pm.PackageManager; import android.os.Bundle; import android.view.View; import android.widget.TextView; import androidx.appcompat.app.AppCompatActivity; public class MetaDataActivity extends AppCompatActivity { private TextView tv_meta; // 声明一个文本视图对象 @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_meta_data); // 从布局文件中获取名叫tv_meta的文本视图 tv_meta = findViewById(R.id.tv_meta); showMetaData(); // 显示配置的元数据 } // 显示配置的元数据 private void showMetaData() { try { PackageManager pm = getPackageManager(); // 获取应用包管理器 // 从应用包管理器中获取当前的活动信息 ActivityInfo act = pm.getActivityInfo(getComponentName(), PackageManager.GET_META_DATA); Bundle bundle = act.metaData; // 获取活动附加的元数据信息 String value = bundle.getString("weather"); // 从包裹中取出名叫weather的字符串 tv_meta.setText("来自元数据信息:今天的天气是"+value); // 在文本视图上显示文字 } catch (Exception e) { e.printStackTrace(); } } }
activity_meta_dataXML文件代码如下
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <TextView android:id="@+id/tv_meta" android:layout_width="match_parent" android:layout_height="wrap_content" android:padding="5dp" android:gravity="center" android:textColor="#000000" android:textSize="17sp" /> </LinearLayout>
给应用页面注册快捷方式
快捷方式即长按应用图标后会显示应用的一些功能,就可以直接点击使用,不用再点击应用里面去寻找,十分方便
在res目录下创建名为xml的文件夹,并在该文件夹下创建shortcuts.xml 代码如下
<shortcuts xmlns:android="http://schemas.android.com/apk/res/android"> <shortcut android:shortcutId="first" android:enabled="true" android:icon="@mipmap/ic_launcher" android:shortcutShortLabel="@string/first_short" android:shortcutLongLabel="@string/first_long"> <!-- targetClass指定了点击该项菜单后要打开哪个活动页面 --> <intent android:action="android.intent.action.VIEW" android:targetPackage="com.example.chapter04" android:targetClass="com.example.chapter04.ActStartActivity" /> <categories android:name="android.shortcut.conversation"/> </shortcut> <shortcut android:shortcutId="second" android:enabled="true" android:icon="@mipmap/ic_launcher" android:shortcutShortLabel="@string/second_short" android:shortcutLongLabel="@string/second_long"> <!-- targetClass指定了点击该项菜单后要打开哪个活动页面 --> <intent android:action="android.intent.action.VIEW" android:targetPackage="com.example.chapter04" android:targetClass="com.example.chapter04.JumpFirstActivity" /> <categories android:name="android.shortcut.conversation"/> </shortcut> <shortcut android:shortcutId="third" android:enabled="true" android:icon="@mipmap/ic_launcher" android:shortcutShortLabel="@string/third_short" android:shortcutLongLabel="@string/third_long"> <!-- targetClass指定了点击该项菜单后要打开哪个活动页面 --> <intent android:action="android.intent.action.VIEW" android:targetPackage="com.example.chapter04" android:targetClass="com.example.chapter04.LoginInputActivity" /> <categories android:name="android.shortcut.conversation"/> </shortcut> </shortcuts>

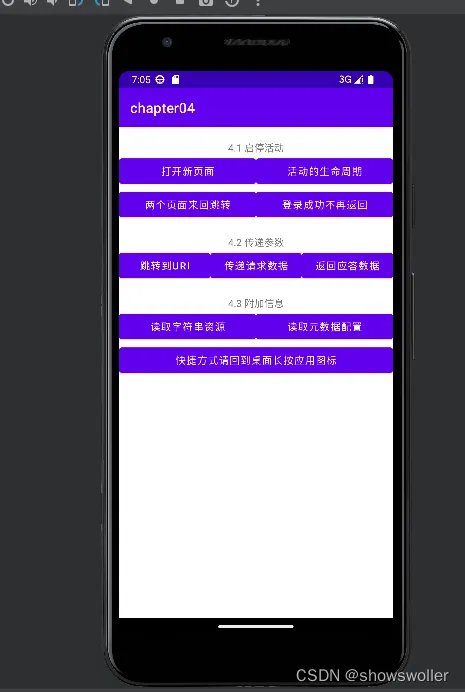

MainActivity类代码如下
package com.example.chapter04; import android.content.Intent; import android.os.Bundle; import android.view.View; import androidx.appcompat.app.AppCompatActivity; public class MainActivity extends AppCompatActivity implements View.OnClickListener { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); findViewById(R.id.btn_act_open).setOnClickListener(this); findViewById(R.id.btn_act_life).setOnClickListener(this); findViewById(R.id.btn_act_jump).setOnClickListener(this); findViewById(R.id.btn_act_login).setOnClickListener(this); findViewById(R.id.btn_action_uri).setOnClickListener(this); findViewById(R.id.btn_send_receive).setOnClickListener(this); findViewById(R.id.btn_request_response).setOnClickListener(this); findViewById(R.id.btn_read_string).setOnClickListener(this); findViewById(R.id.btn_meta_data).setOnClickListener(this); } @Override public void onClick(View v) { if (v.getId() == R.id.btn_act_open) { Intent intent = new Intent(this, ActStartActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_act_life) { Intent intent = new Intent(this, ActLifeActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_act_jump) { Intent intent = new Intent(this, JumpFirstActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_act_login) { Intent intent = new Intent(this, LoginInputActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_action_uri) { Intent intent = new Intent(this, ActionUriActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_send_receive) { Intent intent = new Intent(this, ActSendActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_request_response) { Intent intent = new Intent(this, ActRequestActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_read_string) { Intent intent = new Intent(this, ReadStringActivity.class); startActivity(intent); } else if (v.getId() == R.id.btn_meta_data) { Intent intent = new Intent(this, MetaDataActivity.class); startActivity(intent); } } }
activity_mainXML文件代码如下
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <ScrollView android:layout_width="match_parent" android:layout_height="wrap_content"> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:paddingBottom="10dp" android:orientation="vertical"> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="20dp" android:gravity="center" android:text="4.1 启停活动" /> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/btn_act_open" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="打开新页面" /> <Button android:id="@+id/btn_act_life" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="活动的生命周期" /> </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/btn_act_jump" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="两个页面来回跳转" /> <Button android:id="@+id/btn_act_login" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="登录成功不再返回" /> </LinearLayout> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="20dp" android:gravity="center" android:text="4.2 传递参数" /> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/btn_action_uri" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="跳转到Uri" /> <Button android:id="@+id/btn_send_receive" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="传递请求数据" /> <Button android:id="@+id/btn_request_response" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="返回应答数据" /> </LinearLayout> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="20dp" android:gravity="center" android:text="4.3 附加信息" /> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/btn_read_string" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="读取字符串资源" /> <Button android:id="@+id/btn_meta_data" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="读取元数据配置" /> </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/btn_shortcuts" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_weight="1" android:text="快捷方式请回到桌面长按应用图标" /> </LinearLayout> </LinearLayout> </ScrollView> </LinearLayout>
