01 引言
在k8s上运行了第三方的应用，很多时候我们都想知道运行流程，一般都会从k8s容器中获取jar包。
那么该如何把里面的jar包提取出来呢？
其实有两种方式，分别为：
- ① 从镜像信息获取；
- ② 进入容器获取
02 从镜像信息获取
主要参考了：https://blog.csdn.net/zh452647457/article/details/120215300
首先，查看镜像：
docker image ls |grep 你想要找到镜像名
查看镜像内容：
docker inspect 镜像ID
内容大概如下：
[ { "Id": "sha256:bd95813096bd754b657fb7e531e3b86075ccf4388df5b452a819919ff00c91c2", "RepoTags": [ "vvp-gateway:2.6.3_simon" ], "RepoDigests": [], "Parent": "sha256:59250f7815884db8ace5b956946370e8924ac74ad12acb922eb4431ad477418c", "Comment": "", "Created": "2022-07-11T07:12:46.084025129Z", "Container": "cfca40ed3f7bb18674c6a2fcf0f78267517de6268c6d6bfddfc8c380fb33818d", "ContainerConfig": { "Hostname": "cfca40ed3f7b", "Domainname": "", "User": "root", "AttachStdin": false, "AttachStdout": false, "AttachStderr": false, "ExposedPorts": { "8080/tcp": {} }, "Tty": false, "OpenStdin": false, "StdinOnce": false, "Env": [ "PATH=/usr/local/openjdk-11/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin", "JAVA_HOME=/usr/local/openjdk-11", "LANG=C.UTF-8", "JAVA_VERSION=11.0.15" ], "Cmd": [ "/bin/sh", "-c", "#(nop) ", "CMD [\"java\" \"-Xdebug\" \"-agentlib:jdwp=transport=dt_socket,server=y,address=0.0.0.0:8899,suspend=n\" \"-XX:MaxRAMPercentage=50.0\" \"-XX:MaxMetaspaceSize=256m\" \"-Djava.security.egd=file:/dev/./urandom\" \"-cp\" \"/vvp/app:/vvp/app/lib/*\" \"com.ververica.platform.gateway.GatewayApplication\"]" ], "Image": "sha256:59250f7815884db8ace5b956946370e8924ac74ad12acb922eb4431ad477418c", "Volumes": { "/vvp/data": {}, "/vvp/etc": {}, "/vvp/secrets": {} }, "WorkingDir": "", "Entrypoint": null, "OnBuild": null, "Labels": { "maintainer": "Ververica <platform@ververica.com>" } }, "DockerVersion": "20.10.5", "Author": "", "Config": { "Hostname": "", "Domainname": "", "User": "root", "AttachStdin": false, "AttachStdout": false, "AttachStderr": false, "ExposedPorts": { "8080/tcp": {} }, "Tty": false, "OpenStdin": false, "StdinOnce": false, "Env": [ "PATH=/usr/local/openjdk-11/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin", "JAVA_HOME=/usr/local/openjdk-11", "LANG=C.UTF-8", "JAVA_VERSION=11.0.15" ], "Cmd": [ "java", "-Xdebug", "-agentlib:jdwp=transport=dt_socket,server=y,address=0.0.0.0:8899,suspend=n", "-XX:MaxRAMPercentage=50.0", "-XX:MaxMetaspaceSize=256m", "-Djava.security.egd=file:/dev/./urandom", "-cp", "/vvp/app:/vvp/app/lib/*", "com.ververica.platform.gateway.GatewayApplication" ], "Image": "sha256:59250f7815884db8ace5b956946370e8924ac74ad12acb922eb4431ad477418c", "Volumes": { "/vvp/data": {}, "/vvp/etc": {}, "/vvp/secrets": {} }, "WorkingDir": "", "Entrypoint": null, "OnBuild": null, "Labels": { "maintainer": "Ververica <platform@ververica.com>" } }, "Architecture": "amd64", "Os": "linux", "Size": 919299037, "VirtualSize": 919299037, "GraphDriver": { "Data": { "LowerDir": "/var/lib/docker/overlay2/cc946e03217e4171399be855e56505bb037276d062c2829beea93d77f43cfaf6/diff:/var/lib/docker/overlay2/6b0a352106f128579123a45e3991b9f2492994d435180b3ca630b022f7cde088/diff:/var/lib/docker/overlay2/29ccfa6c76844dc9f104eabbf2c0e4db32a040ebfa3691078f9e751ea5a7d891/diff:/var/lib/docker/overlay2/d3eda21c53fad143abc5981dfccfac0ed33f5a2e71d3a78d9ca22ea3a6243c89/diff:/var/lib/docker/overlay2/6f336ec260b8060e77e268412246b8ecbf8a3ccbe025422dacf341337228793e/diff:/var/lib/docker/overlay2/d73a8b39b5bb63ba313669bab84d6a15378bd327944e4a43519fb8080b6e2fab/diff:/var/lib/docker/overlay2/568f3a48847e451e5482ffa75b65eff42d46b6eabe20371529379dcc79d528fb/diff:/var/lib/docker/overlay2/85feabbee50004762db71400d79ee1213b6bd580a949f628c765f3c29f7b5dd3/diff:/var/lib/docker/overlay2/76336ac57ecea887d8e5743c5897618a6398a609f9936ae7be811a2c45aad847/diff:/var/lib/docker/overlay2/db8d96c0e03b7632ee96077360103a053b88a04c95323ea6b8d612ecc918b78e/diff:/var/lib/docker/overlay2/41c62e7cf81c95bc8b77e6ce2677ded8448722b1fdb72ff9db395db7537fce8c/diff:/var/lib/docker/overlay2/35b917ac3d4b14291f8459e2ca01da3d016750b0586d7d1e412034340fe0f686/diff:/var/lib/docker/overlay2/769a1d6b4fd308283f55d7dea89c0bf375997560f85115a167b7528d26c3f256/diff:/var/lib/docker/overlay2/d8d20b6d384247cc05a7e1c1c4b0011f580ff0f01b0c1a0506420d7497dae89c/diff", "MergedDir": "/var/lib/docker/overlay2/8a1defde1405c4ad9ee22830f3dac0bab42a492cbb55109364f3e968db3eab30/merged", "UpperDir": "/var/lib/docker/overlay2/8a1defde1405c4ad9ee22830f3dac0bab42a492cbb55109364f3e968db3eab30/diff", "WorkDir": "/var/lib/docker/overlay2/8a1defde1405c4ad9ee22830f3dac0bab42a492cbb55109364f3e968db3eab30/work" }, "Name": "overlay2" }, "RootFS": { "Type": "layers", "Layers": [ "sha256:9c1b6dd6c1e6be9fdd2b1987783824670d3b0dd7ae8ad6f57dc3cea5739ac71e", "sha256:13a34b6fff7804cf7f6e8f52a4cf25ceb2e32fc35a6f39e8158074c64831ebf0", "sha256:8da60230c8c21a305a0b1871ea654b3a68ace50520397bd46b8b647c6e0891c4", "sha256:f93bb772c4958617a803266969a338094cb73511c18605d87f53b1b2cfadc7b0", "sha256:af70cff76a6274cc87e5a2f1c6c1fc6554524adf407fa94e387292d91b808d39", "sha256:4503e1661bd9fe4381f37dd8c9960ef4301f387c88e6d1582922cccd0544d03e", "sha256:690041a64b809a889f8e5e2ec9eda4300fbf76dfd488b8ee334eea3ced9ac7a3", "sha256:f346876b3ef523394c2d0473501a50392d1df530daf0bd70d351830c782ccba3", "sha256:620e3c5d227e2b96f1205ead77b84be11b239adf387d7b7e83c6cd4a508431aa", "sha256:9b33a349b1c75a9040b5a8e277c0e0a535a87ba6fa87861268280f9862f8803d", "sha256:6f55434bbaa3b9d42d629ce6ac1c0eba4214b835cdb7b3c5c74deae69a5c5436", "sha256:8a9739c65869fd51708ba2ab262469b6b6d54f9576a924c89a852c26e8125c7b", "sha256:cfe58338cf6bc3ed59ab76b731315e9d47ab96e8b8f4c84a501ce709e18930e0", "sha256:57e0cc2daa9243c201289f7c677c40e1f45bc2f17023795ef7a8ef45f147d796", "sha256:095b3833d28e6e3049512b7c588025cdb34fbf08c0de67cbd8e818714ab5b4c5" ] }, "Metadata": { "LastTagTime": "2022-07-11T15:12:46.143347824+08:00" } } ]

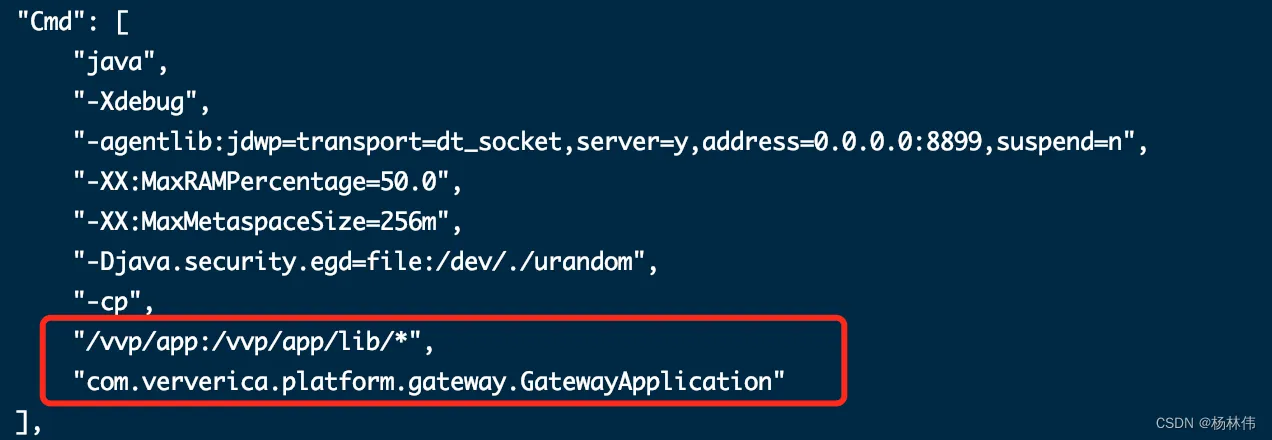

从内容中，可以看到打包镜像的流程，其中Cmd的标签，可以看出使用java来执行程序，依赖库及执行程序入口如下：

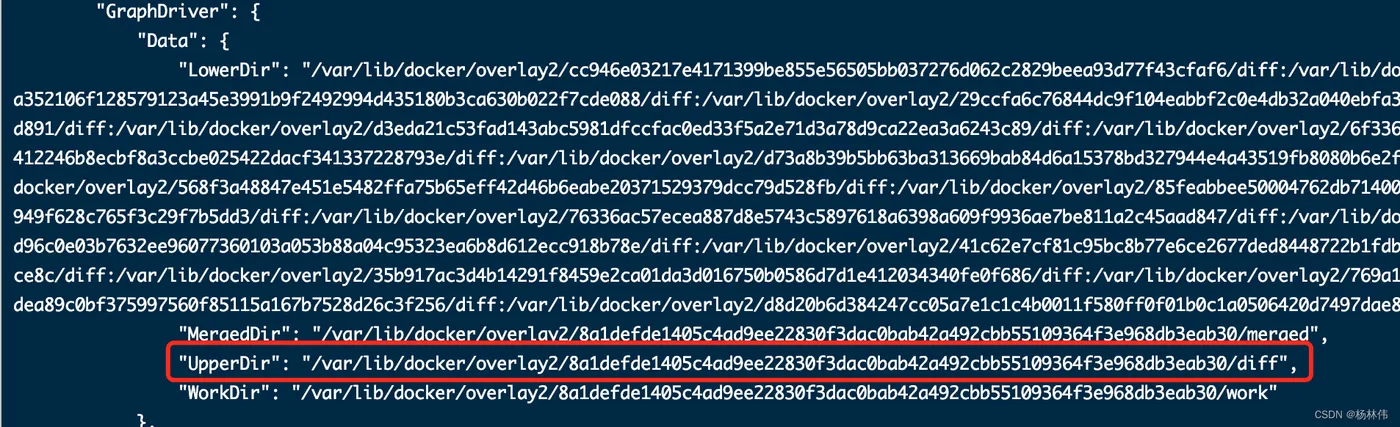

一般jar包在UpperDir：
进入对应的路径：
cd /var/lib/docker/overlay2/8a1defde1405c4ad9ee22830f3dac0bab42a492cbb55109364f3e968db3eab30/diff
可以看到里面有对应的文件及jar包，如果还没有，只能进入容器查看了。
03 进入容器获取（推荐）
进入容器命令：
kubectl exec -it pod名称 -n命名空间 bash

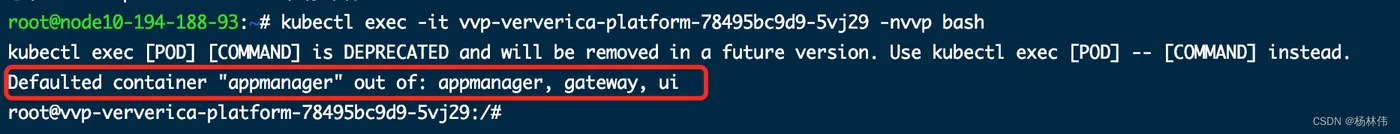

注意到了以上的提示，默认进入“appmanager”容器，实际我们希望进入的容器是gateway，所以需要指定容器进入：
kubectl exec -it pod名称 -n命名空间 -c容器名 bash
看看里面有什么内容：
进入目录：
可以看到此目录已经含有所有程序运行时需要的内容了。
04 文末
文本主要讲解了使用两种方式去获取容器中运行的jar包，希望能帮助到大家，谢谢大家的阅读，本文完！
