一、工作要求及目的

要求ZABBIX实施监控httpd服务是否正常运行，并邮件告警

二、WEB配置步骤

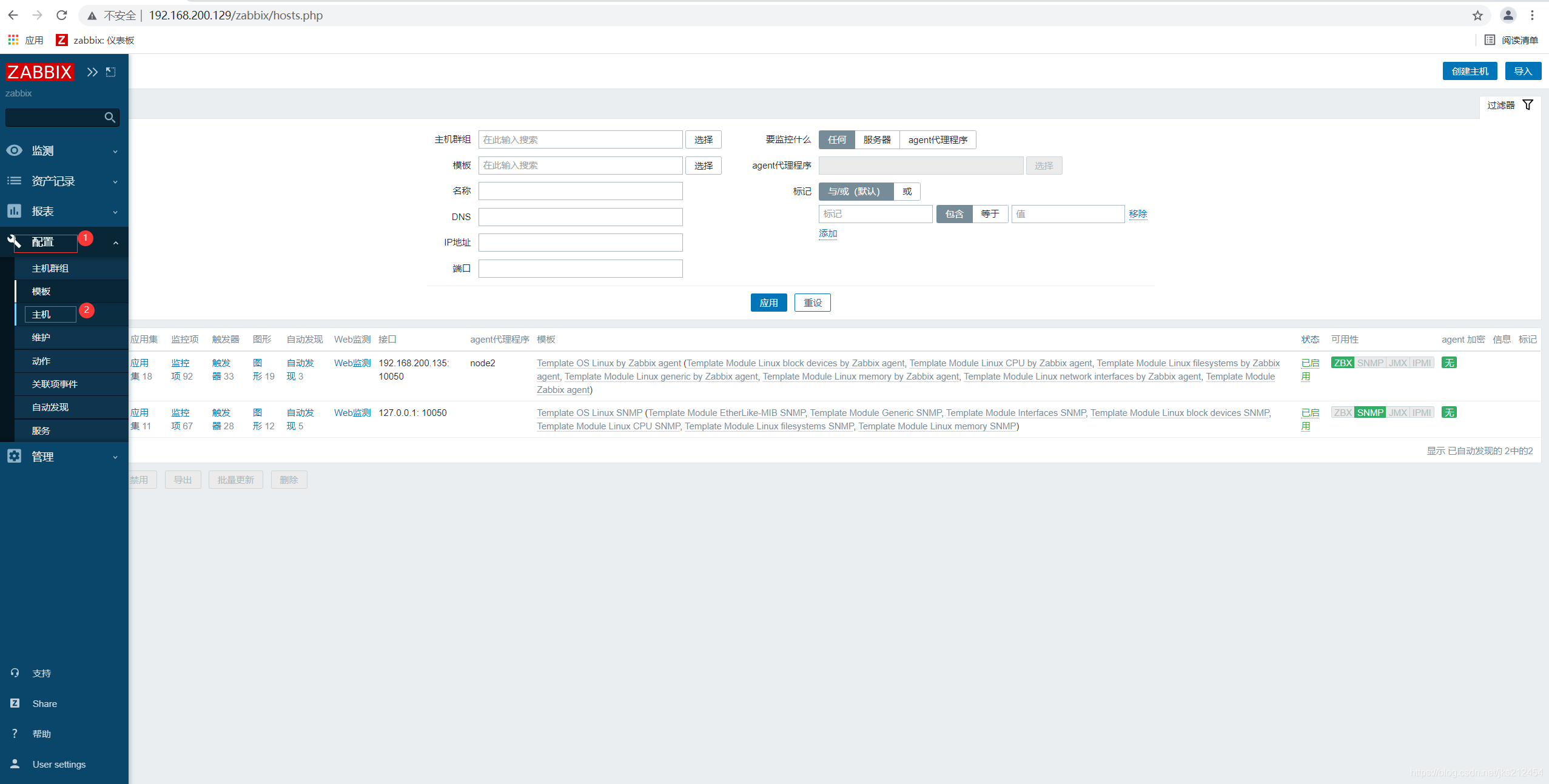

1.进入监控主机列表

配置——主机

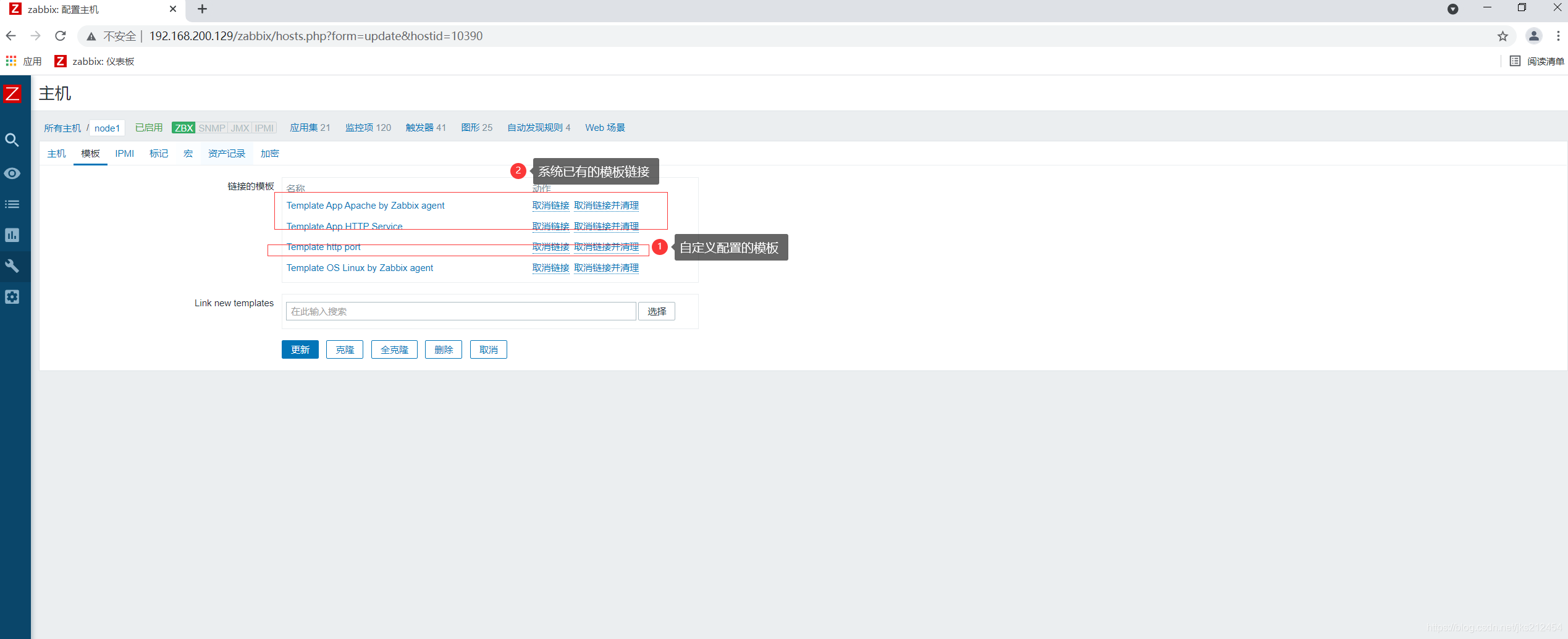

2.链接模板

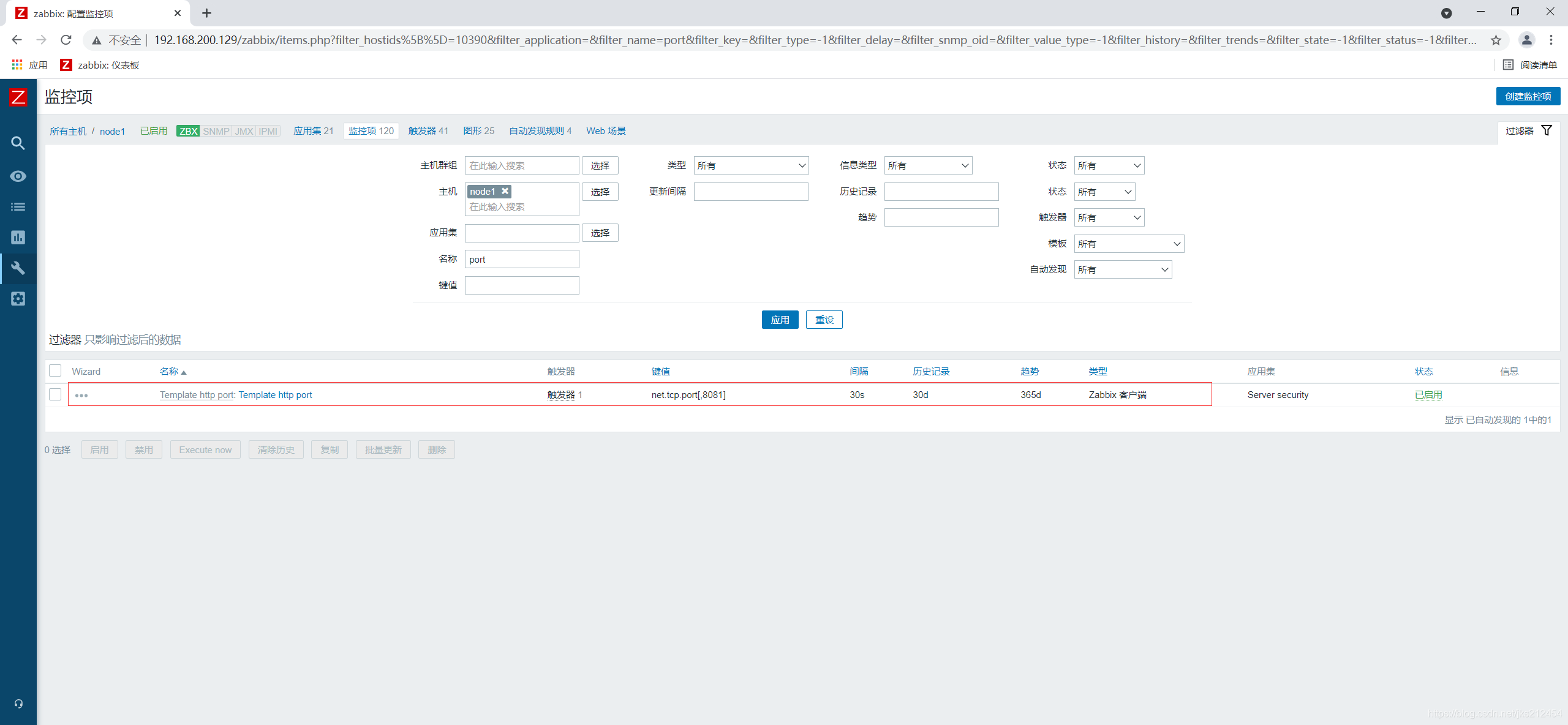

3.查看自定义HTTP端口监控项

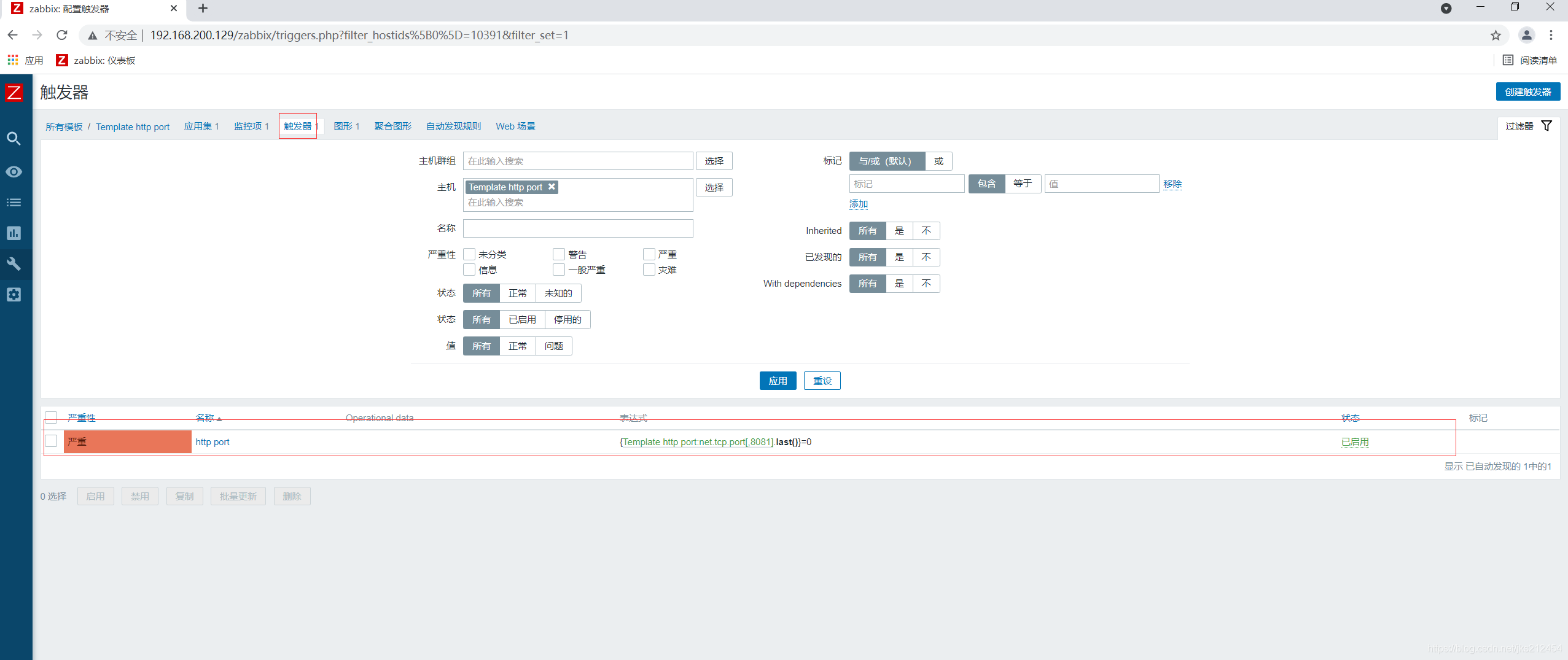

4.查看自定义的触发器

三、客户端测试http服务停止报警

1.停止服务

[root@node1 conf]# systemctl stop httpd.service
[root@node1 conf]# systemctl status httpd
● httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
   Active: inactive (dead) since Fri 2021-06-04 16:21:58 CST; 5min ago
     Docs: man:httpd.service(8)
  Process: 9629 ExecReload=/usr/sbin/httpd $OPTIONS -k graceful (code=exited, status=0/SUCCESS)
  Process: 11134 ExecStart=/usr/sbin/httpd $OPTIONS -DFOREGROUND (code=exited, status=0/SUCCESS)
 Main PID: 11134 (code=exited, status=0/SUCCESS)
   Status: "Running, listening on: port 8081"

Jun 04 16:15:49 node1 systemd[1]: Starting The Apache HTTP Server...
Jun 04 16:15:49 node1 httpd[11134]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name>
Jun 04 16:15:49 node1 httpd[11134]: Server configured, listening on: port 8081
Jun 04 16:15:49 node1 systemd[1]: Started The Apache HTTP Server.
Jun 04 16:21:57 node1 systemd[1]: Stopping The Apache HTTP Server...
Jun 04 16:21:58 node1 systemd[1]: Stopped The Apache HTTP Server.
lines 1-15/15 (END)

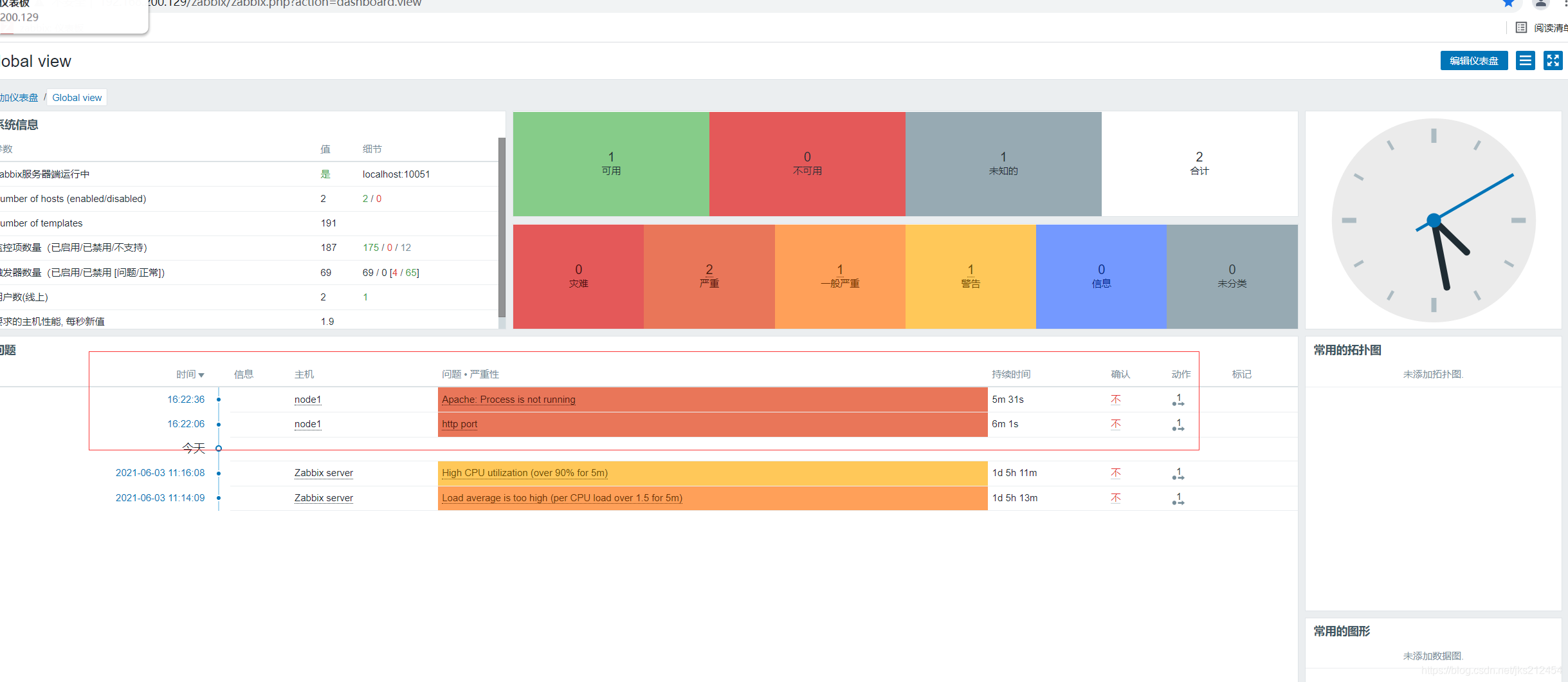

2.查看web端报警

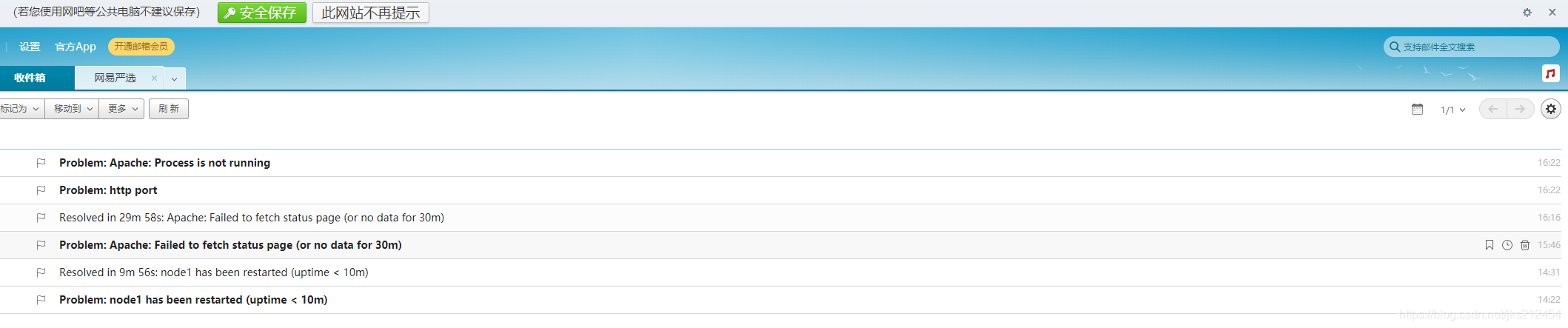

3.查看邮件报警

四、自定义模板及监控配置参考

自定义模板及监控配置参考本人之前写的博文Zabbix的模板管理与配置
