简介
在查阅文献的过程中,看到了几幅非常不错的出版图,今天就跟着小编一起学习下,他们是怎么使用 R 绘制出来的。

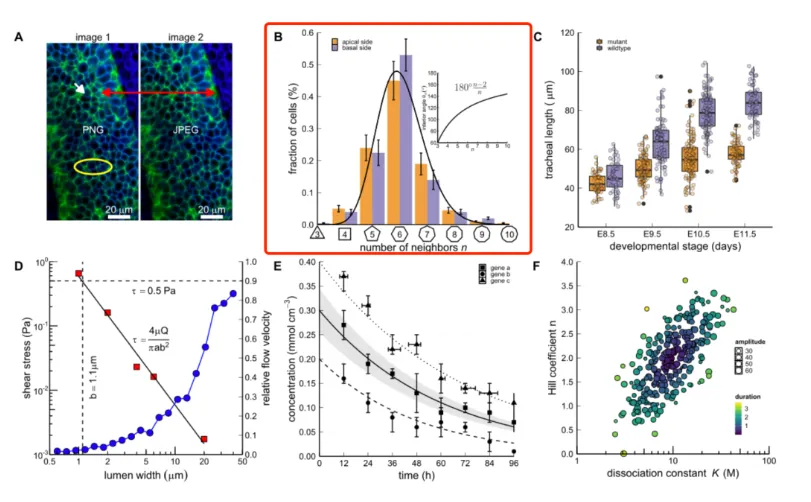

今天主要介绍 第二幅图(B) ,直观来看是由两幅图所构成的。
- 绘制带误差项的柱状图并添加密度函数线。
- 简单的曲线图并添加公式。
之后,将两幅图合并。值得注意的是:x 轴数值使用不同图形进行描绘(小编不是很懂,作者想表达什么,不过这种技巧是第一次见,可以学习学习)。
第一幅图的介绍可见:基于 R 语言的科研论文绘图技巧详解(1)。后面几幅图会一一介绍,读者在学习过程中,可以将内部学到的知识点应用到自己的图形绘制中。推文已经将主要知识点进行罗列,更有利于读者学习和查阅。
那我们来看看,作者是怎么实现这个功能的吧,本文知识点较多,大家耐心学习,建议自己实践。对应代码、数据可在 GitHub - marco-meer/scifig_plot_examples_R: Scientific publication figure plotting examples with R[1] 中找到。
主要知识点
- 学会定义密度函数,并在图形中将其添加;
- 学会设置自定义主题,简化代码,统一主题,方便绘制其他图形使用;
- 学会添加子图、给坐标轴添加修饰图形;
- 学会添加带有特殊符号的公式。
绘图
加载包
首先加载一些需要使用到的包。
library(ggplot2) # Grammar of graphics library(cowplot) # Arranging multiple plots into a grid library(png) # Load JPEG, PNG and TIFF format library(scales) # Generic plot scaling methods library(viridis) # Default color maps from 'matplotlib' library(grid) # A rewrite of the graphics layout capabilities library(magick) # graphics and image processing library(rsvg) # Render svg image into a high quality bitmap library(ggforce) # Collection of additional ggplot stats + geoms
设置主题
接下来,为了方便起见,作者在绘图前设置好了主题,并将该函数命名为 my_theme
。
这一部分在第一篇推文给出,代码将在文末中完整代码给出。需要数据的朋友可以从 GitHub 上下载(或者文末链接直达)。
手动修改大部分面板,具体可以参考本篇文章[2]。或者观看我在 B 站发布的《R 语言可视化教程》,里面也有一些简单主题设置介绍。
导入数据
首先使用 read.csv()
导入数据,使用data.frame()
转化数据成 ggplot 所需要的格式。
data_B = read.csv("./data_B.csv") data_B = data.frame("n"=c(data_B$n,data_B$n), "sample"=c(rep("apical side",nrow(data_B)), rep("basal side",nrow(data_B))), "fraction"=c(data_B$fraction1,data_B$fraction2), "err"=c(data_B$err1,data_B$err2) ) head(data_B) # n sample fraction err # 1 3 apical side 0.010 0.002 # 2 4 apical side 0.050 0.010 # 3 5 apical side 0.240 0.040 # 4 6 apical side 0.450 0.060 # 5 7 apical side 0.190 0.034 # 6 8 apical side 0.045 0.009
定义密度函数
这里作者直接定义了对数正态密度函数,并确定了对应参数的值(mu=log(6),sigma= 0.14
)。
sigma = 0.14 n = seq(3,10,1) logn_dist <- function(n) exp(-(log(n)-log(6))^2/(2*sigma^2))/(sqrt(2*pi)*sigma*n) #函数里面就是密度函数的公式,可以在数理统计相关书籍中找到。
小编表示疑问:参数应该得通过参数估计的方式得到吧,但是这里作者直接给定了。并且函数设定来看,均值直接写在函数内部了,并没有赋值为
mu=log(6)
。虽然结果相同,但是可读性不强。
绘图步骤详解
由于代码复杂,知识点较多,为了读者更好理解代码逻辑和含义,小编将其分布讲解。最后再将完整代码放到本节末。

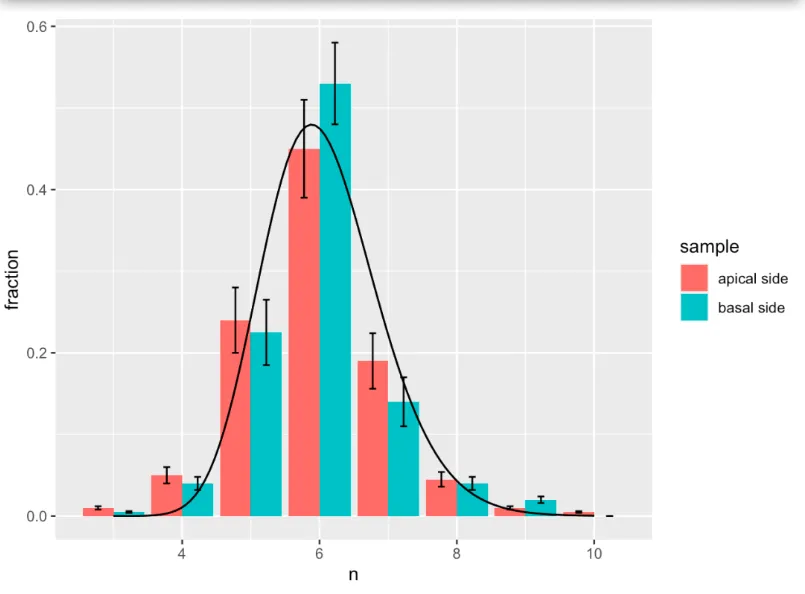

绘制子图一(条形、密度函数、误差图)
使用 geom_bar()
绘制条形图,注意这里使用了 position=position_dodge()
将小类并列放置,具体细节可以参考:《R语言教程》[3];使用 geom_errorbar()
添加误差项;使用 stat_function()
将对数正态的密度函数加入图中(当然也可以使用 geom_line()
)。
ggplot(data=data_B,(aes(x=n, # aes: aesthetics y=fraction, fill=sample)))+ geom_bar(stat = "identity", position=position_dodge()) + # dodge overlapping objects side-to-side stat_function(fun=logn_dist, geom="line", linetype="solid", aes(x=n, y=logn_dist(n))) + geom_errorbar(aes(ymin=fraction-err, ymax=fraction+err), width=.2, position=position_dodge(.9))

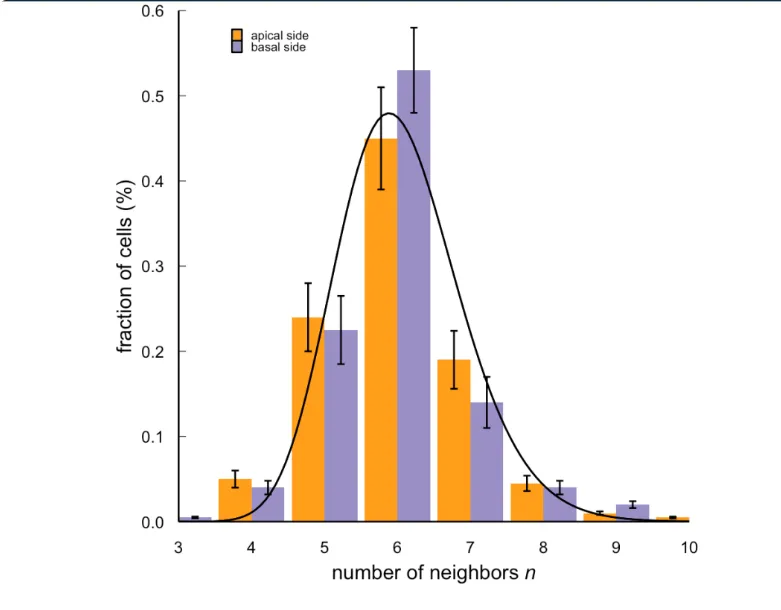

微调主题
之后添加主题,使用先前设定好的主题函数 my_theme()
与其他细节调整。
my_theme() + # some extra theme tweaking theme(legend.position = c(0.18,0.95), legend.title = element_blank(), axis.ticks.x = element_blank(), axis.text.x = element_text(vjust=-0.5), axis.title.x = element_text(vjust=-0.5), legend.key.size = unit(0.4, "lines") ) + xlab(expression(paste("number of neighbors ",italic("n")))) + ylab("fraction of cells (%)")
这时候图中的第一个子图就得到了,接下来绘制第二个子图。

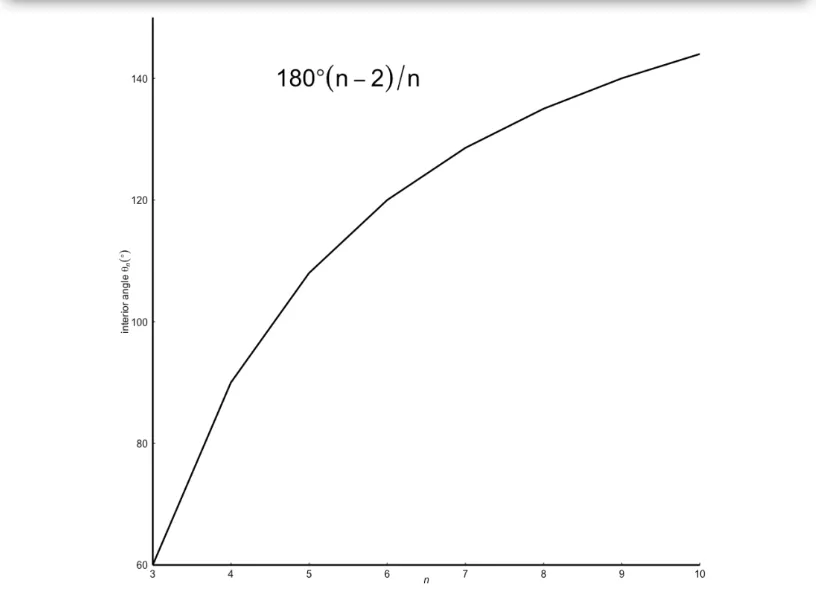

绘制子图二(曲线图)
- 方式一:定义曲线函数,然后通过
geom_line()
进行绘制。 - 方式二:加载图形(公式),通过
annotation_custom()
结合rasterGrob()
,将该图导入到子图中。
方式二看着比较麻烦,不过思路可以学习下,如果以后公式太难/复杂,可以使用这种方式展现。下面展示第一种结果,第二种结果可在官网代码中找到。
其他代码流程和上一个子图类似,这里不做过多介绍。
注意:关于特殊符号的输入,可以使用
expression()
函数,可以参考这个教程[4]。
定义曲线函数 inset_curve <- function(n) 180*(n-2)/n inset <- ggplot() + geom_line(aes(x=n,y=inset_curve(n))) + annotate(geom="text",label="180*degree*(n-2)/n",x = 5.5,y=140, parse=TRUE,size=5) + scale_x_continuous(expand = c(0, 0), breaks=c(seq(3,10,1)), limits = c(3,10)) + scale_y_continuous(expand = c(0, 0), breaks=c(seq(60,150,20)), limits = c(60,150) ) + my_theme() + xlab(expression(italic(n)))+ ylab(expression(interior~angle~italic(theta[n])(degree))) + # some extra theme tweaking theme( panel.background = element_blank(), plot.background = element_blank(), axis.ticks.length = unit(-0.1, "lines"), # make ticks a bit shorter axis.title.x = element_text(size = 0.5*base_size, color = "black", margin = margin(t = -4)), # top (t), right (r), bottom (b), left (l) axis.title.y = element_text(size = 0.5*base_size, color = "black", angle = 90, margin = margin(r = -4)), axis.text.x = element_text(size = base_size*0.5, color = "black", lineheight = 0.9, margin=unit(c(0.1,0.1,0.1,0.1), "cm")), axis.text.y = element_text(size = base_size*0.5, color = "black", lineheight = 0.9, margin=unit(c(0.1,0.1,0.1,0.1), "cm")) ) inset
修改坐标轴值样式
使用 ggforce
包中的 geom_regon()
函数,不同图形主要是在内部参数 size
进行设置。
polygons <- ggplot() + ggforce::geom_regon(aes(x0=c(seq(3,10,1)), y0=rep(-0.3,8), sides = c(seq(3,10,1)), angle=0, r=0.3), fill=NA, color="black") + theme_void() + coord_fixed() polygons

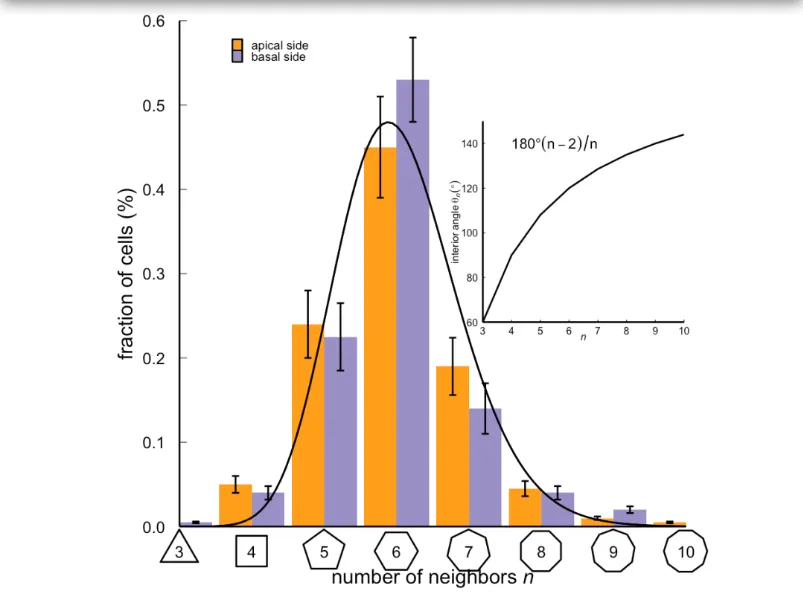

完整版
最后将前面的内容整合在一起。还是使用 annotation_custom()
,感觉这个函数无敌!
panel_B <- panel_B + annotation_custom(grob = panel_B_inset, xmin=6.6, xmax=10.1, ymin=0.1, ymax=0.6) + annotation_custom(grob = ggplotGrob(polygons), xmin = 2.36, xmax = 10.67, ymin = -0.172, ymax = 0.115) panel_B
完整版
完整代码
library(ggplot2) # Grammar of graphics library(cowplot) # Arranging multiple plots into a grid library(png) # Load JPEG, PNG and TIFF format library(scales) # Generic plot scaling methods library(viridis) # Default color maps from 'matplotlib' library(grid) # A rewrite of the graphics layout capabilities library(magick) # graphics and image processing library(rsvg) # Render svg image into a high quality bitmap library(ggforce) # Collection of additional ggplot stats + geoms base_size = 12 # Panel B ---- my_theme <- function() { theme( aspect.ratio = 1, axis.line =element_line(colour = "black"), # shift axis text closer to axis bc ticks are facing inwards axis.text.x = element_text(size = base_size*0.8, color = "black", lineheight = 0.9, margin=unit(c(0.3,0.3,0.3,0.3), "cm")), axis.text.y = element_text(size = base_size*0.8, color = "black", lineheight = 0.9, margin=unit(c(0.3,0.3,0.3,0.3), "cm")), axis.ticks = element_line(color = "black", size = 0.2), axis.title.x = element_text(size = base_size, color = "black", margin = margin(t = -5)), # t (top), r (right), b (bottom), l (left) axis.title.y = element_text(size = base_size, color = "black", angle = 90, margin = margin(r = -5)), axis.ticks.length = unit(-0.3, "lines"), legend.background = element_rect(color = NA, fill = NA), legend.key = element_rect(color = "black", fill = "white"), legend.key.size = unit(0.5, "lines"), legend.key.height =NULL, legend.key.width = NULL, legend.text = element_text(size = 0.6*base_size, color = "black"), legend.title = element_text(size = 0.6*base_size, face = "bold", hjust = 0, color = "black"), legend.text.align = NULL, legend.title.align = NULL, legend.direction = "vertical", legend.box = NULL, panel.background = element_rect(fill = "white", color = NA), panel.grid.major = element_blank(), panel.grid.minor = element_blank(), plot.title = element_text(size = base_size, color = "black"), ) } data_B = read.csv("./data_B.csv") # format data to ggplot's liking data_B = data.frame("n"=c(data_B$n,data_B$n), "sample"=c(rep("apical side",nrow(data_B)), rep("basal side",nrow(data_B))), "fraction"=c(data_B$fraction1,data_B$fraction2), "err"=c(data_B$err1,data_B$err2) ) head(data_B) # define lognormal distribution to be called via ggplot2::stat_function sigma = 0.14 n = seq(3,10,1) logn_dist <- function(n) exp(-(log(n)-log(6))^2/(2*sigma^2))/(sqrt(2*pi)*sigma*n) panel_B <- ggplot(data=data_B,(aes(x=n, # aes: aesthetics y=fraction, fill=sample)))+ geom_bar(stat = "identity", position=position_dodge()) + # dodge overlapping objects side-to-side stat_function(fun=logn_dist, geom="line", linetype="solid", aes(x=n, y=logn_dist(n))) + geom_errorbar(aes(ymin=fraction-err, ymax=fraction+err), width=.2, position=position_dodge(.9)) + scale_fill_manual(values=c('#f2a340','#998fc2'))+ scale_x_continuous(expand = c(0, 0), # prevent gap between origin and first tick breaks=c(seq(from = min(data_B$n), to = max(data_B$n), by = 1)), limits = c(min(data_B$n),max(data_B$n))) + scale_y_continuous(expand = c(0, 0), breaks=c(seq(0,0.6,0.1)), limits = c(0,0.6) )+ my_theme() + # some extra theme tweaking theme(legend.position = c(0.18,0.95), legend.title = element_blank(), axis.ticks.x=element_blank(), axis.text.x = element_text(vjust=-0.5), axis.title.x = element_text(vjust=-0.5), legend.key.size = unit(0.4, "lines") ) + xlab(expression(paste("number of neighbors ",italic("n")))) + ylab("fraction of cells (%)") panel_B inset_curve <- function(n) 180*(n-2)/n # The equation is added as an image bc the annotate() function output looks too ugly # inset_equation <- image_read_svg("./panel_b_inset_equation.svg",width = 583,height = 240) # now comes the inset plot inset <- ggplot() + geom_line(aes(x=n,y=inset_curve(n))) + annotate(geom="text",label="180*degree*(n-2)/n",x = 5.5,y=140, parse=TRUE,size=3) + # annotation_custom(rasterGrob(image = inset_equation, # x=0.5, # y=0.8, # width = unit(0.3125,"npc"), # height = unit(0.126,"npc")), # -Inf, Inf, -Inf, Inf) + scale_x_continuous(expand = c(0, 0), breaks=c(seq(3,10,1)), limits = c(3,10)) + scale_y_continuous(expand = c(0, 0), breaks=c(seq(60,150,20)), limits = c(60,150) ) + my_theme() + xlab(expression(italic(n)))+ # expression doc: https://stat.ethz.ch/R-manual/R-devel/library/grDevices/html/plotmath.html ylab(expression(interior~angle~italic(theta[n])(degree))) + # some extra theme tweaking theme( panel.background = element_blank(), plot.background = element_blank(), axis.ticks.length = unit(-0.1, "lines"), # make ticks a bit shorter axis.title.x = element_text(size = 0.5*base_size, color = "black", margin = margin(t = -4)), # top (t), right (r), bottom (b), left (l) axis.title.y = element_text(size = 0.5*base_size, color = "black", angle = 90, margin = margin(r = -4)), axis.text.x = element_text(size = base_size*0.5, color = "black", lineheight = 0.9, margin=unit(c(0.1,0.1,0.1,0.1), "cm")), axis.text.y = element_text(size = base_size*0.5, color = "black", lineheight = 0.9, margin=unit(c(0.1,0.1,0.1,0.1), "cm")) ) inset # create grob (grid graphical object) from the inset plot panel_B_inset <- ggplotGrob(x = inset) panel_B_inset # now for some regular polygon drawing polygons <- ggplot() + ggforce::geom_regon(aes(x0=c(seq(3,10,1)), y0=rep(-0.3,8), sides = c(seq(3,10,1)), angle=0, r=0.3), fill=NA, color="black") + theme_void() + coord_fixed() polygons # finally, we can combine everything to plot panel B panel_B <- panel_B + annotation_custom(grob = panel_B_inset, xmin=6.6, xmax=10.1, ymin=0.1, ymax=0.6) + annotation_custom(grob = ggplotGrob(polygons), xmin = 2.36, xmax = 10.67, ymin = -0.172, ymax = 0.115) panel_B
