Python环境

python版本：3.8

依赖包：requests,unittest,HTMLTestReportCN,ddt；

工具：pycharm 2020.1；

python环境设置参考：https://www.runoob.com/python/python-install.html

安装依赖包：pip install 包名（如果找不到或者网络不好可以使用下面这一段下载）

pip install 包 -i http://pypi.douban.com/simple/ --trusted-host pypi.douban.com

pycharm可以在file>settings>Python Interpreter里面点加号增加，也会有下载失败的情况，目前还没找到原因，推荐使用豆瓣的下载。

pythoninterpreter

HTMLTestReportCN：https://blog.csdn.net/lssrain/article/details/80109214

框架设计

base

创建Pythonpackage类型的base包，用于存储基类，各种请求方法，这里的封装方式比较直接明了，根据传入参数调用对应的请求方式，相信使用过requests的都比较容易理解。

import requests
import json

class Base():
    def method_post(self,url,params =None,data = None,headers = None,files = None):
        return requests.post(url = url,params = params, data = data,headers = headers,files =files)
    def method_get(self,url,params = None,data = None,headers = None,files = None ):
        return  requests.get(url = url,params = params,data = data,headers = headers,files = files)
    def method_put(self,url,params = None,data = None, headers = None,files = None):
        return  requests.put(url = url,params = params,data = data,headers = headers,files = files)
    def method_delete(self,url,params = None,data = None,headers = None,files = None):
        return  requests.delete(url = url, params = params,data = data,headers = headers,files =files)

    def requests_type(self,method,url,params = None,data = None,headers = None,files = None):
        if method == 'post' or method == 'POST':
            return self.method_post(url = url,params = params,data = data,headers = headers,files = files )
        elif method == 'get' or method == 'GET':
            return self.method_get(url = url,params = params,data = data,headers = headers,files =files)
        elif method == 'put' or method == 'PUT':
            return self.method_put(url = url,params = params,data = data,headers = headers,files = files)
        elif method == 'delete' or method == 'DELETE':
            return  self.method_delete(url = url,params = params,data = data,headers = headers,files = files)
        else: return print("不支持该方法！！")

common

同样创建Pythonpackage类型的common包，用于存放各种共用方法。

目前这里存放的有创建对应文件下年月日文件夹，封装日志，读取excel，读取json文件，生成测试报告以及发送邮件等方法

基础文件路径（需要提前在目录中创建好）：

base_pa = os.path.abspath(os.path.dirname(os.path.dirname(__file__)))
base_path = base_pa.replace('\\','/') # 生成的路径用的是'\',后面读取文件的时候会找不到，所以换成'/'
log_path = base_path + '/' + 'report' + '/' + 'logs' # 日志路径
report_html = base_path + '/' + 'report' + '/' + 'html' # 报告路径
read_xlrd = base_path + '/' + 'data' #用例路径

创建Commom类，封装各种方法。

考虑到日志和报告会比较多，每次发送报告只需要当天的就可以，所以用一个方法在传入的路径下创建对应的年月日文件夹（如果路径已存在，不会重复创建）

import os,time
class Commom():
    def mkdir_path(self,base_page):
        local_time1 = time.strftime('%Y-%m-%d %H:%M:%S', time.localtime(time.time()))
        year = time.strftime('%Y', time.localtime(time.time())) # 获取年份
        month = time.strftime('%m', time.localtime(time.time())) # 获取日期
        day = time.strftime('%d', time.localtime(time.time())) # 获取日期
        base_page = base_page
        fileyear = base_page + '/' + year
        filemonth = fileyear + '/' + month
        fileday = filemonth + '/' + day
        if not os.path.exists(fileyear):
            os.mkdir(fileyear)
            os.mkdir(filemonth)
            os.mkdir(fileday)
        else:
            if not os.path.exists(filemonth):
                os.mkdir(filemonth)
                os.mkdir(fileday)
            else:
                if not os.path.exists(fileday):
                    os.mkdir(fileday)
        file_years = fileyear.replace('\\', '/')
        file_days = fileday.replace('\\', '/')
        file_months = filemonth.replace('\\', '/')  # 将路径中'\'转译为‘/’
        return file_days,file_months,file_years # 路径全部返回，一般只用到日的路径

封装日志方法：

    def get_logs(self, path=log_path):
        import logging, time
        logs = logging.getLogger()
        logs.setLevel(logging.DEBUG)
        path1 = self.mkdir_path(path)
        path = path1[0] + '/' + time.strftime('%Y-%m-%d-%H-%M-%S') + '.log'
        write_file = logging.FileHandler(path, 'a+', encoding='utf-8')
        write_file.setLevel(logging.DEBUG)
        set_logs = logging.Formatter('%(asctime)s -- %(funcName)s - %(levelname)s - %(message)s')
        write_file.setFormatter(set_logs)
        pycharm_text = logging.StreamHandler()
        pycharm_text.setFormatter(set_logs)
        if not logs.handlers:
            logs.addHandler(write_file)
            logs.addHandler(pycharm_text)
        return logs

读取Excel，转换为字典格式：

    def ReadExcelTypeDict(self, file_name, path=read_xlrd):
        path = path + '/' + file_name
        import xlrd
        work_book = xlrd.open_workbook(path)  # 打开excel表格
        sheets = work_book.sheet_names()  # 读取所有的sheet页
        DataList = []
        for sheet in sheets:
            sheets = work_book.sheet_by_name(sheet)
            nrows = sheets.nrows
            for i in range(0, nrows):
                values = sheets.row_values(i)
                DataList.append(values)
        title_list = DataList[0]
        cotent_list = DataList[1:]
        new_list = []
        for content in cotent_list:
            dic = {}
            for i in range(len(content)):
                dic[title_list[i]] = content[i]
            new_list.append(dic)
        return new_list

生成HTML报告：

    def GETHtmlResult(self, suite, title, path=report_html):
        import HTMLTestReportCN
        path = self.mkdir_path(path)
        fileday = (path[0])
        path = fileday + '/' + time.strftime('%Y-%m-%d-%H-%M-%S') + '.html'
        #print(path)
        with open(path,'wb+') as f:
            run = HTMLTestReportCN.HTMLTestRunner(stream=f, description='用户相关接口测试报告', tester='mingzhu', title=title)
            run.run(suite)

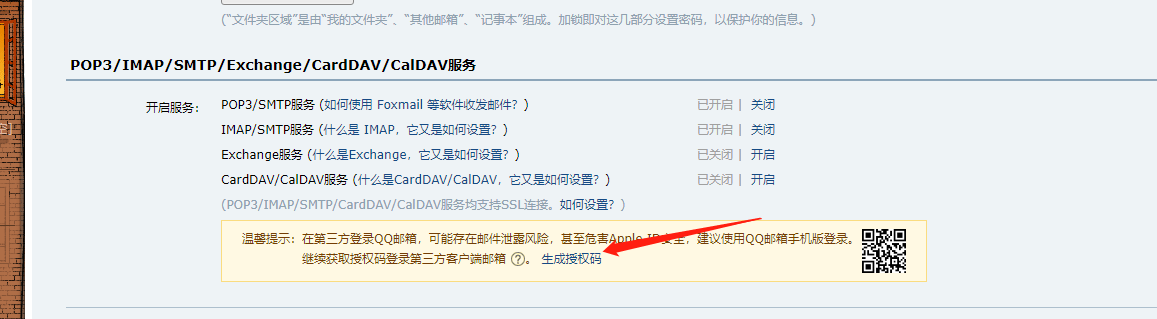

发送邮件这里因为只需要发送即可，所以这里的方法是直接发送qq邮箱,并且需要在邮箱中开启SMTP服务，生成授权码加在代码里才可以发送（也可以使用密码登录，可以自行选择）

qq邮箱

#coding:utf-8
import  time
import smtplib

from email import  encoders
from email.header import Header
from email.mime.base import MIMEBase
from email.mime.text import MIMEText
from email.utils import parseaddr,formataddr
from email.mime.multipart import  MIMEMultipart
from common import  commons as common
import os

def _foemat_addr(s):
    name,addr = parseaddr(s)
    return  formataddr((Header(name,'utf-8').encode(),addr))

def send_mail():
    from_addr = "发送人邮箱"
    recive_addr = ['收件人邮箱','收件人邮箱']
    smtp_server = "smtp.qq.com"
    License_Key = "登录授权码"
    locatime = time.strftime('%Y-%m-%d %H:%M:%S')
    logs = common.Commom().get_logs()
    info =  '''
            这是今日的测试报告！！！
            邮件需要下载后打开！！！
    '''
    content = f'''
        Dear All:
                {info}
                邮件发送时间：{locatime}
'''
    msg = MIMEMultipart()
    body = MIMEText(content.encode(),'plain','utf-8')
    msg.attach(body)
    file_path = os.path.abspath(common.Commom().mkdir_path(os.path.abspath(common.report_html))[0])
    all_file = os.listdir(file_path) # 读取当天所有测试报告
    for file in all_file:
        file_code = file_path + '/' + file
        attachment = MIMEBase('application','octet-stream')
        attachment.set_payload(open(file_code,'rb').read())
        encoders.encode_base64(attachment)
        attachment.add_header('Content-Disposition','attachment',filename = file_code)
        msg.attach(attachment)
    msg['From'] = _foemat_addr('发件人名称 <%s>' % from_addr)
    msg['To'] = _foemat_addr('收件人名称 <%s>'% recive_addr)
    msg['Subject'] = Header('邮件标题','utf-8').encode()
    server = smtplib.SMTP_SSL(smtp_server)
    server.connect(smtp_server,465)
    server.login(from_addr,License_Key)
    server.sendmail(from_addr,recive_addr, msg= msg.as_string())
    logs.debug('收件人是：'+recive_addr[0:]+'发件人是：'+from_addr+' ，邮件发送成功!!!')
    server.quit()

case

case包是我们存放执行测试用例的类和方法的地方，这里分别设计了对比响应码，对比相应文本的断言方式，根据开发接口文档的详细程度自行选择，可以设置多个断言。

#coding:utf-8
import  unittest
import  ddt
import time
import  common.commons as common
import common.send_emails as send_mail
from base.Base_Page import  Base
import json

r = common.Commom().ReadExcelTypeDict('test.xlsx')    #读取具体的EXCEL表格
d = common.Commom().ReadExcelTypeDict('data_test.xlsx')
j = common.Commom().ReadJson('test_login.json')
# print('json内容:',j)
@ddt.ddt        #导入ddt模块
class Testlogin(unittest.TestCase):
    @classmethod
    def setUpClass(cls) -> None:#setupclass类方法，全部开始用例前执行一次
        cls.logs = common.Commom().get_logs() # 导入日志方法
        cls.logs.debug('自动化测试用例开始！！！')

    @classmethod
    def tearDownClass(cls) -> None:
        cls.logs.debug('自动化测试用例结束！！！')

    def setUp(self) -> None:
        self.start_time = time.time()
        self.logs.debug('开始执行本条用例')

    def tearDown(self) -> None:
        end_time = time.time()
        self.logs.debug('本条用例执行完毕,用例执行时间：'+str(self.start_time-end_time))

    @ddt.data(*r)
    # 引入ddt模块，读取拿到的数据
    def test_status(self,pars):  #用例方法名必须以test开头，pars参数为接受的表数据值
        dic = json.loads(pars['body参数值'])  #将参数值转变为json格式
        url = pars['接口地址']      #获取url
        test_name = pars['用例标题']
        header = json.loads(pars['请求头'])
        yuqi = pars['预期结果']
        fs = pars['请求方式']
        self.logs = common.Commom().get_logs()
        result = Base().requests_type(method= fs, url = url,headers = header, data= dic)
        self.logs.debug('result:' + result.text)
        # self.assertEqual(len(result.headers),17,msg='响应头长度不符')
        self.assertEqual(result.status_code,yuqi,msg='响应状态码错误！'+str(yuqi)+'!='+str(result.status_code)) # 实际响应码，预期响应码，不符时返回的错误信息（msg可以为空）

    @ddt.data(*d)
    def test_data(self,pars):
        dic = json.loads(pars["body参数值"])
        url = pars["接口地址"]
        test_name = pars['用例标题']
        header = json.loads(pars['请求头'])
        yuqi = str(pars['预期结果'])
        fs = pars['请求方式']
        self.logs = common.Commom().get_logs()
        self.logs.debug('开始执行本条用例：' + test_name)
        result = Base().requests_type(method=fs, url=url, headers=header, data=dic)
        self.logs.debug('result:' + result.text)
        result1 = result.json()
        #self.logs.debug(result1)
        self.assertEqual(result1['data']['openId'],yuqi,msg='openID比对错误！')

    @ddt.data(*j)
    # @unittest.skipIf(1==1)
    @unittest.skip # 跳过测试用例
    def test_json(self,par):
        par = json.loads(par)
        header = par["headers"]
        url = par["url"]
        body = par["body"]
        fs = par["fs"]
        expect = par["expect"]
        #print(url,body,header)
        self.logs = common.Commom().get_logs()
        result = Base().requests_type(url=url,method = fs,data= body,headers=header)
        self.logs.debug('result:'+result.text)
        result1 = result.json()
        t = result.elapsed     # 响应时间
        # print（t）
        self.assertLess (t,1,msg='响应时间大于1秒')    # lessequal小于等于则返回TRUE
        self.assertGreater(t,1,msg='响应时间小于1秒')  # greaterequal大于等于则返回TRUE
        # 各种断言方法可以选择，全部通过本条用例才算pass
        self.assertEqual(result1['data']['openId'],expect,msg='openId比对错误！')


if __name__ == '__main__':
    load = unittest.TestLoader().loadTestsFromTestCase(Testlogin)   #使用loader加载方式，来寻找所有以test开头的用例
    suite = unittest.TestSuite([load,])     #执行测试用例
    common.Commom().GETHtmlResult(suite,'登录测试用例')   #生成测试报告
    send_mail.send_mail() #发送测试报告到邮箱

data

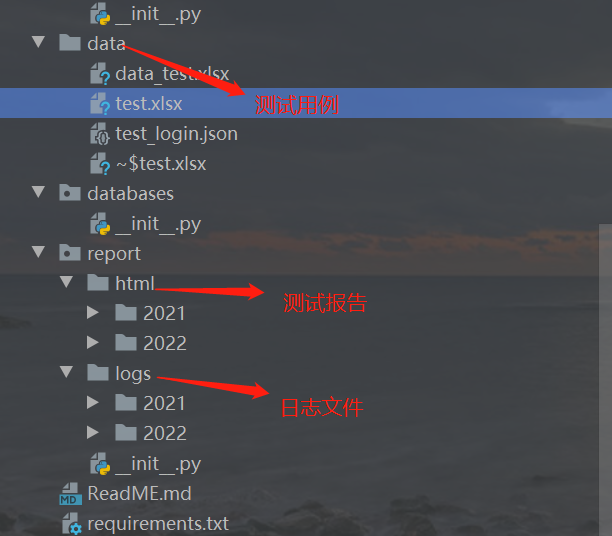

创建data文件夹，主要用于存放测试用例,，我使用的有excel和json两种，参数和请求头注意使用json格式，预期结果根据代码的断言进行填写

report

case

如有问题欢迎评论，互相学习提升!
