说明
【跟月影学可视化】学习笔记。
什么是镜面反射？
如果若干平行光照射在表面光滑的物体上，反射出来的光依然平行，这种反射就是镜面反射。越光滑的材质，它的镜面反射效果也就越强，并且物体表面会有闪耀的光斑，也叫镜面高光。
镜面反射的性质：入射光与法线的夹角等于反射光与法线的夹角。
如何实现有向光的镜面反射?
实现镜面反射效果的步骤：
- 求出反射光线的方向向量
- 根据相机位置计算视线与反射光线夹角的余弦
- 使用系数和指数函数设置镜面反射强度
- 将漫反射和镜面反射结合起来，让距离光源近的物体上形成光斑

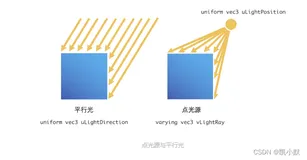

下面以点光源为例来实现光斑：
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何实现点光源的镜面反射</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中，将物体变换后的坐标传给片元着色器 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 viewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; uniform vec3 cameraPosition; varying vec3 vNormal; varying vec3 vPos; varying vec3 vCameraPos; void main() { vec4 pos = modelViewMatrix * vec4(position, 1.0); vPos = pos.xyz; // 求光源与点坐标的方向向量 vCameraPos = (viewMatrix * vec4(cameraPosition, 1.0)).xyz; vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * pos; } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 片元着色器中计算光线方向与法向量夹角的余弦 const fragment = ` precision highp float; uniform vec3 ambientLight; uniform vec3 materialReflection; uniform vec3 pointLightColor; uniform vec3 pointLightPosition; uniform mat4 viewMatrix; uniform vec3 pointLightDecayFactor; varying vec3 vNormal; varying vec3 vPos; varying vec3 vCameraPos; void main() { // 光线到点坐标的方向 vec3 dir = (viewMatrix * vec4(pointLightPosition, 1.0)).xyz - vPos; // 光线到点坐标的距离，用来计算衰减 float dis = length(dir); // 归一化 dir = normalize(dir); // 与法线夹角余弦 float cos = max(dot(normalize(dir), vNormal), 0.0); // 反射光线：使用 GLSL 的内置函数 reflect，这个函数能够返回一个向量相对于某个法向量的反射向量 vec3 reflectionLight = reflect(-dir, vNormal); vec3 eyeDirection = vCameraPos - vPos; eyeDirection = normalize(eyeDirection); // 与视线夹角余弦 float eyeCos = max(dot(eyeDirection, reflectionLight), 0.0); // 镜面反射：指数取 20.0，系数取 3.0。 // 指数越大，镜面越聚焦，高光的光斑范围就越小。 // 系数能改变反射亮度，系数越大，反射的亮度就越高。 float specular = 3.0 * pow(eyeCos, 20.0); // 计算衰减 float decay = min(1.0, 1.0 / (pointLightDecayFactor.x * pow(dis, 2.0) + pointLightDecayFactor.y * dis + pointLightDecayFactor.z)); // 计算漫反射 vec3 diffuse = decay * cos * pointLightColor; // 合成颜色 gl_FragColor.rgb = specular + (ambientLight + diffuse) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体，初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); // 添加一个水平向右的白色平行光 const ambientLight = { value: [1, 1, 1] }; const directional = { pointLightPosition: { value: [3, 3, 0] }, pointLightColor: { value: [0.5, 0.5, 0.5] }, pointLightDecayFactor: { value: [0, 0, 1] }, }; const program1 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [250/255, 128/255, 114/255]}, ...directional }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [218/255, 165/255, 32/255]}, ...directional }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [46/255, 139/255, 87/255]}, ...directional }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ambientLight, materialReflection: {value: [106/255, 90/255, 205/255]}, ...directional }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
什么是 Phong 反射模型?
冯氏反射模型是由美国犹他大学（University of Utah）的 Bui Tuong Phong 于1975年在他的博士论文中提出的，都用其名字命名。
Phong 光照模型是真实图形学中提出的第一个有影响的光照明模型，该模型只考虑物体对直接光照的反射作用，认为环境光是常量，没有考虑物体之间相互的反射光，物体间的反射光只用环境光表示。
Phong光照模型属于简单光照模型。
Phong 模型认为物体表面反射光线由三部分组成：
- 环境光（Ambient）：场景中的其他间接光照
- 漫反射（Diffuse）：散射部分（大但不光亮）
- 高光反射（Specular）：镜面反射部分（小而亮）
在上图中，光线是白色的，环境光和漫反射部分是蓝色的，高光部分是白色的。
高光部分反射的光区域比较小，但强度很大；漫反射部分的强度根据物体表面方向的不同而不同；而环境光部分是跟方向无关的。
Phong 反射模型的完整公式如下：
光源部分：
lights：所有光源的集合，对于每盏光，可分为高光和漫反射两部分
i s i_s is：光源高光部分的强度（可以理解为就是RGB）
i d i_d id：光源漫反射部分的强度（可以理解为就是RGB）
i a i_a ia：环境光部分的强度（可以理解为就是RGB）
场景中材质的参数：
k s k_s ks：对入射光的高光反射常数（镜面反射系数）
k d k_d kd：对入射光的漫反射常数
k a k_a ka：对环境光的反射常数
α：是和物体材质有关的常量，决定了镜面高光的范围。光泽度 α 越大，则亮点越小。
几个向量（全部归一化）：
L m ^ \hat{L_m} Lm^：物体表面某点指向光源m的位置的向量
N ^ \hat{N} N^：物体表面某点的法线
R m ^ \hat{R_m} Rm^：光源在物体表面某点发生镜面反射的方向
V ^ \hat{V} V^：物体表面某点指向摄像机位置的向量
如何实现完整的 Phong 反射模型?
Phong 反射模型的实现整个过程分为三步：定义光源模型、定义几何体材质和实现着色器。
1、定义光源模型
实现定义一个 Phong 类：用于添加和删除光源，并把光源的属性通过 uniforms 访问器属性转换成对应的 uniform 变量。
class Phong { constructor(ambientLight = [0.5, 0.5, 0.5]) { this.ambientLight = ambientLight; this.directionalLights = new Set(); this.pointLights = new Set(); this.spotLights = new Set(); } addLight(light) { const {position, direction, color, decay, angle} = light; if(!position && !direction) throw new TypeError('invalid light'); light.color = color || [1, 1, 1]; if(!position) this.directionalLights.add(light); else { light.decay = decay || [0, 0, 1]; if(!angle) { this.pointLights.add(light); } else { this.spotLights.add(light); } } } removeLight(light) { if(this.directionalLights.has(light)) this.directionalLights.delete(light); else if(this.pointLights.has(light)) this.pointLights.delete(light); else if(this.spotLights.has(light)) this.spotLights.delete(light); } get uniforms() { const MAX_LIGHT_COUNT = 16; // 最多每种光源设置16个 this._lightData = this._lightData || {}; const lightData = this._lightData; lightData.directionalLightDirection = lightData.directionalLightDirection || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.directionalLightColor = lightData.directionalLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightPosition = lightData.pointLightPosition || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightColor = lightData.pointLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightDecay = lightData.pointLightDecay || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightDirection = lightData.spotLightDirection || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightPosition = lightData.spotLightPosition || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightColor = lightData.spotLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightDecay = lightData.spotLightDecay || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightAngle = lightData.spotLightAngle || {value: new Float32Array(MAX_LIGHT_COUNT)}; [...this.directionalLights].forEach((light, idx) => { lightData.directionalLightDirection.value.set(light.direction, idx * 3); lightData.directionalLightColor.value.set(light.color, idx * 3); }); [...this.pointLights].forEach((light, idx) => { lightData.pointLightPosition.value.set(light.position, idx * 3); lightData.pointLightColor.value.set(light.color, idx * 3); lightData.pointLightDecay.value.set(light.decay, idx * 3); }); [...this.spotLights].forEach((light, idx) => { lightData.spotLightPosition.value.set(light.position, idx * 3); lightData.spotLightColor.value.set(light.color, idx * 3); lightData.spotLightDecay.value.set(light.decay, idx * 3); lightData.spotLightDirection.value.set(light.direction, idx * 3); lightData.spotLightAngle.value[idx] = light.angle; }); return { ambientLight: {value: this.ambientLight}, ...lightData, }; } }
2、定义几何体材质
实现一个 Matrial 类，来定义物体的材质。通过 uniforms 访问器属性，获得它的 uniform 数据结构形式。
class Material { constructor(reflection, specularFactor = 0, shininess = 50) { this.reflection = reflection; this.specularFactor = specularFactor; this.shininess = shininess; } get uniforms() { return { materialReflection: {value: this.reflection}, specularFactor: {value: this.specularFactor}, shininess: {value: this.shininess}, }; } }
3、实现着色器
下面看一下支持 phong 反射模型的片元着色器是怎么处理的。
首先声明了 vec3 和 float 数组，数组的大小为 16。
#define MAX_LIGHT_COUNT 16 uniform mat4 viewMatrix; uniform vec3 ambientLight; uniform vec3 directionalLightDirection[MAX_LIGHT_COUNT]; uniform vec3 directionalLightColor[MAX_LIGHT_COUNT]; uniform vec3 pointLightColor[MAX_LIGHT_COUNT]; uniform vec3 pointLightPosition[MAX_LIGHT_COUNT]; uniform vec3 pointLightDecay[MAX_LIGHT_COUNT]; uniform vec3 spotLightColor[MAX_LIGHT_COUNT]; uniform vec3 spotLightDirection[MAX_LIGHT_COUNT]; uniform vec3 spotLightPosition[MAX_LIGHT_COUNT]; uniform vec3 spotLightDecay[MAX_LIGHT_COUNT]; uniform float spotLightAngle[MAX_LIGHT_COUNT]; uniform vec3 materialReflection; uniform float shininess; uniform float specularFactor; varying vec3 vNormal; varying vec3 vPos; varying vec3 vCameraPos;
然后实现计算 phong 反射模型的主体逻辑，循环处理每个光源，再计算入射光方向，然后计算漫反射以及镜面反射，最终将结果返回。
float getSpecular(vec3 dir, vec3 normal, vec3 eye) { vec3 reflectionLight = reflect(-dir, normal); float eyeCos = max(dot(eye, reflectionLight), 0.0); return specularFactor * pow(eyeCos, shininess); } vec4 phongReflection(vec3 pos, vec3 normal, vec3 eye) { float specular = 0.0; vec3 diffuse = vec3(0); // 处理平行光 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 dir = directionalLightDirection[i]; if(dir.x == 0.0 && dir.y == 0.0 && dir.z == 0.0) continue; vec4 d = viewMatrix * vec4(dir, 0.0); dir = normalize(-d.xyz); float cos = max(dot(dir, normal), 0.0); diffuse += cos * directionalLightColor[i]; specular += getSpecular(dir, normal, eye); } // 处理点光源 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 decay = pointLightDecay[i]; if(decay.x == 0.0 && decay.y == 0.0 && decay.z == 0.0) continue; vec3 dir = (viewMatrix * vec4(pointLightPosition[i], 1.0)).xyz - pos; float dis = length(dir); dir = normalize(dir); float cos = max(dot(dir, normal), 0.0); float d = min(1.0, 1.0 / (decay.x * pow(dis, 2.0) + decay.y * dis + decay.z)); diffuse += d * cos * pointLightColor[i]; specular += getSpecular(dir, normal, eye); } // 处理聚光灯 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 decay = spotLightDecay[i]; if(decay.x == 0.0 && decay.y == 0.0 && decay.z == 0.0) continue; vec3 dir = (viewMatrix * vec4(spotLightPosition[i], 1.0)).xyz - pos; float dis = length(dir); dir = normalize(dir); // 聚光灯的朝向 vec3 spotDir = (viewMatrix * vec4(spotLightDirection[i], 0.0)).xyz; // 通过余弦值判断夹角范围 float ang = cos(spotLightAngle[i]); float r = step(ang, dot(dir, normalize(-spotDir))); float cos = max(dot(dir, normal), 0.0); float d = min(1.0, 1.0 / (decay.x * pow(dis, 2.0) + decay.y * dis + decay.z)); diffuse += r * d * cos * spotLightColor[i]; specular += r * getSpecular(dir, normal, eye); } return vec4(diffuse, specular); }
最后，在 main 函数中，调用 phongReflection 函数来合成颜色。
void main() { vec3 eyeDirection = normalize(vCameraPos - vPos); vec4 phong = phongReflection(vPos, vNormal, eyeDirection); // 合成颜色 gl_FragColor.rgb = phong.w + (phong.xyz + ambientLight) * materialReflection; gl_FragColor.a = 1.0; }
下面实战尝试一下：
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>如何实现完整的 Phong 反射模型</title> <style> canvas { border: 1px dashed #fa8072; } </style> </head> <body> <canvas width="512" height="512"></canvas> <script type="module"> import { Renderer, Camera, Transform, Sphere, Box, Cylinder, Torus, Orbit, Program, Mesh, Color } from './common/lib/ogl/index.mjs'; // JavaScript Controller Library import * as dat from './common/lib/dat.gui.js'; console.log(dat) // 用于添加和删除光源 class Phong { constructor(ambientLight = [0.5, 0.5, 0.5]) { this.ambientLight = ambientLight; this.directionalLights = new Set(); this.pointLights = new Set(); this.spotLights = new Set(); } addLight(light) { const {position, direction, color, decay, angle} = light; if(!position && !direction) throw new TypeError('invalid light'); light.color = color || [1, 1, 1]; if(!position) this.directionalLights.add(light); else { light.decay = decay || [0, 0, 1]; if(!angle) { this.pointLights.add(light); } else { this.spotLights.add(light); } } } removeLight(light) { if(this.directionalLights.has(light)) this.directionalLights.delete(light); else if(this.pointLights.has(light)) this.pointLights.delete(light); else if(this.spotLights.has(light)) this.spotLights.delete(light); } get uniforms() { const MAX_LIGHT_COUNT = 16; // 最多每种光源设置16个 this._lightData = this._lightData || {}; const lightData = this._lightData; lightData.directionalLightDirection = lightData.directionalLightDirection || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.directionalLightColor = lightData.directionalLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightPosition = lightData.pointLightPosition || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightColor = lightData.pointLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.pointLightDecay = lightData.pointLightDecay || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightDirection = lightData.spotLightDirection || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightPosition = lightData.spotLightPosition || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightColor = lightData.spotLightColor || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightDecay = lightData.spotLightDecay || {value: new Float32Array(MAX_LIGHT_COUNT * 3)}; lightData.spotLightAngle = lightData.spotLightAngle || {value: new Float32Array(MAX_LIGHT_COUNT)}; [...this.directionalLights].forEach((light, idx) => { lightData.directionalLightDirection.value.set(light.direction, idx * 3); lightData.directionalLightColor.value.set(light.color, idx * 3); }); [...this.pointLights].forEach((light, idx) => { lightData.pointLightPosition.value.set(light.position, idx * 3); lightData.pointLightColor.value.set(light.color, idx * 3); lightData.pointLightDecay.value.set(light.decay, idx * 3); }); [...this.spotLights].forEach((light, idx) => { lightData.spotLightPosition.value.set(light.position, idx * 3); lightData.spotLightColor.value.set(light.color, idx * 3); lightData.spotLightDecay.value.set(light.decay, idx * 3); lightData.spotLightDirection.value.set(light.direction, idx * 3); lightData.spotLightAngle.value[idx] = light.angle; }); return { ambientLight: {value: this.ambientLight}, ...lightData, }; } } // 用于定义物体的材质 class Material { constructor(reflection, specularFactor = 0, shininess = 50) { this.reflection = reflection; this.specularFactor = specularFactor; this.shininess = shininess; } get uniforms() { return { materialReflection: {value: this.reflection}, specularFactor: {value: this.specularFactor}, shininess: {value: this.shininess}, }; } } const canvas = document.querySelector('canvas'); const renderer = new Renderer({ canvas, width: 512, height: 512, }); const gl = renderer.gl; gl.clearColor(1, 1, 1, 1); const camera = new Camera(gl, {fov: 35}); camera.position.set(0, 0, 10); camera.lookAt([0, 0, 0]); const scene = new Transform(); // 在顶点着色器中，将物体变换后的坐标传给片元着色器 const vertex = ` precision highp float; attribute vec3 position; attribute vec3 normal; uniform mat4 modelViewMatrix; uniform mat4 viewMatrix; uniform mat4 projectionMatrix; uniform mat3 normalMatrix; uniform vec3 cameraPosition; varying vec3 vNormal; varying vec3 vPos; varying vec3 vCameraPos; void main() { vec4 pos = modelViewMatrix * vec4(position, 1.0); vPos = pos.xyz; // 求光源与点坐标的方向向量 vCameraPos = (viewMatrix * vec4(cameraPosition, 1.0)).xyz; vNormal = normalize(normalMatrix * normal); gl_Position = projectionMatrix * pos; } `; // 传入环境光 ambientLight 和材质反射率 materialReflection // 片元着色器中计算光线方向与法向量夹角的余弦 const fragment = ` precision highp float; #define MAX_LIGHT_COUNT 16 uniform mat4 viewMatrix; uniform vec3 ambientLight; uniform vec3 directionalLightDirection[MAX_LIGHT_COUNT]; uniform vec3 directionalLightColor[MAX_LIGHT_COUNT]; uniform vec3 pointLightColor[MAX_LIGHT_COUNT]; uniform vec3 pointLightPosition[MAX_LIGHT_COUNT]; uniform vec3 pointLightDecay[MAX_LIGHT_COUNT]; uniform vec3 spotLightColor[MAX_LIGHT_COUNT]; uniform vec3 spotLightDirection[MAX_LIGHT_COUNT]; uniform vec3 spotLightPosition[MAX_LIGHT_COUNT]; uniform vec3 spotLightDecay[MAX_LIGHT_COUNT]; uniform float spotLightAngle[MAX_LIGHT_COUNT]; uniform vec3 materialReflection; uniform float shininess; uniform float specularFactor; varying vec3 vNormal; varying vec3 vPos; varying vec3 vCameraPos; float getSpecular(vec3 dir, vec3 normal, vec3 eye) { vec3 reflectionLight = reflect(-dir, normal); float eyeCos = max(dot(eye, reflectionLight), 0.0); return specularFactor * pow(eyeCos, shininess); } vec4 phongReflection(vec3 pos, vec3 normal, vec3 eye) { float specular = 0.0; vec3 diffuse = vec3(0); // 处理平行光 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 dir = directionalLightDirection[i]; if(dir.x == 0.0 && dir.y == 0.0 && dir.z == 0.0) continue; vec4 d = viewMatrix * vec4(dir, 0.0); dir = normalize(-d.xyz); float cos = max(dot(dir, normal), 0.0); diffuse += cos * directionalLightColor[i]; specular += getSpecular(dir, normal, eye); } // 处理点光源 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 decay = pointLightDecay[i]; if(decay.x == 0.0 && decay.y == 0.0 && decay.z == 0.0) continue; vec3 dir = (viewMatrix * vec4(pointLightPosition[i], 1.0)).xyz - pos; float dis = length(dir); dir = normalize(dir); float cos = max(dot(dir, normal), 0.0); float d = min(1.0, 1.0 / (decay.x * pow(dis, 2.0) + decay.y * dis + decay.z)); diffuse += d * cos * pointLightColor[i]; specular += getSpecular(dir, normal, eye); } // 处理聚光灯 for(int i = 0; i < MAX_LIGHT_COUNT; i++) { vec3 decay = spotLightDecay[i]; if(decay.x == 0.0 && decay.y == 0.0 && decay.z == 0.0) continue; vec3 dir = (viewMatrix * vec4(spotLightPosition[i], 1.0)).xyz - pos; float dis = length(dir); dir = normalize(dir); // 聚光灯的朝向 vec3 spotDir = (viewMatrix * vec4(spotLightDirection[i], 0.0)).xyz; // 通过余弦值判断夹角范围 float ang = cos(spotLightAngle[i]); float r = step(ang, dot(dir, normalize(-spotDir))); float cos = max(dot(dir, normal), 0.0); float d = min(1.0, 1.0 / (decay.x * pow(dis, 2.0) + decay.y * dis + decay.z)); diffuse += r * d * cos * spotLightColor[i]; specular += r * getSpecular(dir, normal, eye); } return vec4(diffuse, specular); } void main() { vec3 eyeDirection = normalize(vCameraPos - vPos); vec4 phong = phongReflection(vPos, vNormal, eyeDirection); // 合成颜色 gl_FragColor.rgb = phong.w + (phong.xyz + ambientLight) * materialReflection; gl_FragColor.a = 1.0; } `; // 创建四个不同的几何体，初始化它们的环境光 ambientLight 以及材质反射率 materialReflection const sphereGeometry = new Sphere(gl); const cubeGeometry = new Box(gl); const cylinderGeometry = new Cylinder(gl); const torusGeometry = new Torus(gl); const phong = new Phong(); // 添加一个平行光 phong.addLight({ direction: [-1, 0, 0], }); // 添加两个点光源 phong.addLight({ position: [-3, 3, 0], color: [0.5, 1, 1], }); phong.addLight({ position: [3, 3, 0], color: [1, 0.5, 1], }); // 创建 4 个 matrial 对象，分别对应要显示的四个几何体的材质。 const matrial1 = new Material(new Color('#fa8072'), 2.0); const matrial2 = new Material(new Color('#daa520'), 2.0); const matrial3 = new Material(new Color('#2e8b57'), 2.0); const matrial4 = new Material(new Color('#6a5acd'), 2.0); const program1 = new Program(gl, { vertex, fragment, uniforms: { ...matrial1.uniforms, ...phong.uniforms, }, }); const program2 = new Program(gl, { vertex, fragment, uniforms: { ...matrial2.uniforms, ...phong.uniforms, }, }); const program3 = new Program(gl, { vertex, fragment, uniforms: { ...matrial3.uniforms, ...phong.uniforms, }, }); const program4 = new Program(gl, { vertex, fragment, uniforms: { ...matrial4.uniforms, ...phong.uniforms, }, }); const torus = new Mesh(gl, {geometry: torusGeometry, program: program1}); torus.position.set(0, 1.3, 0); torus.setParent(scene); const sphere = new Mesh(gl, {geometry: sphereGeometry, program: program2}); sphere.position.set(1.3, 0, 0); sphere.setParent(scene); const cube = new Mesh(gl, {geometry: cubeGeometry, program: program3}); cube.position.set(0, -1.3, 0); cube.setParent(scene); const cylinder = new Mesh(gl, {geometry: cylinderGeometry, program: program4}); cylinder.position.set(-1.3, 0, 0); cylinder.setParent(scene); const controls = new Orbit(camera); // 添加动画 requestAnimationFrame(update); function update() { requestAnimationFrame(update); controls.update(); torus.rotation.y -= 0.02; sphere.rotation.y -= 0.03; cube.rotation.y -= 0.04; cylinder.rotation.y -= 0.02; renderer.render({scene, camera}); } // 添加控制 const gui = new dat.GUI(); const palette = { light: '#FFFFFF', reflection1: '#fa8072', // salmon rgb(250, 128, 114) [250/255, 128/255, 114/255, 1] reflection2: '#daa520', // goldenrod rgb(218, 165, 32) [218/255, 165/255, 32/255, 1] reflection3: '#2e8b57', // seagreen rgb(46, 139, 87) [46/255, 139/255, 87/255, 1] reflection4: '#6a5acd', // slateblue rgb(106, 90, 205) [106/255, 90/255, 205/255, 1] }; gui.addColor(palette, 'light').onChange((val) => { const color = new Color(val); program1.uniforms.ambientLight.value = color; program2.uniforms.ambientLight.value = color; program3.uniforms.ambientLight.value = color; program4.uniforms.ambientLight.value = color; }); gui.addColor(palette, 'reflection1').onChange((val) => { program1.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection2').onChange((val) => { program2.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection3').onChange((val) => { program3.uniforms.materialReflection.value = new Color(val); }); gui.addColor(palette, 'reflection4').onChange((val) => { program4.uniforms.materialReflection.value = new Color(val); }); </script> </body> </html>
效果如下：
Phong 反射模型的局限性
Phong 反射模型没有考虑物体反射光对其他物体的影响，也没有考虑物体对光线遮挡产生的阴影。
