spring mvc 报404 求大家帮忙看看~?报错

http://limingnihao.iteye.com/blog/830409#comments

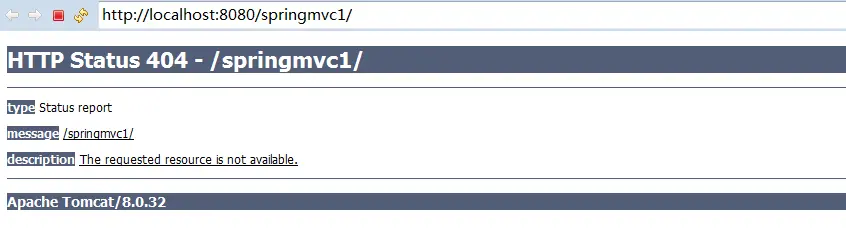

我是先自己配置了maven环境，然后再跟着这个教程搭建spring mvc框架，没有什么报错，但是最后运行项目的时候却出现404

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.scitc</groupId>
  <artifactId>springmvc1</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>springmvc1 Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.2</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-webmvc</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-aop</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-beans</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-context</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-core</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-expression</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
    <dependency>
    	<groupId>org.springframework</groupId>
    	<artifactId>spring-web</artifactId>
    	<version>4.1.4.RELEASE</version>
    </dependency>
<dependency>
    <groupId>jstl</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
</dependency>
  </dependencies>
  <build>
    <finalName>springmvc1</finalName>
  </build>
</project>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
                             http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         version="2.5" >

    <!-- 区分项目名称，防止默认重名 -->
    <context-param>
        <param-name>webAppRootKey</param-name>
        <param-value>maven.example.root</param-value>
    </context-param>

    <!-- Spring的log4j监听器 -->
    <listener>
        <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
    </listener>

    <!-- 字符集 过滤器  -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- Spring view分发器 -->
    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/dispatcher-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>

</web-app>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-3.0.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">

    <mvc:annotation-driven />
    <context:component-scan base-package="liming.maven.example" />

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/" />
        <property name="suffix" value=".jsp" />
    </bean>

</beans>

index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title>Insert title here</title>
    </head>

    <body>
        <c:out value="${liming}"></c:out>
    </body>
</html>

package springmvc1;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class GeneralController {

    @RequestMapping(value="index.do")
    public void index_jsp(Model model){
        model.addAttribute("liming", "黎明你好");
        System.out.println("index.jsp");
    }
}
